Lowest price with hight quality DXDC50 HB180 Separate inner box and Envelope triangle tea bag packaging machine supplier
- Category: >>>
- Supplier: Liaoyang Conoval Technology Co. Ltd.
Share on (60831136164):
Product Overview
Description
Application&Feature

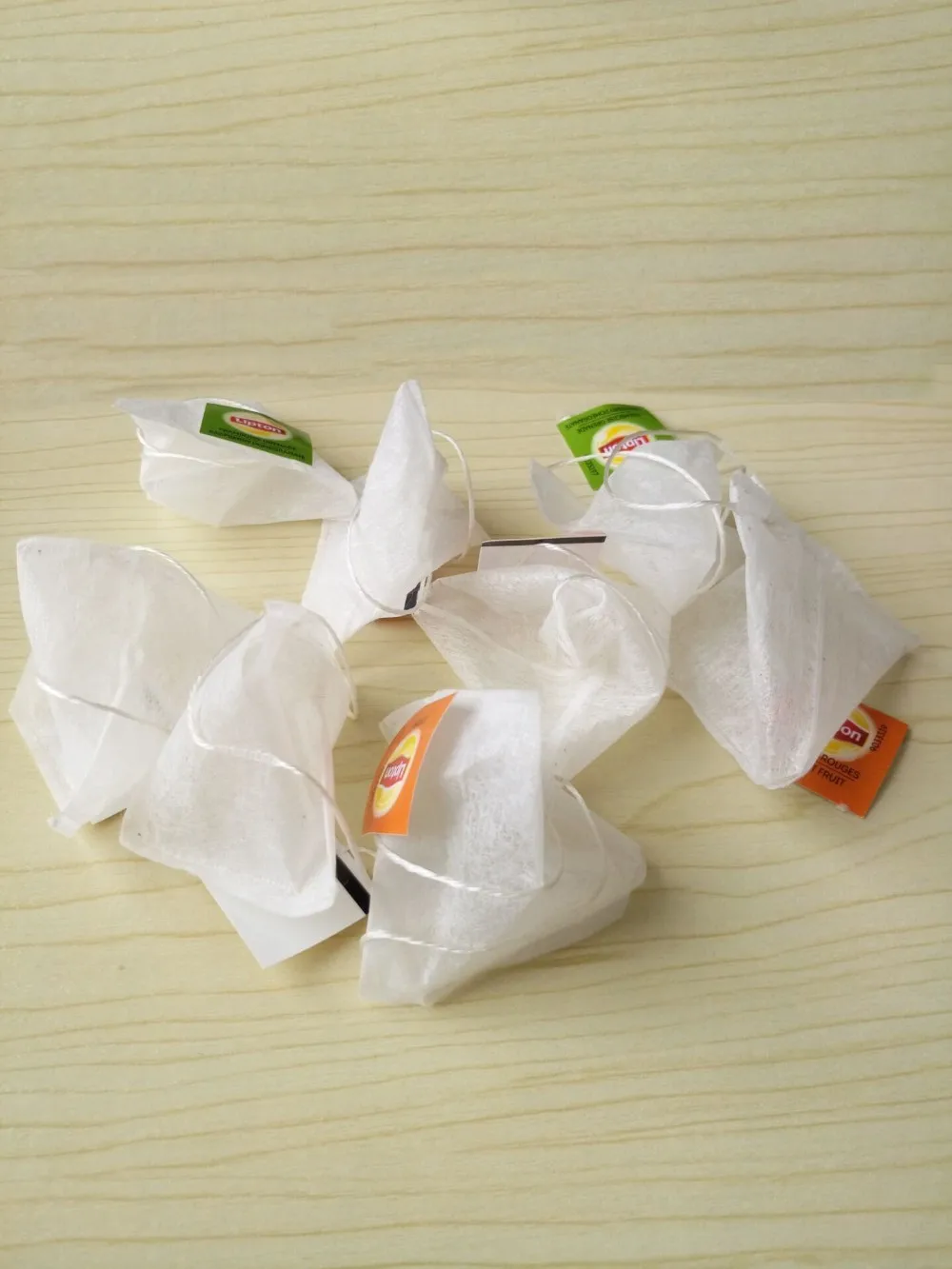

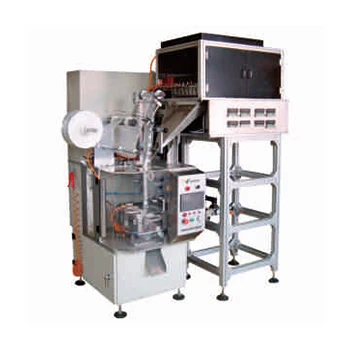

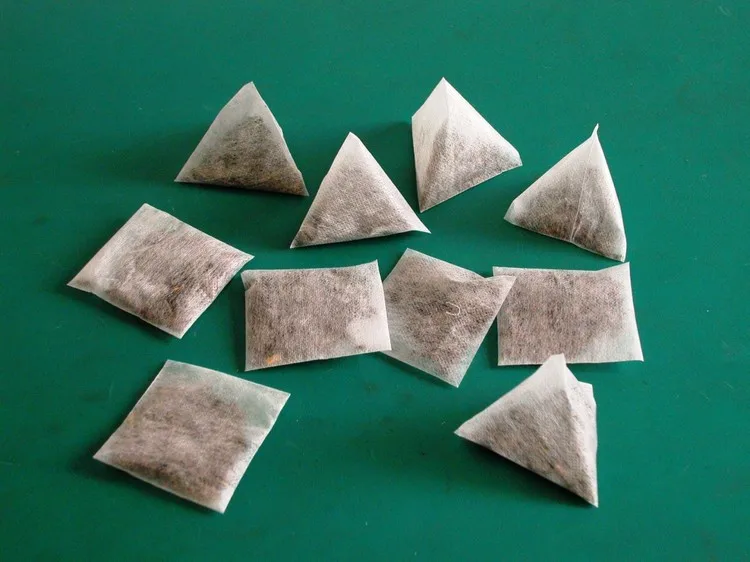

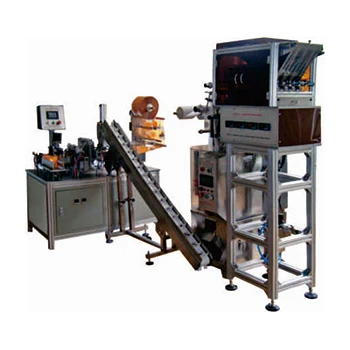

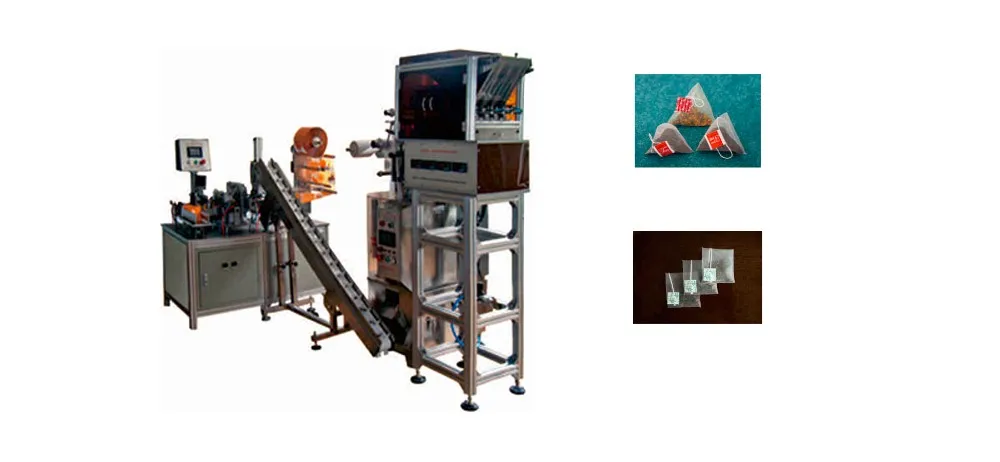

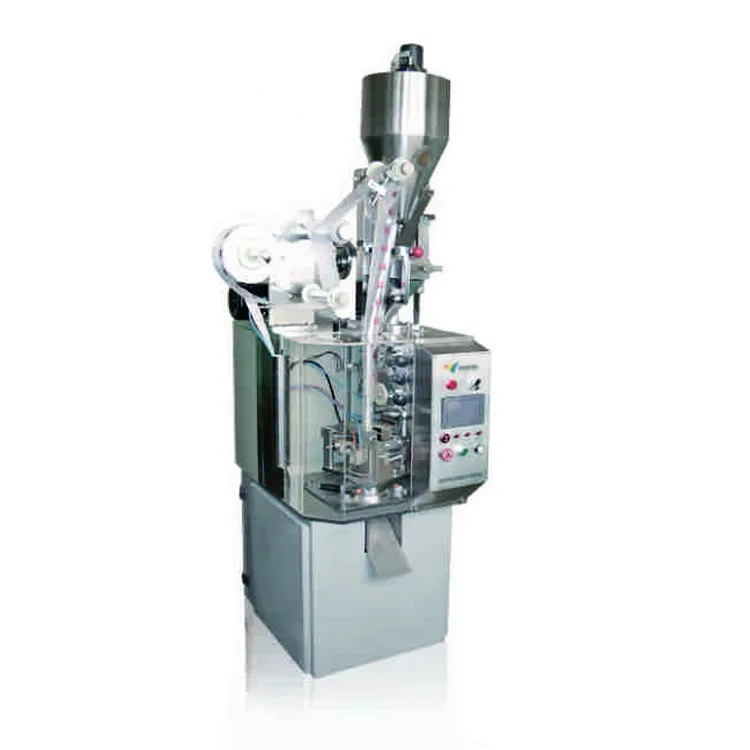

Model DXDC50 Pyramid tea bag packing machine is our new pyramid tea bag packing machine, and it could use the non-woven fabrics and nylon filter fabric to produce pyramid bags which have good perviousness and perspectivity. It is used for the packing of tea leaves, such as green tea, black tea, etc. And it is also used for the pyramid bag or flat bag packing of food spice whose taste exudes through bags.
Packing materials: Food standard non-woven fabrics, nylon, Pet, Pla etc. filter fabric.
Technical parameterS of DXDC50:
Max.output: 50-60 bags / minute
Filling range: 1.5-10 g
Size of flat bag: L: 40 - 80 mm, W: 60 - 90 mm
Width of material's roll: 120, 140, 160, 180 mm
Power supply: Customizable, 1.2 kW
Air pressure: 0.6 MPa
Overall dimension: 1000 x 900 x 2200 mm
Weight: 300 kg
Main Features
All 304 stainless steel cover including every screw with the body of the packing machine which conforms to the CE, CM & GMP Standard. (201 stainless iron is adopted by other's company .The exposed screw on the bosy of the packing machine maybe adopts iron material, it is very easy to rust).
Packaging material adopt the food grade of non-woven fabrics, nylon filters which makes he bag with high water permeability and visual perspective to give the person a decorous enjoy.
The machine adopt the advanced ultrasonic sealing technology make the products more beautiful.
Imported touch screen adopted by this packing machine can realize man-machine dialogue. Just need press one button, the machine will realize the triangle stereo tea bag and flat tea bag interconversion, it is very convinent to operate the machine.

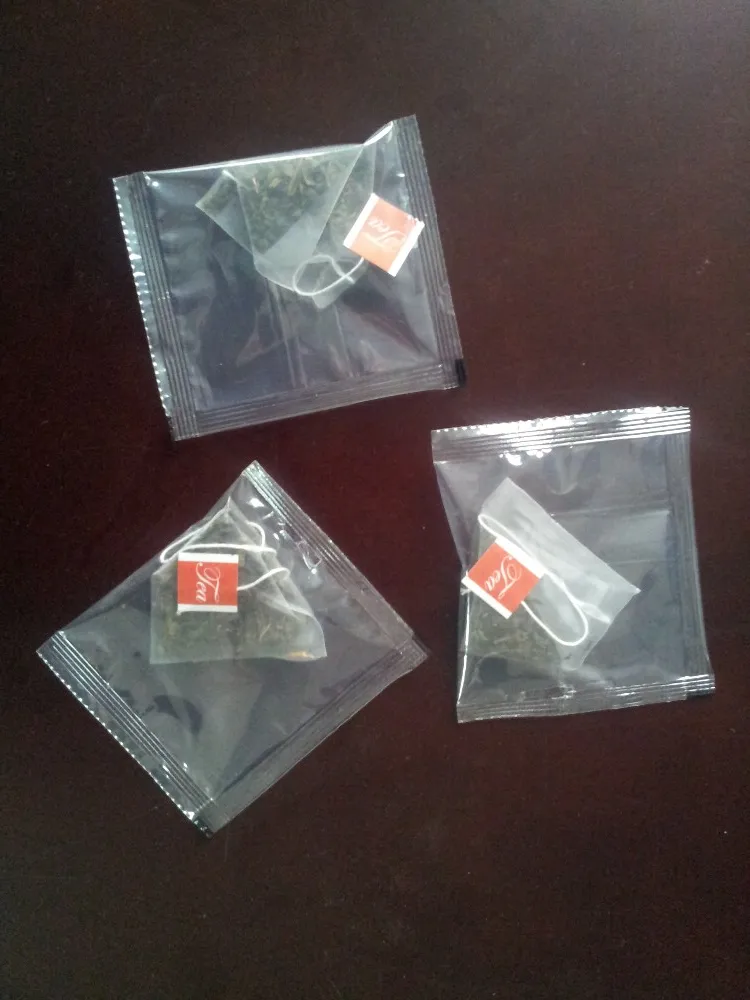

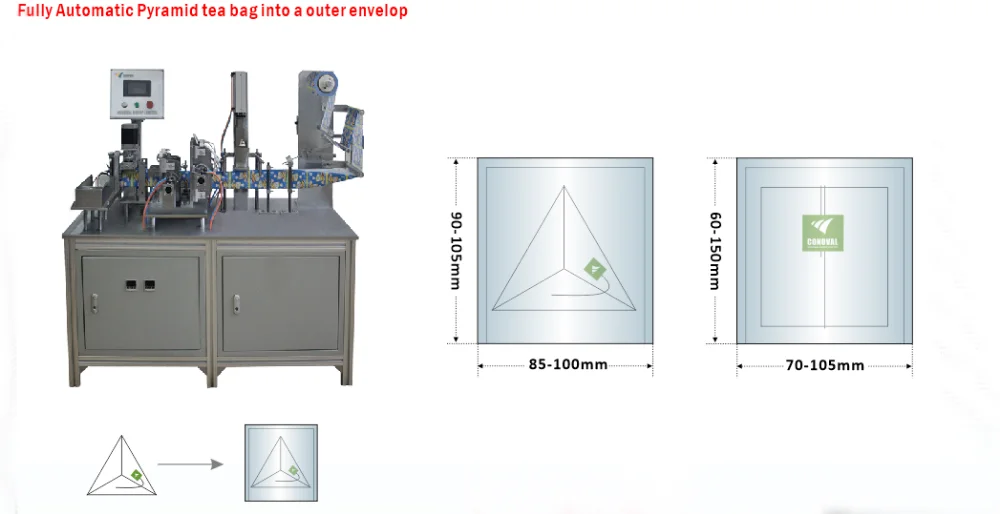

HB180 out envelpe
Technical paramETERS OF HB180:
Packing speed: 40-50 bags / minute
Packing type: Three side sealing
Size of flat bag: L: 90-105 mm, W: 80-100 mm
Heat sealing width: 6-8mm
Power supply: Customizable, 2.5 kW
Air pressure: 0.6 MPa
Overall dimension: 2000 x 900 x 1600 mm
Weight: 400 kg
Our Service
Act as a good adviser and assistant of clients to enable you get rich and generous returns on your investments.
Pre-sale service
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2. Make plans for choice according to the needs and special requirements of users in different sectors.
Selling service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3. Provide full set of documents as customer's requirements.
After-sale service
Provide considerate services to minimize clients' worries.
1. Assist clients to prepare for the first construction scheme;
2. Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate the troubles rapidly;
6. Provide technical support;
7. Establish long-term and friendly relationship.
Pre-sale service
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2. Make plans for choice according to the needs and special requirements of users in different sectors.
Selling service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3. Provide full set of documents as customer's requirements.
After-sale service
Provide considerate services to minimize clients' worries.
1. Assist clients to prepare for the first construction scheme;
2. Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate the troubles rapidly;
6. Provide technical support;
7. Establish long-term and friendly relationship.
Packaging
Our Company
As the industry chain of machinery manufacturing is being worldwide comprehensively upgraded, the future production operations will be more environmentally friendly, energy efficient and intelligent. CONOVAL insights into the continuous improvement of customers' demand and we are committed to providing one-stop service for consulting, design, planning, manufacturing, installation, commissioning, after-sales and follow-up upgrades for customers in the pharmaceutical, chemical and food industries. LIAOYANG CONOVAL TECHNOLOGY CO., LTD. is a leading manufacture and engineering service provider of pharmaceutical machinery, packaging machinery and other production lines belongs to CONOVAL INC.
