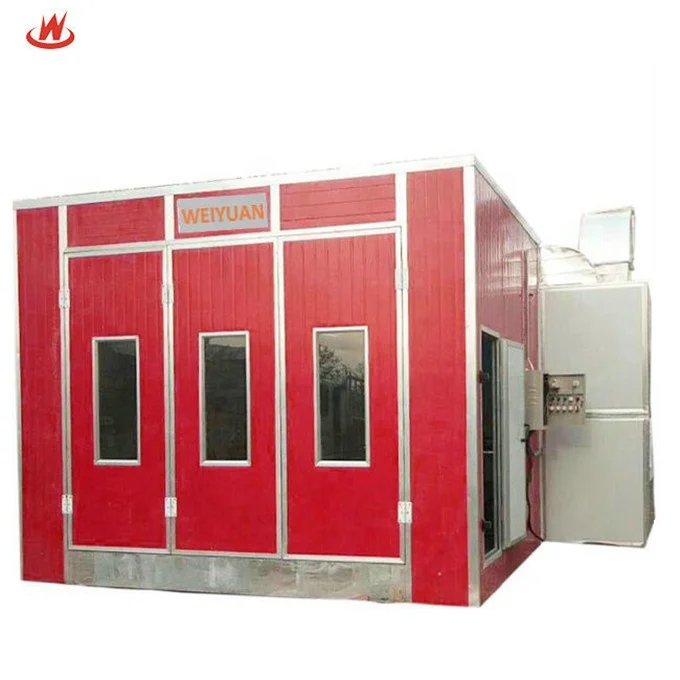

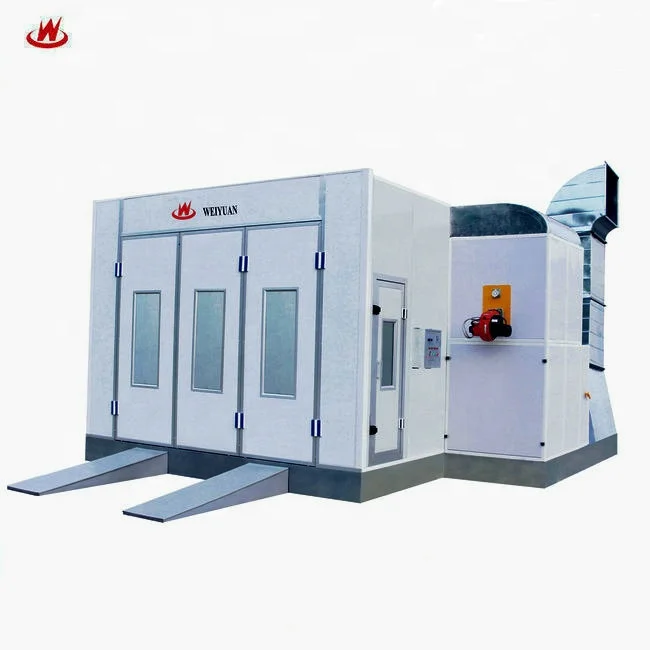

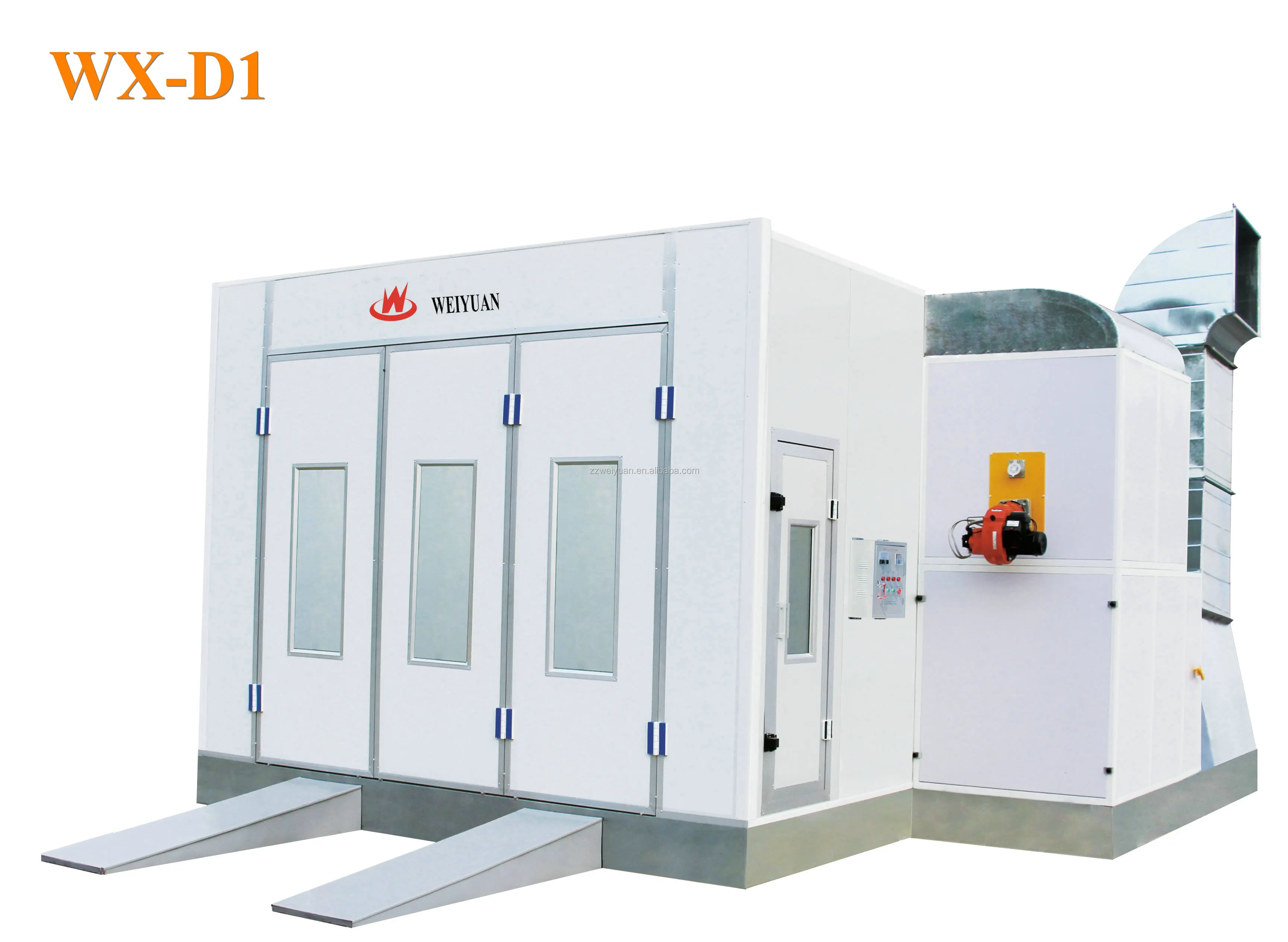

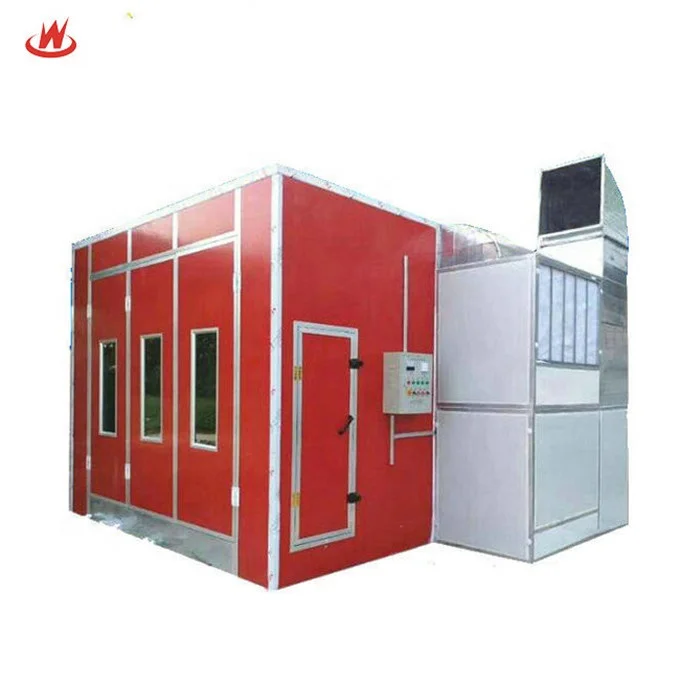

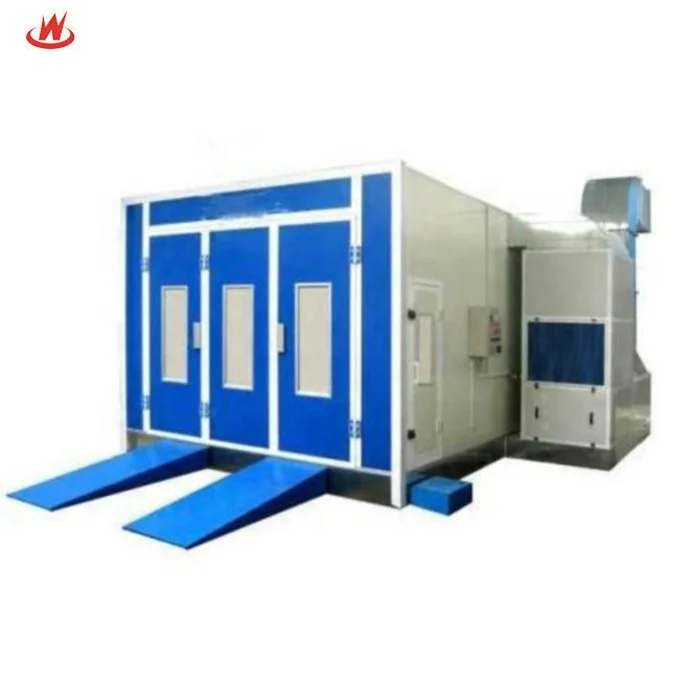

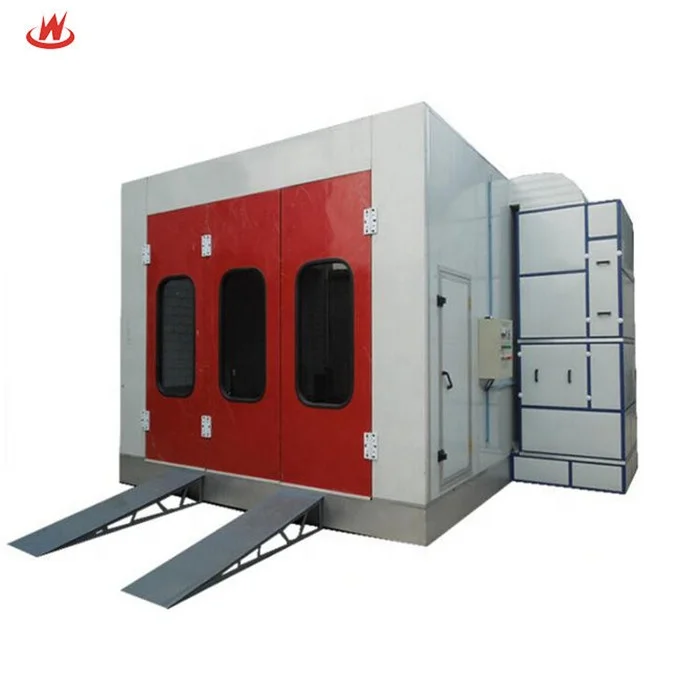

Wholesale in China Diesel Burner Spray Booth WX D1

Size:(mm)

7000*5200*3200

Front Door:(mm)

3000*2480

Inside Size:(mm)

6900*3900*2500

Total Power:(KW)

7KW

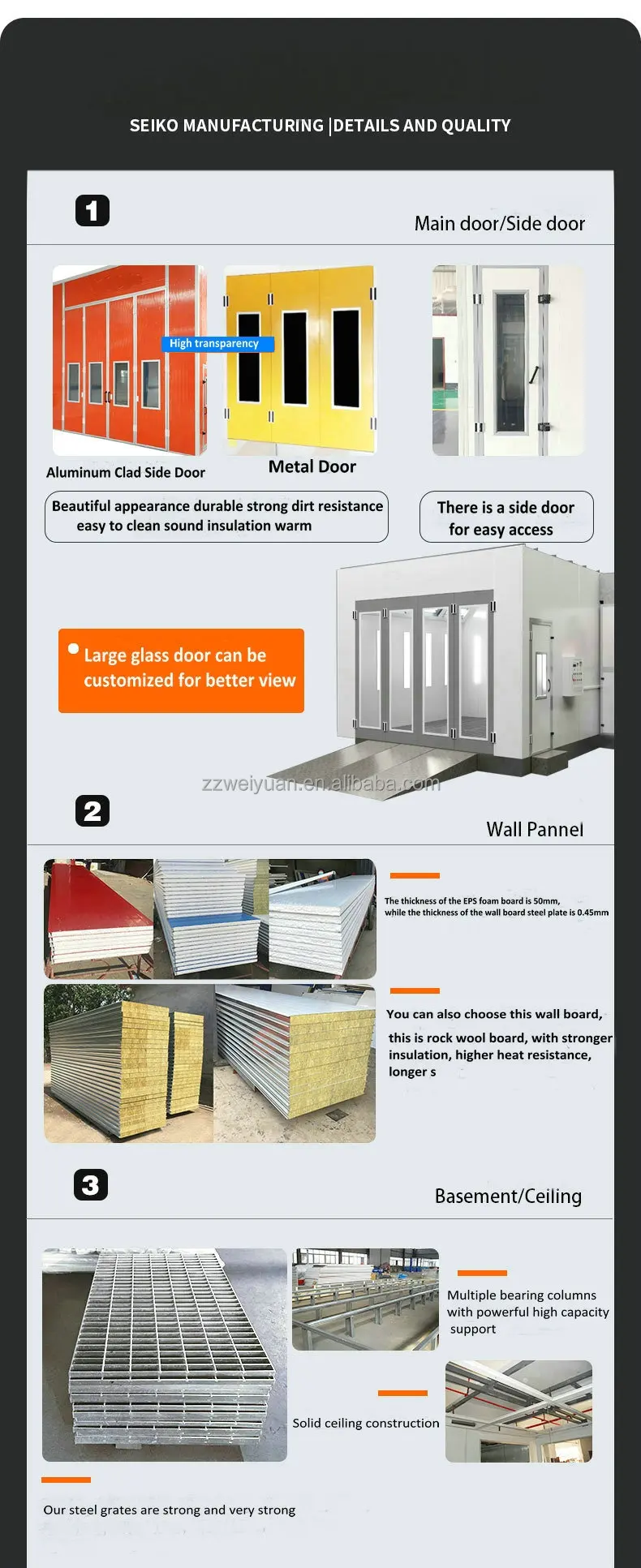

Wall Panel:

EPS Wall panels with concave type construction the thickness is 50mm

Entrance door

3 leafs aluminum alloy edging door size:3000*2480mm(W*H)

Personnel door

1 leaf,size is 700*1800(W*H)

Basement:

1:steel structure base hight is 300mm 2:two rows of grilles 30*4 belt steel ,three rows of diamond plates 3:two rampls 300*1800mm(H*L)

Intake Fans:

Two sets intake fan models YDW single power 3kw capactity:20000m³/h

Exhaust Fans:

Without

Fan Cabinet

Square tube welded frame,galvanized and sprayed steel plates cover,manual damper

Filtering system

Pre-filter effecting capture dust particles larger than 10um ceilling filter,efficiently capture dust particiles larger than 4um with a capture rate of ≥98%

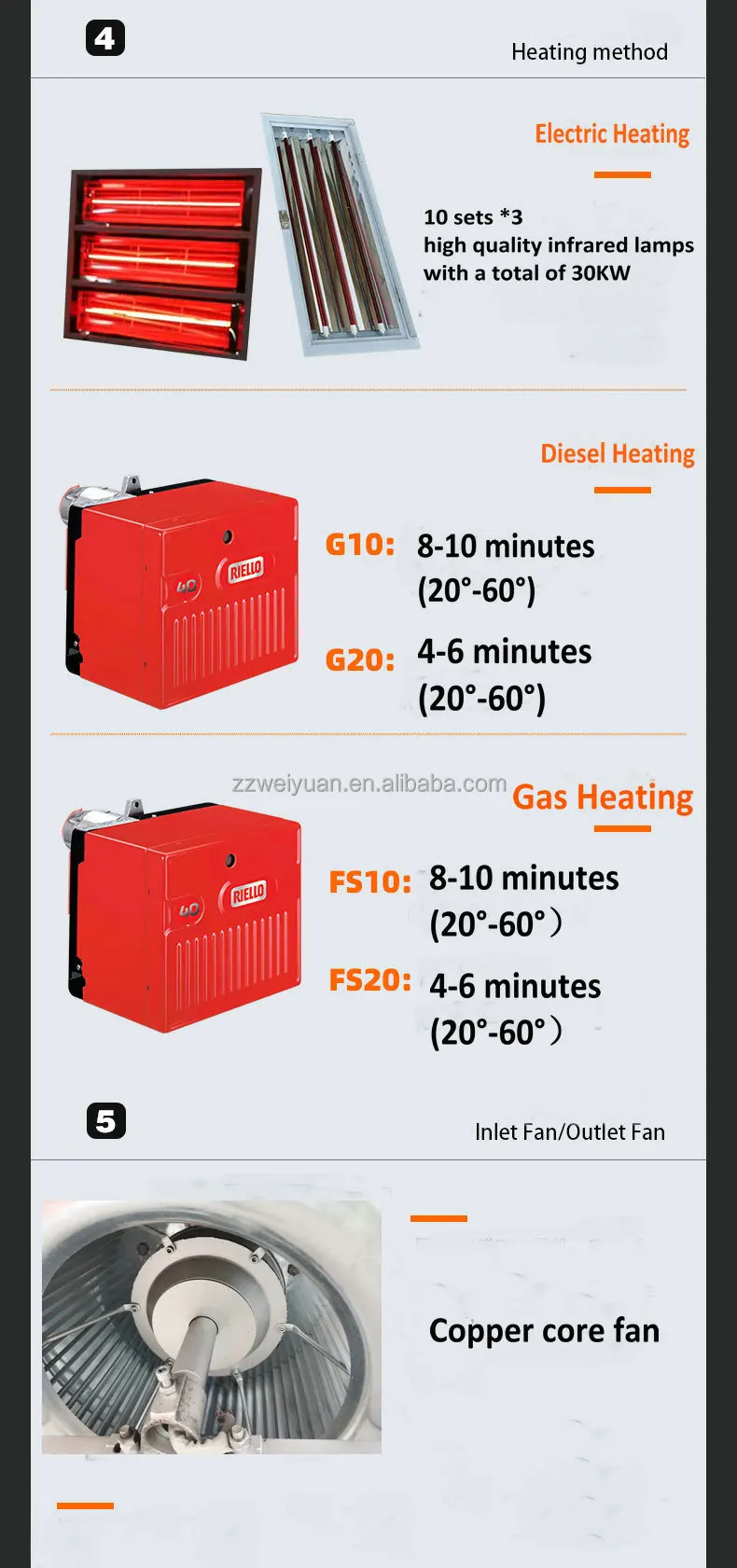

Heating System     (diesel burner or infrared heating for optional)

Italy BT14 Diesel Burner, 180000Kcal/h. Stainless steel heat exchanger,argon arc
welding.Auto-damper for changing spraying and baking.

Lighting System

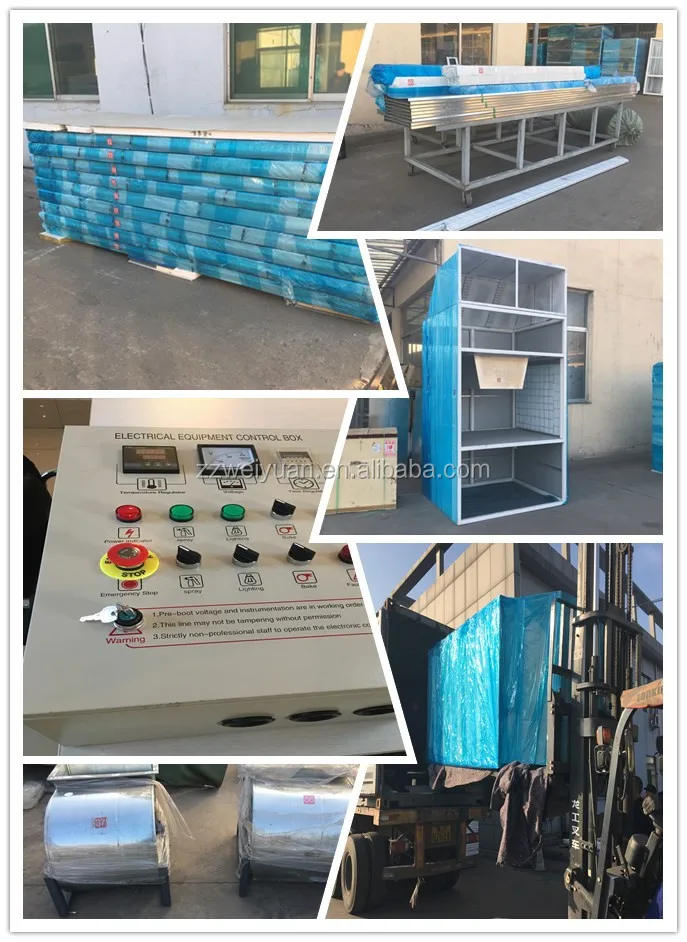

Controlling system

Power switch,spray/baking switch,light switch,emergency stop,etc.

Power supply

380V 3 PHASE /50HZ

Color:

Blue,red,orage,white,gray,etc.
