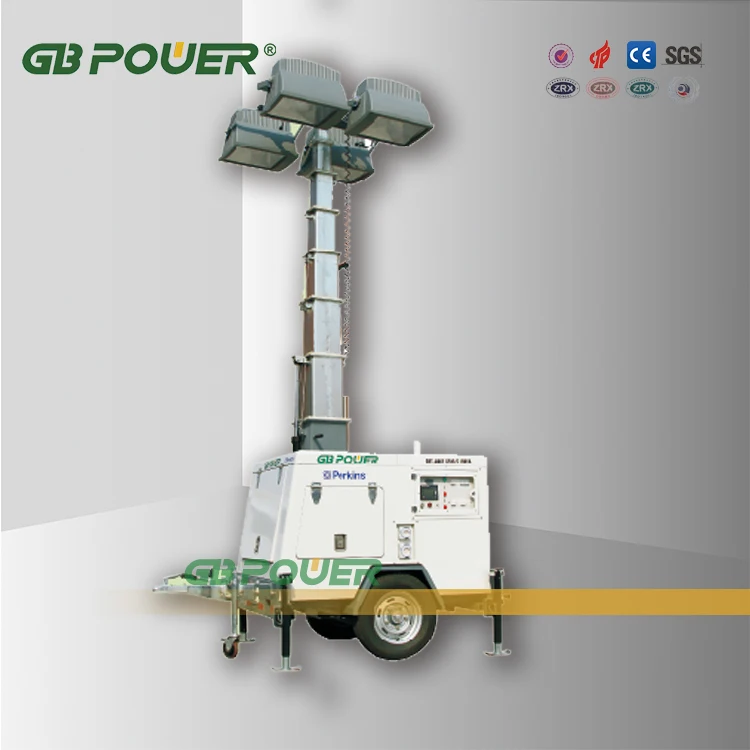

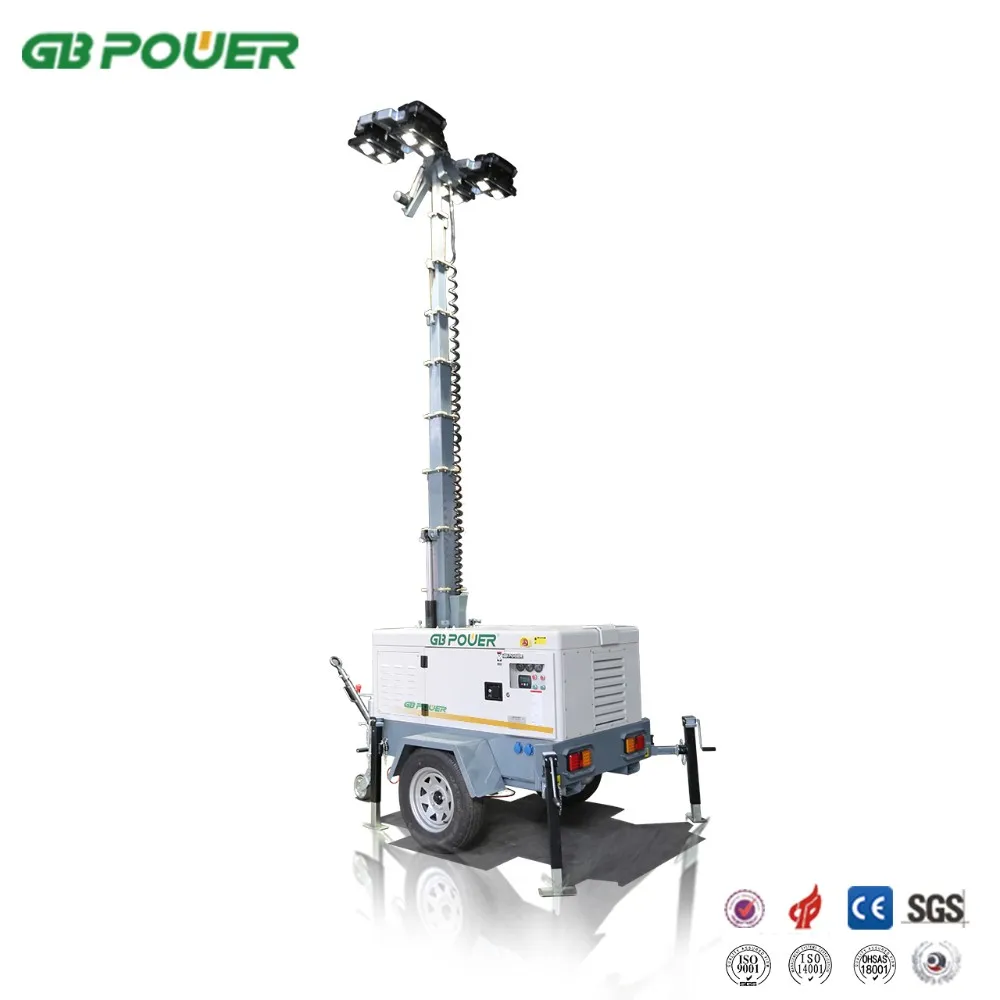

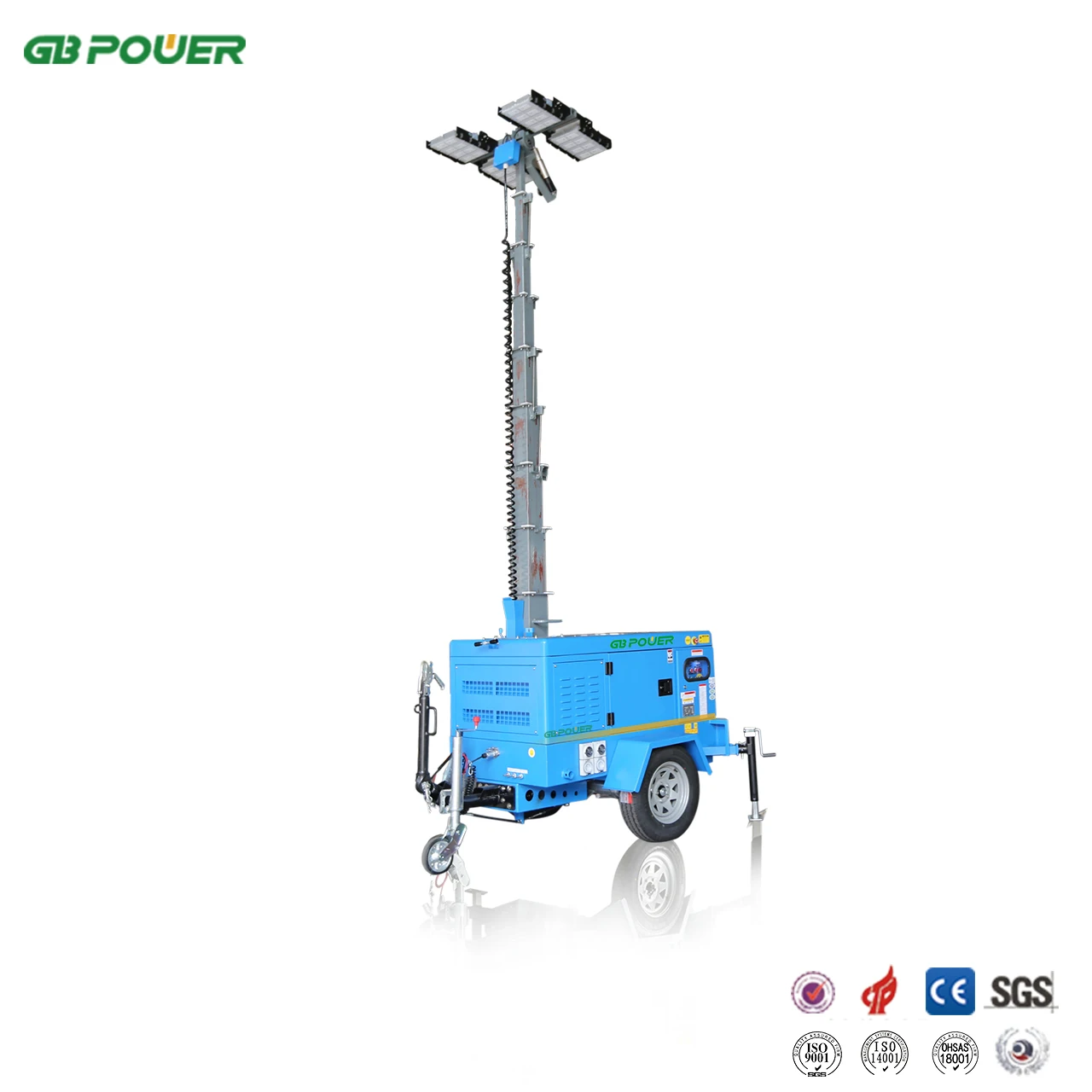

10kva perkins engine electric light tower and lighting tower manufacture

10kva perkins engine electric light tower and lighting tower manufacture

Category: >>>
Supplier: GB Power Co. Ltd. (Shanghai)

Price:$7,000.00 - $7,500.00

Quantity:

Product Overview

Description

Product Description

Noise Level 62 DB(A) At 7 Meters Away

Speed Limited: On road trailer speed ≤ 50KM/H

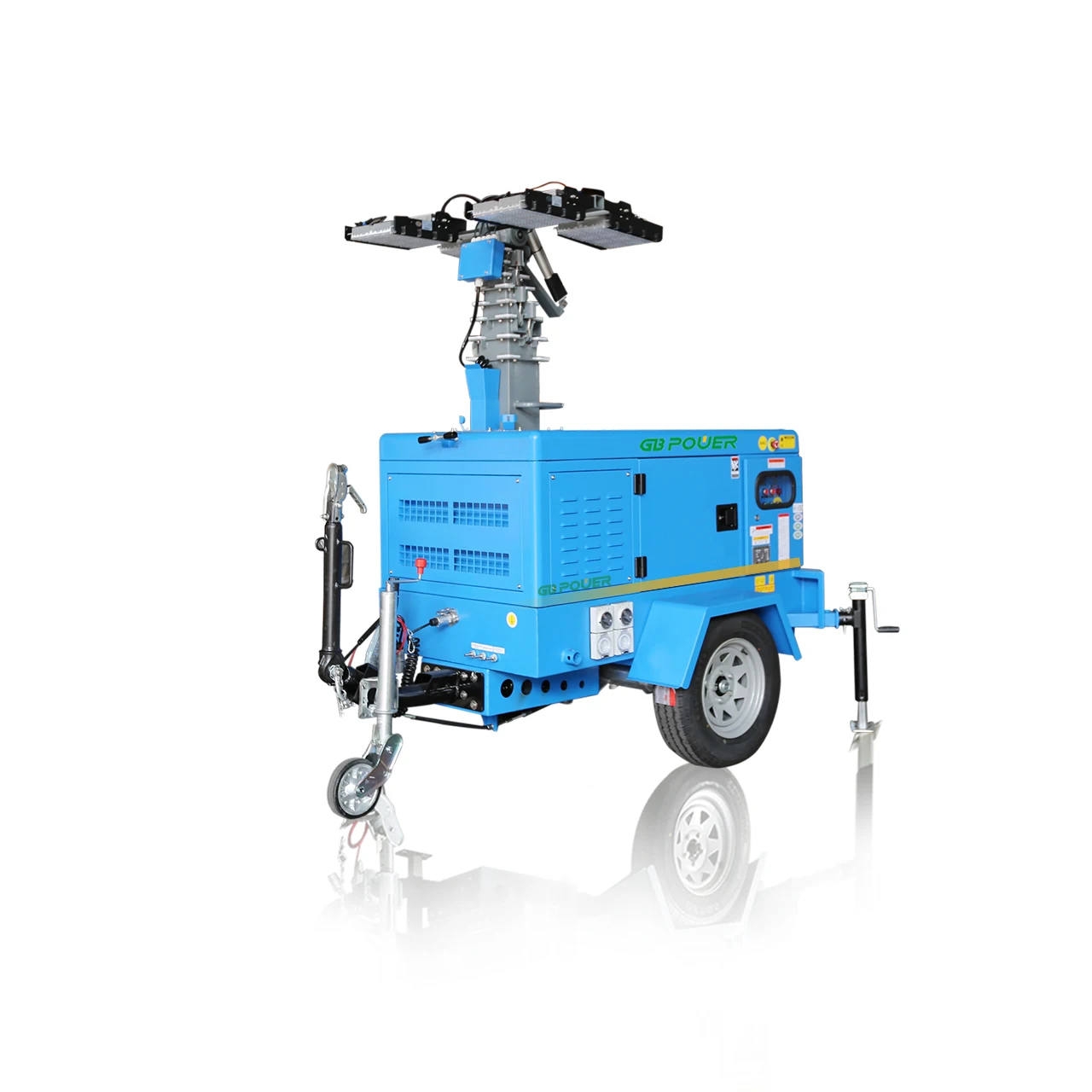

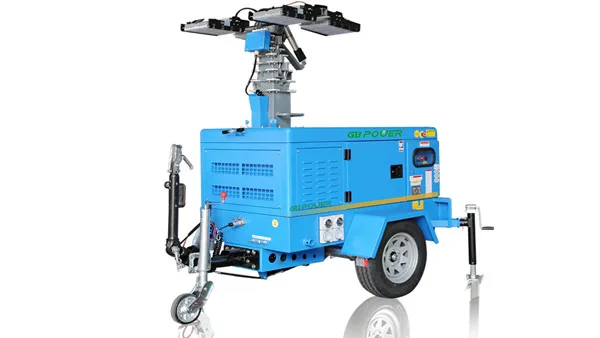

GBT-P6000, With Perkins engine, with Mecc Alte/Mecc Alte/ GB alternator. With two pieces of output sockets, power your electrical equipment while providing lighting.

\t Model	\t GBT-P6000
\t Rated Power	\t 8KW	\t 8KW
\t Type of Lights	\t LED 4360W / LED 4250W /Metal Halide Floodight 4*1000W
\t Luminous efficiency	\t 454000 Lumens / 437500 Lumens/4*55000 Lumens
\t Light Bar Tilt	\t 330% Electrically
\t Lamps Rotation	\t Electrically rotation of 90°
\t Mast Extension	\t Hydraulic Type
\t Mast Height	\t Fully extended 9000mm
\t Receive Dimension (LWH)	\t 239014302250mm
\t Weight (net)	\t 1150KG
\t Fuel Tank Capacity	\t 50L, Running for 20hrs / 100L, Running for 33hrs
\t Engine Brand	\t Perkins
\t Frequency(Hz)	\t 50	\t 60
\t Engine Model	\t 403D-11G	\t 403D-11G EPA Tier4
\t Alternator	\t Mecc Alte / GB Power
\t Controller	\t SmartGen / DeepSea

Main Features

1) Mast: Mast erection time ≤30s, 330⁰ manual rotation

2)Stabilizing Legs: Manual and Electric as option can be chosen

3)Trailer suspension & braking system: Leaf spring axle ( hexagonal rubber axle for 4HVP with drum brake

4)Hitch & Tow bar: Ball or O ring & Stable hitch in height

5)Output Sockets: 2 PCS ( AC Sockets, DC sockets as option can be provided )

6)EARTH LEAKAGE PROTECTION SYSTEM: Residual current device(RCD) protection, individual breaker switch for each light assembly.

Certifications

Detailed Images

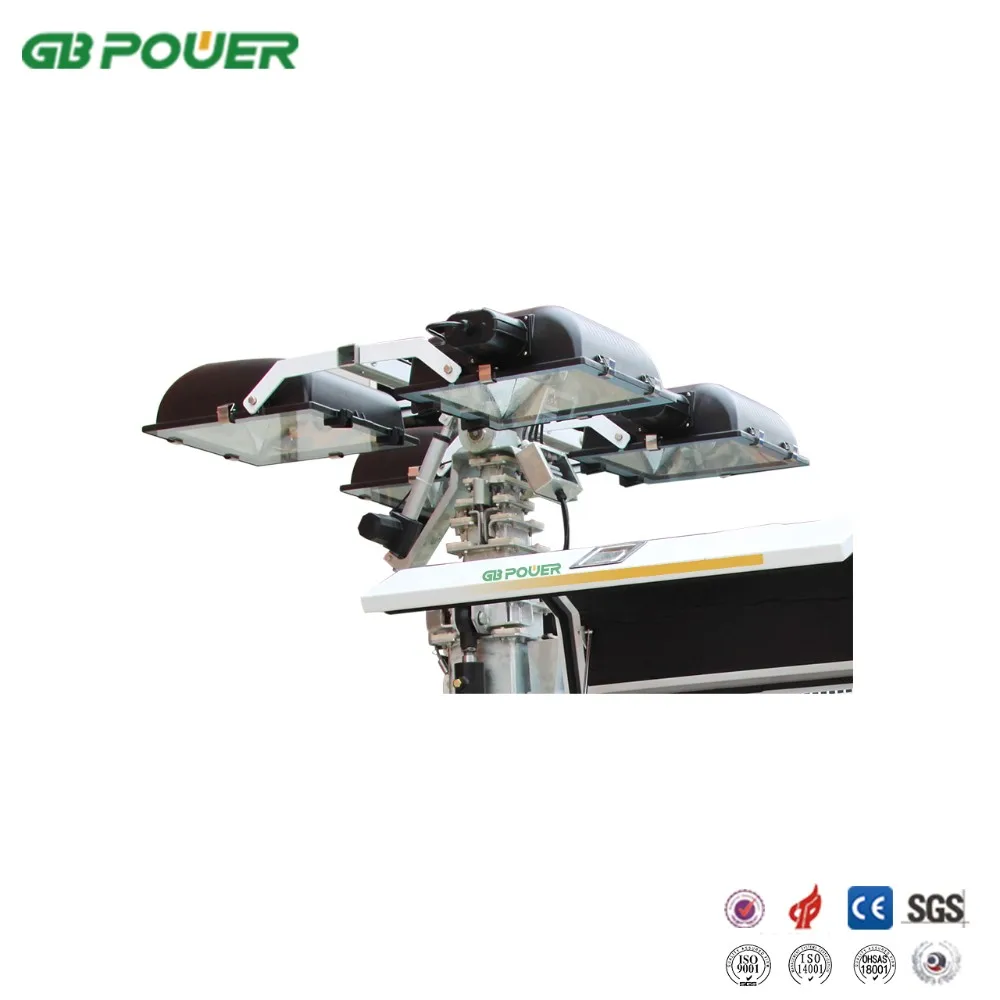

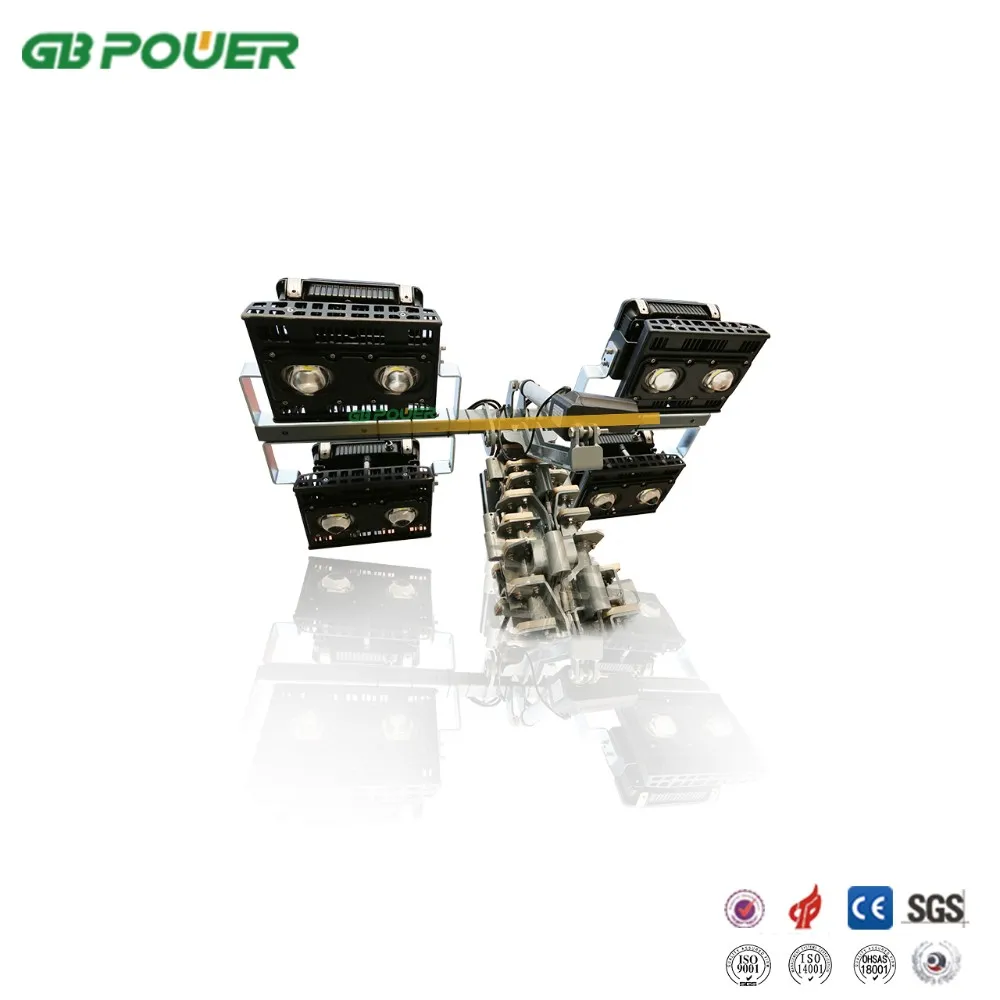

Lampholder

Each light can be rotated 180°,the mast can be rotated 359°
LED 4*360W, LED 4*240W, Metal Halide Floodlight 4*1000W.

Main Features

Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

Trailer Traction

Fit with all markets in the world, Approved by DOT ( Differnent market may has different outline, in the picture is only for reference, please refer to the actual product )
