Full automatic positive and negative(3 station) thermoforming machine

Product Overview

Description

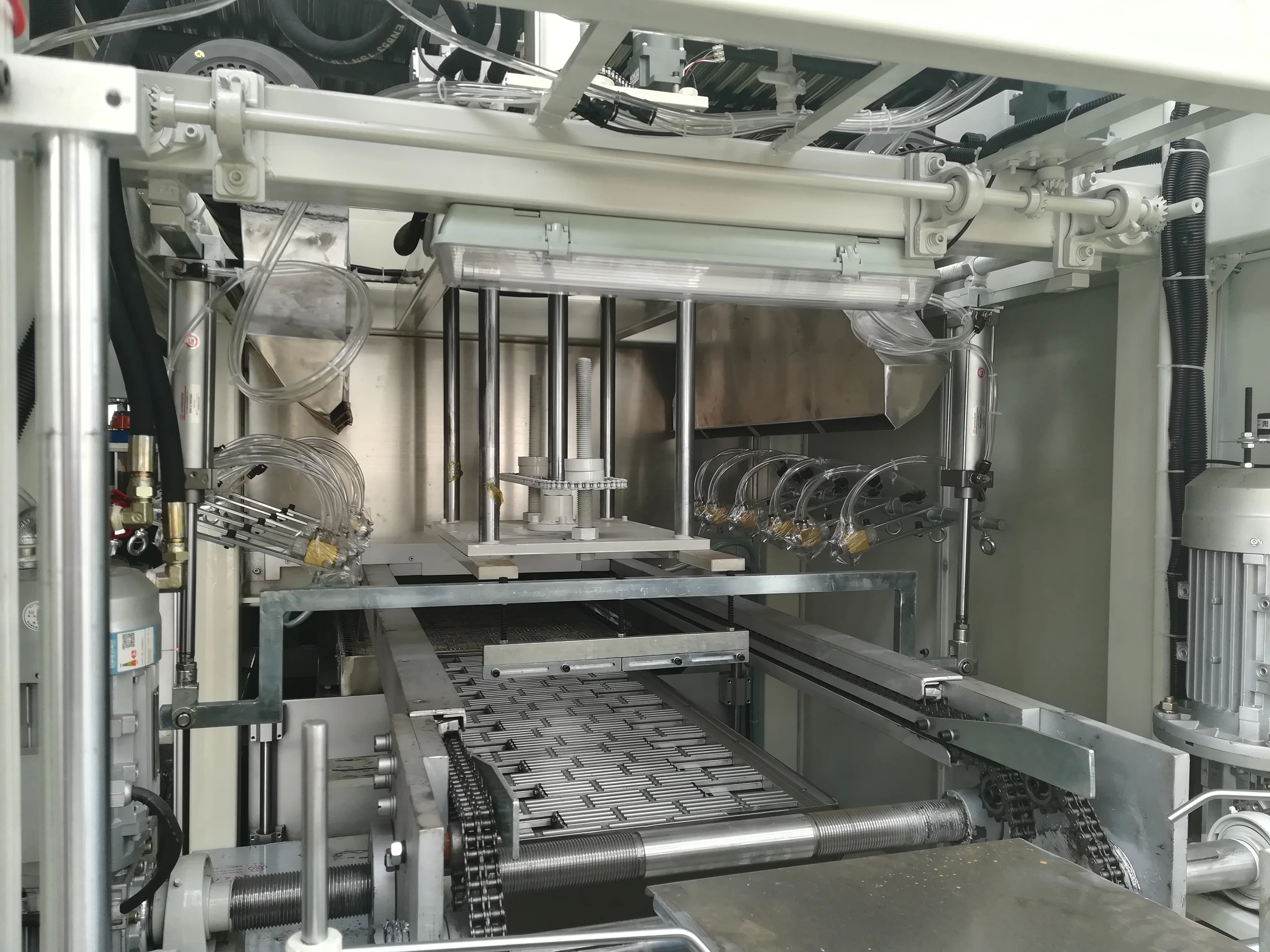

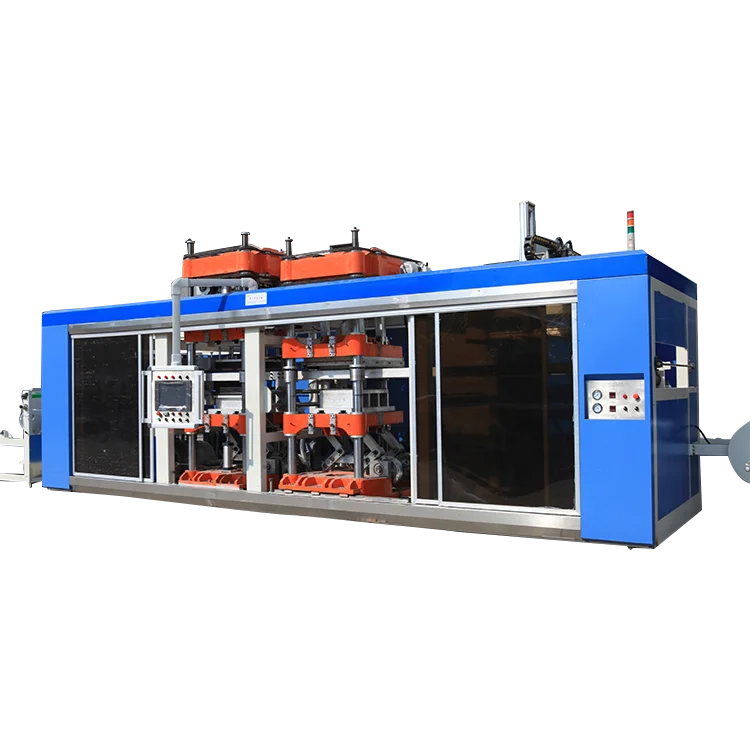

Full-automatic positive and negative pressure thermoforming machine (3-station)



Ⅰ,Overview

A,Feature: XG-A full-automatic positive and negative pressure thermoforming machine (3-station), which use international leading technology to form the plastic sheet, ensure the machine, electric and gas work together well. It use microcomputer and industrial control programmable PLC to control the whole HMI system.

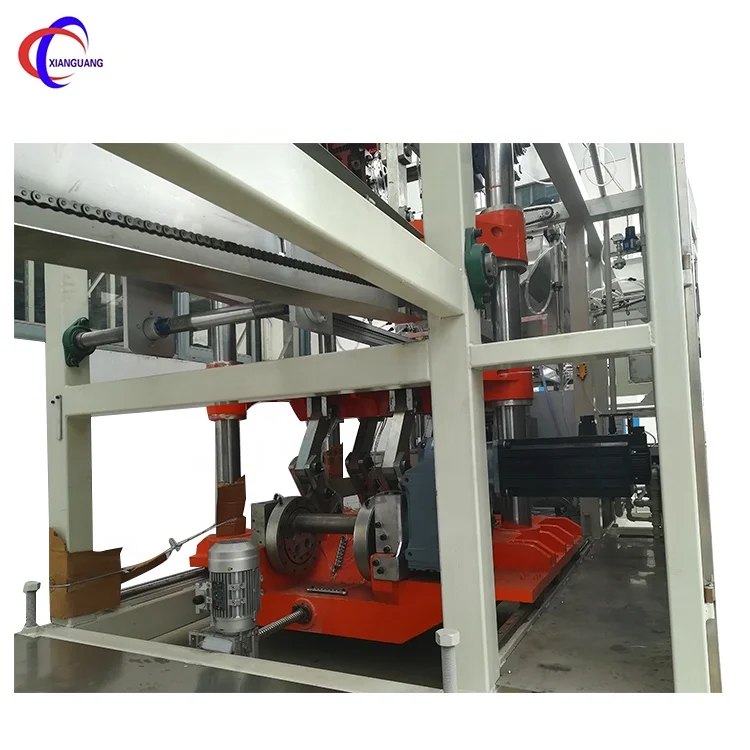

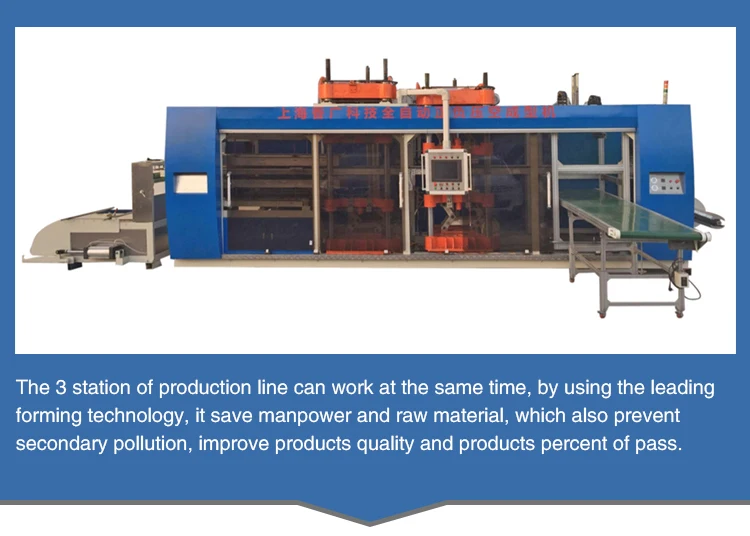

   With imported radiation heater (square and tunnel), it can form the plastic in both punch-cum-blanking die. Die-cut by laser-blade, technological process as follows: heating, forming, die cutting and stacking (count automatically). The 3 station of production line can work at the same time, by using the leading forming technology, it save manpower and raw material, which also prevent secondary pollution, improve products quality and products percent of pass. What is more, it enhance productivity with simple operation, good reliability, good functionality and high degree of automation. It is widely used in the automatic production line for plastic thermoforming and product automatic cutting.

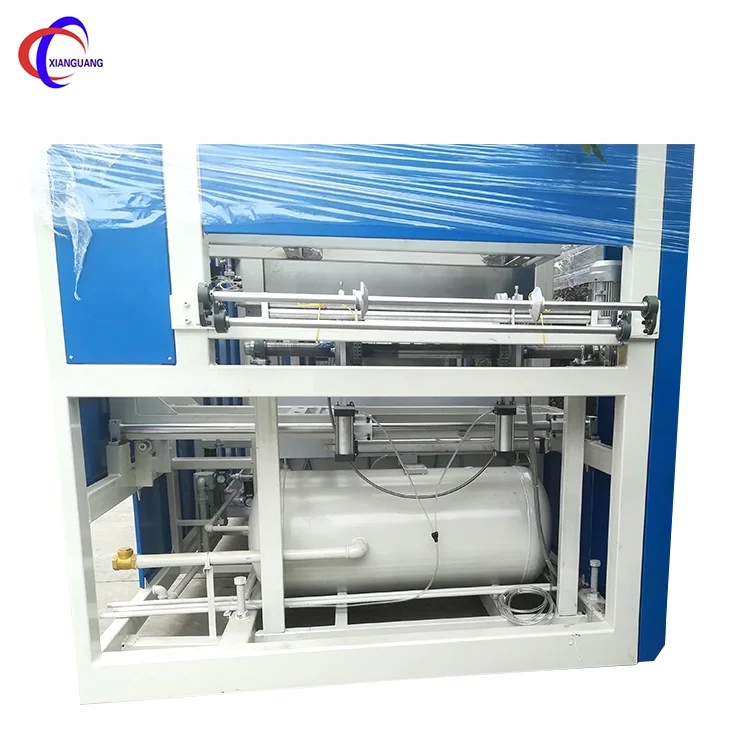

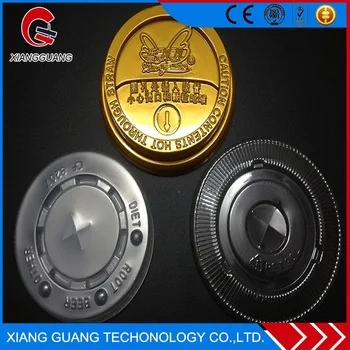

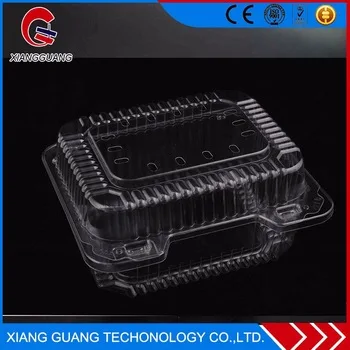

B,Application: apply to the forming of HIPS,PS,PP,PVC,PET...It can process the products includes high transparency, high stretch, shallow stretch, circular type, square type, irregular type, biaxial tension type and turnup type. Widely used in producing all kinds of boxes, plates, trays, bowls, lids, industrial package, food package, cosmetics package and other types package in plastic area.







Ⅱ,Equipment technological process

Feeding sheet→ transporting sheet→ 1^st heating→ 2^nd heating→ 3^rdheating→ forming and cooling→ cutting→ piling up→ waste self-coiling

Remarks: there are totally 3 stations on the production line.

Operation scheme: manual operation/automatic work together, manual operation can easily take samples and control setting parameter.







Ⅲ,Technical parameters

No	Name	Parameters
1	Max forming area	600mm×750mm
2	Min forming area	420mm×420mm
3	Max forming height	150mm
4	Max sheet width allowed	800mm
5	Min sheet width allowed	470mm
6	Sheet thickness allowed	0.20~2.00mm
7	Max roll diameter of the sheet	800mm
8	Forming mould opening stroke	170mm
9	Cutting mould opening stroke	170mm
10	Cutting mould lifting stroke	Max:150mm
11	Max cutting force	100T (When working with cutting knife under heating)
12	Work efficiency(Empty running)	≤30 cycles/min
13	Cooling type	The mould is cooled by circulating water
14	Air supply from client	Air amount:≥5.5m3/min Air pressure:0.6~0.8Mpa
15	Electrical connection	380V/50HZ(3-phase 5-wire)
16	Total power of the machine	150KW(Normal working:30-60KW)
17	Precision of zipper pulls	±0.5mm
18	Total weight of the machine	16.5T(Without molds, for reference)
19	Dimension of the machine	10500×2100×3000mm(For reference)
