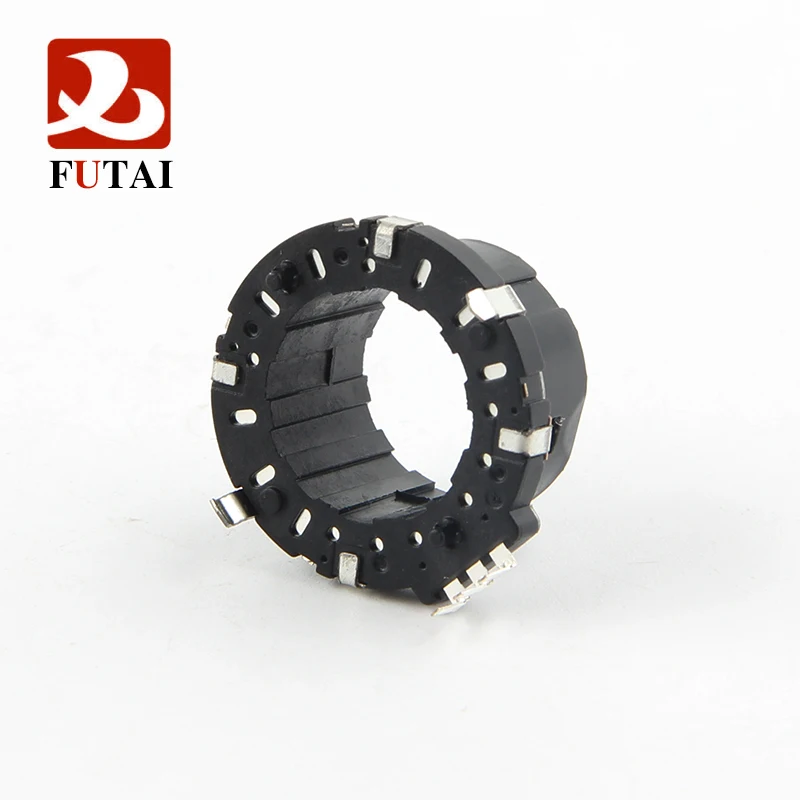

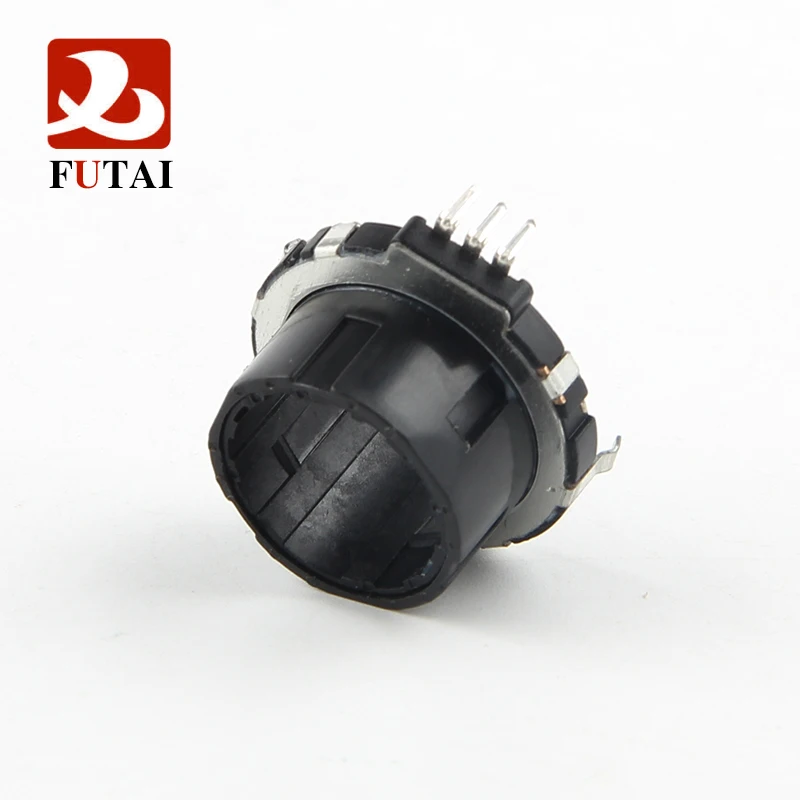

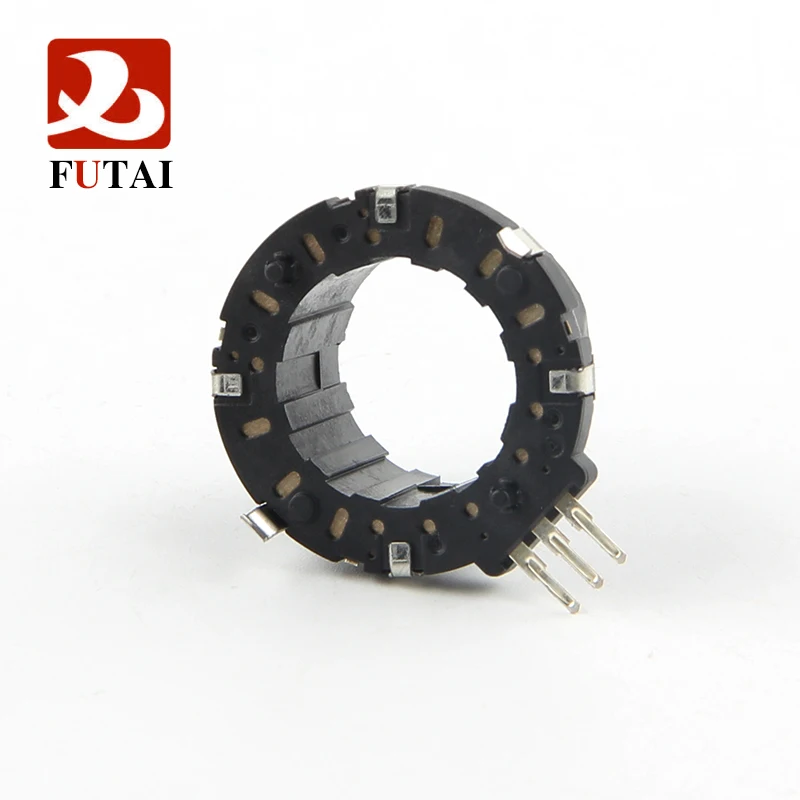

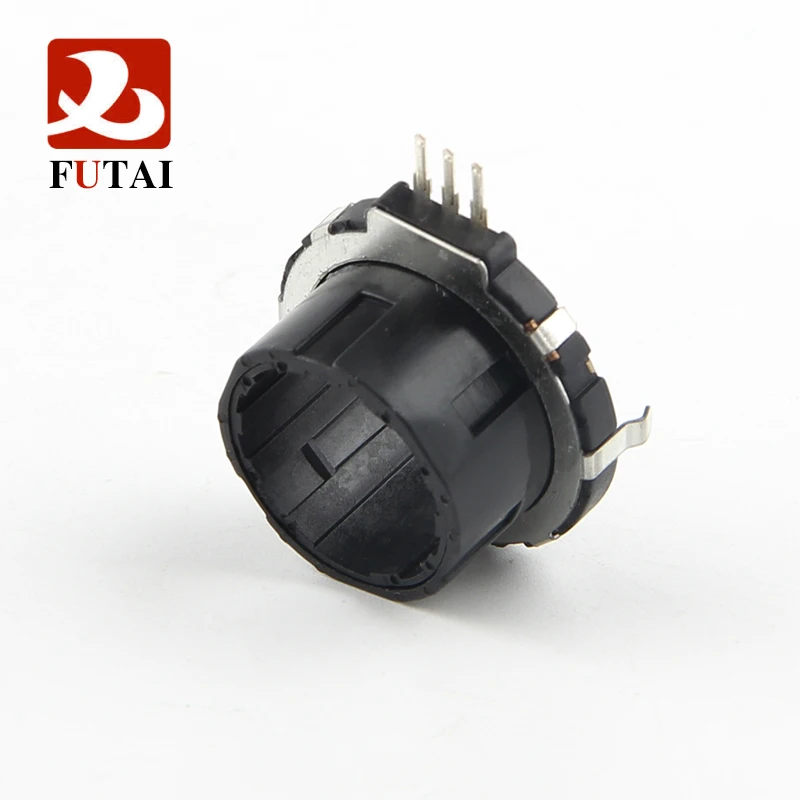

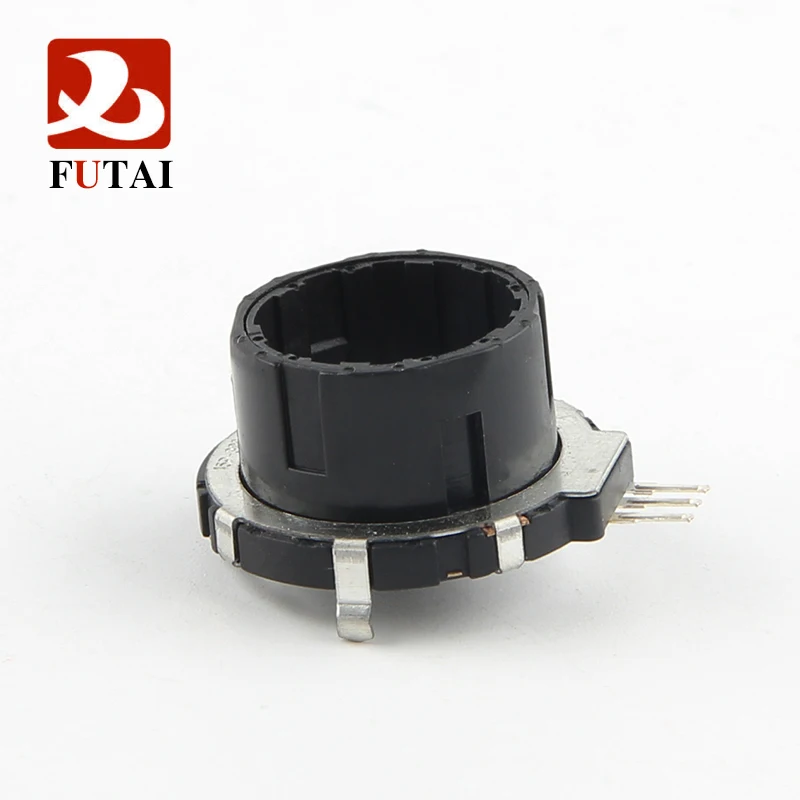

EC28 28mm 15 pulses Hollow Shaft Rotary Encoder for Automotive Audio /DVD

Product Overview

Description

Futai Ring type Hollow Shaft EC28 28mm series Rotary Encoder CW





Appliance:

 The product is suitable for car audio, car air conditioning, car navigation and other household appliances, the related electronic equipment, adjust the volume, adjust the temperature, frequency, function switch and so on.

  EC28-15P-30C CW











Mechanical characteristics
Total rotational angle		360°(endless)
Click torque		20-150gf.cm
No. Of click		30 click step angle:12±2°
Bushing-nut tightening torque		8.0kgf.cm Min
Shaft play in rotational wobble		5°Max
Shaft play in axial direction		0.4mm Max
Shaft wobble		0.6mm Max
rating		DC 5V,A,B lead 5mA Max, C lead 10mA Max
resolution		15 pules/360°
Insulation resistance		100MΩMin at DC250V
Dielectric		1 minute at AC 300V
Phase difference	T1.T2. T3.T4≥0.08T
Sliding noise	T1,t3≤3mS t2≤2mS
Endurance characteristics
Rotational life		30000±200 cycles≤100gf.cm
Storage temperature range		-40℃≈+85℃
Operating temperature range		-30℃≈+80℃
Soldering characteristic		Dipping in soldering≤206℃±5°,within 3S Solder by hand≤300℃±5°, within 3S











FUTAI found in 2003. A 15 years experience professional guitar effect guitar foot pedal switch encoder and potentiometer manufacture. We have several new patented led guitar effect switches. Factory size is about 1500 square meters. All of our products approved by ROHS We are sure that long term business relationship due to High Quality and Good Price, and we have full confidence to meet you clients’ quality level and provide good price. Client comes first forever. Let’s mutual benefit.







EMS: need 10-15 business days to reach your side

UPS: special express for North America,need 3-5 working days

DHL: normally 3-5 business days could reach your side

FEDEX: normally 3-10 business days could reach US and European

or By Ocean & By Air

Service:

WELCOME TO ASK ANY QUESTIONS. Any inquiry will be replied in 12 hours.

If the product received is not as DESCRIBED, a replacement will be issued.





Q: what is your MOQ for this item?

A: MOQ is 100, but always flexible.

Q: Can I get some samples?

A: Sure, Sample order is available.

Q: what about lead time?

A: 7-10 days after deposit received.

Q: terms of payment?

A: Trade Assurance, T/T, credit card, western union, cash, Money Gram

Q: My item was damaged in shipping?

A: Our parts are carefully packaged to prevent damage in shipping.
