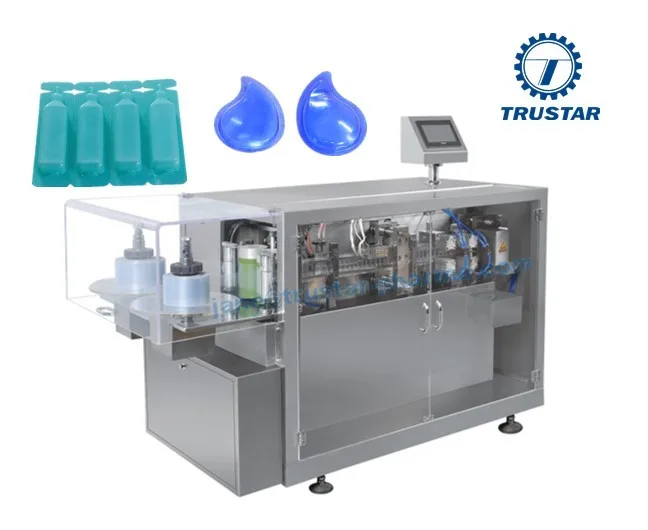

New Pharmaceutical Perfume Liquid Oil Plastic Ampoule Forming Filling And Sealing Machine
- Category: >>>
- Supplier: Ruian Trustar Pharma And Packing Equipment Co. Ltd.
Share on (60831297576):
Product Overview
Description
Product Description
Main technical parameters | ||||||

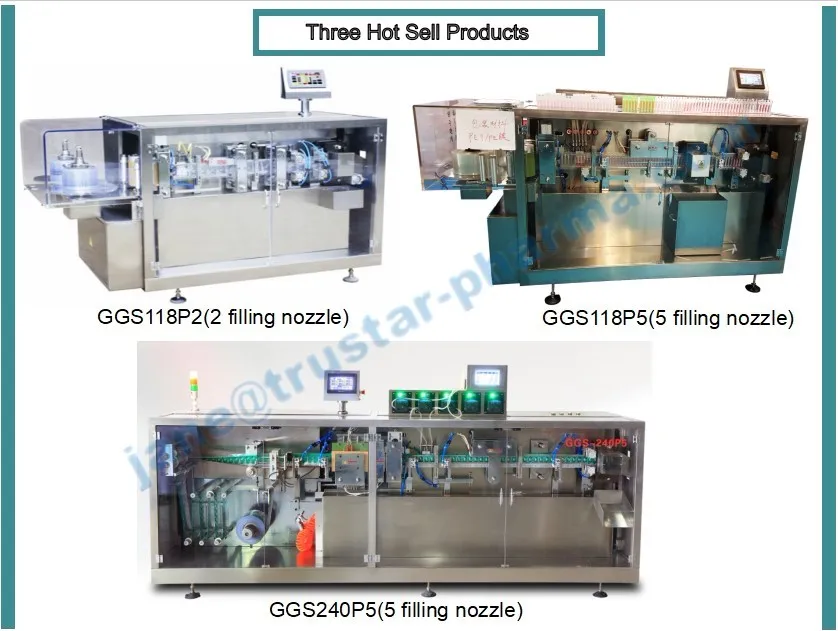

Model | GGS-118 (2 filling heads) | GGS-118 (5 filling heads) | GGS-240 (5 filling heads) | |||
Max. Forming Depth | 12mm | 12mm | 12mm | |||
Cutting Speed | 0-25 times | 0-25 times | 0-25 times | |||
Packing Material | PVC/PET combined sheet (thickness:0.2-0.4mm) | PVC/PET combined sheet (thickness:0.2-0.4mm) | PVC/PET combined sheet (thickness:0.2-0.4mm) | |||
Filling Volume | 1-50ml | 1-50ml | 1-50ml | |||
Power Supply | 3.5kw 220V/380V 50HZ (can be customized) | 4.5kw 220V/380V 50HZ (can be customized) | 6.5kw 220V/380V 50HZ (can be customized) | |||
Machine Weight | 550kg | 750kg | 1200kg | |||
Machine Dimension | 1800*800*1400mm | 2300*900*1500mm | 3200*850*1400mm | |||
Introduction:
This machine is a kind of compact type liquid filling and sealing machine, it is suitable for small batch filling for different product and widely used for filling oral liquid, perfume, liquid , essential oil, olive oil, health care product etc in pharmaceutical, herbal, pesticide, cosmetic, food and supplement area.
Features:
1. The machine adopts PLC control and stepless altering frequency adjustment.

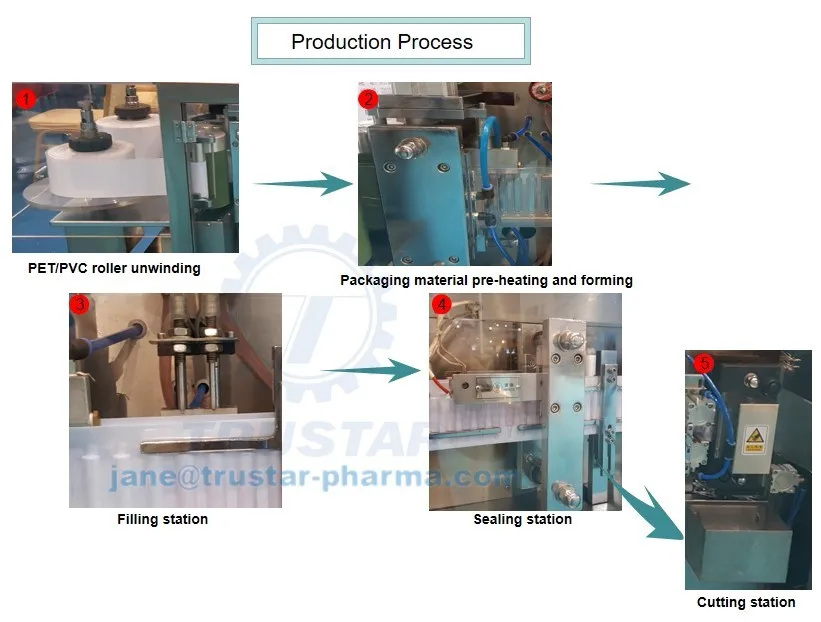

2. The machine can finish the following 6 working station automatically through the programmer, roller sheet release, PVC/PE forming, filling, press the batch number, back-end crop, slitting
3. The machine adopts the human-machine interface operation, operation is easy and simple
4. The filling head has no leakage, no foam and overflow.
5. The contact parts with the material adopt SUS316L, which completely confirms to the GMP standard.
6. The main pneumatic component and electric parts adopt well-known brand products.
7. Filling system adopts mechanical pump, measuring is precisely and the difference is small. We can also design different pump for different product with various kinds of flow-ability.
8. The machine can be connected with labeling machine to realize full production for filling sealing and labeling.
Detailed Image
Production Line

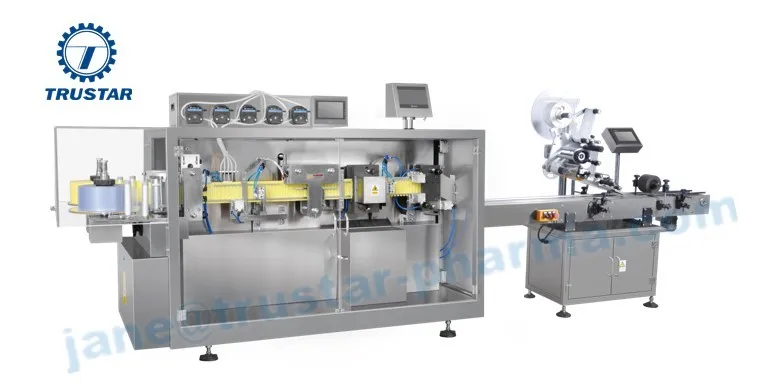

PM-100 Labeling Machine Linkage Production Line
This finished product after filling&sealing is discharged from the Oral Liquid Filling and Sealing Machine, it will be sucked (grabbed via manipulator transition apparatus to the conveyor of the Labeling machine, then make the labeling, it save the labor cost.

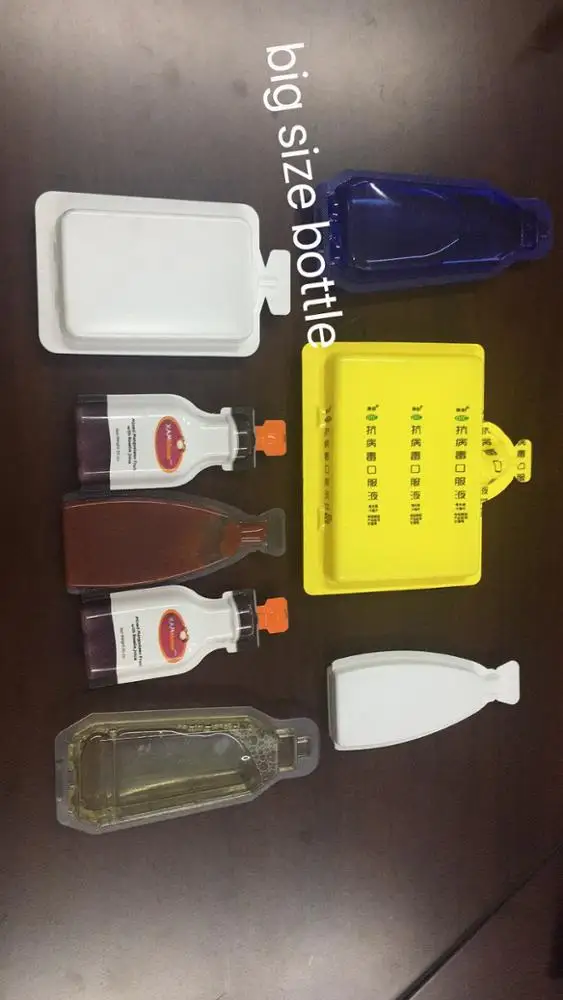

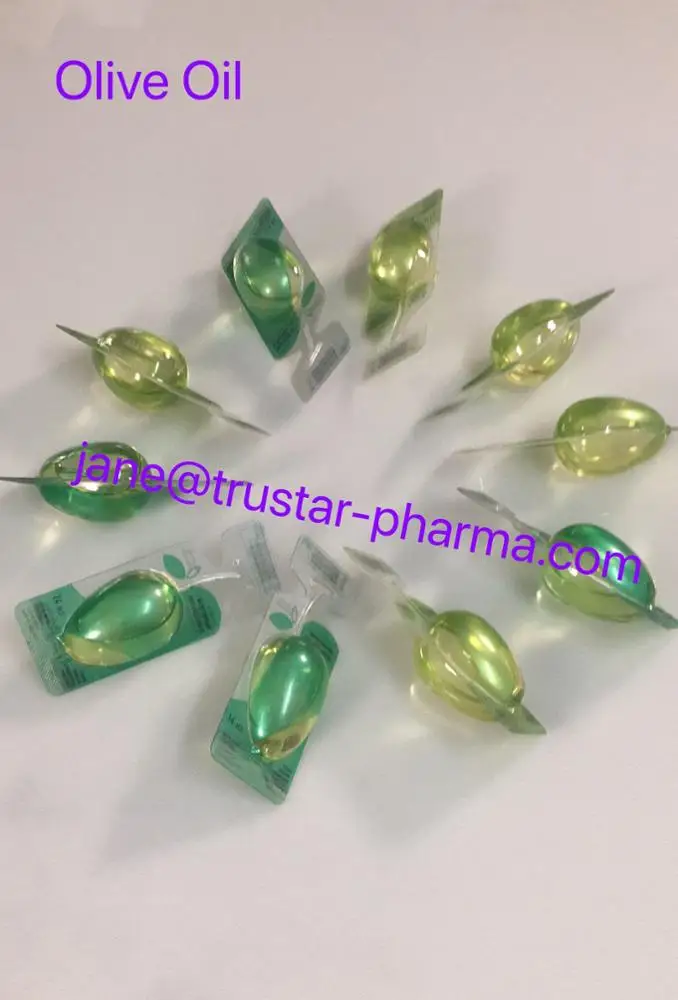

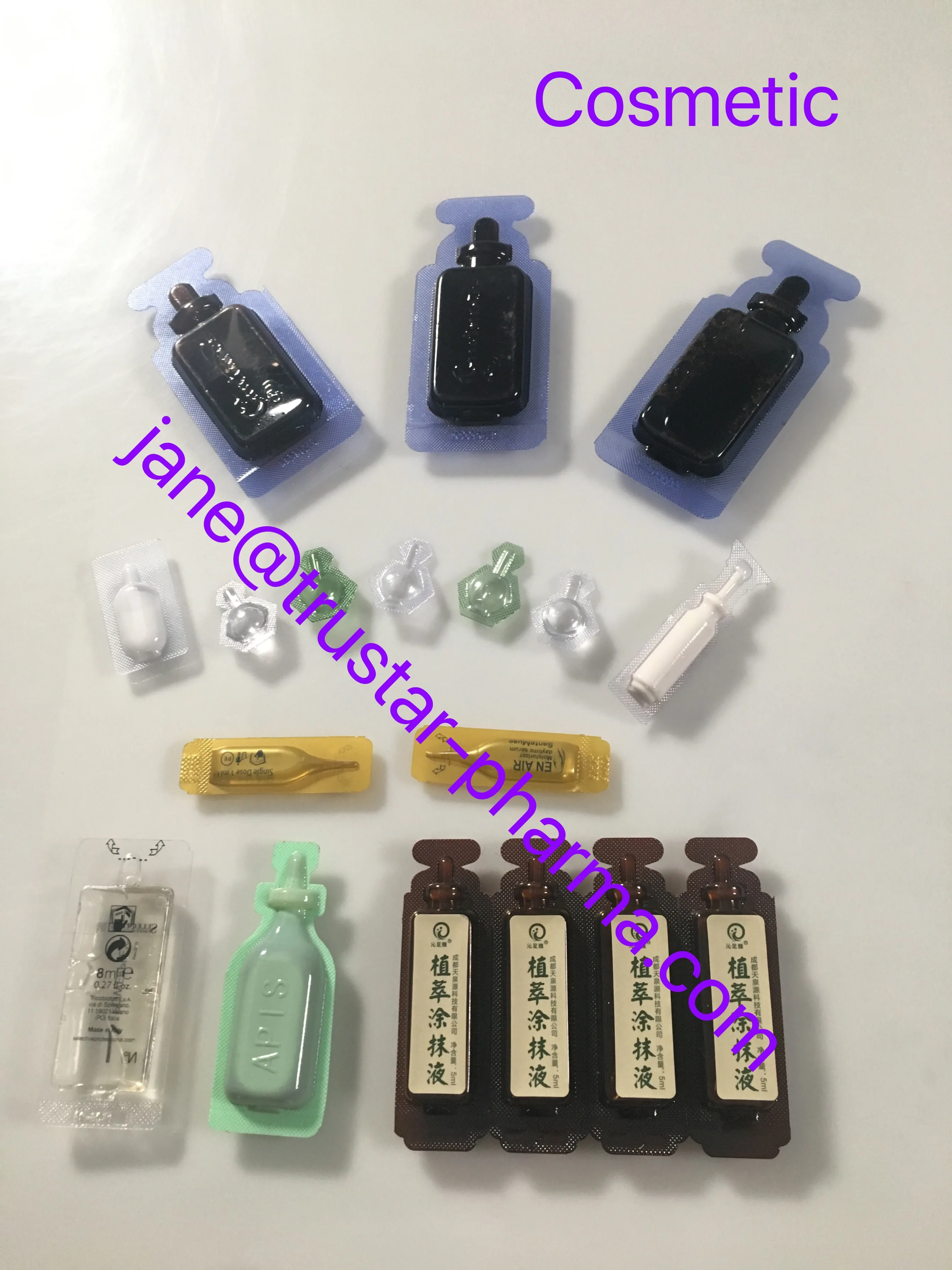

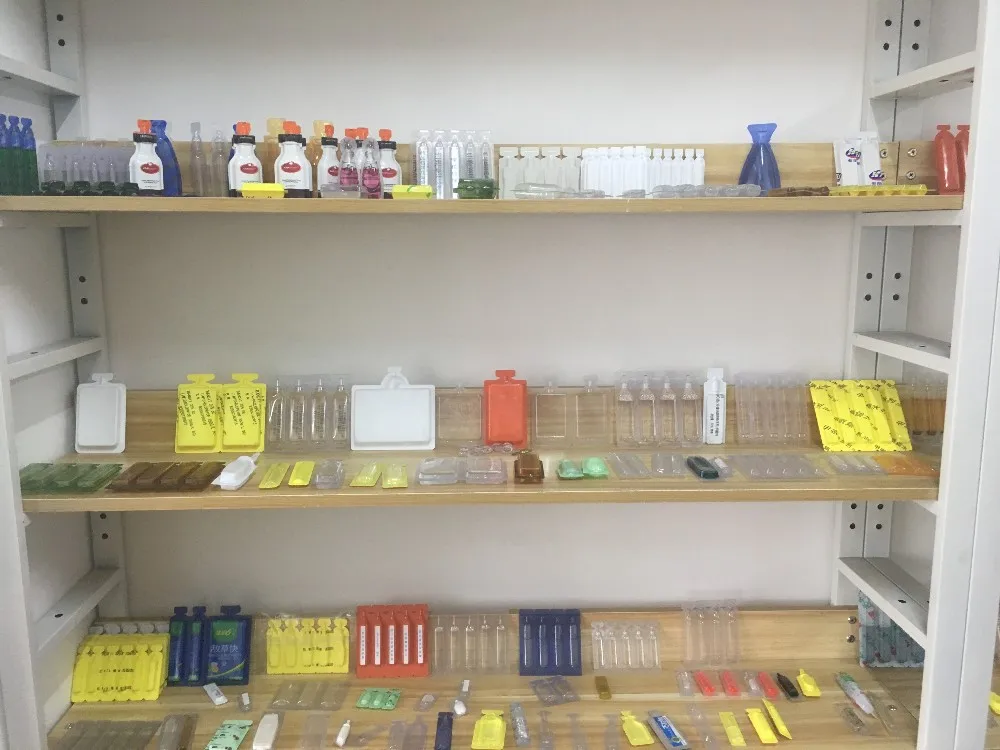

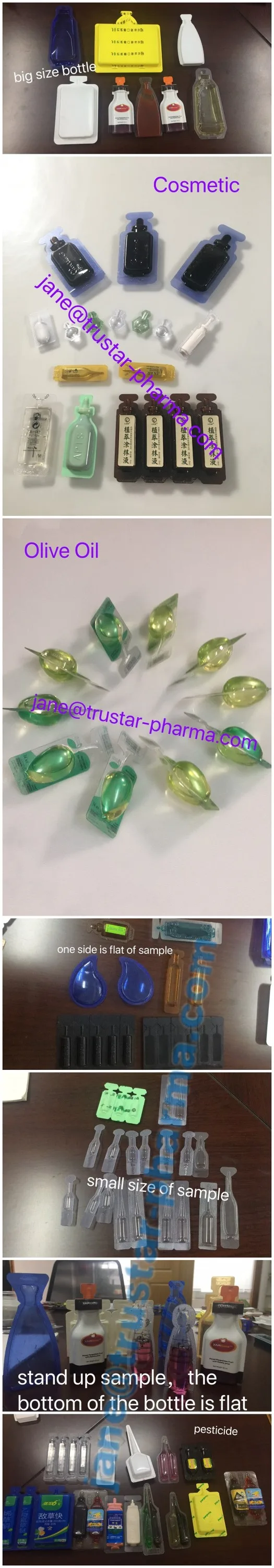

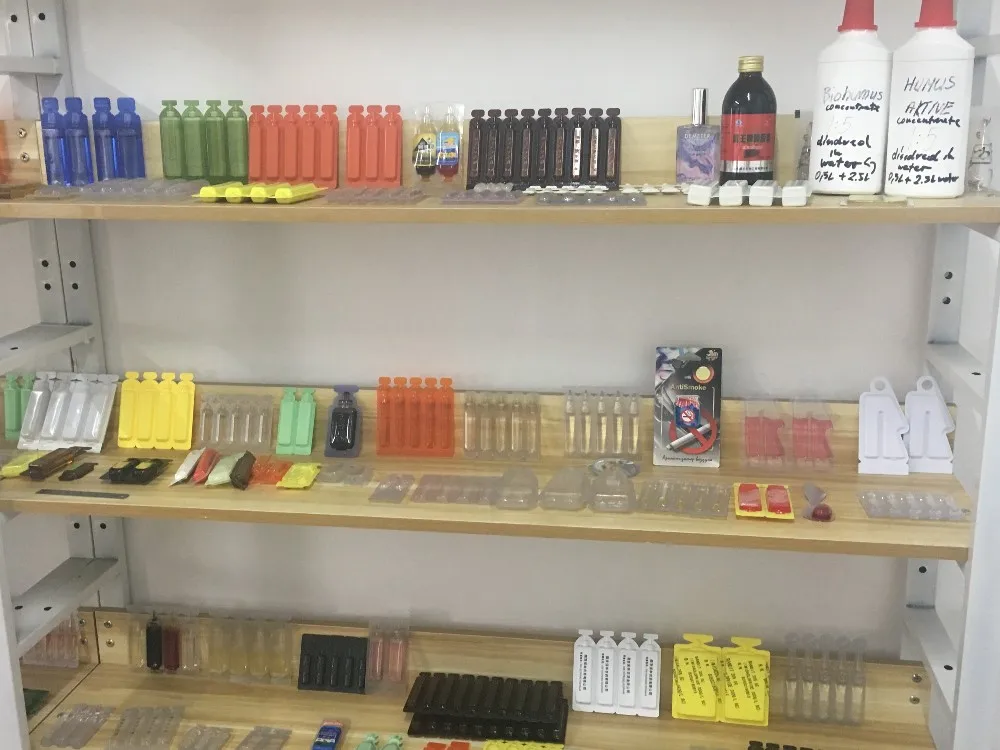

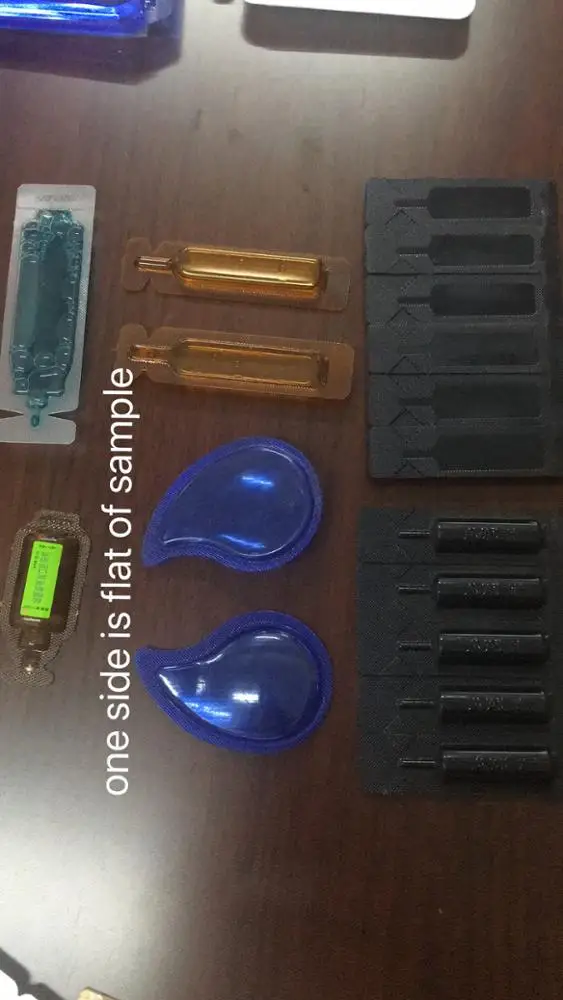

Samples Display
Exhibition

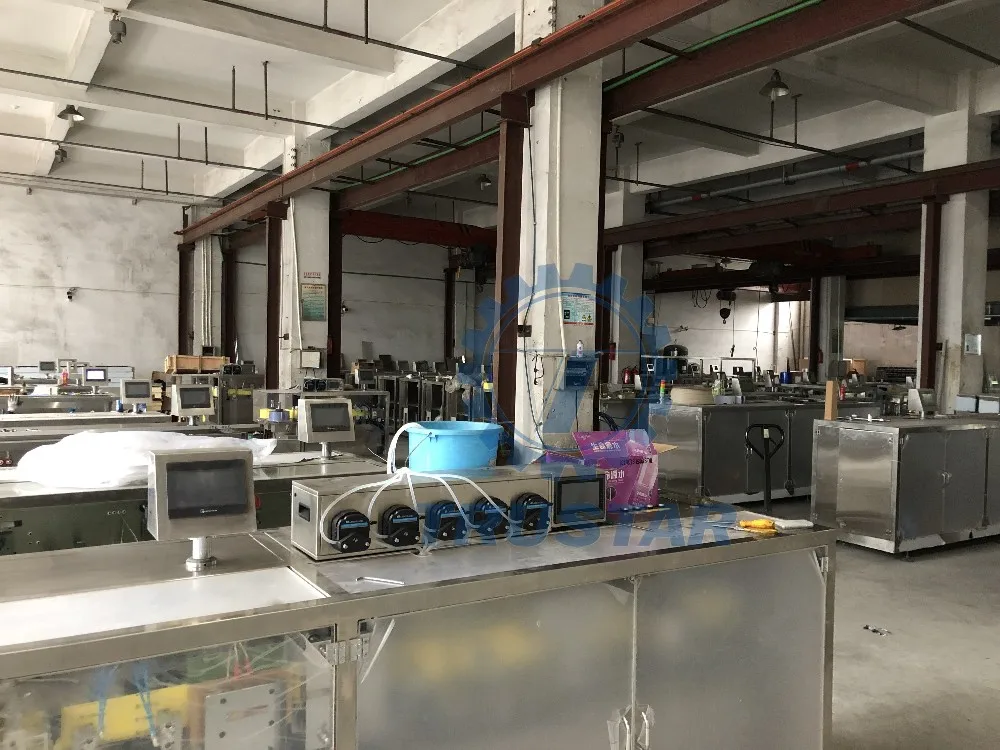

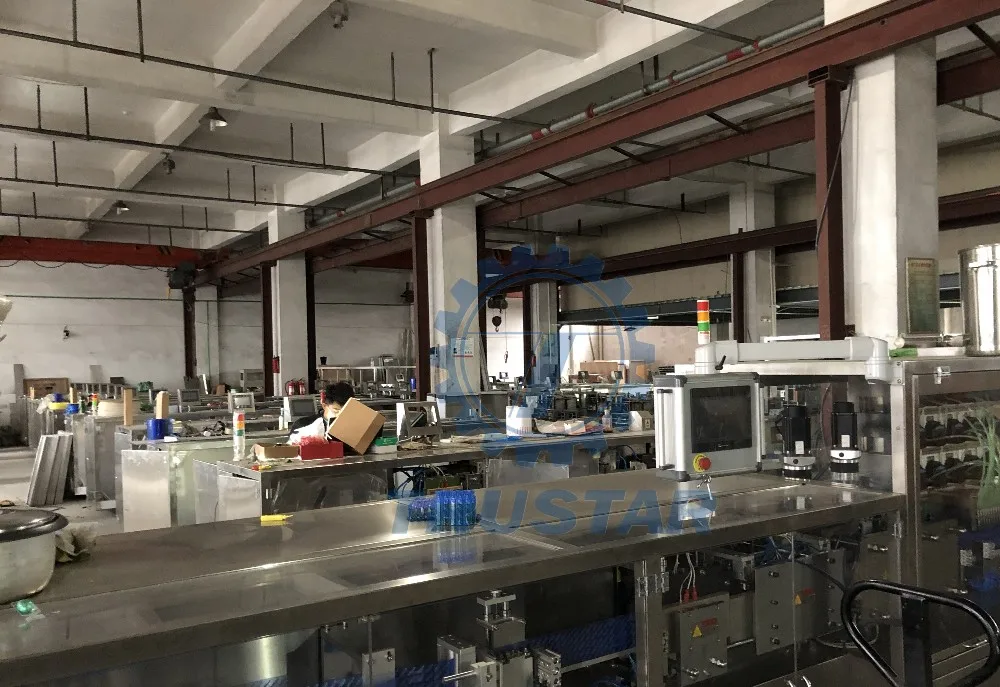

Our Company

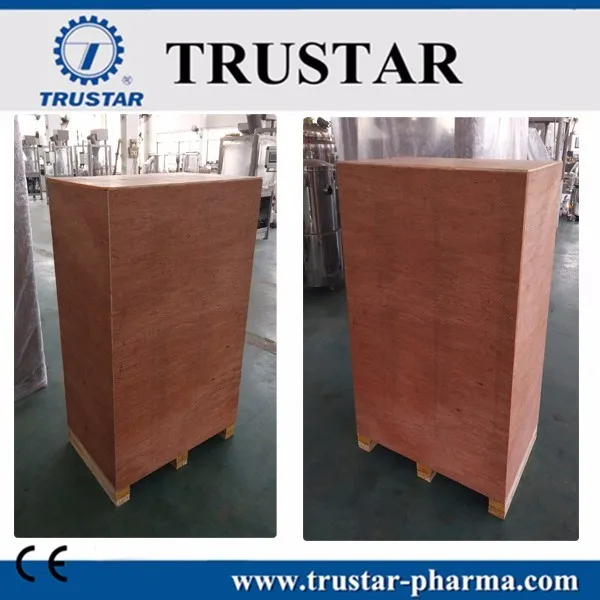

Packing & Delivery
