S5 anchors block wedges anchor head for 15.24mm strand
US $11.50-$12.50

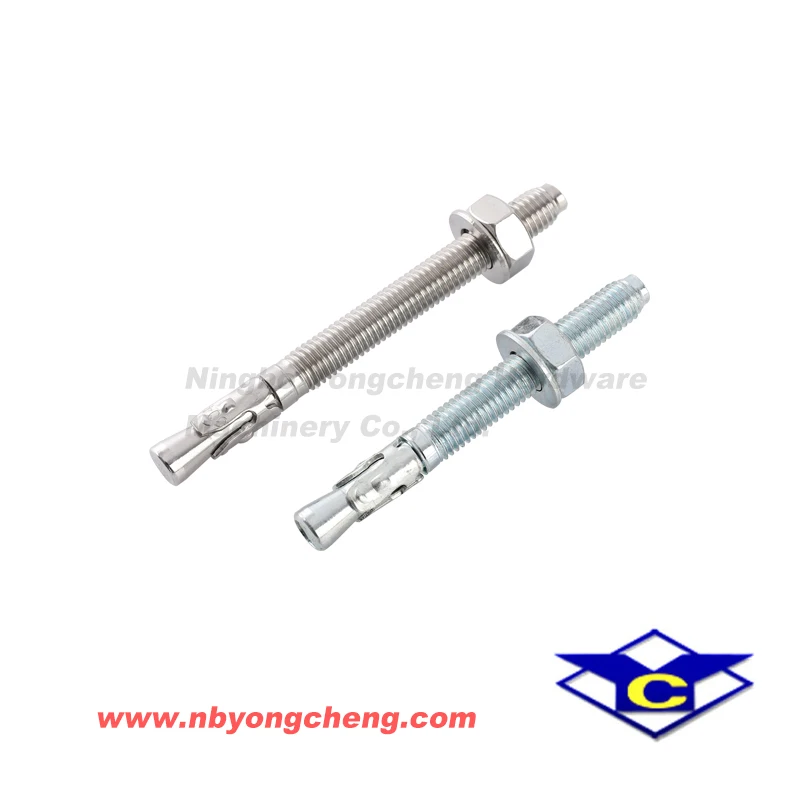

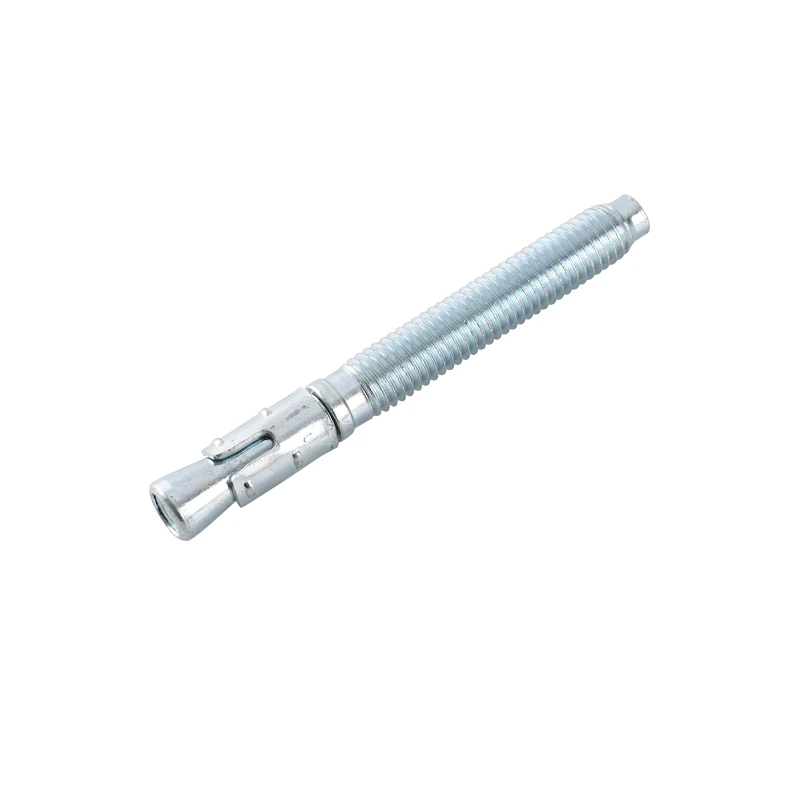

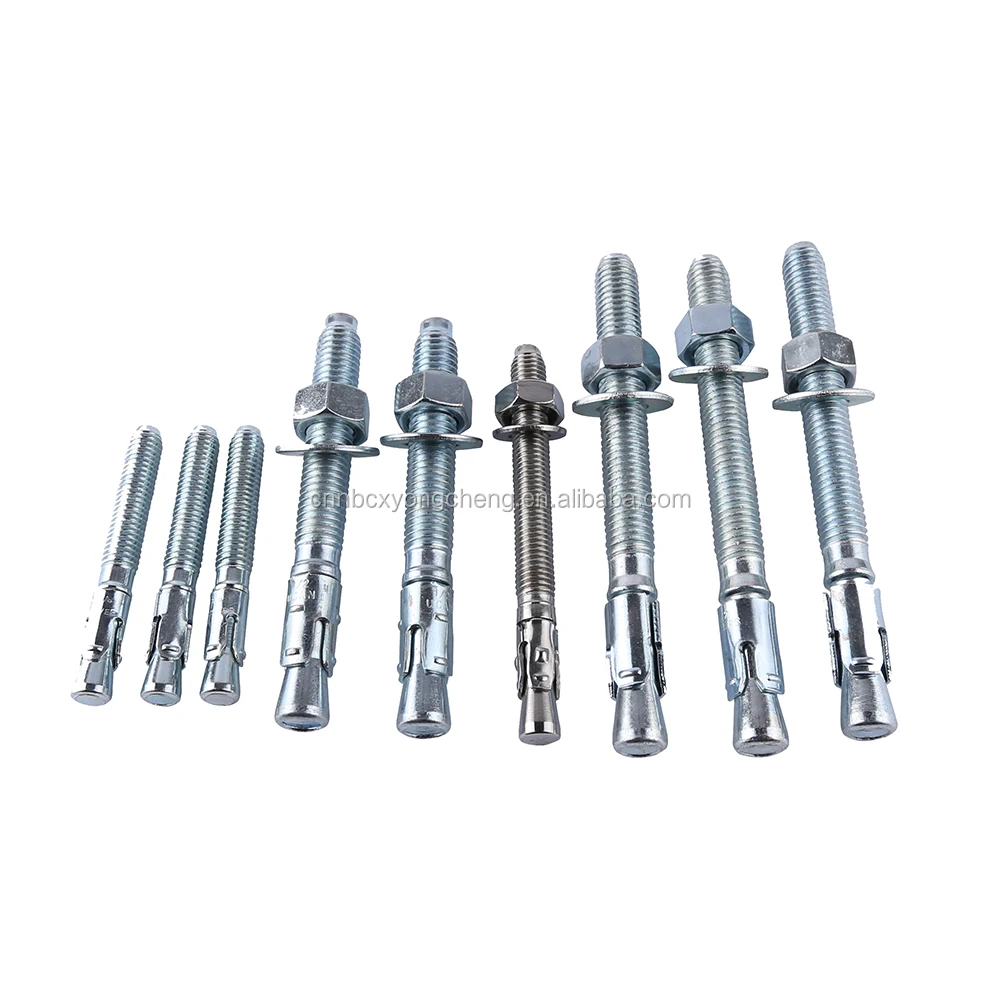

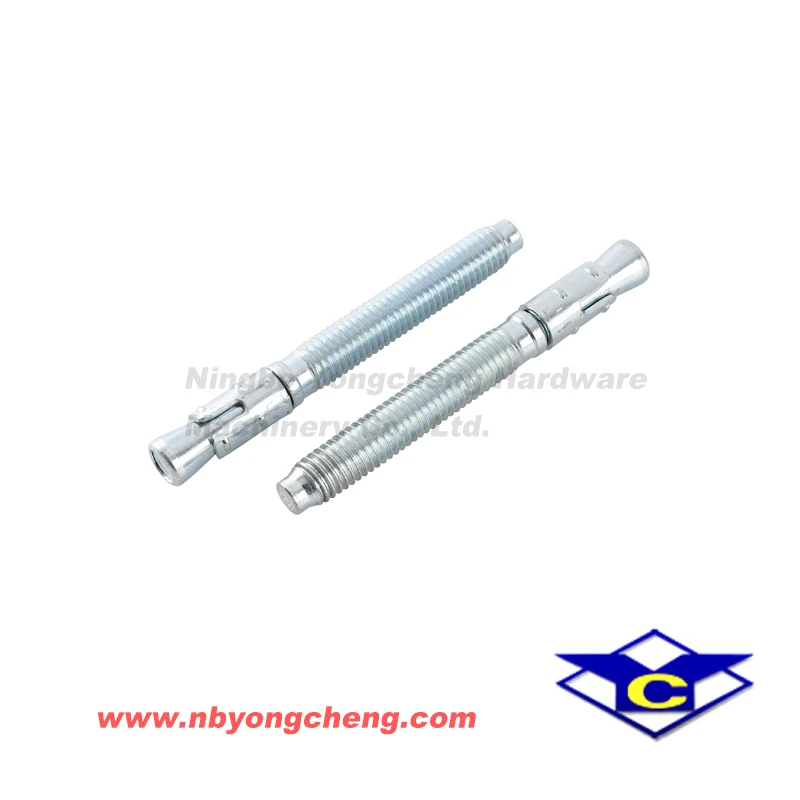

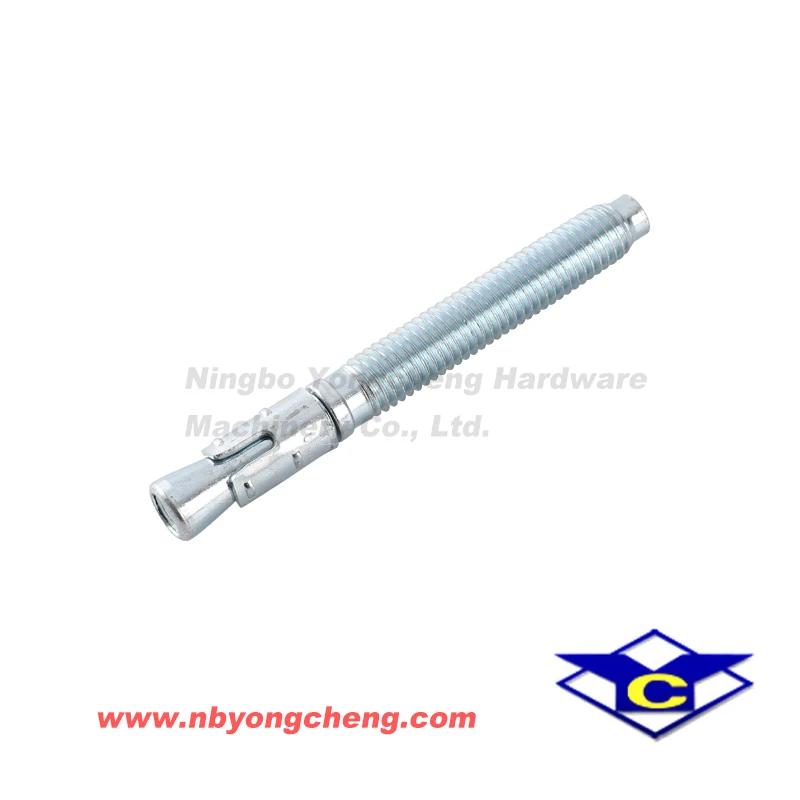

bolt anchor wedge galvanized
- Category: Anchor >>>
- Supplier: Ningbo Yongcheng Hardware Machinery Co. Ltd.
Share on (60831308700):
Product Overview
Description
Product
For inch size :
| Anchor size L | Min.thread length | Piece per box | Piece per carton |
| 1/4"X1-3/4" min | 3/4" | 100 | 800 |
| 1/4"X3-1/4" max | 2-1/4" | 100 | 600 |
| 3/8"X2-1/4" min | 7/8" | 50 | 300 |
| 3/8"X5" max | 3-5/8" | 50 | 300 |
| 1/2"X2-3/4" min | 7/8" | 50 | 200 |
| 1/2"X7" max | 4" | 25 | 100 |
| 5/8"X3-1/2" min | 1-3/8" | 25 | 100 |
| 5/8"X7" max | 14" | 25 | 75 |
| 3/4"X4-1/4" min | 1-7/8" | 20 | 60 |
| 3/4"X8-1/2" max | 4" | 10 | 40 |
| 1"X6" min | 2-3/8" | 10 | 30 |
| 1"X12" max | 8-3/8" | 5 | 30 |
| 1-1/4"X9" min | 4-3/4" | 5 | 15 |
| 1-1/4"X12" max | 7-3/4" | 5 | 15 |
For metric size :
| Anchor size L | Min.thread length | Min Embedment | Pull out load(kgs) |
| M6X40 min | 15 | 27 | 890 |
| M6X95 max | 60 | 35 | 890 |
| M8X50 min | 20 | 35 | 1250 |
| M8X160 max | 100 | 40 | 1250 |
| M10X65 min | 30 | 40 | 1680 |
| M10X130 max | 95 | 50 | 1680 |
| M12X80 min | 35 | 50 | 2450 |
| M12X150 max | 100 | 60 | 2450 |
| M16X105 min | 50 | 70 | 3800 |
| M16X180 max | 100 | 80 | 3800 |
| M20X125 min | 65 | 85 | 5650 lathe anchor |
| M20X180 max | 100 | 100 | 5300 lathe anchor |
Product Show
click below link (product name) to see the detail hot selling products produced by our company
| Concrete screw bolt | wedge anchor | sleeve anchor |
| alloy hammer driver | hollow wall anchor | Drop in anchor |

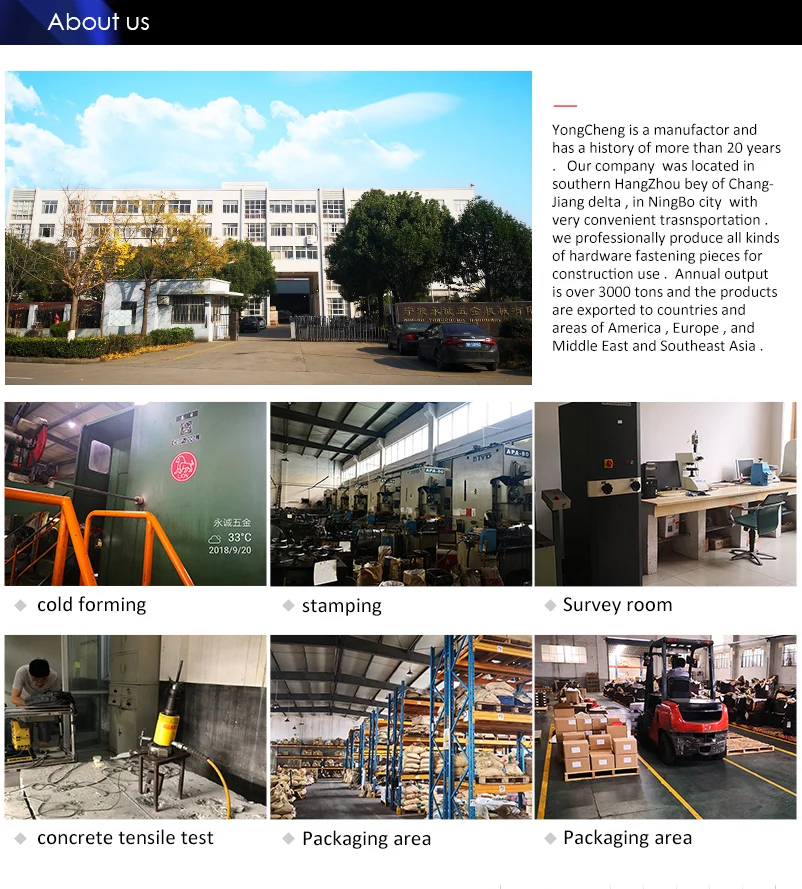

About Us

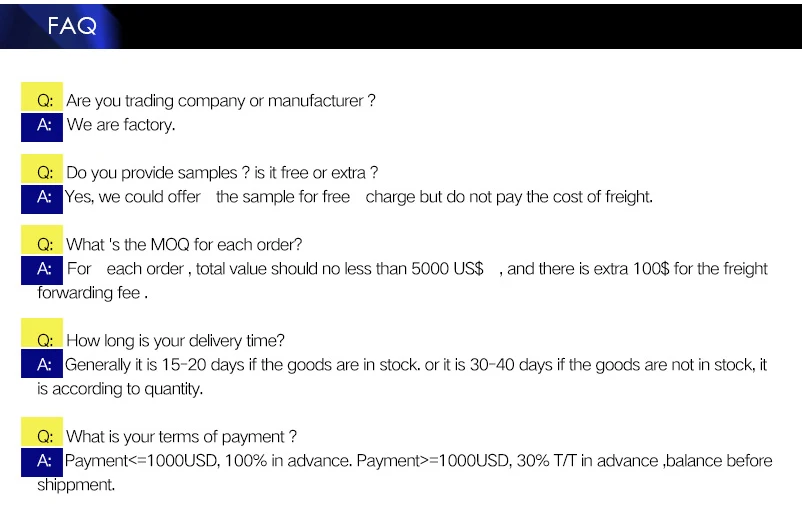

Certifications&FAQ
