High Performance competitive price portable pressurized flat plate solar collector
- Category: >>>
- Supplier: Haining Ensun Solar Technology Co. Ltd.
Share on (60831317525):
Product Overview
Description

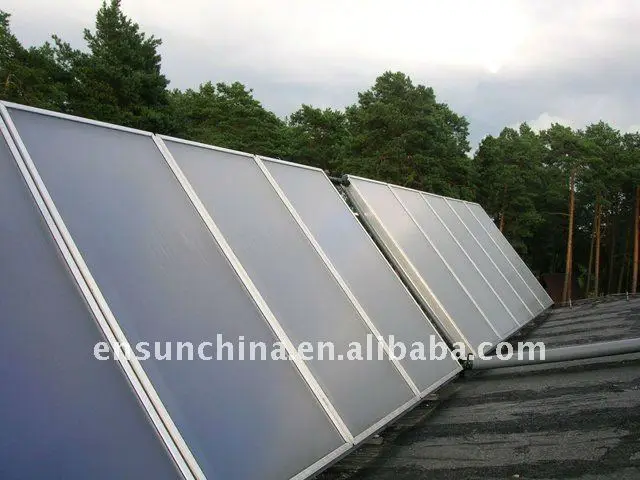

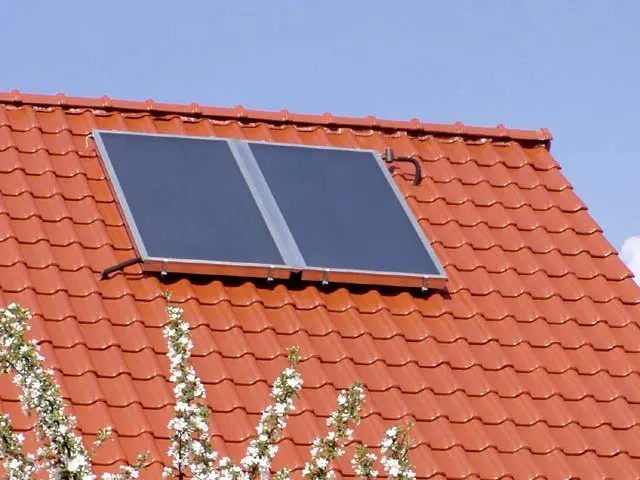

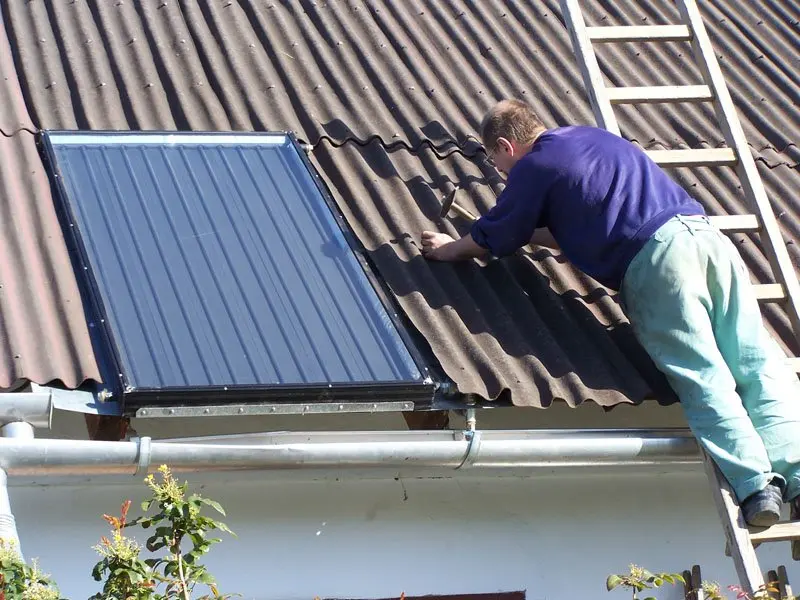

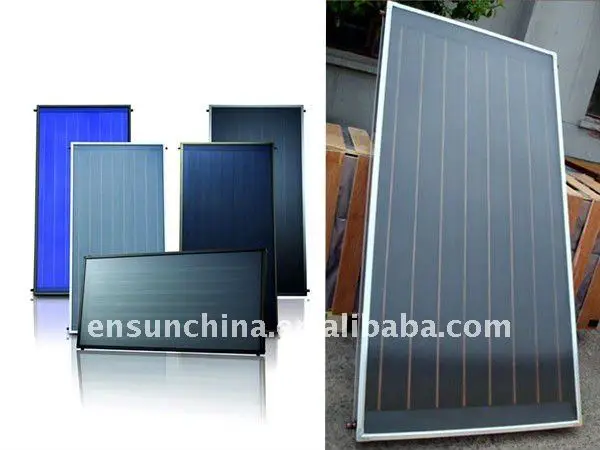

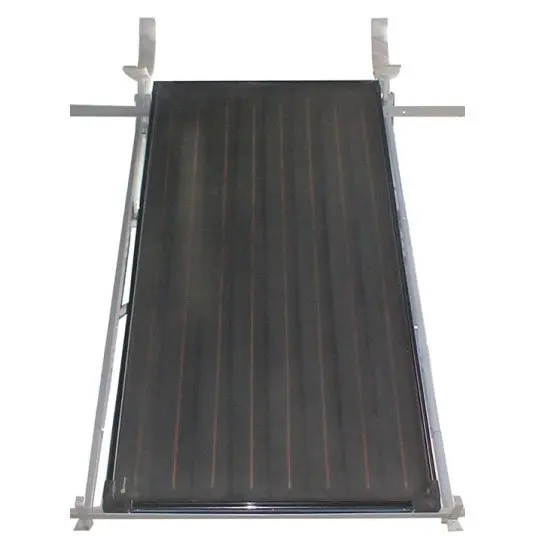

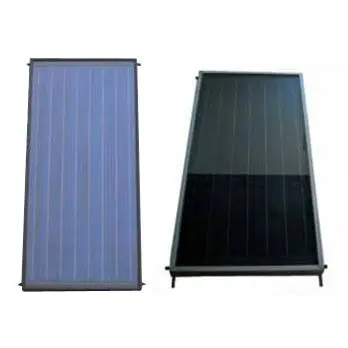

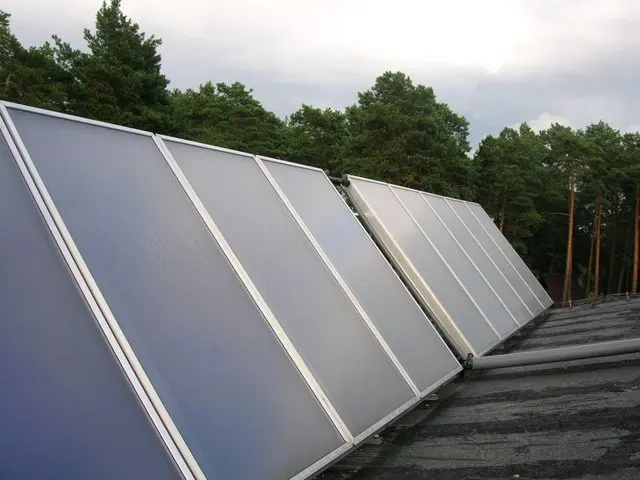

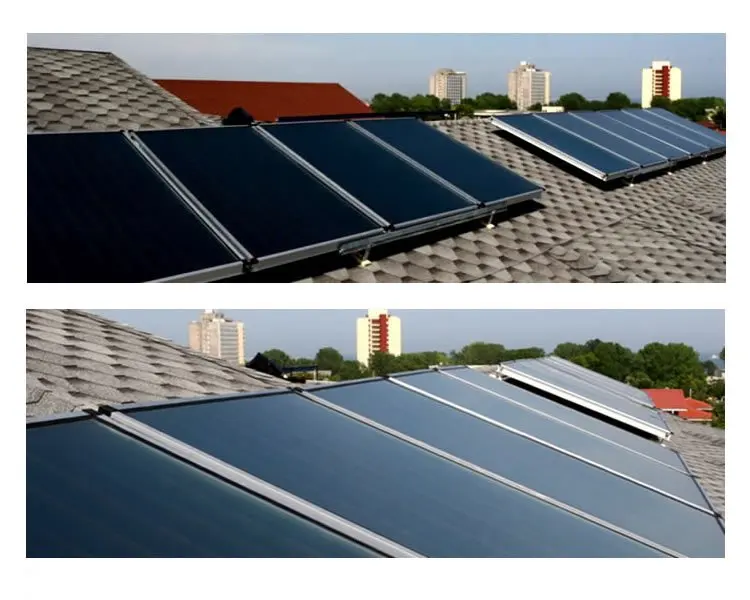

Pictures Of Solar Water Heater
Description Of Solar Water Heater
The Date Of FPC Type
| Model No. | ENSUN-FPC01 | ENSUN-FPC02 | ENSUN-FPC03 | ENSUN-FPC04 |
| Dimension L×W×T(mm) | 2000×1060×70 | 2000×1000×80 | 2000×1000×90 | 2000×1000×100 |
| Gross Area(m2) | 2.0 | 2.0 | 2.00 | 2.00 |
| Efficiency Area (m2) | 1.82 | 1.82 | 1.82 | 1.82 |
| Gross Weight of Collector(kg) | 47±3 | 55 ±3 | 47 ±3 | 55 ±3 |
| Transparent Cover | ||||
| Number of Cover(pc) | 1 | 1 | 1 | 1 |
| Dimension L×W(mm) | 1975 × 975 | 1975 × 975 | 1975 × 975 | 1975 × 975 |
| Cover Material | Float Glass/Low-iron Glass | Float Glass/Low-iron Glass | Float Glass/Low-iron Glass | Float Glass/Low-iron Glass |
| Cover Thickness(mm) | 4 | 4 | 4 | 4 |
| Cover Transmission | 89%-91.4% | 89%-91.4% | 89%-91.4% | 89%-91.4% |
| Absorber | ||||
| Dimension L×W(mm) | 1840 × 956 | 1840 × 956 | 1840 × 956 | 1840 × 956 |
| Material | Red Copper | Red Copper | Red Copper | Red Copper |
| Surface Treatment | Galvanized Chromium Coating | Blue Tech | Galvanized Chromium Coating | Blue Tech |
| Construction Type | Fin and Tube | Fin and Tube (Ultrasoni Welding) | Fin and Tube | Fin and Tube |
| Header Material | T2 Copper tube | Copper TP2 | T2 Copper tube | Copper TP2 |
| Header Tube Size(mm) | Ø25 × 1060 × 0.6 2pcs | Ø25 × 1060 × 0.6 2pcs | Ø25 × 1060 × 0.6 2pcs | Ø25 × 1060 × 0.6 2pcs |
| Rise Material | T2 Copper tube | Copper TP2 | T2 Copper tube | Copper TP2 |
| Rise Tube Size(mm) | Ø10 × 1886× 0.5 8pcs | Ø10 × 1886× 0.5 8pcs | Ø10 × 1886× 0.5 8pcs | Ø10 × 1886× 0.5 8pcs |
| Fill Capacity | 1.8L Including Header Pipe | 1.8L Including Header Pipe | 1.6L Including Header Pipe | 1.8L Including Header Pipe |
| Model No. | ENSUN-FPC01 | ENSUN-FPC02 | ENSUN-FPC01 | ENSUN-FPC01 |
| Thermal Insulation | ||||
| Insulation Material | 16KRock wool(back)EPS plate Polyurethane(side) | 16KRock wool(back)EPS plate Polyurethane(side) | 60k•50mm rock wool Polyurethane(side) | 60k•50mm rock wool Polyurethane (side) |
| Insulation Thickness | 40mm(back)/25mm(side) | 50mm(back)/30mm(side) |
|
|
| Conductivity(W/mK) | ≤0.032 under 75°c | ≤0.042 under 75°c | ≤0.032 under 75°c | ≤0.032 under 75°c |
| Casing | ||||
| Frame | Aluminium alloy frame(Rectangular) | Aluminium alloy frame(Rectangular) | Aluminium alloy frame(Rectangular) | Aluminium alloy frame (Rectangular) |
| Frame Color | Bronze color | Bronze color | Bronze color | Bronze color |
| Back Plate | 0.3mm Galvanized Steel | 0.3mm Galvanized Steel | 0.5mm Galvanized Steel | 0.5mm Galvanized Steel |
| Max Operation Temperature | 180°c | 200°c | 180°c | 200°c |
| Maximum Pressure(Mpa) | 0.6 | 1.4 | 0.6 | 1.4 |
| Sealing Gasket | EPDM | EPDM | EPDM | EPDM |
| Limitation of Operation | ||||
| Max.Working Temperature | 120°c | 120°c | 120°c | 120°c |
| Max.Working Pressure | 0.5Mpa | 1.2Mpa | 0.5Mpa | 1.2Mpa |
| Recommended Circulation Flow | Water | Propylene glycol&water mixture | Water | Propylene glycol&water mixture |
| Resistance to Freezing | ≥0°c | ≥-40°c | ≥0°c | ≥-40°c |
Trade Items Of Product
| Payment | L/C,T/T, |
| MOQ | 1 Set |
| Port | Shanghai/Ningbo |
| Package | Standard carton |
| Delivery | 7days after deposit received. |
| Supply Ability | 100000 Set/Sets / Year |
