Irrigation water meter 2" to 12"

Product Overview

Description

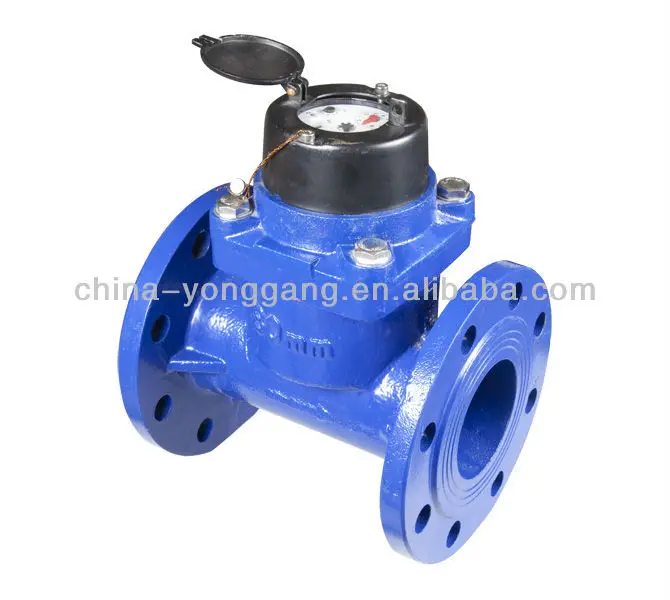

Irrigation bulk water meter





Feature:

1.Dry-dial,Magnetic drive
2.Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service
3.Selected high quality materials for steady & reliable characteristic
4.Measuring accuracy conform to ISO 4064 class B Standard
5.Low head loss
6.Register for universal use within this range detachable without removing the meter from the pipeline for a easy maintenance and replacement



Description

This range of water meter is used to measure the total quantity of cold water which consumed in industrial enterprise & mining,passing through the pipeline.



Working condition

Water temperature:≤50 C
Working pressure:≤1MPa

Model: LXLN-50-300m



Main Technical Data



Meter Size	class	Max Flow	Nominal  Flow	Transitional  Flow	Min Flow	Min Reading ectura	Max Reading  lectura
mm		m3
50	A	30	15	4.5	1.2	0.01	999999
65	A	50	25	7.5	2	0.01	999999
80	A	80	40	12	3.2	0.01	999999
100	A	120	60	18	4.8	0.01	999999
125	A	200	100	30	8	0.01	999999
150	A	300	150	45	12	0.01	999999
200	A	500	250	75	20	0.01	999999
250	A	800	400	120	32	0.1	999999
300	A	1200	600	180	48	0.1	999999







If you are interested in our water meter or have any questions, please feel free to contact us!
