ASME Standard 40ft lng iso tank container

Product Overview

Description

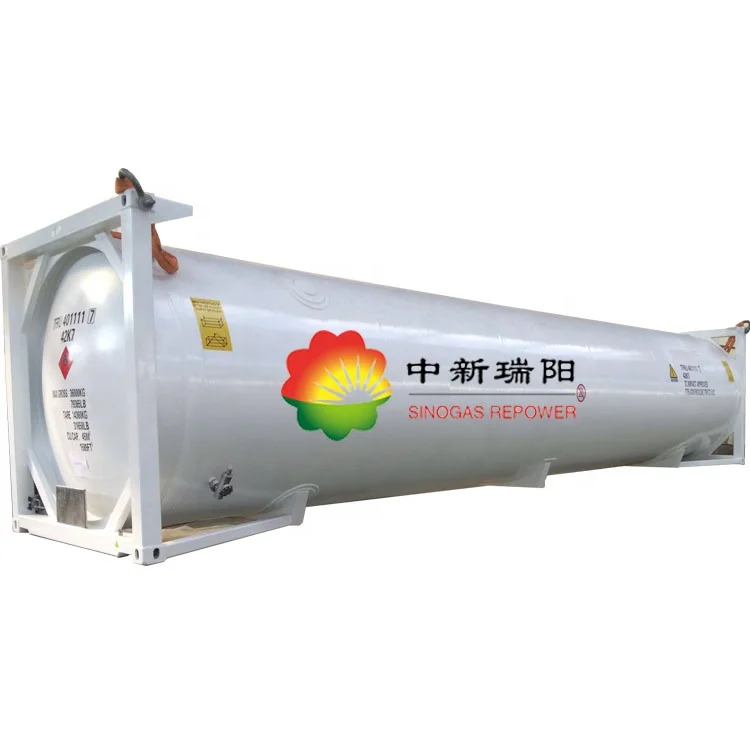

ASME Standard 40ft lng iso tank container



1.Product description:

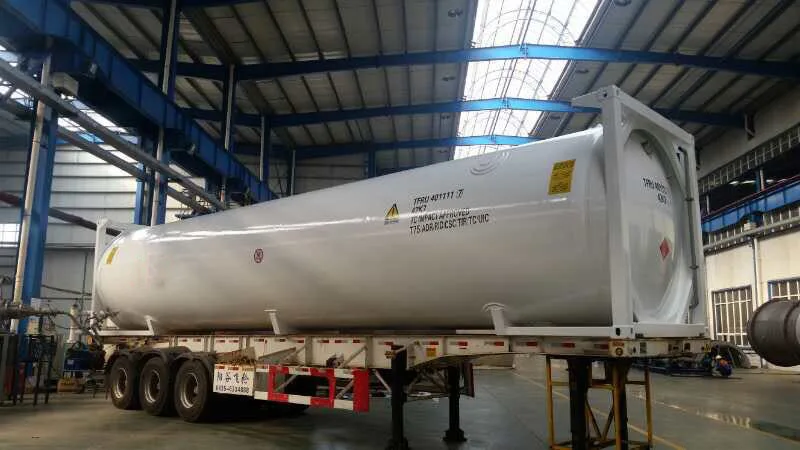

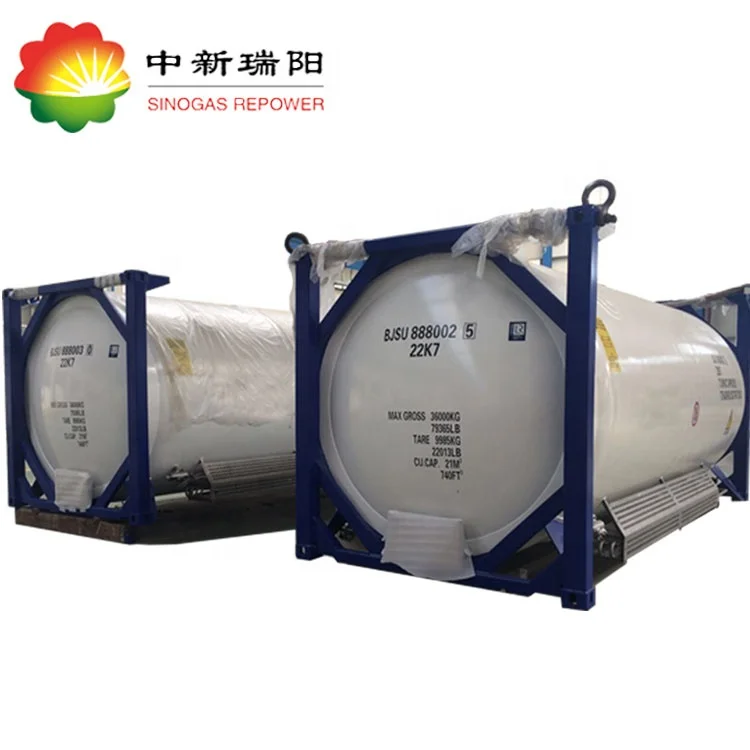

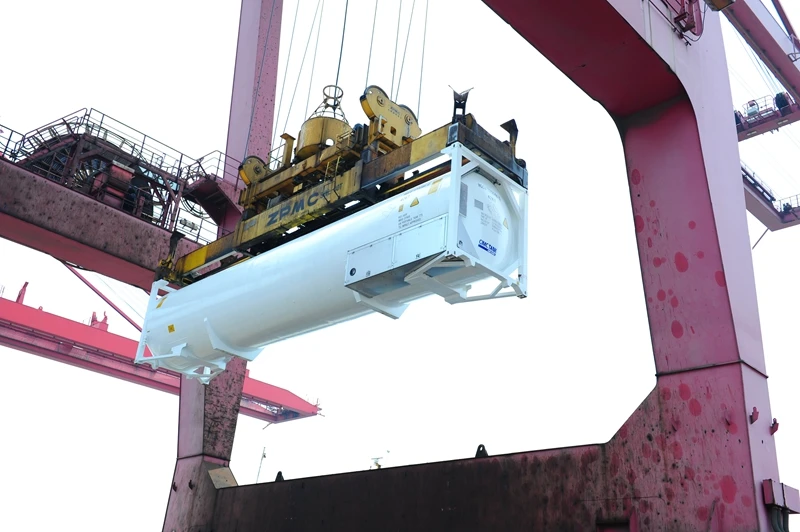

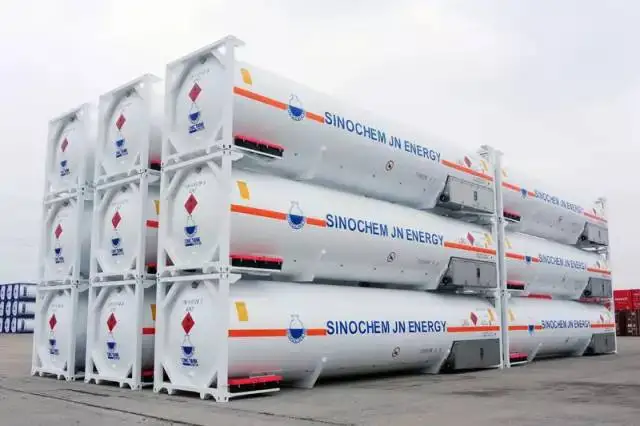

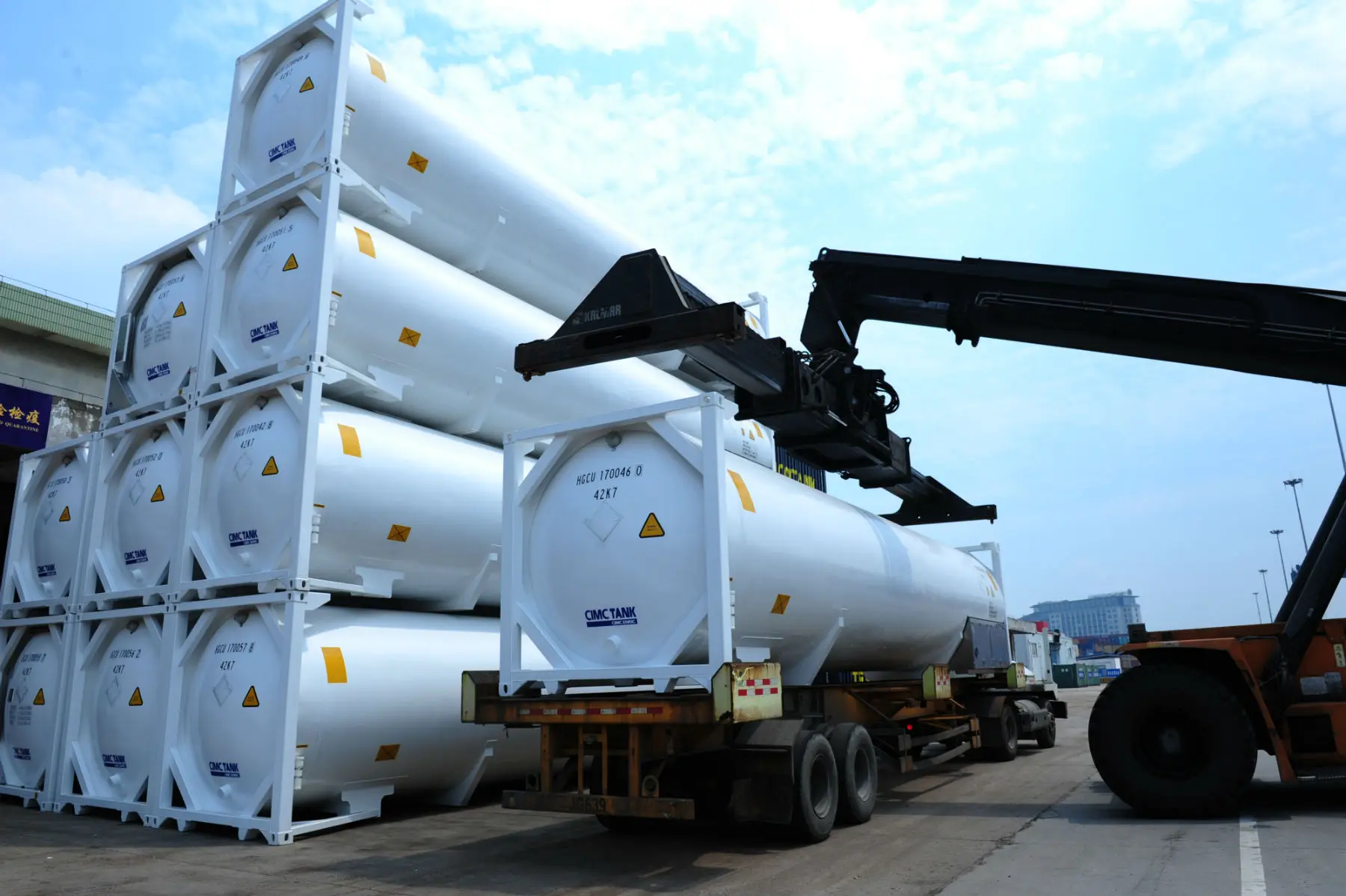

The storage tank containers are designed for transport LNG which can be transport by ship, rail and road. The containers are available ISO 20 foot and ISO 40foot with super insulation.







2.Checking list of 40m3LNG Cryogenic Liquid Tank Container



Model	40m3LNG Cryogenic Liquid Tank Container
Medium	LNG
Design temperature (℃)	-196
Working temperature (℃)	-162
Total gross weight	36000kg
Working pressure	0.65Mpa
Design pressure	0.975Mpa
Geometric volume	40m3
Effective  volume	36m3
Overall dimension(mm)	12192X2438X2591mm







3.Technical advantages:

1.The unique connection between inner container and outer shell makes the structure more reliable.

2..High vacuum multi-layer wrapping insulation, low thermal conductivity.



3.Vacuum Degree of Sealed Interlayer ≤1x10-1, Static evaporation≤0.23% (LN2).

4.The inner container uses helium mass spectrometer to detect leaks to ensure airtightness.



5.Complere quality assurance system and perfect manufacturing process.











 Company Advantages:

1.We have passed IMDG, EN13530, ISO1496-3.

3.Use better quality LNG storage tank parts.

4.We can arrange our engineers to help you for installation and operation.

5.We can provide you the best after-sales service.
