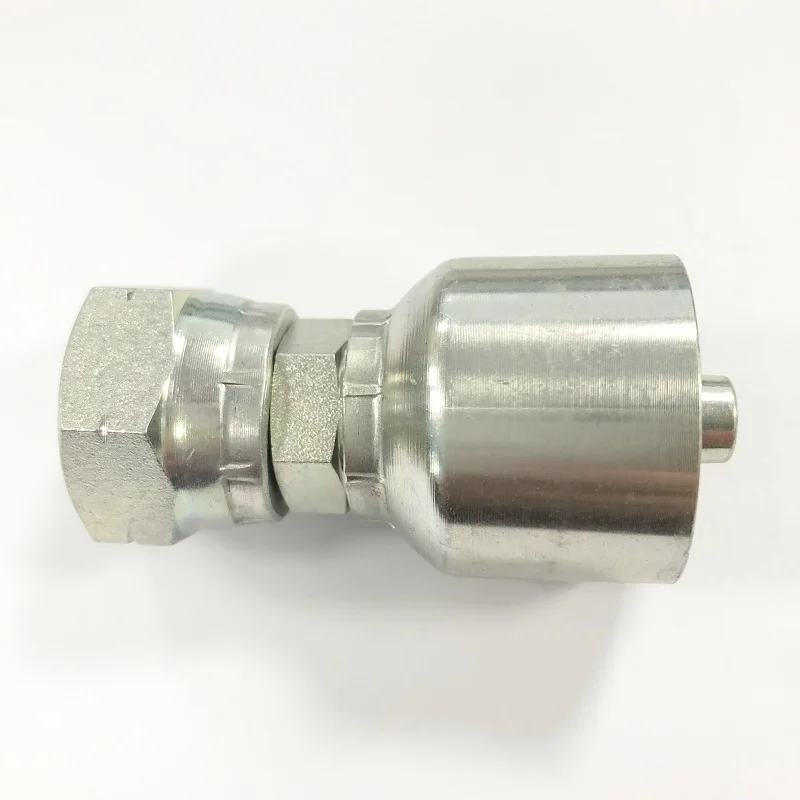

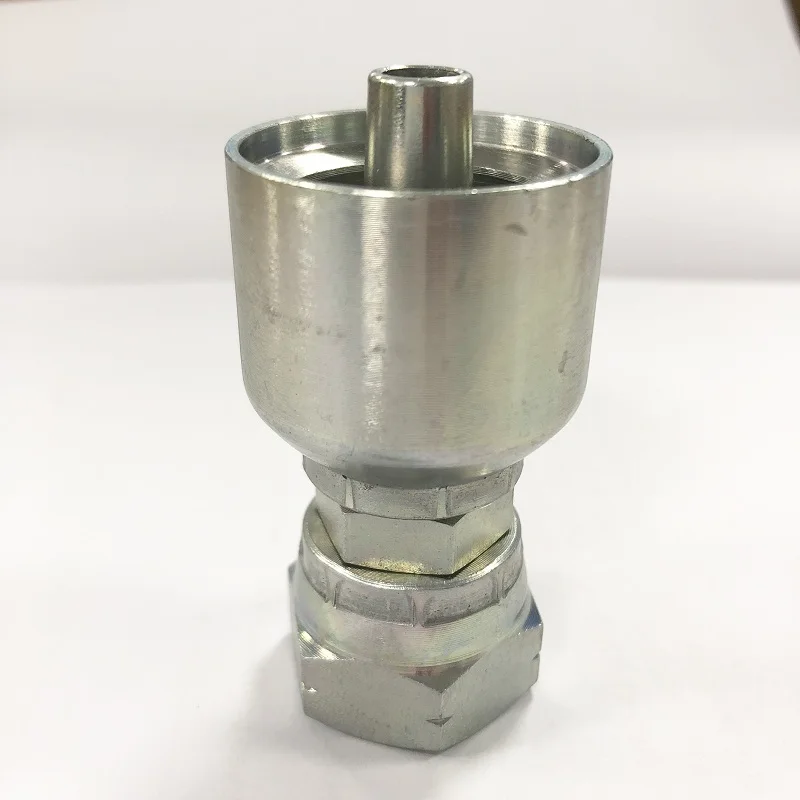

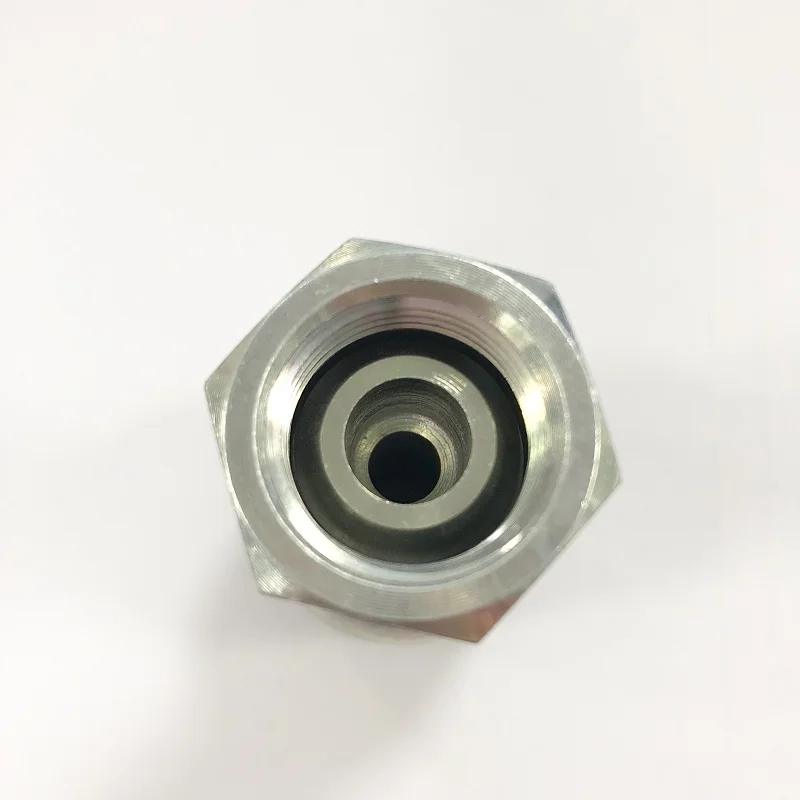

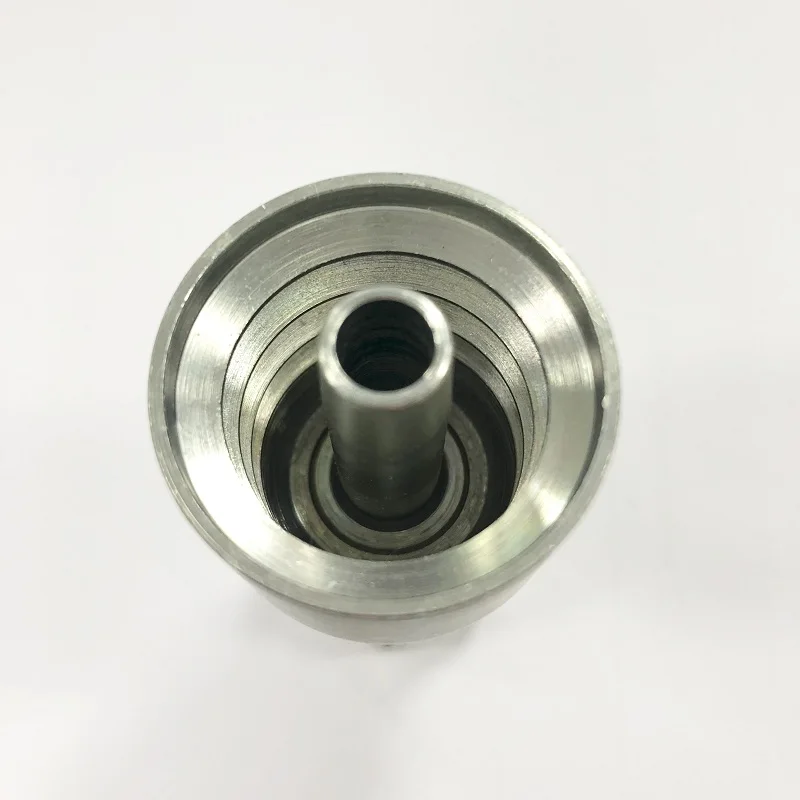

High Pressure No Skive Parker 70 Series Fittings
We are specialized in Parker standard one piece hydraulic crimping fittings, including 43 series, 71 series, 56 series etc, matched your braided, spiral, thermoplastic hydraulic hose. All fittings have been tested and approved, and meet stringent industry standard worldwide. Stainless steel 304, 316 and Chromium-6 free plated steel material with thread NPT, BSP, JIC, ORFS...

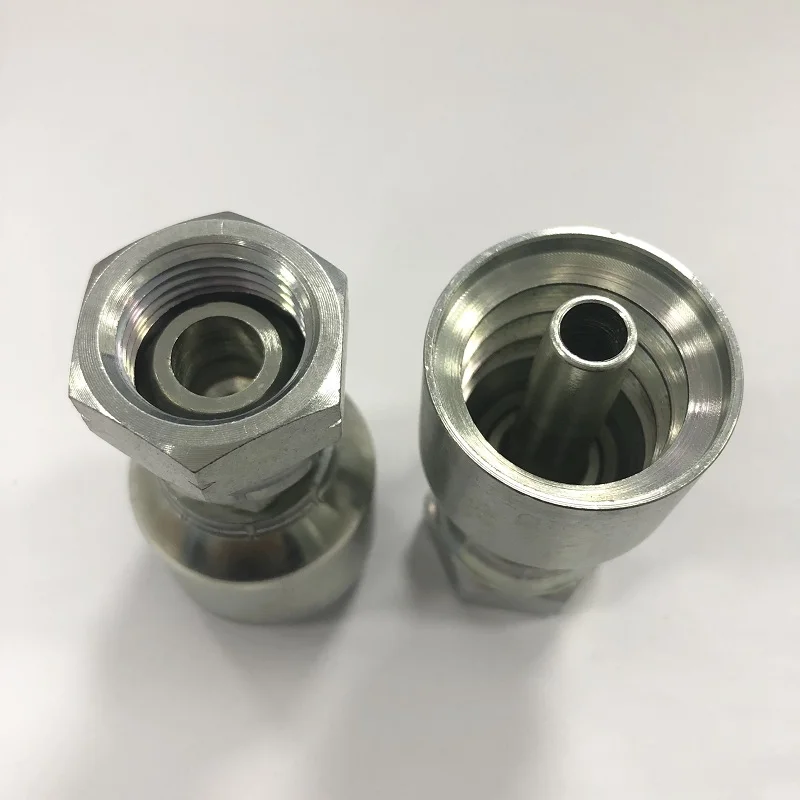

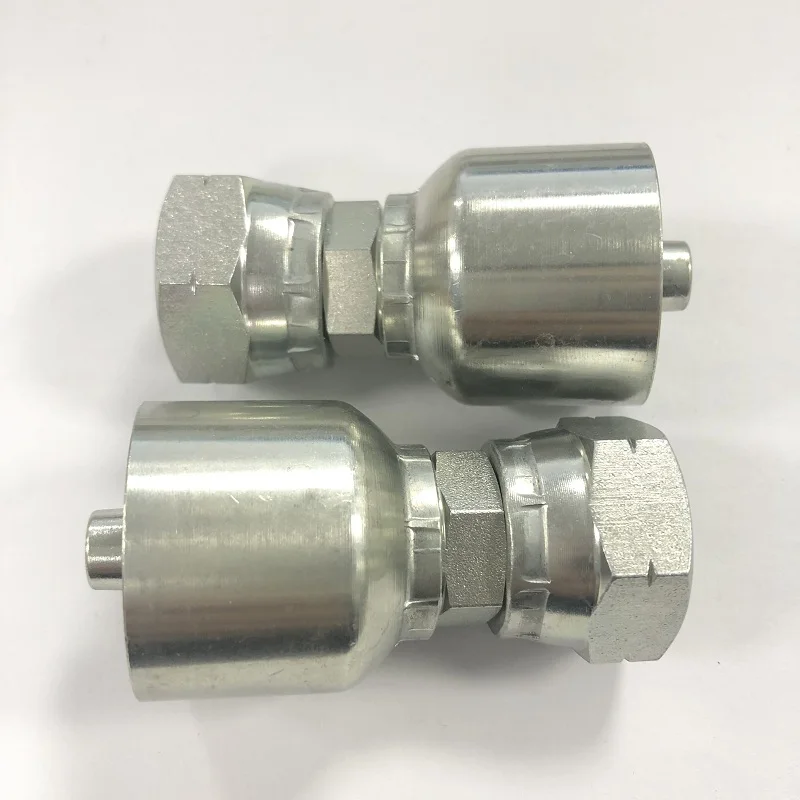

19270 female bsp swivel | |||||||||
Part Number | Thread inch | Hose I.D. inch | A | C | W | B | |||
inch | mm | inch | mm | mm | inch | mm | |||
19270-6-6 | 3/8x19 | 3/8 | 1.93 | 49 | 0.28 | 7 | 22 | 0.79 | 20 |
19270-8-8 | 1/2x14 | 1/2 | 2.24 | 57 | 0.28 | 7 | 27 | 0.87 | 22 |
19270-10-10 | 5/8x14 | 5/8 | 2.24 | 57 | 0.35 | 9 | 30 | 0.83 | 21 |
19270-12-10 | 3/4x14 | 5/8 | 2.40 | 61 | 0.35 | 9 | 32 | 0.87 | 22 |



packing: box/ pallet
shipping: express/ air/ sea

Gemflex has 10 years of experience in the production of pipe and joint products, and has different production plants in Hebei, Shandong, Zhejiang and Guangzhou. Total area is 6,000 square meters and the staff is about 150 people.
It has 40 production knitting machines, 15 extruders, 20 CNC machine tools and various testing equipment.
Teflon's annual productivity reaches 1 million meters, resin tube productivity reaches 3 million meters, and joints are 3.5 million pieces.
