7/16 jack to 7/16 jack flange type RF coaxial connector adapter

Description.

Adapter is essential product for instrument measurement of connections with cables of different interfaces. It is classified into the same type of adapters and different types of adapter, their technical characteristics are the same as those of similar products, for your respective reference.   Provides a minimum length consistent with good electrical performance, the small size, low VSWR, and broad frequency coverage, permits a wide range of applications, the major application is the test system and operating systems.


Product Information.


Item No.: CA-DF-DF-L-G08

Adapter Type: DIN female to DIN female, flange

Size: as drawing


Drawing.

\t
Interface
\t
According to
\t
IEC 61169-54
\t
Electrical
\t
Impedance
\t
50 ohm
\t
Frequency
\t
DC-3GHz
\t
VSWR
\t
≤1.1
\t
PIM3
\t
≤-155dBc
\t
Dielectric withstanding voltage
\t
≥4000V RMS, 50Hz, at sea level
\t
Dielectric Resistance
\t
≥10000MΩ
\t
Center contact resistance
\t
≤1.0m Ω
\t
Outer contact resistance
\t
≤1.5m Ω
\t
Mechanical
\t
Mating cycles
\t
≥500 times
\t
Adapter type
\t
DIN female to DIN female, flange
\t
Material and plating
\t
Body
\t
Brass / Ni plating
\t
Center conductor
\t
Phosphor bronze / Ag plating
\t
Dielectric
\t
PTFE
\t
Environmental
\t
Temperature range
\t
-40℃~+85℃
\t
Rosh-compliance
\t
Full Rosh-compliance
Related Products

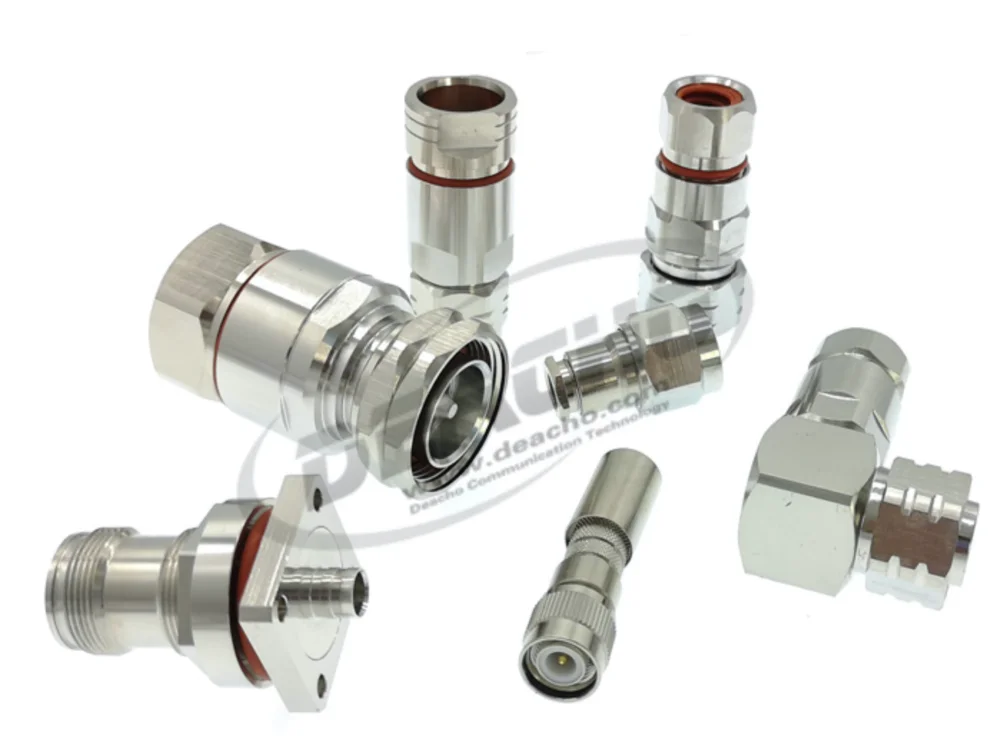

    4.3-10 Connector                        DIN, 7/16 Connector                           N Connector                                     RF Connector
