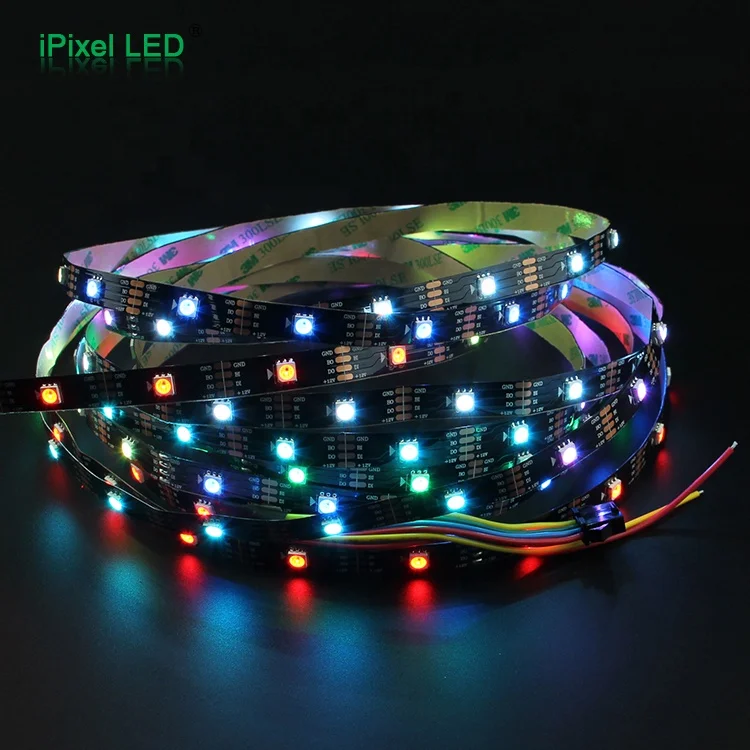

iPixel WS2815 double signal Break Continue DC12V flexible rgb led strips with full color

Product Details

-This is a new chip again from worldsemi family ,

based on WS2812B and WS2813.

- To solve the chip breakdown and Strip's Voltage

drop ,now we welcome WS2815.

Product Details

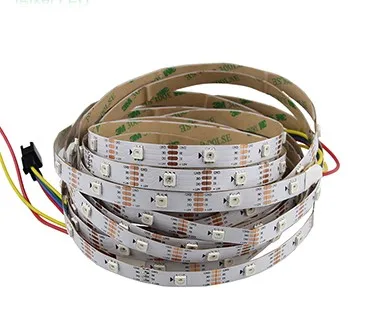

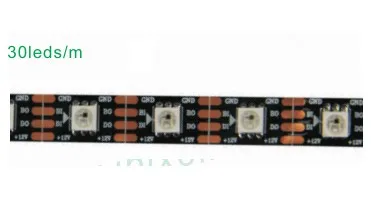

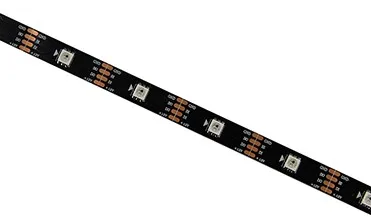

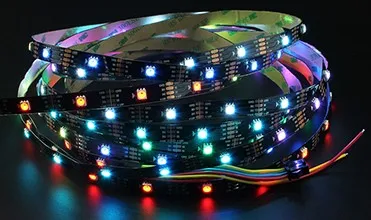

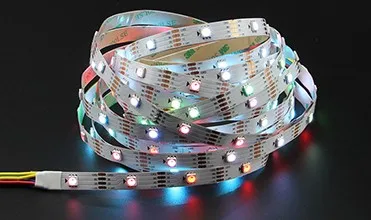

- The Flex is 30 Pixel/ LED per meter ,and 5 m in

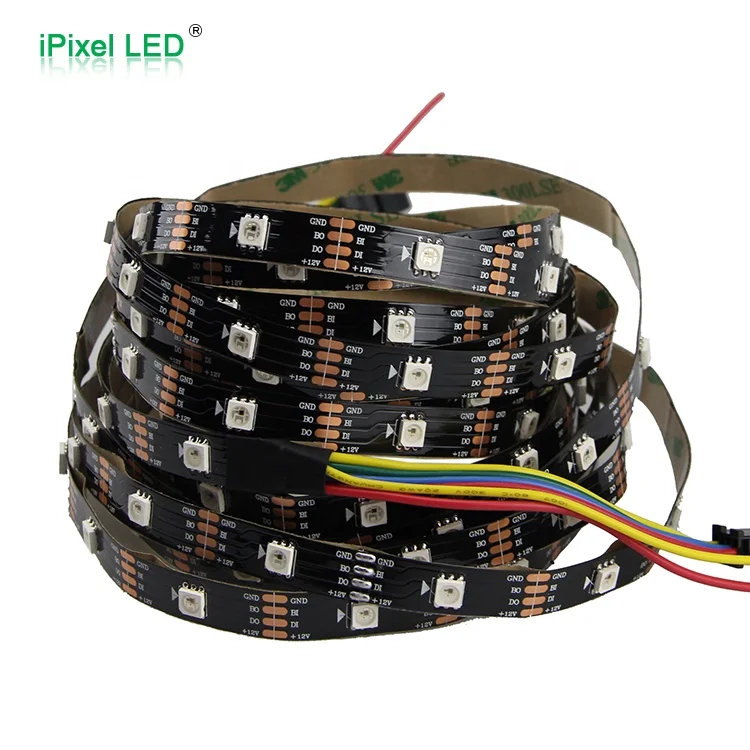

a roll we provide black and white color board.

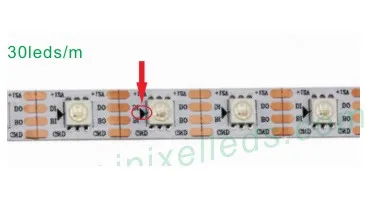

- same as our other addressable tapes, it's

cut-able per unit LED with a large soldering Pad

Product Details

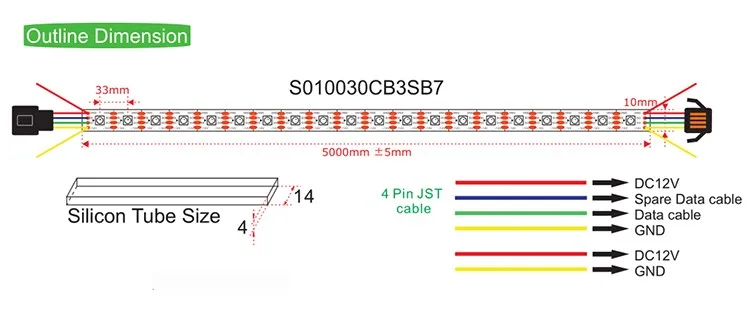

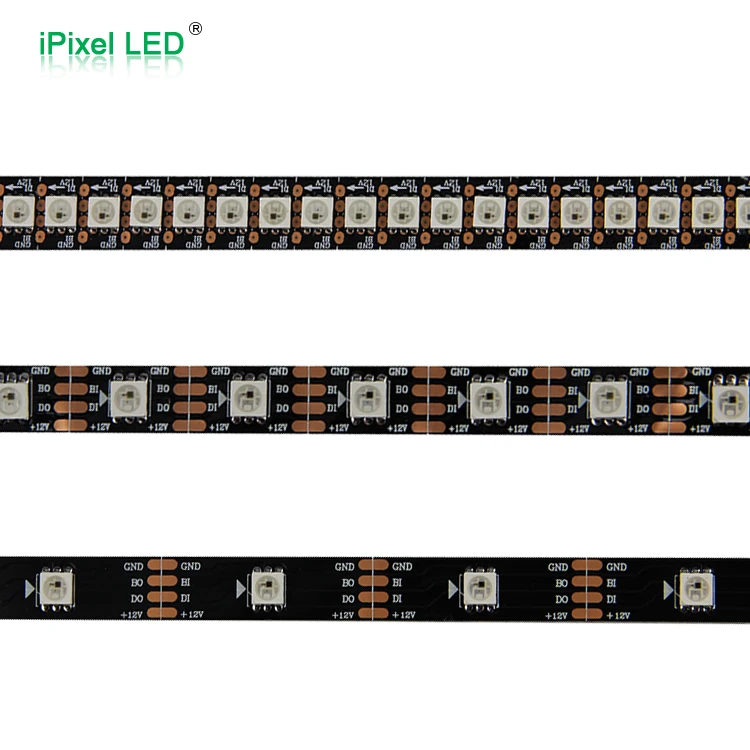

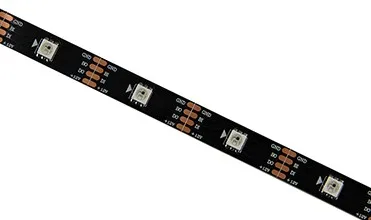

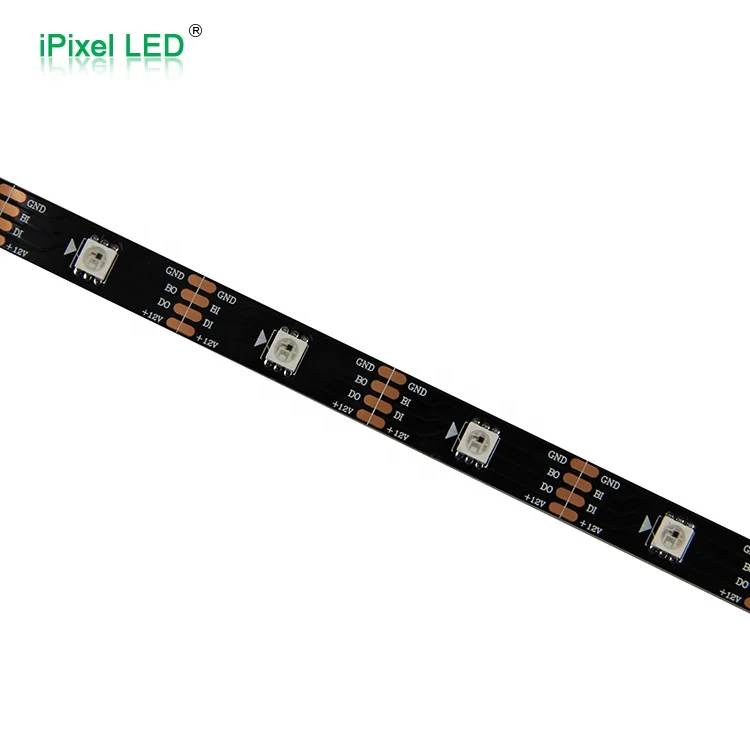

- the PCB printed +12V DI ,BI, GND , both DI and BI

means signal but it's only required to link the DI

cable to your controller.

- this PCB made by 3Ounce copper for more reliable

application.

Product Details

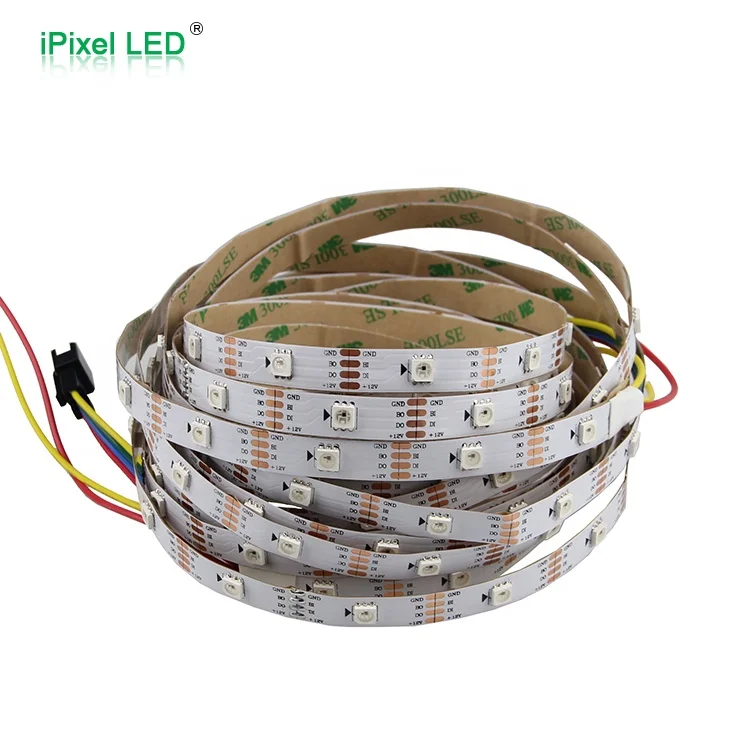

- 3 M tape attached on backside of strip.

- again we suggested you power it every 5 meters even

it's 12V addressable.

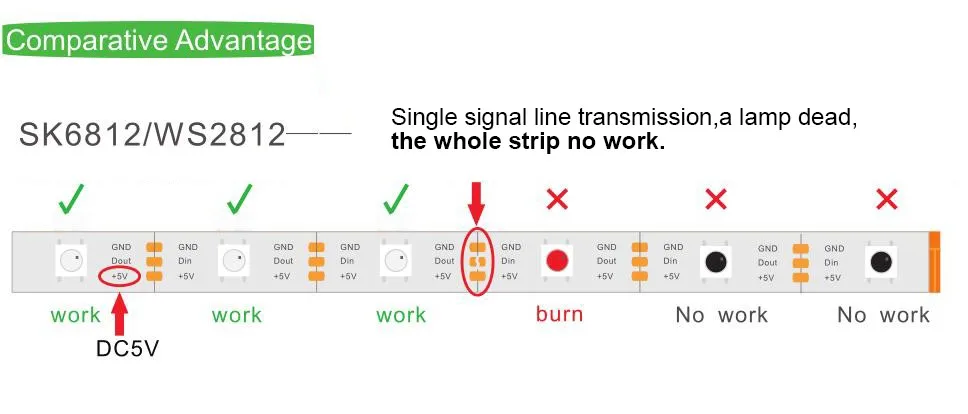

SK6812/WS2812:
Single signal line transmission,a lamp dead, the whole strip no work.

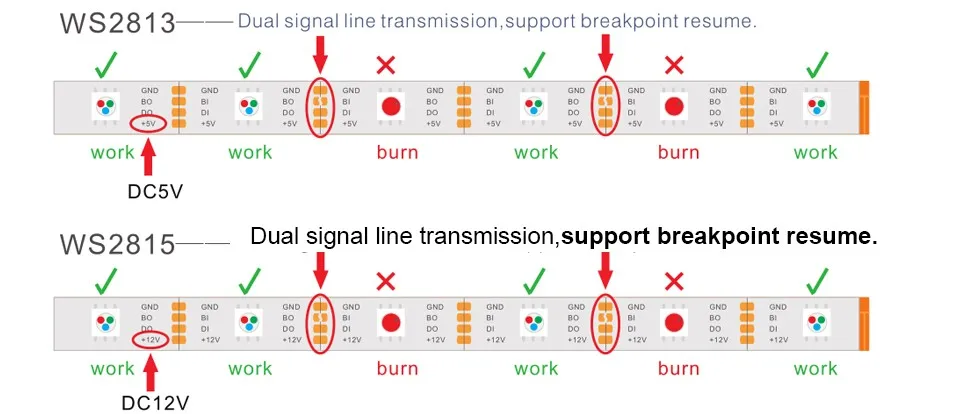

WS2815/WS2813
Dual signal line transmission,support breakpoint resume.
