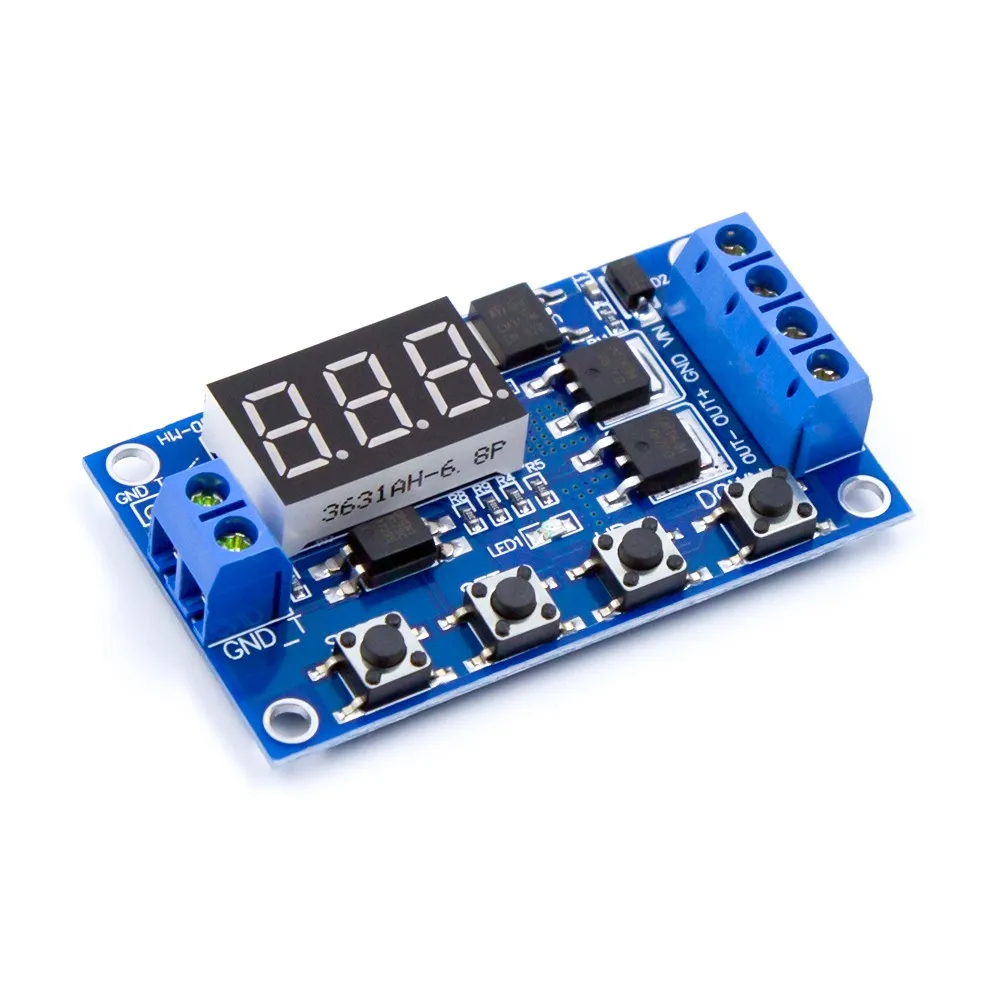

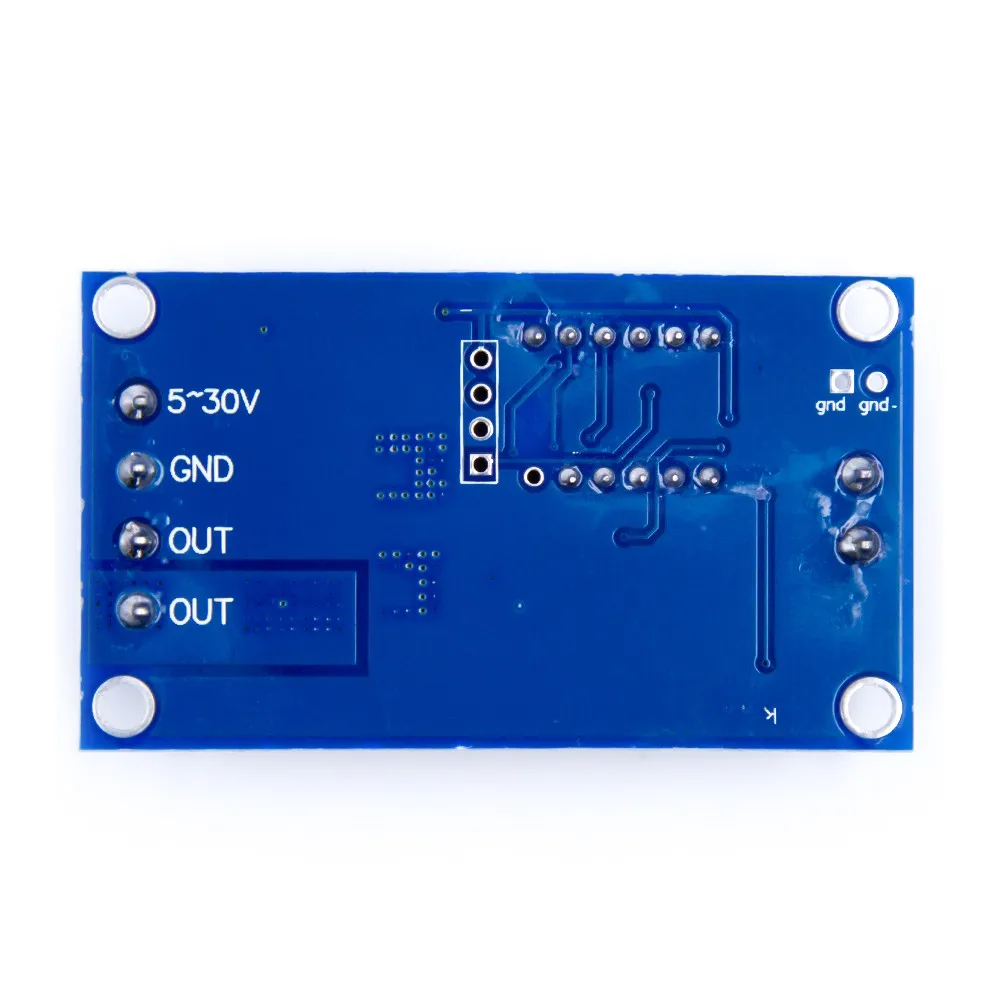

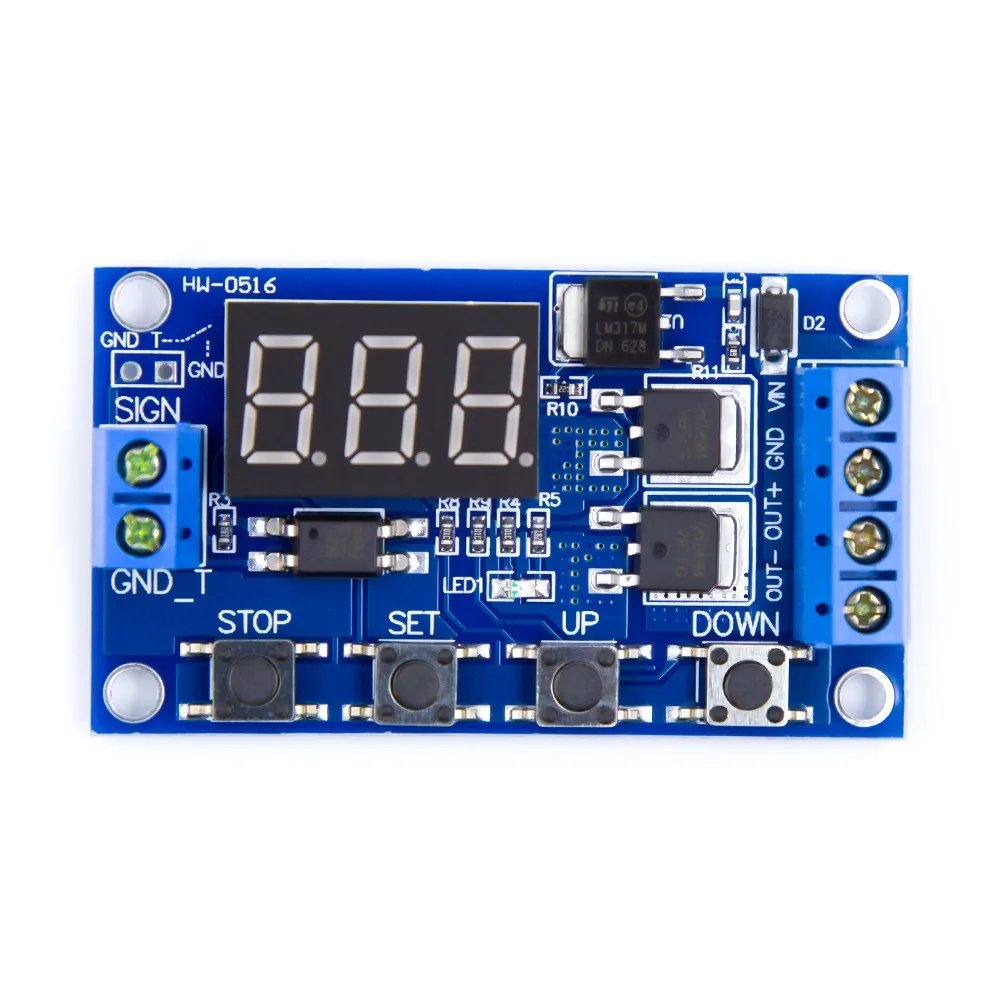

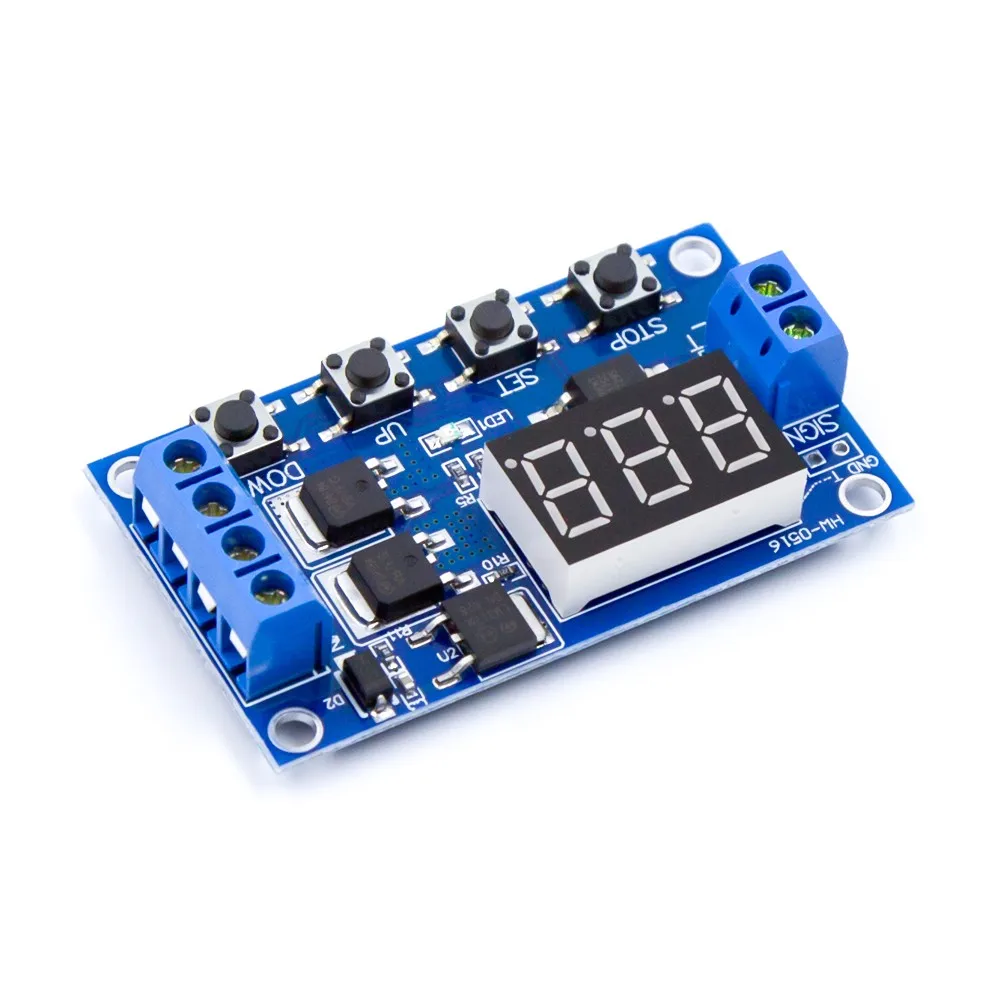

DC 6-30V Digital LED Relay Board Cycle Time Circuit Switch Double MOSFET Timer Delay Instead Of Relay Module 12 24V
6-30V input voltage range, support micro USB 5.0V power supply, convenient to use
Time adjustable range: 0.1s to 999 minutes continuously adjustable
The function of stop key (STOP button) and opto-isolator enhance the ability of anti-interference; reverse connect protection
function protects the module from burning out
After five minutes without any operation, the digital display automatically turns off, and you can press any button to wake it up
Clear LED display, easy to check the value
Specifications:
Voltage: 6V~30V(support micro USB 5.0V)
Trigger Signal Source: High voltage level trigger(3.0V~24V), signal ground and system ground are not connected to improve system
anti-interference ability(or you can connect them).
Load Capacity: DC 30V 5A, AC 220V 5A
Quiescent Current: 20mA
Operating Current: 50mA
Operating Temperature: -40℃~85℃
Size: 6.2×3.8×1.7cm / 2.44×1.49×0.67"
Timing Range: 0.1seconds to 999 minutes(continuously adjustable)
