New MTS3 communication module remote control wifi 4g smart circuit breaker
- Category: >>>
- Supplier: Shanghai Matis Imp. & Exp. Co. Ltd.
Share on (60831601487):
Product Overview
Description

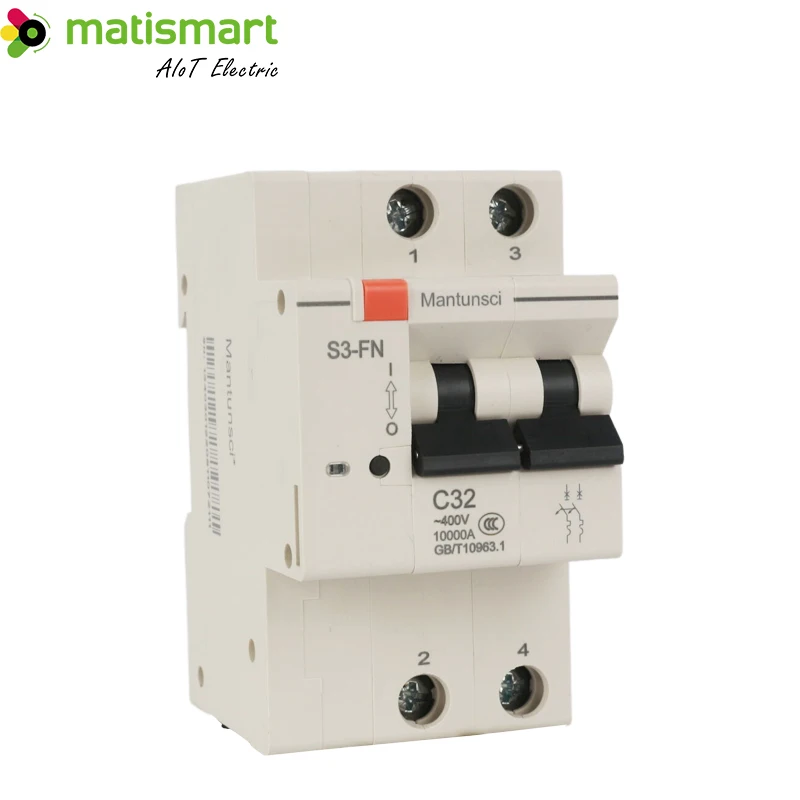

MTS3 Smart Metering Breaker
MTS3 is a smart MCB circuit breaker. It is also a remote control circuit breaker with electrical safety monitoring and powermanagement system including hardware and software. This smart WiFi MCB integrates the latest and advanced technologies such as artificial intelligence, big data, IoT, and cloud computing. The system issues an early warning before a fault is reported.

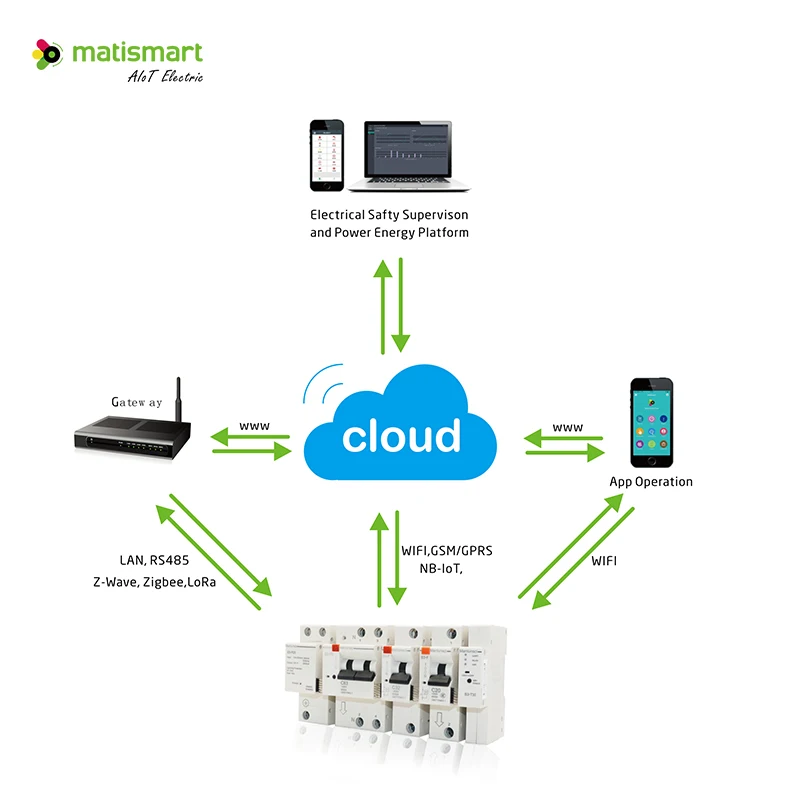

For this device, Matismart has developed a platform called "Smart Electrical Safety Supervision and Power Management Platform" which has features like Online power management, real-time power efficiency monitoring, and real-time monitoring of electrical circuit parameters (voltage, current, power KWH, etc), and are reported, which help identify where energy savings are required, and further save power bills through analysis of collected data, power consumption analysis.
Features:
1. Device Extendable
This is a modular device that can be extendable as traditional MCB and RCBO. It withstands a maximum current of up to 80A. 1,2,3 &4 Pole for iMCB are available.
2. Minimum Space Requirement
Except for Power supply module of 36mm and the communication module of 18mm, the iMCB and iRCBO have an extra 9mm or 18mm control module, different from traditional MCB and RCBO.
3. Very Simple Installation

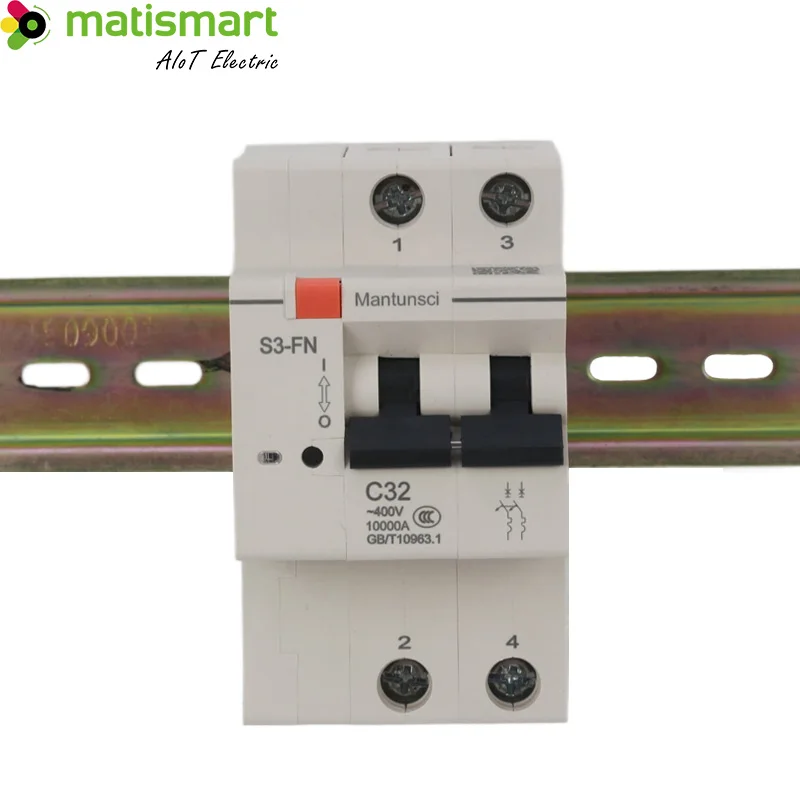

All devices are mounted in 35mm Din Rail and connected by connection pins or flexible flat cable. No special tools are required for the entire connection process.
4. System Compatibility
This system can be compatible with other systems, such as smart homes, fire monitoring systems, energy efficiency management systems, smoke, and voice control, etc.
5. Electrical Faults Analysis
The system can realize the real-time analysis of all electrical faults of both main and branch lines: short circuits, earth
leakage, overload, over/under voltage, overheated, arc fault, etc.
6. Monitor Electrical Circuit Parameter
The system can realize real-time monitoring of electrical circuit parameters: voltage, current, power, temperature, residual
current, and KWH.
7. Full Protection
This system includes all protections: overload, short circuit, earth leakage, surge, over/under voltage, arcing fault, phase loss, unbalance, and high temperature.
8. Max. power and Current Setting

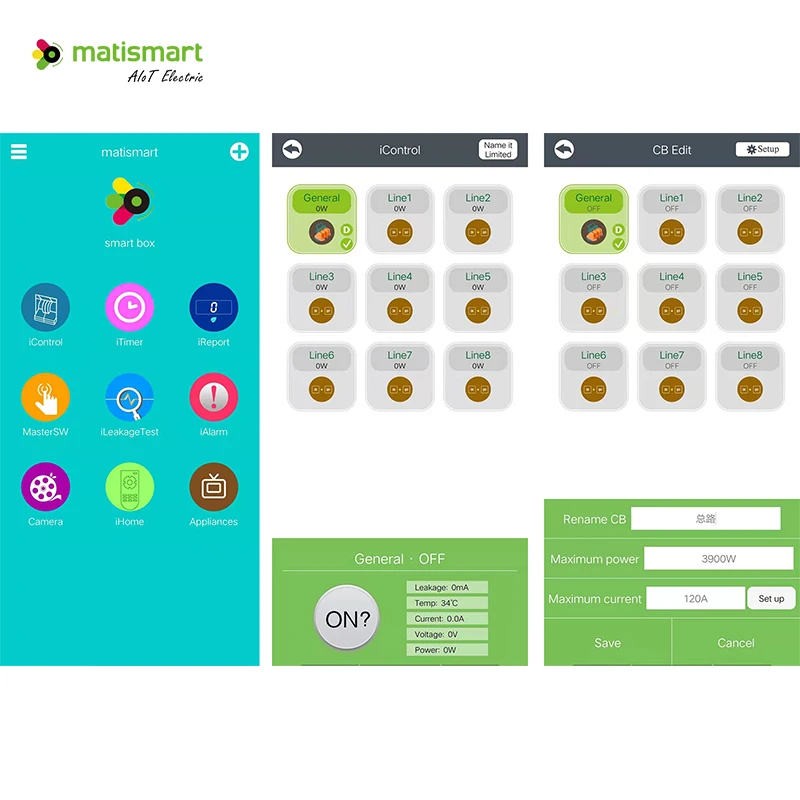

The power and current under-rated current power can be adjustable through the App or software platform.
9. Auto-test of Earth Leakage Current
The device periodically tests the working of the residual current circuit protection, which can be set on a fixed date each month in the APP, rather than the traditional test monthly on-site.
This is a modular device that can be extendable as traditional MCB and RCBO. It withstands a maximum current of up to 80A. 1,2,3 &4 Pole for iMCB are available.
2. Minimum Space Requirement
Except for Power supply module of 36mm and the communication module of 18mm, the iMCB and iRCBO have an extra 9mm or 18mm control module, different from traditional MCB and RCBO.
3. Very Simple Installation
All devices are mounted in 35mm Din Rail and connected by connection pins or flexible flat cable. No special tools are required for the entire connection process.
4. System Compatibility
This system can be compatible with other systems, such as smart homes, fire monitoring systems, energy efficiency management systems, smoke, and voice control, etc.
5. Electrical Faults Analysis
The system can realize the real-time analysis of all electrical faults of both main and branch lines: short circuits, earth
leakage, overload, over/under voltage, overheated, arc fault, etc.
6. Monitor Electrical Circuit Parameter
The system can realize real-time monitoring of electrical circuit parameters: voltage, current, power, temperature, residual
current, and KWH.
7. Full Protection
This system includes all protections: overload, short circuit, earth leakage, surge, over/under voltage, arcing fault, phase loss, unbalance, and high temperature.
8. Max. power and Current Setting
The power and current under-rated current power can be adjustable through the App or software platform.
9. Auto-test of Earth Leakage Current
The device periodically tests the working of the residual current circuit protection, which can be set on a fixed date each month in the APP, rather than the traditional test monthly on-site.
Power Supply | ||||
Standards | En55022, EN55024,EN61000,EN60950,GB4943 | |||
Approvals | CE,CCC | |||
Functions | Power supply, surge protection | |||
Numbers of Modules( 1 module=18mm) | 36(2 P) | |||
Max. working capacity (Max.numbers of breakers ) | 10*(iRCBO/ iMCB) | |||
Connection | Both from top to bottom or reverse | |||
RCBO | ||||
Standards | IEC61009.1, GB16917.1 | |||
Approvals | CE, CCC | |||
Poles | 2P,4P | |||
Rated current | 16,20,25,32,40,50,63,80A | 4P | ||
Rated residual current (I∆n) | 30mA | 1030g | ||
Rated Breaking capacity | 10KA | |||
MCB | ||||
Standards | IEC60898.1, GB10963.1 | |||
Approvals | CE, CCC | |||
Poles | 1P, 2P, 3P, 4P | |||
Rated Current | 10,16,20,25,32,40,50,63,80A | |||
Communicaiton Module | ||||
Product Code | S3-T30/RS485/Zigbee/NB-IoT/T2G/T4G/LoRa | |||
Approvals | CE,CCC | |||
Types | TCP/IP, RS485,Wi-Fi, GPRS-2G, NB-IoT, Zigbee, LoRa | |||
Rated input voltage | 12V | |||
Max. working capacity ( Max.numbers of breaker powering) | (iRCBO+ iMCB) x 32pcs | |||
