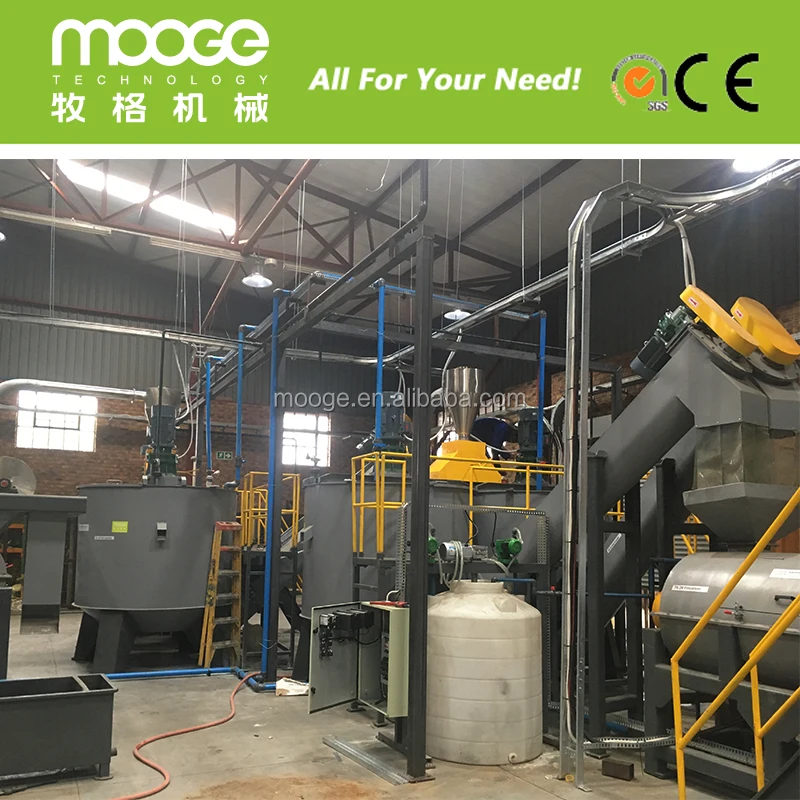

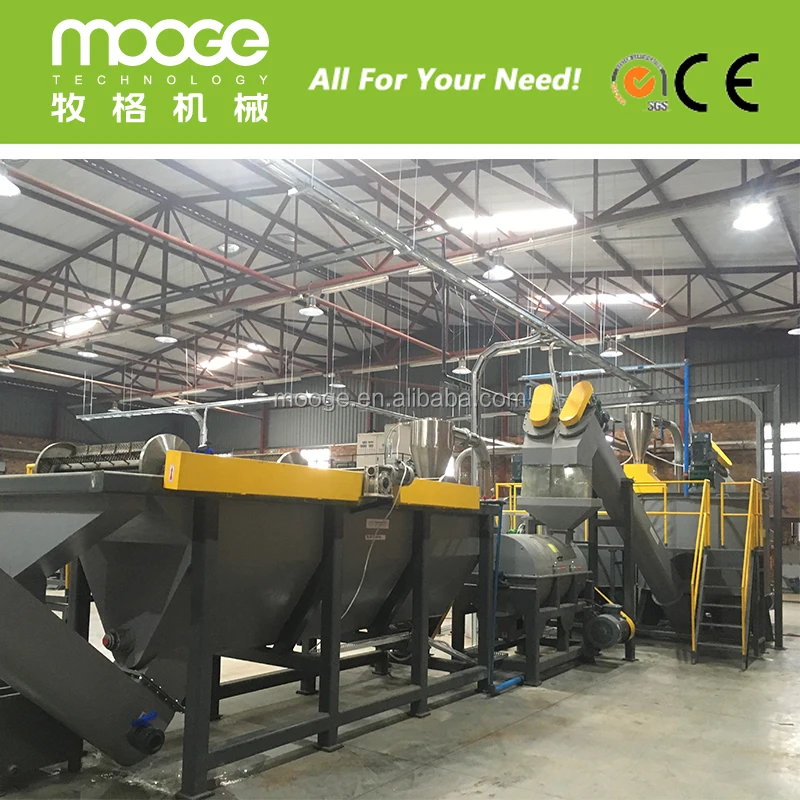

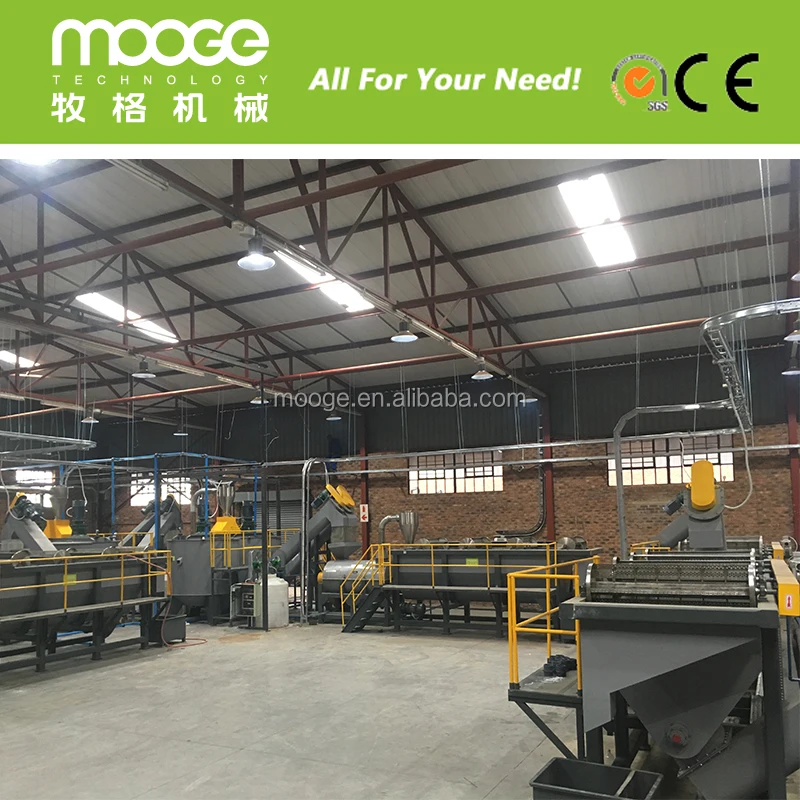

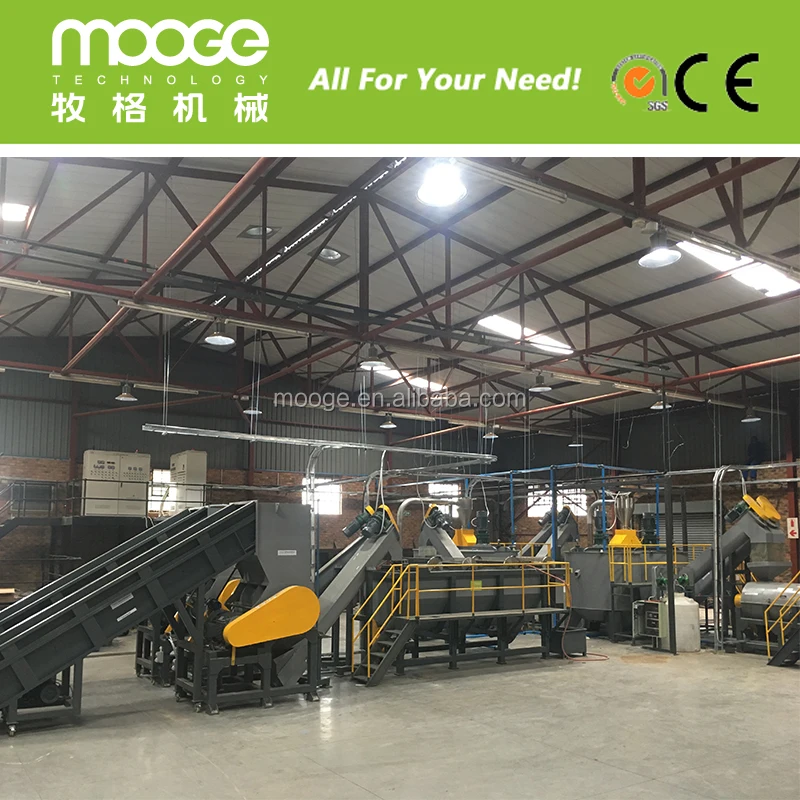

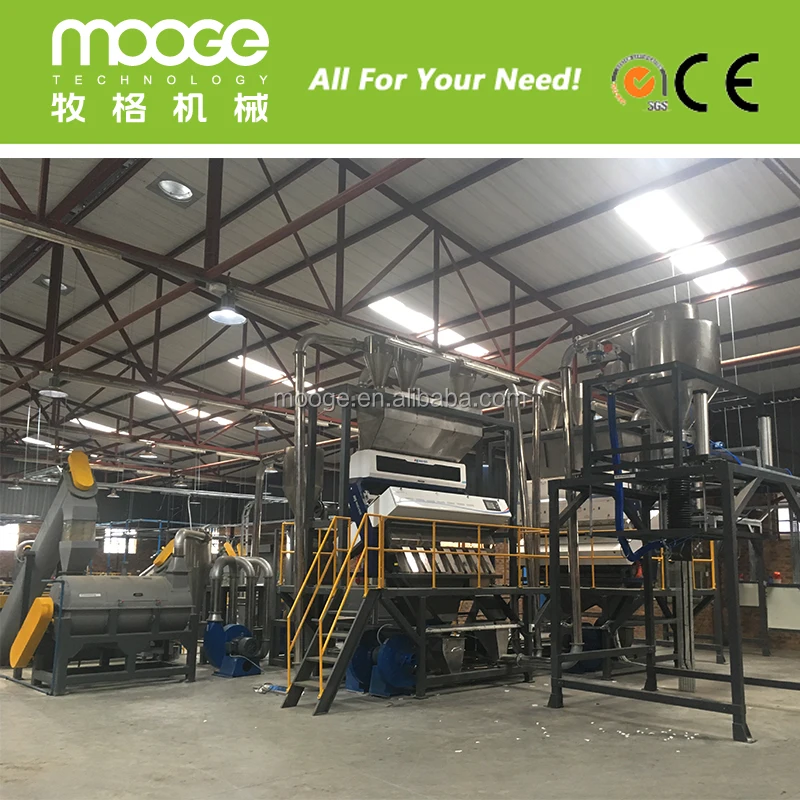

Mooge 500 kg/h pet bottle recycling machine

1.This line is used recycling pet material ,such as pet bottle,pet sheet ,pet Non-woven fabrics and so on.

2.The line main machine include label remover remover machine,plastic crusher machine,hot washing tank(using electric or steam to heating water,steam is better),float washing tank,high speed friction wahser machine,plastic dewatering machine,zig zag label separator machine,hot air dryer system,bottle flakes sorting system etc.

3.Customized the recycling line according to customer requirement

Machine parameter

Product Name	PET Water bottle washing recycling machine/equipment/line
Raw Material	Scrap plastic bottle
Capacity	300/500/1000/1500/2000/3000/4000/5000kg/h
Plant area required	Plant height: >5m Area: >1000 Square meters Line dimension: 55X5X3.5~115X6X5m (also we can install the line as "U" or "L" shape)
Running Power	Installed Power:190~ 500KW Power consumption: 120-300KW Power supply: 3*380V+N+PE or customized Voltage tolerance: ±5% Frequency: ±2% Control voltage: 24VDC+220VAC (especially 220v ,50hz,3P, the total cost will increase 5%)
Water System	Water Supplying: 3-15m³ per Hour Water consumption: ≈ 1-2m³ Per Hour (with the water treatment system)
Environment required	Indoor with Altitude < 1000m Temperature: -15°-55° Relative humidity< 90%
Buyer supply	Air source: 0.6-0.8MPa All Electricity connection cables All water supplying and draining piping and valves Water supplying and water drain pools underground Water treatment system can buy optional Steam supplying can buy optional to instead of electricity heating Other installation facility and tools Sound proof for the crusher and other machines optional choose

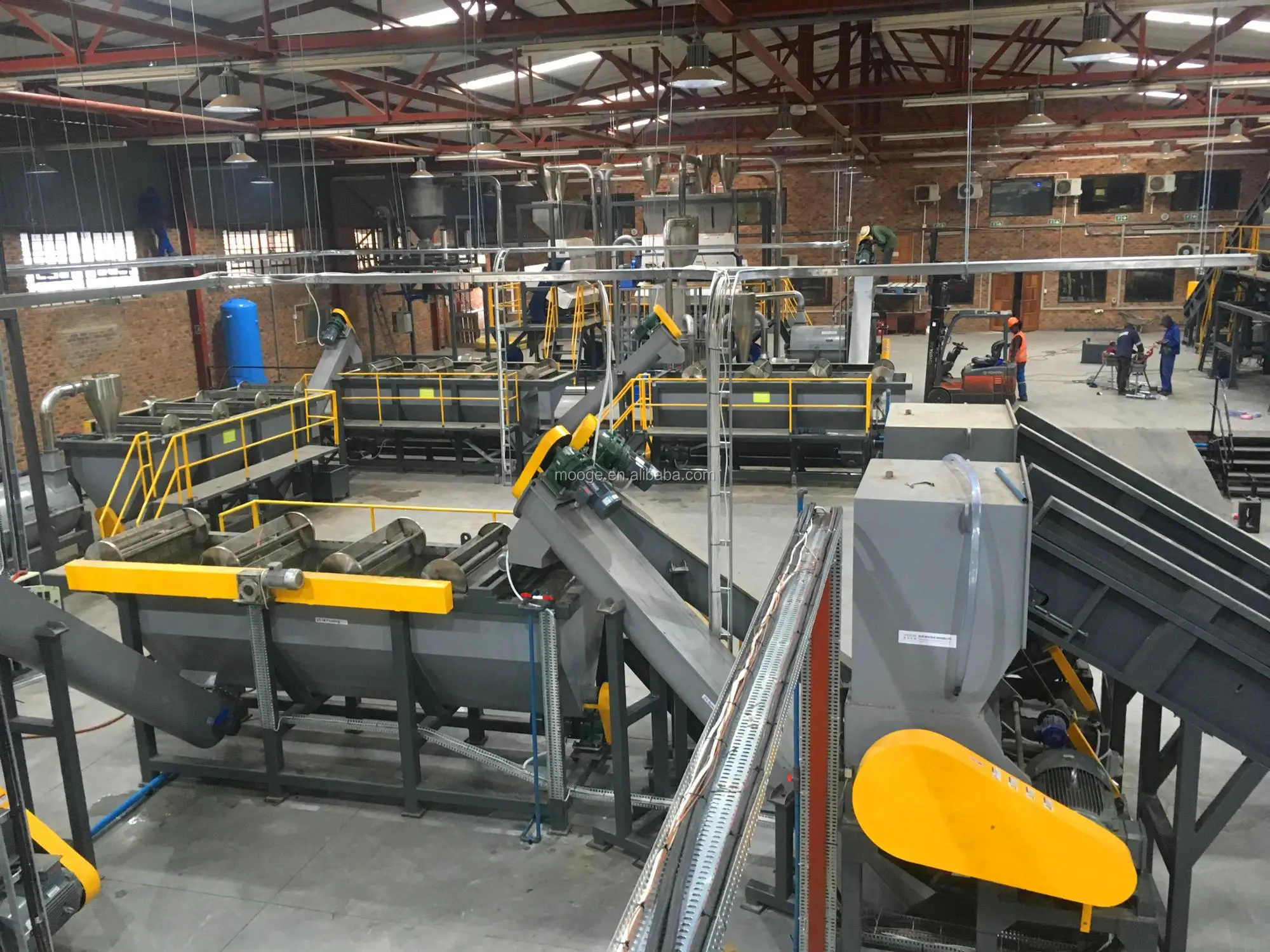

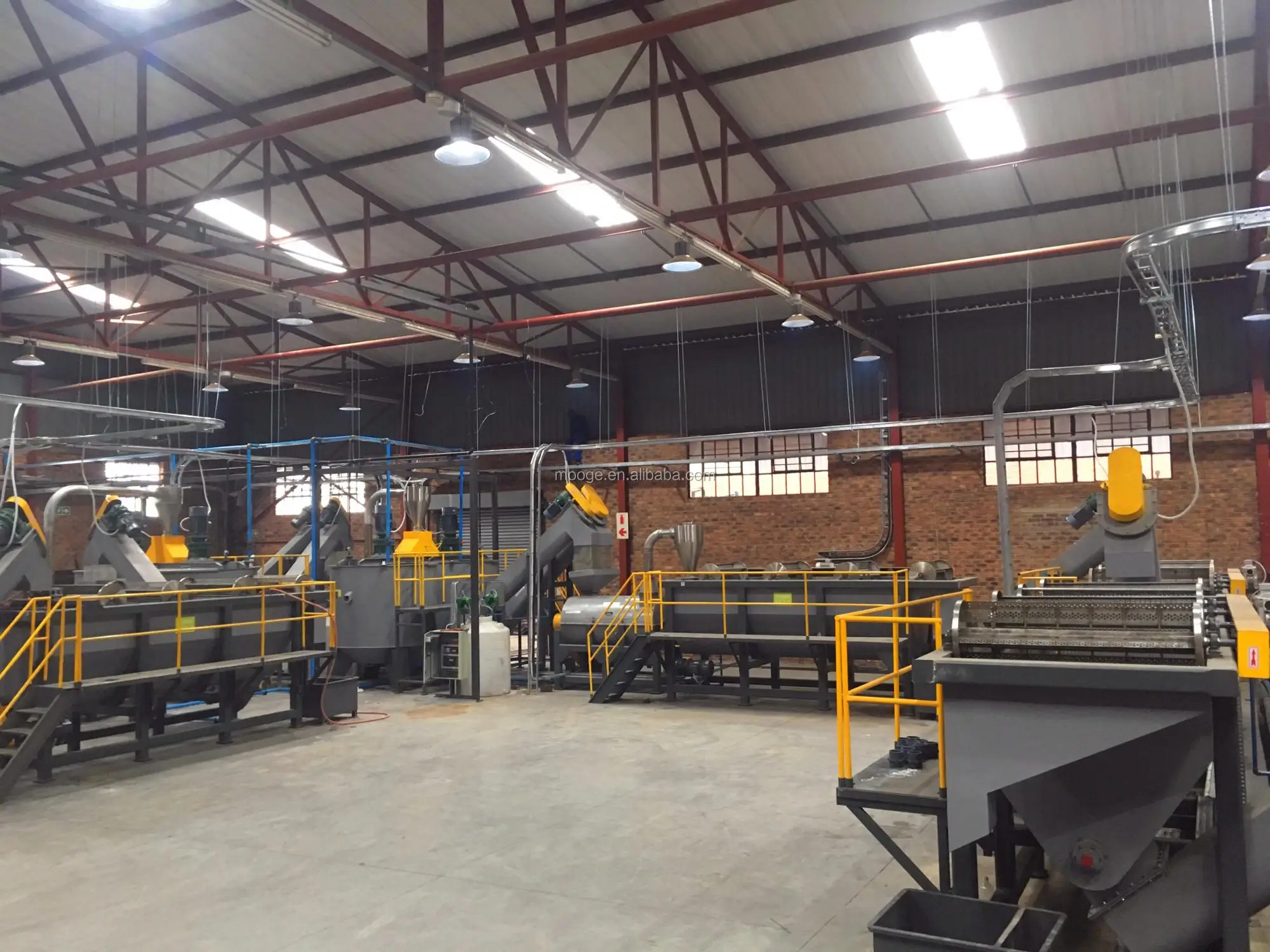

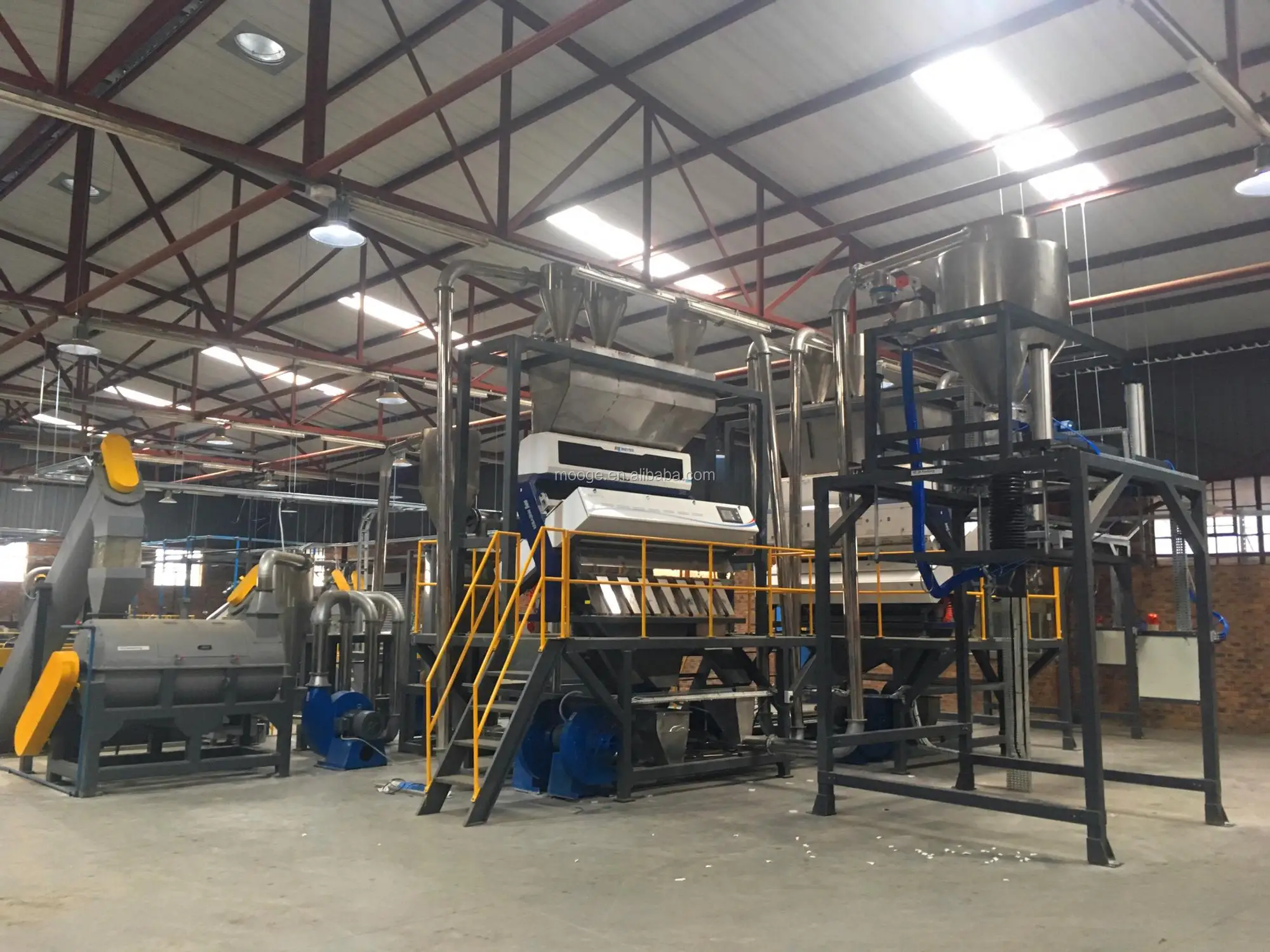

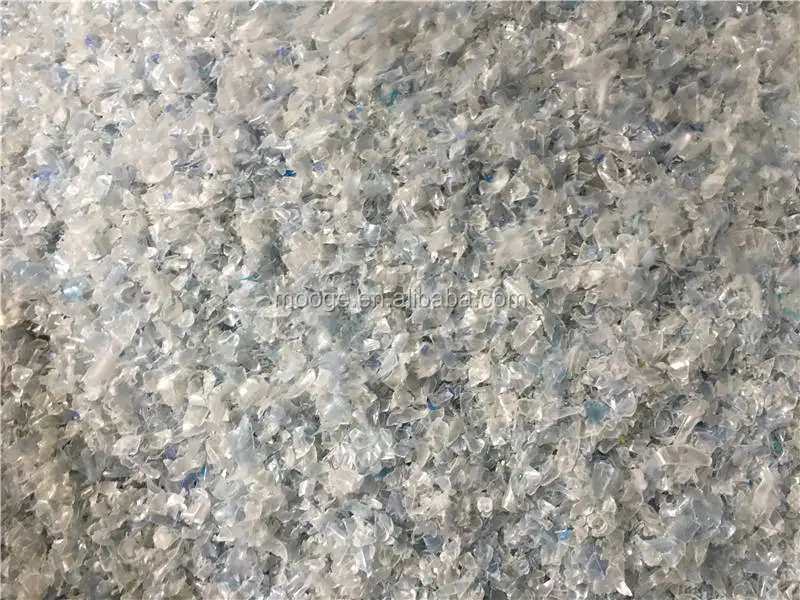

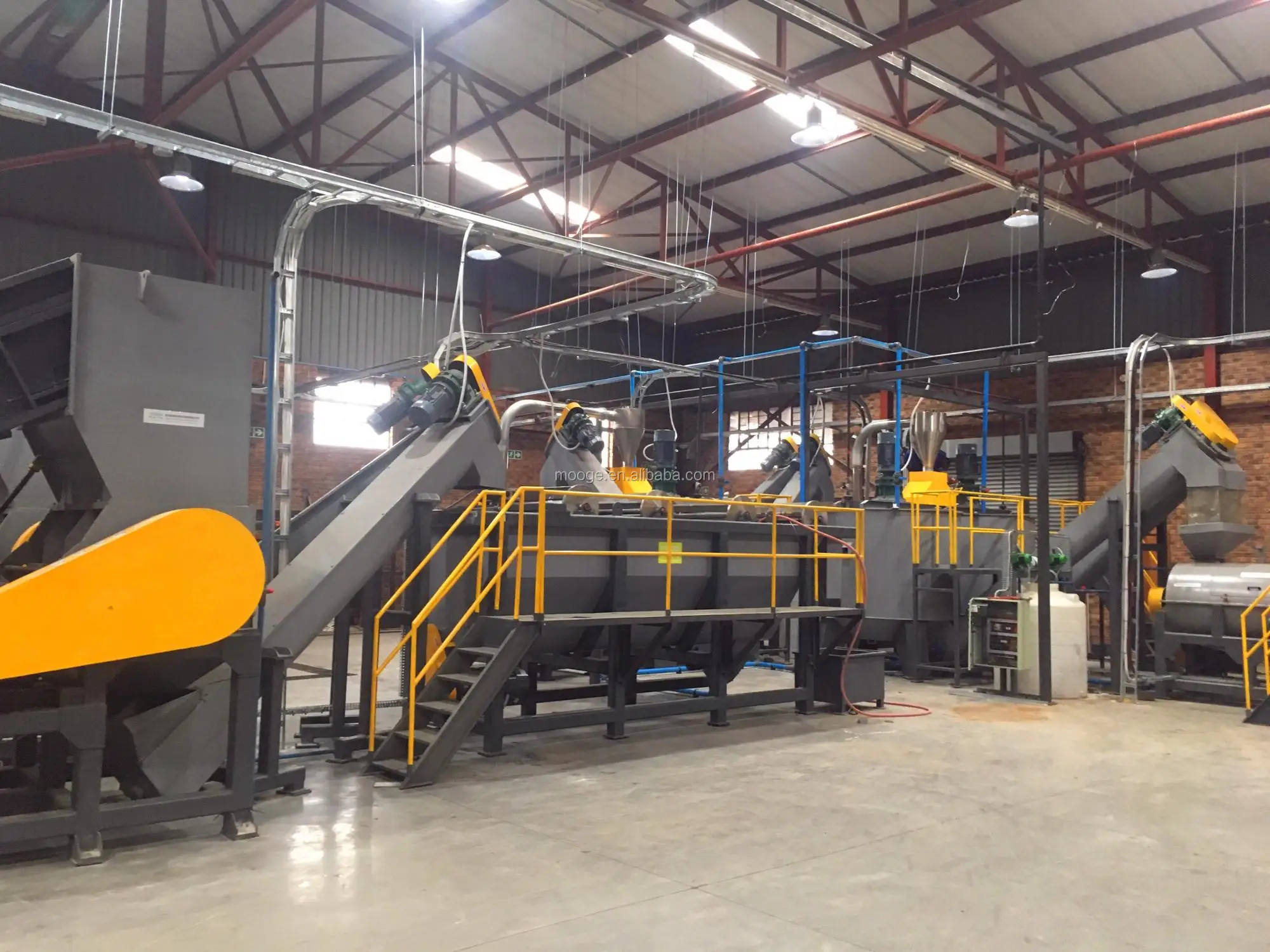

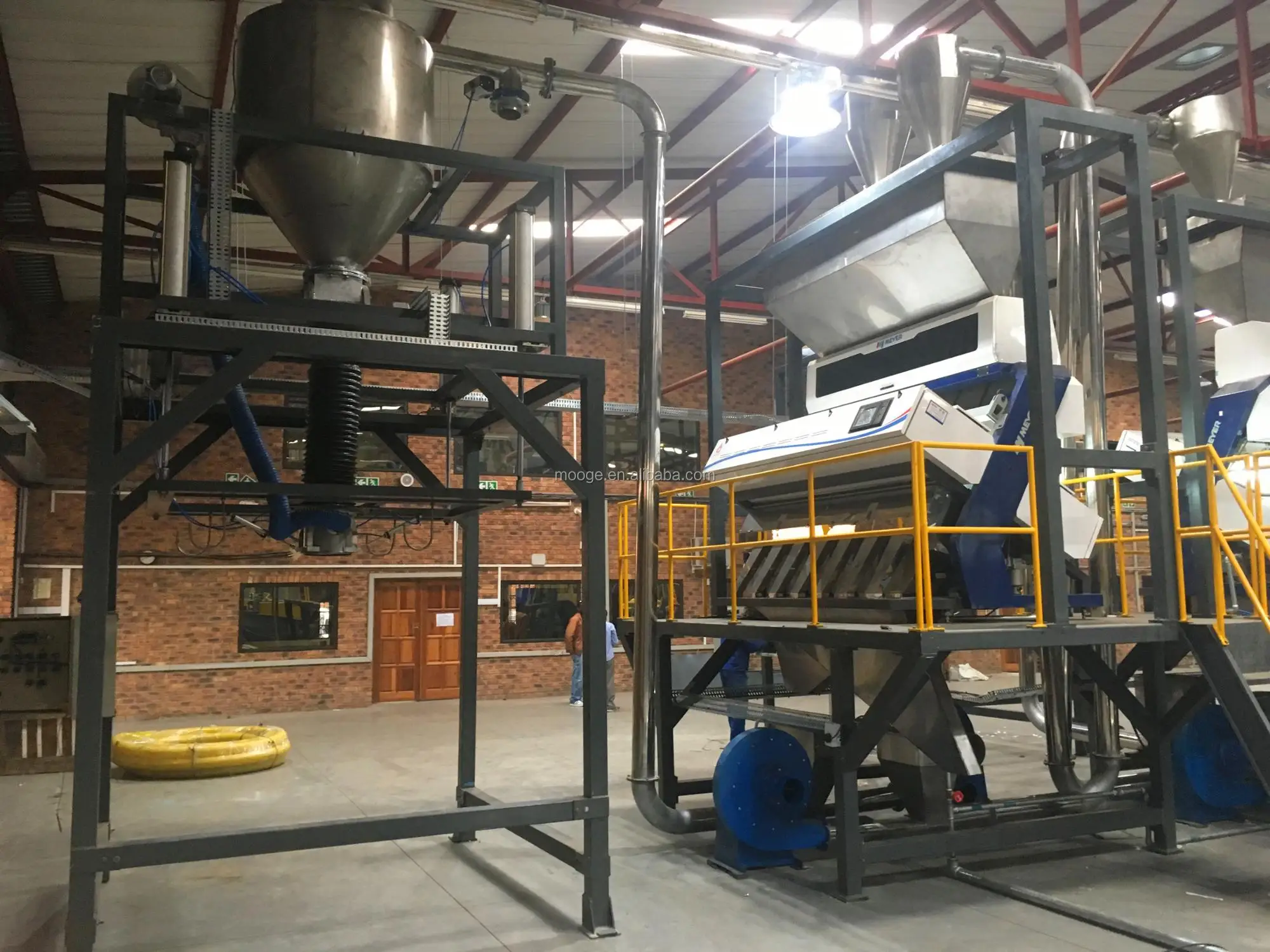

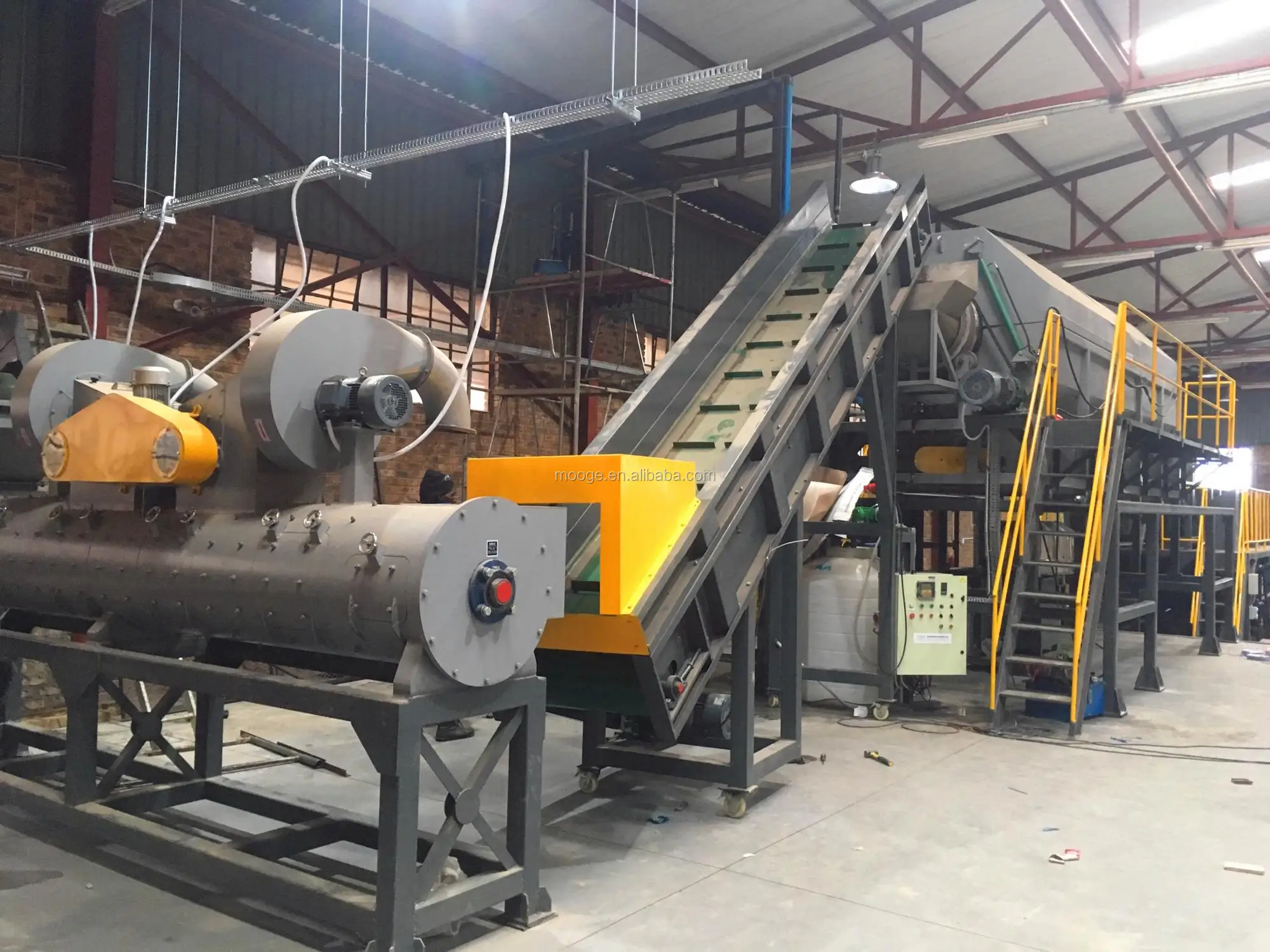

Products Show

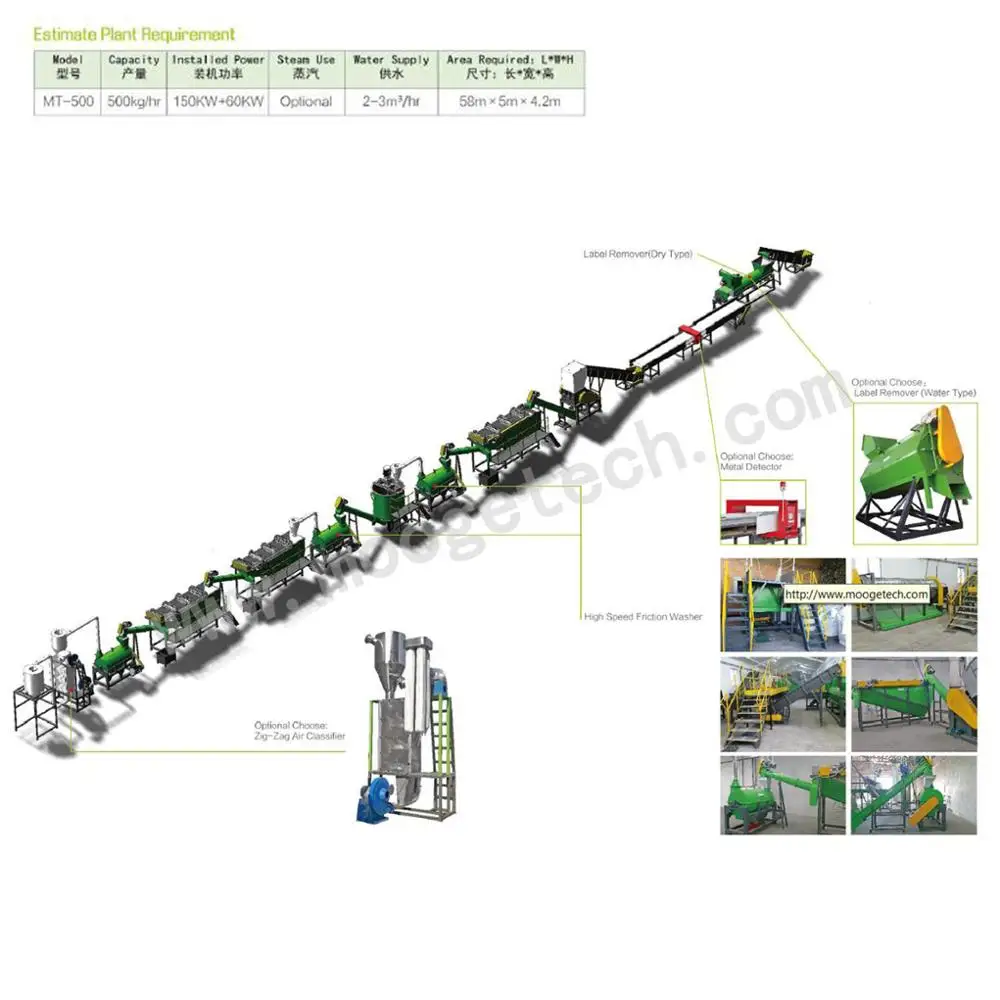

300 kg/h & 500KG/H

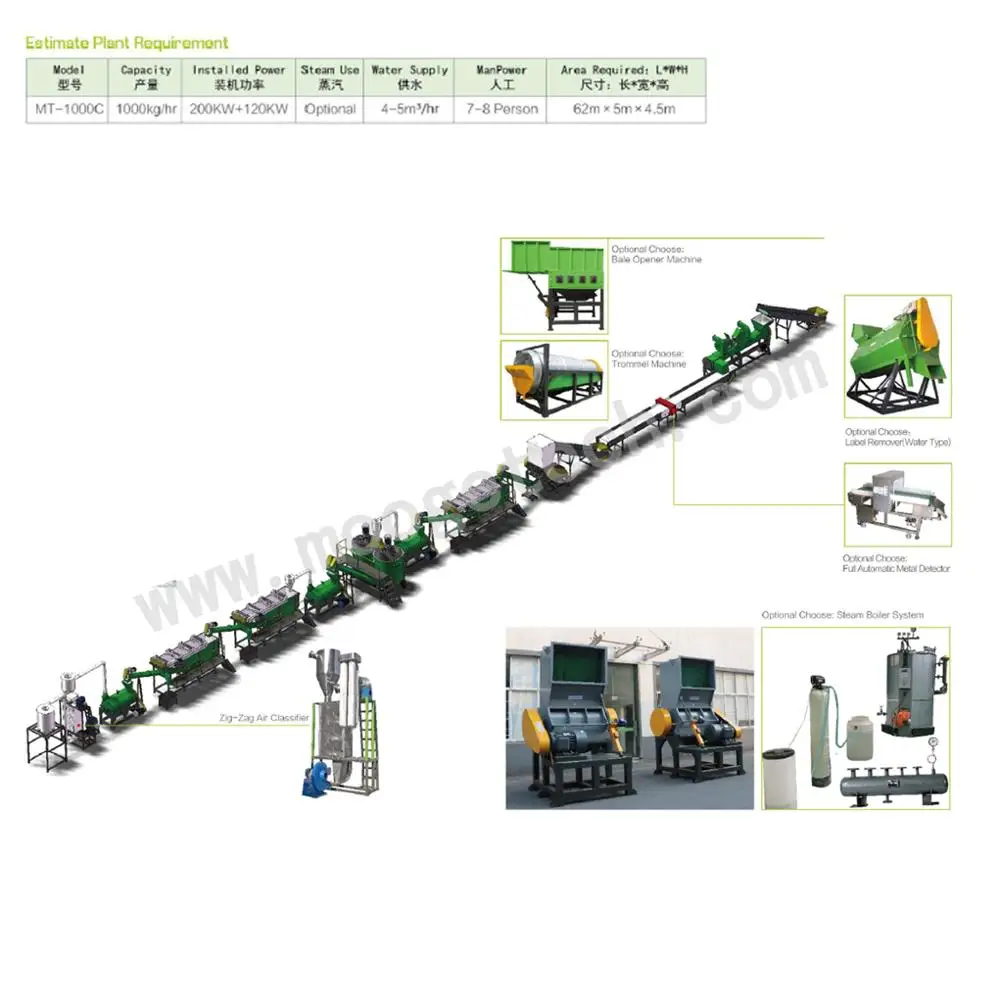

1000KG/H

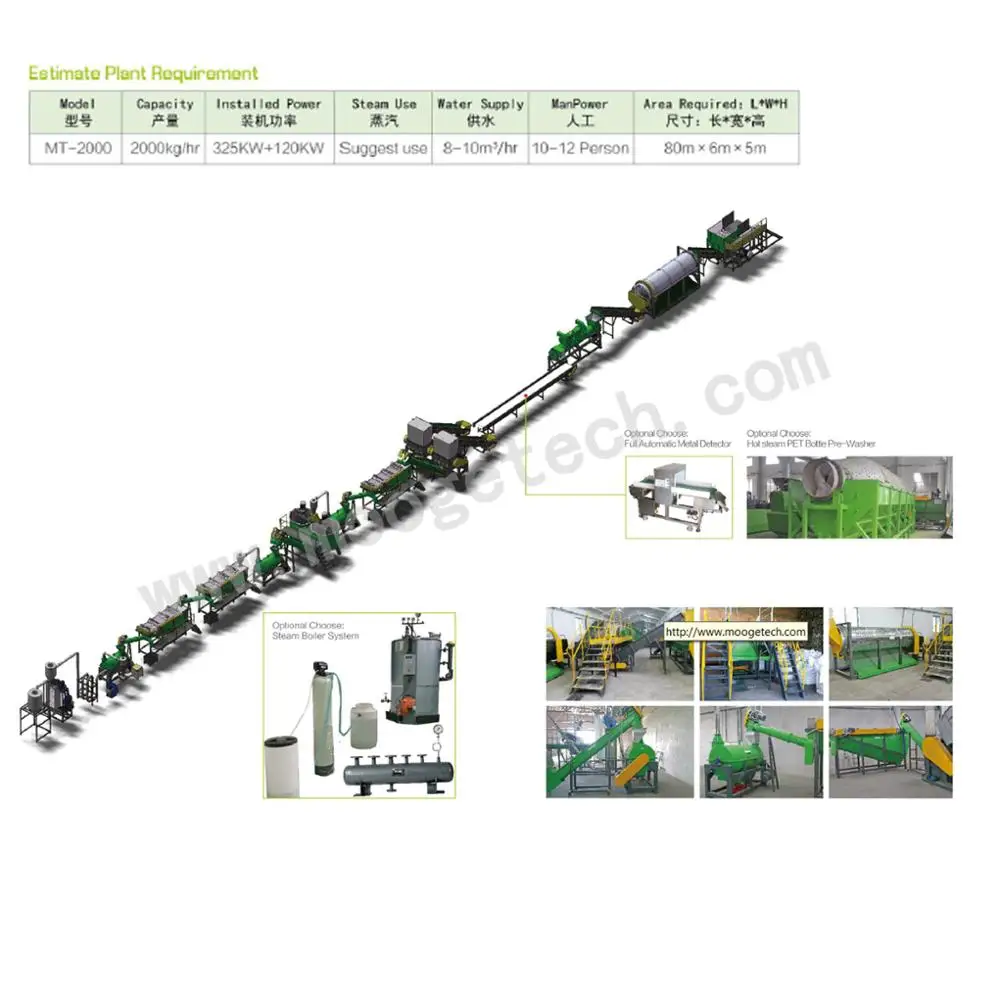

1500KG/H & 2000KG/H

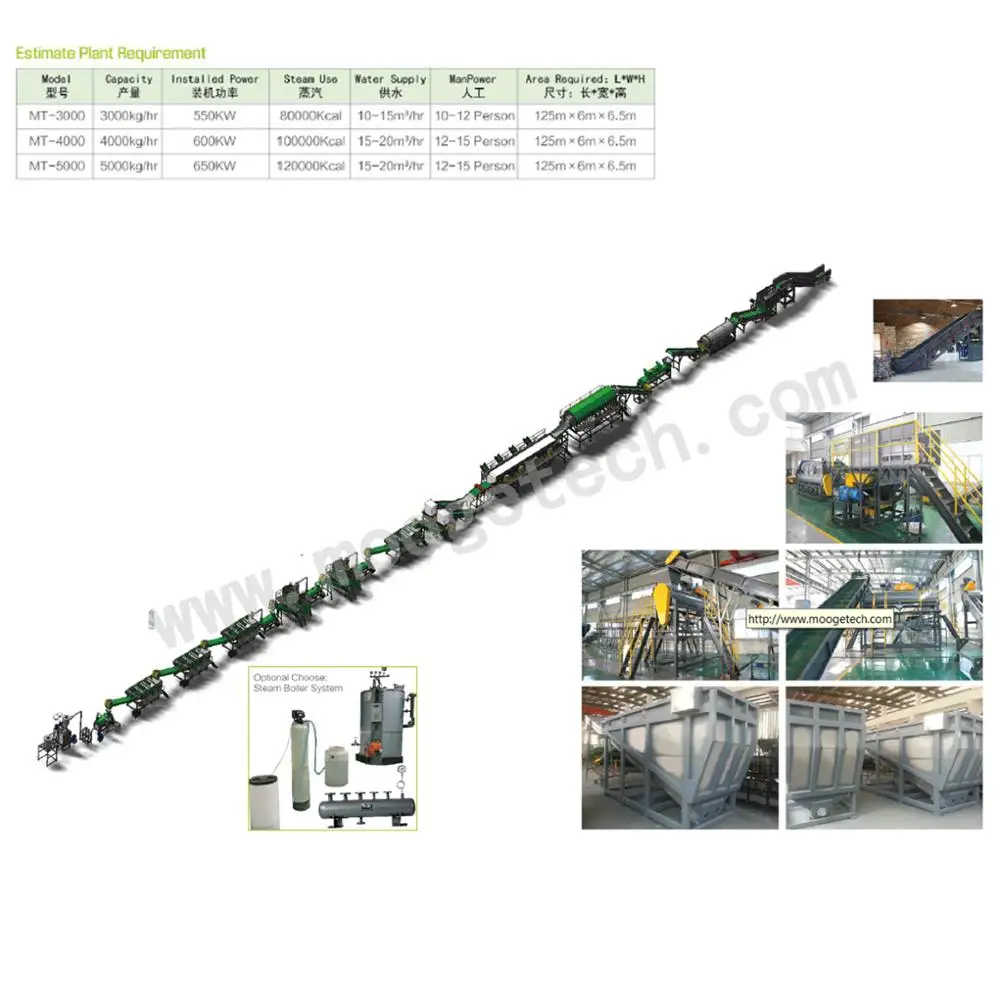

3000 KG/H & 4000KG/H & 5000KG/H

Contact information

Our Company

Our Certifications

Our Service

1.Pre-sale: we given client the details technician offer, sign the sales contract etc
2.In-sales: we supply the details layout, installation instruction, technician support for the clients
3.After sales: we arrange engineer to install the machinery and training the workers for client
4.We have 24hours team to solve the after sales problem
5.We have free spare parts with the machine
6.We supply long term spare parts for every customer
7.We always update the new technology to every customer
