Пивоварня оборудование 1000л коммерческая система завод пивоварения оборудование 2/3/4 сосудов
- Category: Fermenting Equipment >>>
- Supplier: Shandong Shendong Fermentation Equipment Co. Ltd.
Share on (60831645033):
Product Overview
Description
Brewery Machinery 1000L Commercial System Plant Beer Brewing Equipment
Product Description
1. 1000L Brewery Configuration
1000L Beer Brewing System | |
Milling System | 300-500KG/h |
Mashing System | 1000L 2 vessels brewhouse |
Fermentation System | 1000L/2000L |
Control System | PLC /PID |
CIP System | 100L |
Cooling System | 2000-3000L |
Chiller | 5HP*2 |
2. 1000L Saccharifying System

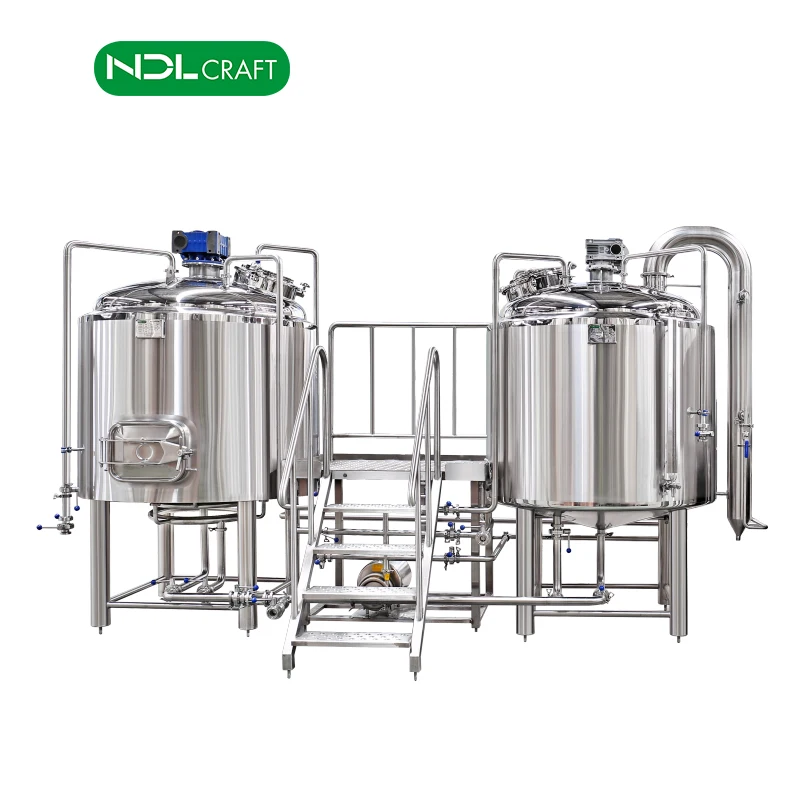

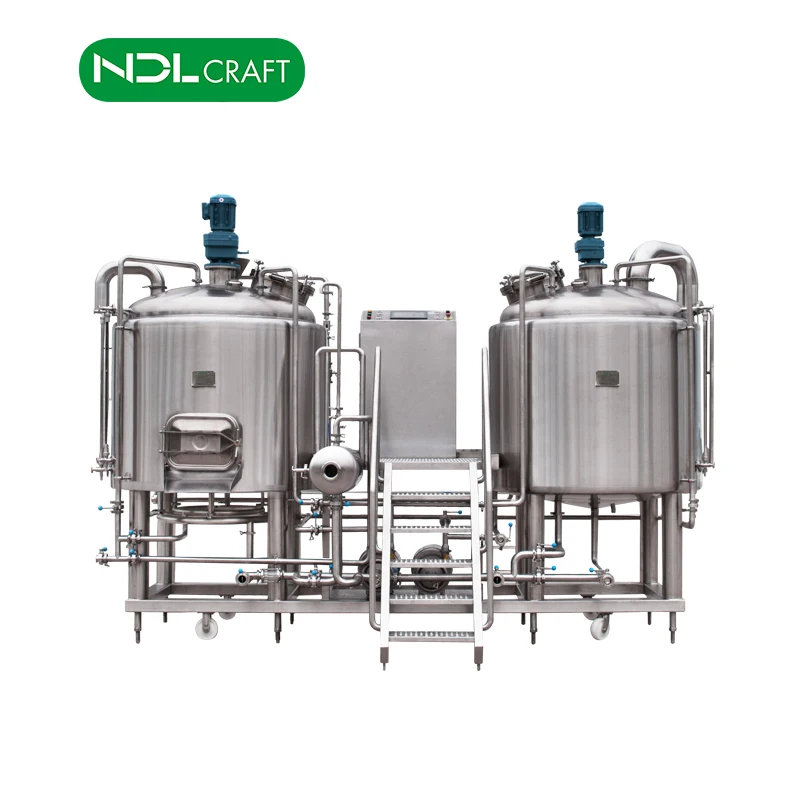

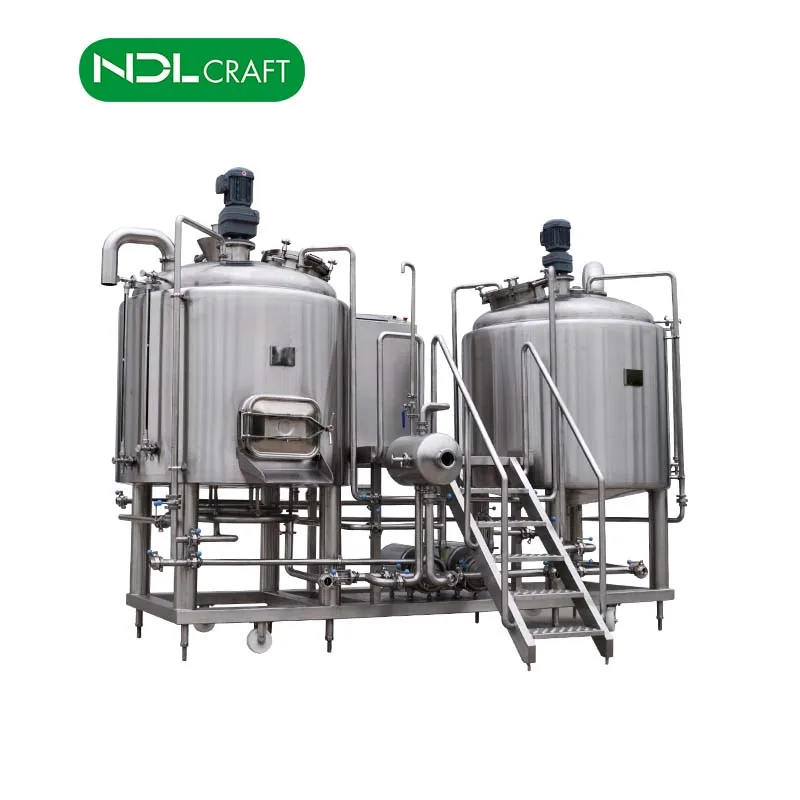

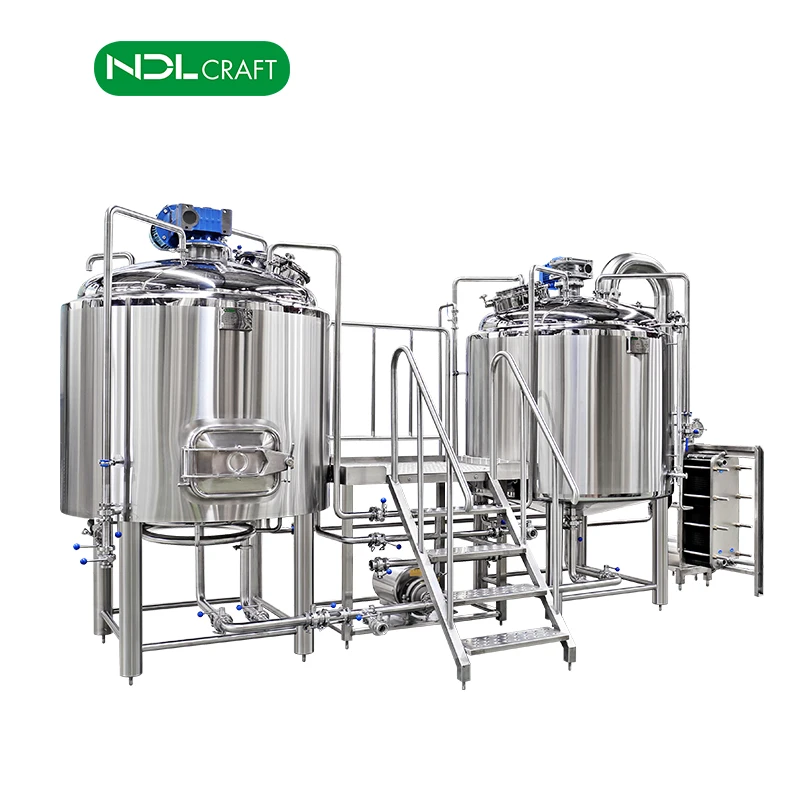

A typical two vessels brewhouse:
Combination Mash Lauter Tuns are the first combination vessel in these smaller brewhouses line ups. This vessel should be sized to favor the Lauter operation, and have the mechanics for mixing mash and graining out.
Next inline is the combination of the Kettle and Whirlpool tanks. This combination vessel is designed and sized for being primarily a kettle, but is equipped with a tangential fitting for whirlpooling.

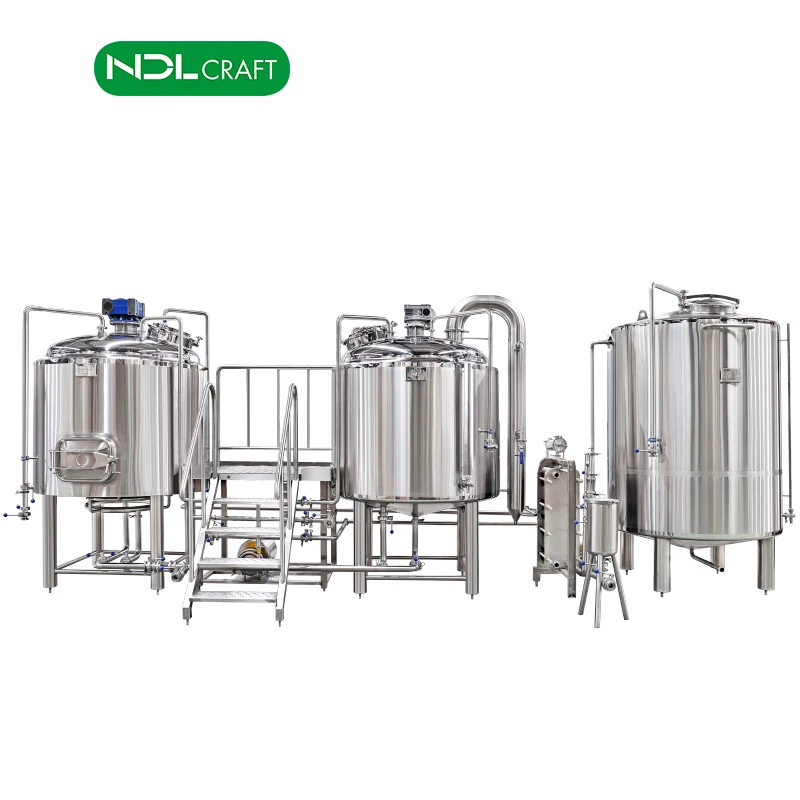

Mash Lauter Tuns + Kettle Whirlpool tanks + Hot Liquor Tank (HLT)
Our experienced team of engineers and brewers work together to design every brewhouse. We meticulously focus on the details, like pump and valve placement, aiming to maximize brewhouse efficiency and ease of use. With a NDL Craft Brewhouse you will hit your gravity targets quicker and run up and down the platform less often.
Send Inquiry>>
Click to Contact Us Now!!!
3. 1000L Fermentation System
| No. | Item | Introduction |
01 | Volume | 1000L |
02 | Dimension | 1260*2650mm |
03 | Material | Stainless steel 304 or 316,or red copper |
04 | Insulation | Polyurethane, TH: 80mm |
05 | Fermentation tank | Glycol jacket: Dimple jacket on the cone and side Or single wall with jacketed,or single layer fermentor. |
06 | Head | Double or single dish head on the top |
07 | Accessories | Sample valve, pressure gauge, solenoid valve, pressure relief valve, racking arm, CIP arm and Blow off arm, dry hops port and so on. |
Send Inquiry>>
Click to Contact Us Now!!!
4. Auxiliary Equipment
5. Accessories
Company Information
NDL Craft, founded in 2011, is a brewing equipment manufacturer and brewing technology engineering company that provides many kinds of customized tanks and turnkey projects throughout the world. The company attaches great importance to the research and development of core technology. On the basis of maintaining the manufacturing cost of China, the company can design according to CE PED standards and ASME design codes, and institutes production and quality control methods according to both European and American quality standards.
Certifications
We have established an ERP management system and have passed quality audits for internationally recognized certifications.
ISO 9001: Certification for the Quality Management System
ISO 14001: Certification for the Environmental Management System
ISO 18001: Certification for the Occupational Healthland Safety Management System
CE: Certification of Compliance
PED(TUV): Certification of Compliance, Certification of Conformity
SGS: Gold Plus Supplier Assessment Certificate
