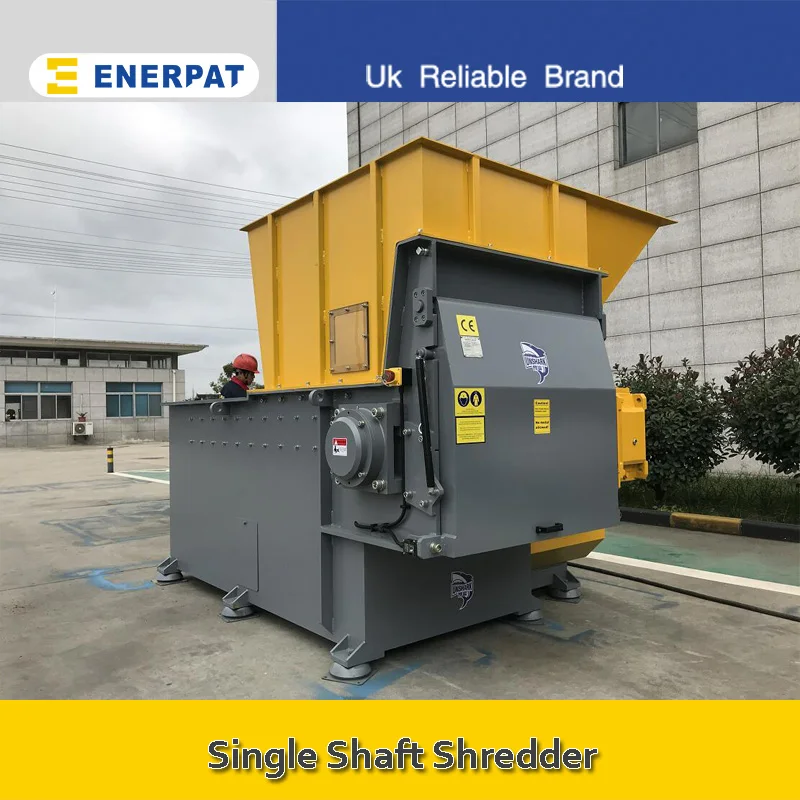

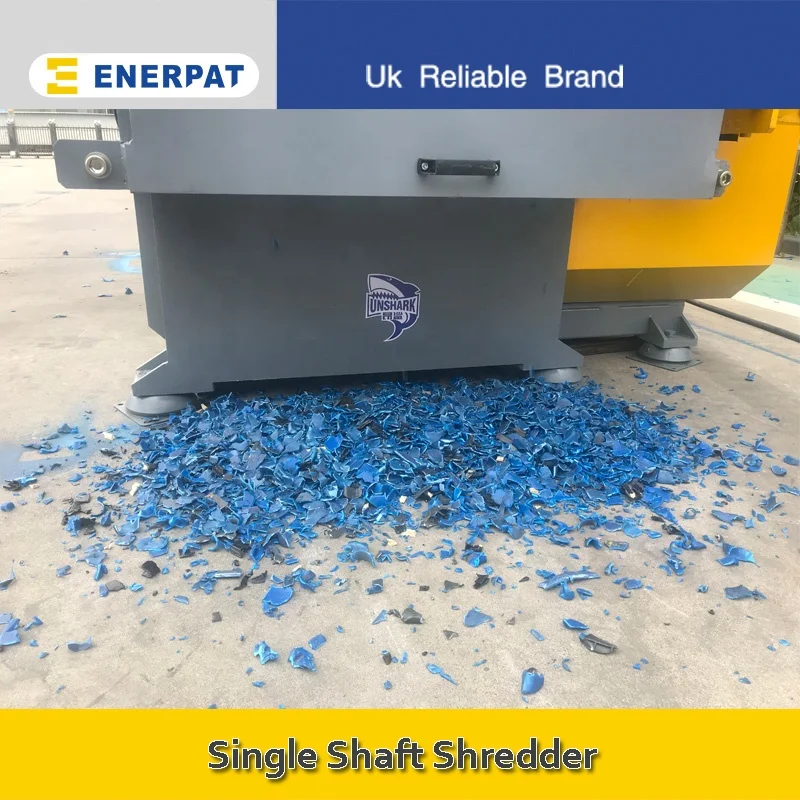

UK Unshark High Quality Waste Shredder Single Shaft Shredder Supplier for Chemical drum
MSA-F Series commercial Single Shaft Shredders for plastic lumps are small to medium size reduction machines suitable for processing a wide range of materials to a uniform particle size. The products can often be sold as is, or be sent for further processing through additional equipment. Throughputs typically range between300kg/hr –5,000kg/hr+ depending on the model, material type and application.
MSA-F Series commercial Single Shaft Shredders for plastic lumps are widely used in the volumetric reduction of various waste products, including but not restricted to the following. Plastc Bottles, Plastic Pipes, Woven Bags, Electrical Cable, Wood, Paper, Domestic Rubbish & Electronic Waste. A suitable screen can be chosen depending upon the materials being processed and the next processing requirement. The Output material discharged by the shredder could be an end product or the primary feed for the next process. The MSA-F Series Shredder can be equipped with many different rotor configurations. In addition, a cooling system, bead welds & an additional wear layer can be added.
MSA-F Series commercial Single Shaft Shredders for plastic lumps are widely used in the volumetric reduction of various waste products, including but not restricted to the following. Plastc Bottles, Plastic Pipes, Woven Bags, Electrical Cable, Wood, Paper, Domestic Rubbish & Electronic Waste. A suitable screen can be chosen depending upon the materials being processed and the next processing requirement. The Output material discharged by the shredder could be an end product or the primary feed for the next process. The MSA-F Series Shredder can be equipped with many different rotor configurations. In addition, a cooling system, bead welds & an additional wear layer can be added.
Official Photos

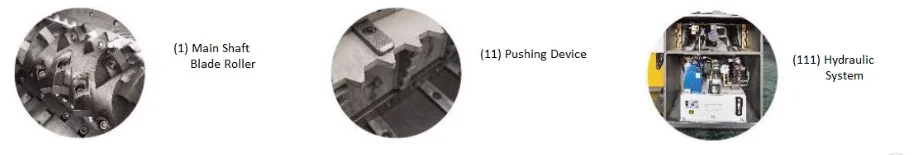

Rotor
Chevron rotor design
Rotor knives manufactured from special heat treated DC53 steel. They can be rotated and used on four edges before replacement
Long life fixed blades that can be adjusted to maintain cutter clearance
Wear resistant coating. Optional for applications involving abrasive material such as fibre glass

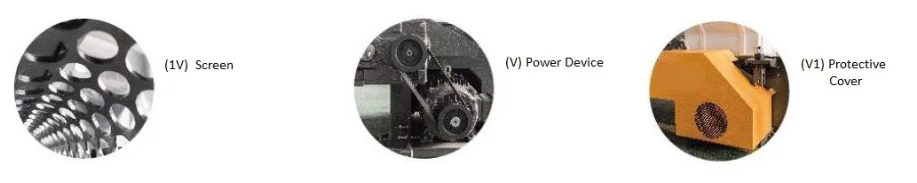

Screen Basket
Quick change screens for accurate particle size control (sizes 12-100mm)
Safety limit switch fitted to screen access door to prevent machine operation whilst access door is open
Cylinders access door opener mounted on V800-V1500 series for easy opening and access
Star screen is available as an option for thin and/or flexible material such as film
Bearings
Oversized, high quality spherical shaft bearings are isoloated from the cutting chamber to prevent product migrations through the grease seals
Bearing housing integral machined to ensure the longevity of the bearings
Rotor water cooling. Optional water cooling through the bearing housing to the rotor
Ram
Segmented shredding chamber floor with brass guides
Machined, one-piece segmented floor
Advanced adjustable sealing system for the pushing unit
Fines discharge chute to the collect the fines during shredding and to protect the hydraulic power pack
Drives
Electric drive motors configured for Star/Delta starting. Fluid coupling mounted on V1200 and V1500
Heavy duty reduction gearbox mounted directed onto the rotor shaft
Shock absorbing gearbox mountng arrangement to reduce stress on drive components
Hydraulic System
Twin speed hydraulics, faster speed for backwards to maximise the shredding throughput
Integrated oil/air cooler to maintain temperature for continuous operation
Optional cover insulator for applications that may eject hazard particles such as wood shredding.

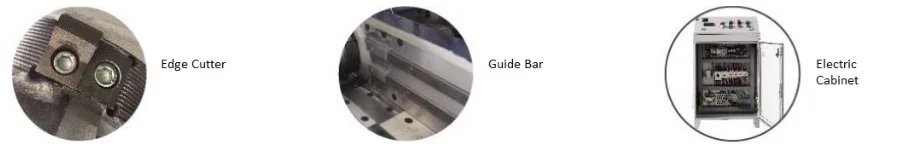

Control Panel
Standalone electrical control panel with Siemens PLC control system and Schneider electrical components.
Manual and automatic controls for rotor direction and hydraulic force feeding device
Intelligent programming whereby the motor automatically reverses on overload and stops when the machine is idle
Applications
· Plastics
Mouldings, Purgings/Lump, Profiles, Films etc.
Mouldings, Purgings/Lump, Profiles, Films etc.
· Timber/Wood
Pallets, Joiners Waste, Green Waste etc.
Pallets, Joiners Waste, Green Waste etc.
· Paper & Cardboard
Confidential Documents, Production Waste, Packaging Materials etc.
Confidential Documents, Production Waste, Packaging Materials etc.
· Copper Cable
Household, Telecoms and Industrial Cables including S.W.A
Household, Telecoms and Industrial Cables including S.W.A
· Aluminum
Used Beverage Cans (UBC's), Swarf, Cables etc.
Used Beverage Cans (UBC's), Swarf, Cables etc.
· Textiles
Carpet (Rolls & Tiles), Garments etc.
Carpet (Rolls & Tiles), Garments etc.
· Security Destruction
Counterfeit Items, Faulty Goods, Out of Date Stock etc.
Counterfeit Items, Faulty Goods, Out of Date Stock etc.
Technical Information
Model No. | MSA-F1000 |
1300x1000mm | |
Discharge Height | 565mm |
Ram stroke | 815mm |
Rotating Dia. | Φ400mm |
Rotor Operation Length | 1000mm |
Rotor Speed | 80rpm |
Screen | Φ20mm |
Movable knife | 45pcs |
Fixed Knife | 4pcs |
Driven Power | 45kw |
Hydraulic Power | 3.75kw |
Hopper Volume | 1760L |
Machine Size | 2800x2000x2100mm |
Machine Weight | Approx. 4300kgs |
