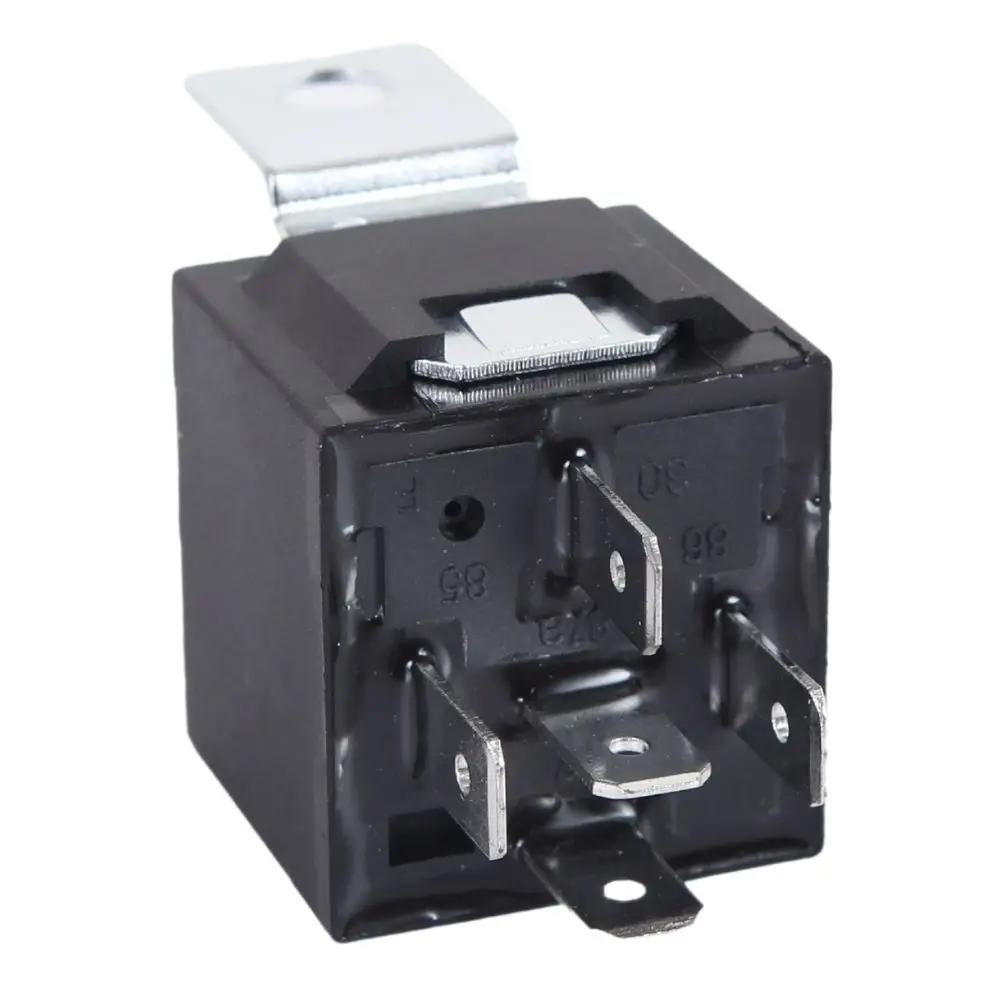

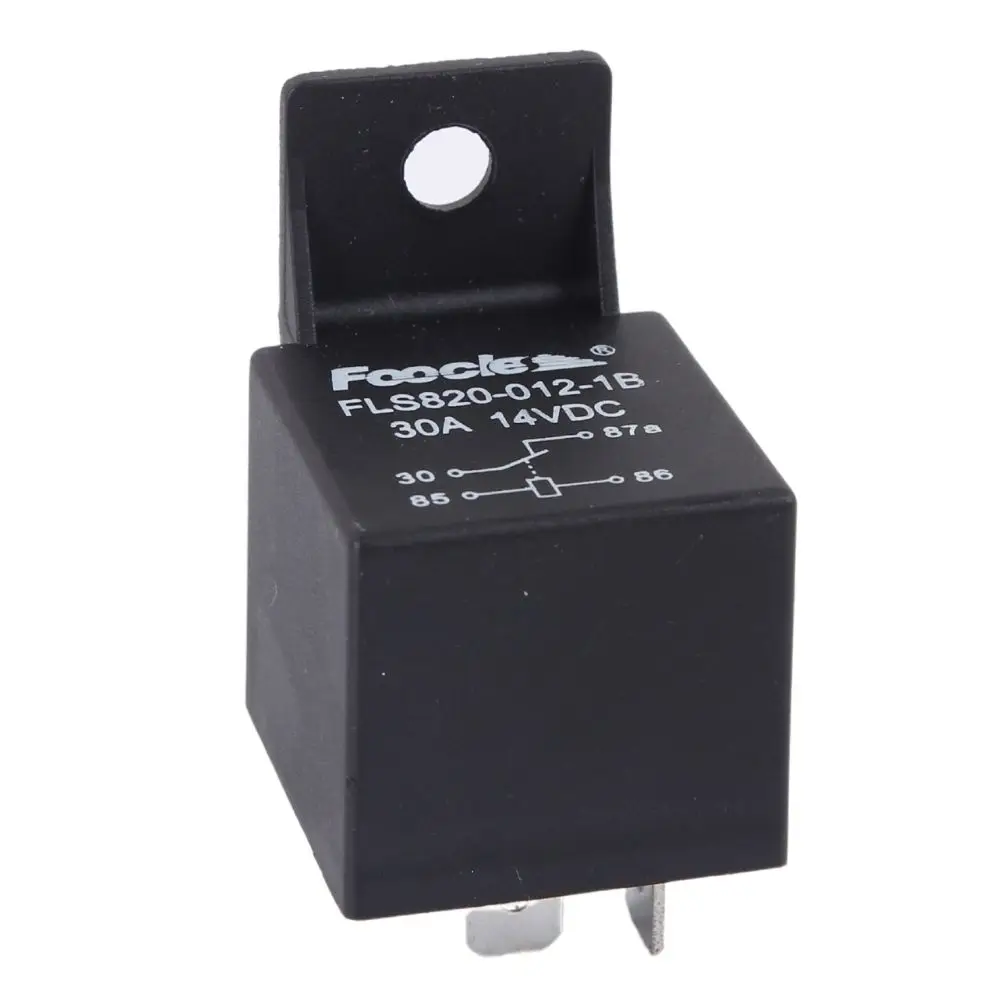

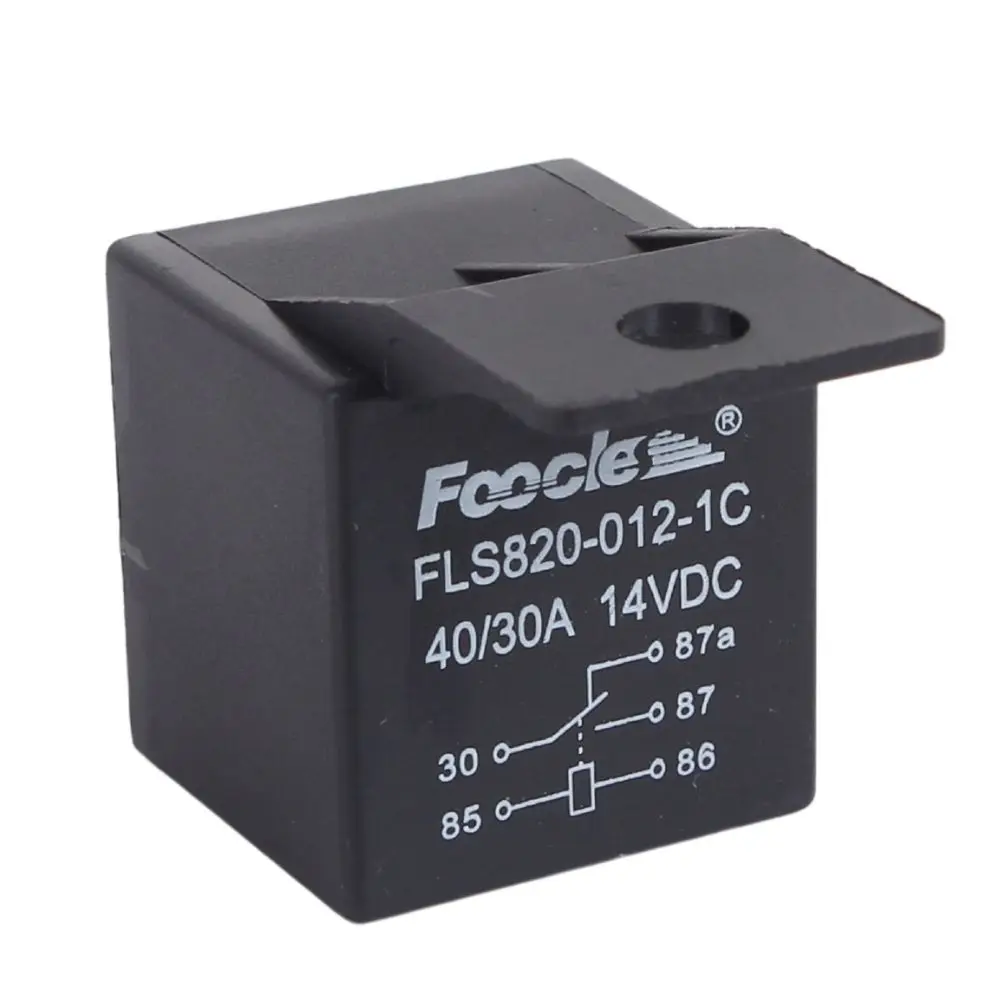

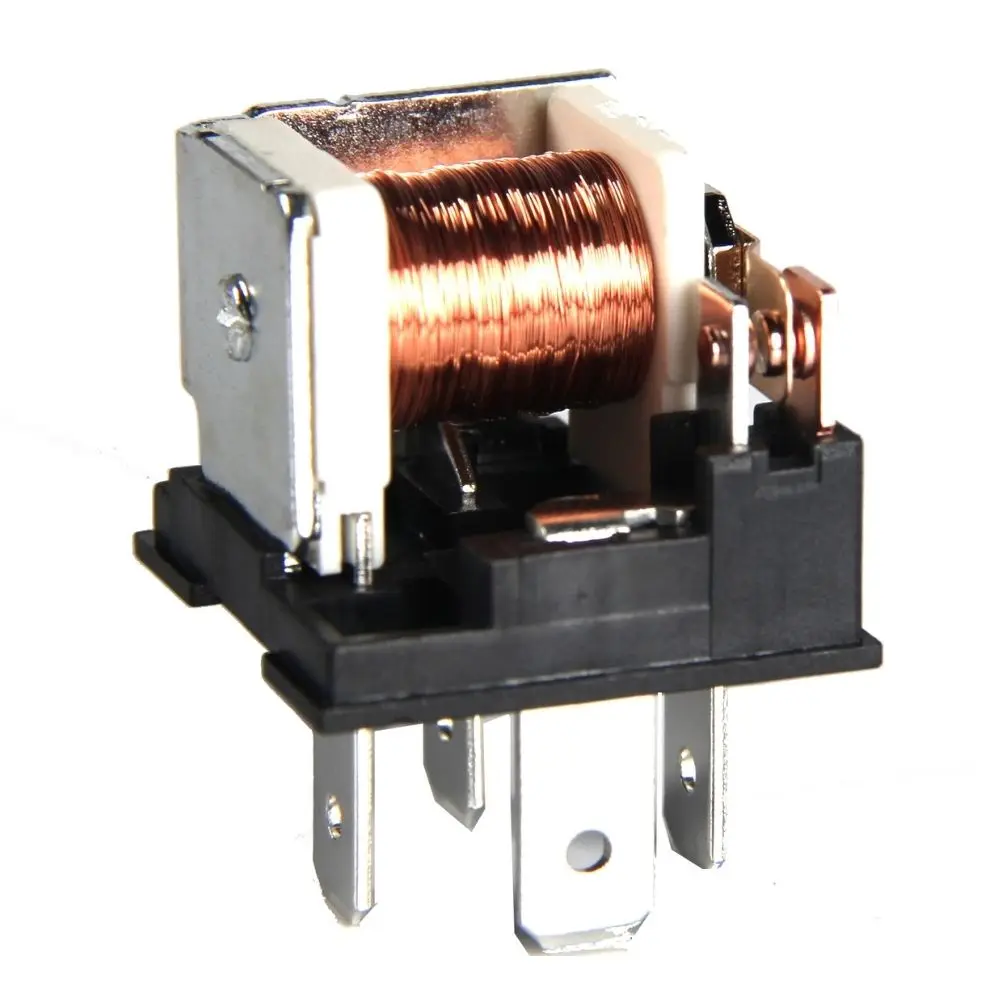

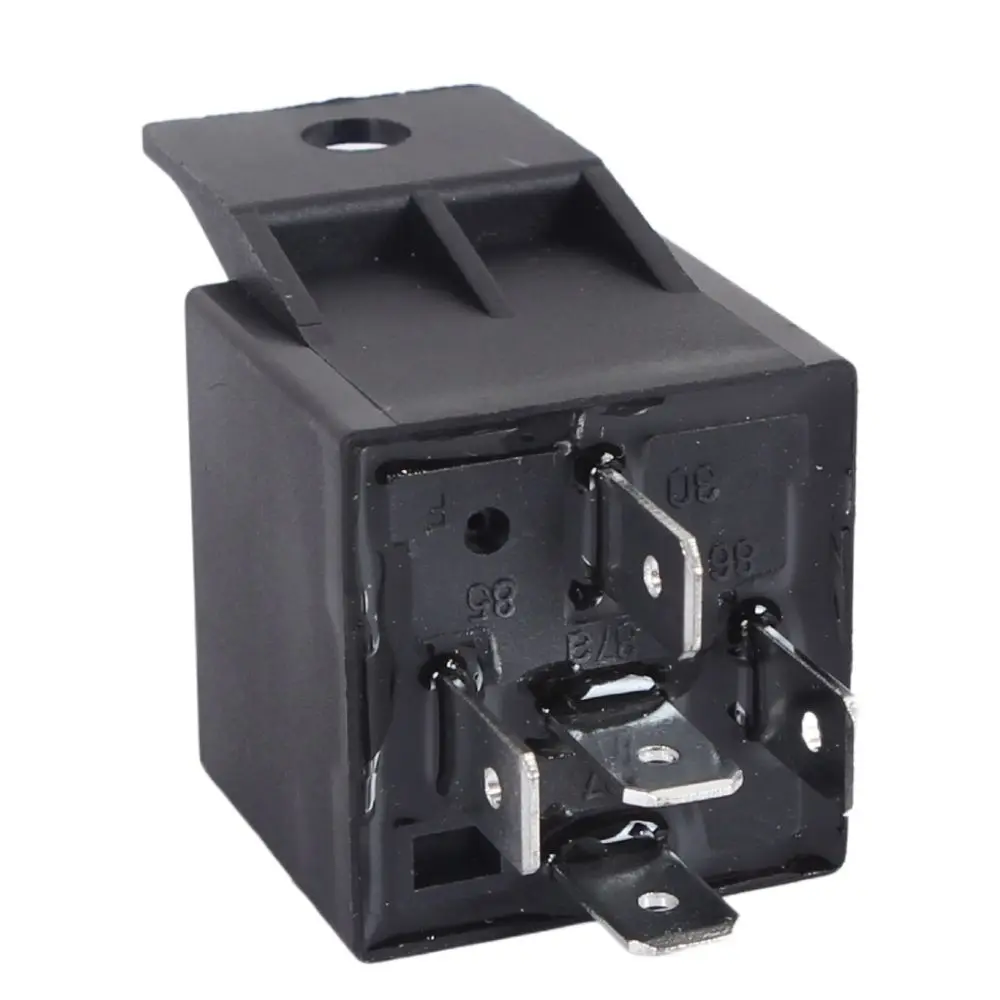

1912 12v 40amp universal type 12v 40amp relay
- Category: >>>
- Supplier: Zhejiang Feileisi Electrical Technology Co. Ltd.
Share on (60831671167):
Product Overview
Description
Features
* 40A switching capability
* 1 form A、I form B、1 form C、1 form U、2 form A contact form
* Various mounting terminations available
* Sealed IP67 and dust cover types available
* Outline dimensions: 25.0X27.4X28.4
* 1 form A、I form B、1 form C、1 form U、2 form A contact form
* Various mounting terminations available
* Sealed IP67 and dust cover types available
* Outline dimensions: 25.0X27.4X28.4
Specification | ||
Contact Form | 1A, 1B, 1C, 1U, 2A | |
Contact Material | AgSno2 | |
Max Operating Current | 40A | |
Max Operating Voltage | 27VDC | |
Rated Load (Resistive Load) | 1A: 40A 13.5VDC 20A 27VDC 1C: NO/NC 40A/30A 13.5VDC 20A/15A 27VDC | |
Insulation Resistance | 100MΩ | |
Dielectric Strength (Coil and Contact) | 500VAC/M | |
Ambient Temperature | -40°C~+85°C | |
Operate/Release Time | 10ms/10ms | |
Mechanical Life | 1 X106 | |
Electrical Life | 1 X105 | |
Terminal Type | Quick-connect type | |
Coil Ratings | ||||||||||||||||
Standard | Normal voltage (VDC) | Pick-up voltage (VDC) | Drop-out voltage (VDC) | Coil resistance (Q±10%) | Parallel resistance (Q±5%) | Equivalent resistance (Q±10%) | Power consumption | Max allowable overdrive voltage (VDC) | ||||||||
20 °C/85 °C | ||||||||||||||||
12 | 8.4 | 1.2 | 90 | - | - | 1.6 | 20.2/15.7 | |||||||||
12 | 8.4 | 1.2 | 80 | 680 | 79.5 | 1.8 | 20.2/15.7 | |||||||||
24 | 16.8 | 2.4 | 360 | - | - | 1.6 | 40.5/31.5 | |||||||||
24 | 16.8 | 2.4 | 320 | 2700 | 317.6 | 1.8 | 40.5/31.5 | |||||||||
Company Profile
zhejiang Feileisi Electrical Technology Co.,Ltd. is a professional manufacturer which is specialized in producing auto relay, socket, general purpose relay, power relay, magnetic latching relay, and other relays.
The company is located in Wenzhou - the electric capital, with more than 100 employees. The company has domestic leading level technology research and development center, mould center, product testing center and international advanced level automated assembly line, forming the production system of scientific-research, manufacture and inspection. The company has passed ISO9001:2008 international management system certification. Products have passed CCC certification and CE certification. Our products meet the domestic leading level and are well recognized by the users.
The brands of "Foocles", "FeiLeiSi" are favored for their stable quality and competitive prices. Our products are exported to Europe, America, Middle East, Southeast Asia and many other parts of the world.
We warmly welcome domestic and foreign friends to visit our factory for business negotiation and sincerely honor your suggestion. We will be wholehearted for your service.
Why Choose Us
Exhibition
FAQ
Q1. Can I have sample for relay?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about lead time?
A:Sample needs 3-9 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for relay order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long dose it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for relay?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Fourthly We arrange the production.
Q6. Is it ok to print my logo on relay?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
