New product 20 w 40 w 60 w IP65 outdoor integrated motion sensor all in one solar led street light price New product 20 w 40 w 60 w IP65 outdoor integrated motion sensor all in one solar led street light price
- Category: >>>
- Supplier: Shenzhen Grape Technology Co. Ltd.
Share on (60831675391):
Product Overview
Description
New product 20 w 40 w 60 w IP65 outdoor integrated motion sensor all in one solar led street light price
| Tehnical Specifications | ||||
| Lighting category according to EN13201 | ME5 / ME6 / S2 / S3 / S4 / S5 / S6 | |||
| Typical application | Residential streets, private driveways, walking paths, urban local roads, parking lots,bicycle lanes, industrial areas |
|||
| System autonomy | 27 hours | |||
| Temperature range | -20 to + 50 | |||
| Protection | IP 65 (applies to LED light, PV module, electronics, battery) |
|||
| System components | ||||

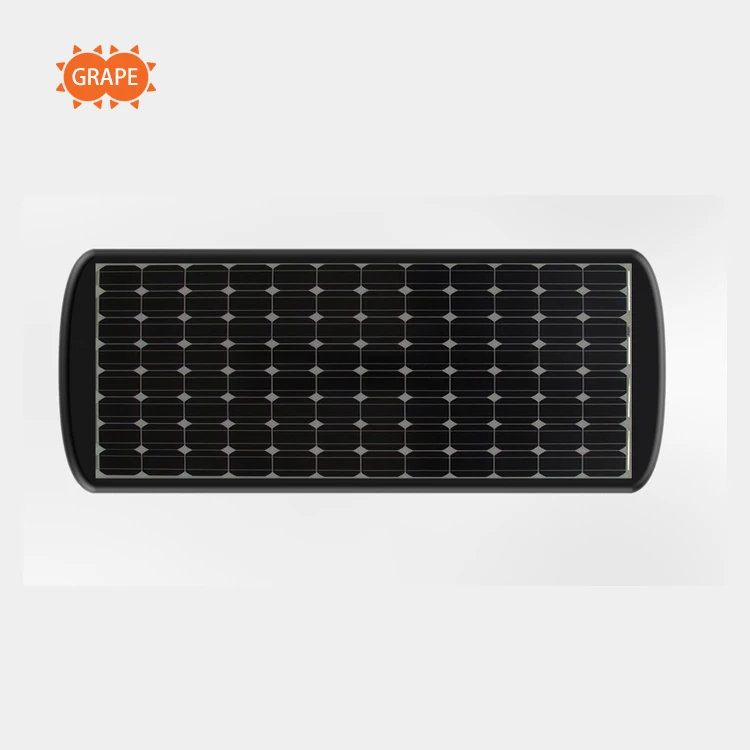

| PV Module | GRAPE 5-10-15-30-50-80-120-150-200-240 Wp | |||
| Pole | 2-3-4-5-6-8-10-12 m / Hot-dip galvanized steel / Fixation with anchoring plate |
|||
| LED light source | 5-10-15-30-50-80-120-150-200-240 W / Up to 100,000 hours of service life / 200 lm/w asymmetric light distribution / Colour temperature 3,000K/ 4,000 K / 6,000K |
|||
| Battery | Grape 12V Solar Deep Cycle battery / 10-135 Ah capacity / 2,500 cycles of battery life at 50 % DOD (6-10 years) |
|||
| Component storage | Inside lamp or cabinet (above ground) | |||
| Solar charge regulator | MPPT | |||
| Configurable dimming timer | Digital with memory capacity up to 100 programs | |||
| Automatic dimming function | Configurable / Default setting from 11pm to 5am / Adjustable from 10% - 90% (default - 50%) |
|||
| Motion sensor | PIR / Optional feature | |||
| Optional features and upgrades | ||||||
| Additional batteries | 10,30,90, 135 or 150 Ah | |||||
| Pole lenght | 5, 7 or 10 m | |||||
| Pole fixation | Anchoring plate or anchor kit for poured concrete | |||||
| LED power | 5-10-15-30-50-80-120-150-200-240 W | |||||
| Colour temperature | 3,000 K, 4,000 K and 6,500 K | |||||
| Motion sensor | PIR / Configurable from 1 – 15 min | |||||
| Component storage | Inside lamp or cabinet (above ground) | |||||
| Module power | 5-10-15-30-50-80-120-150-200-240 Wp | |||||
| Design | Silver or Full-Black | |||||
| Warranties | ||||||
| General product warranty | 5 year | |||||
| GRAPE PV module | 10-year product warranty, 25-year linear performance warranty on 85 % power output | |||||
| LED light source | 5 years | |||||
| Battery | 5 years | |||||
| Solar charger | 5 years | |||||
| HDPE shaft | 5 years | |||||
| Above ground cabinet | 5 year | |||||
| Pole | 10 years | |||||
