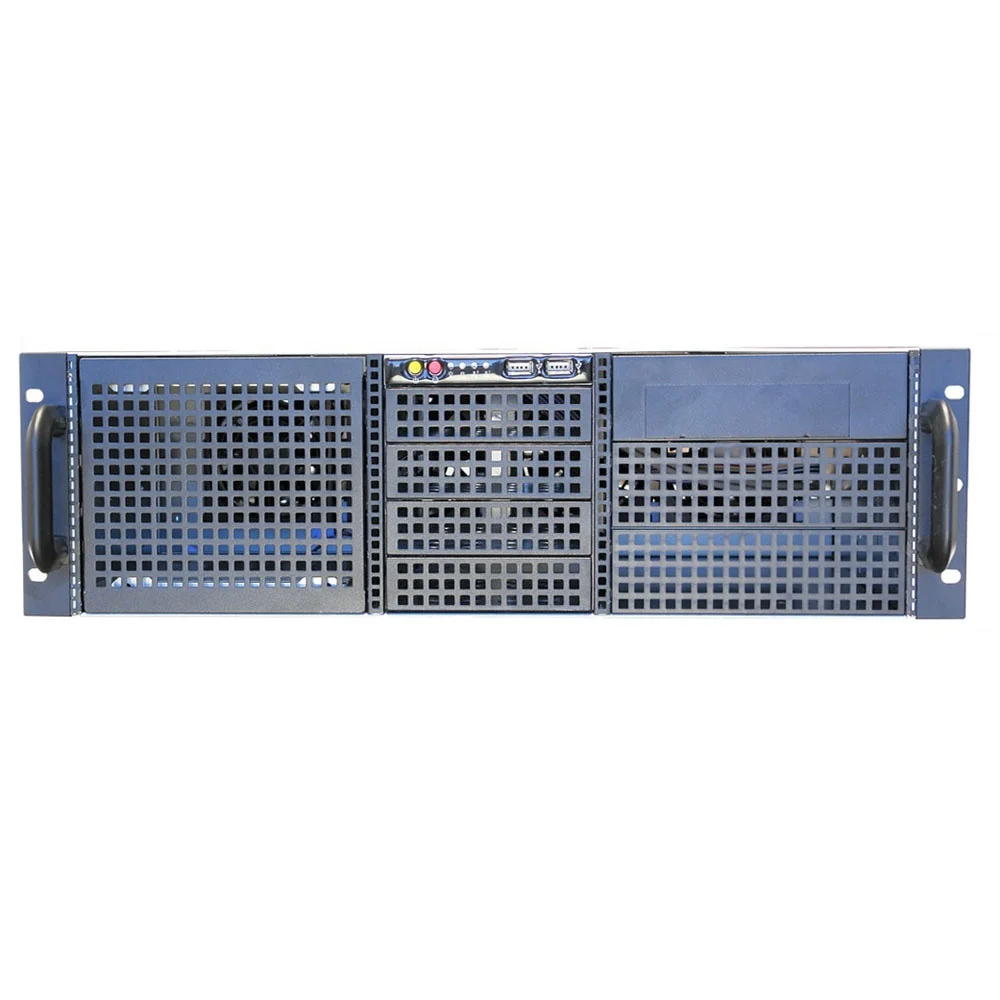

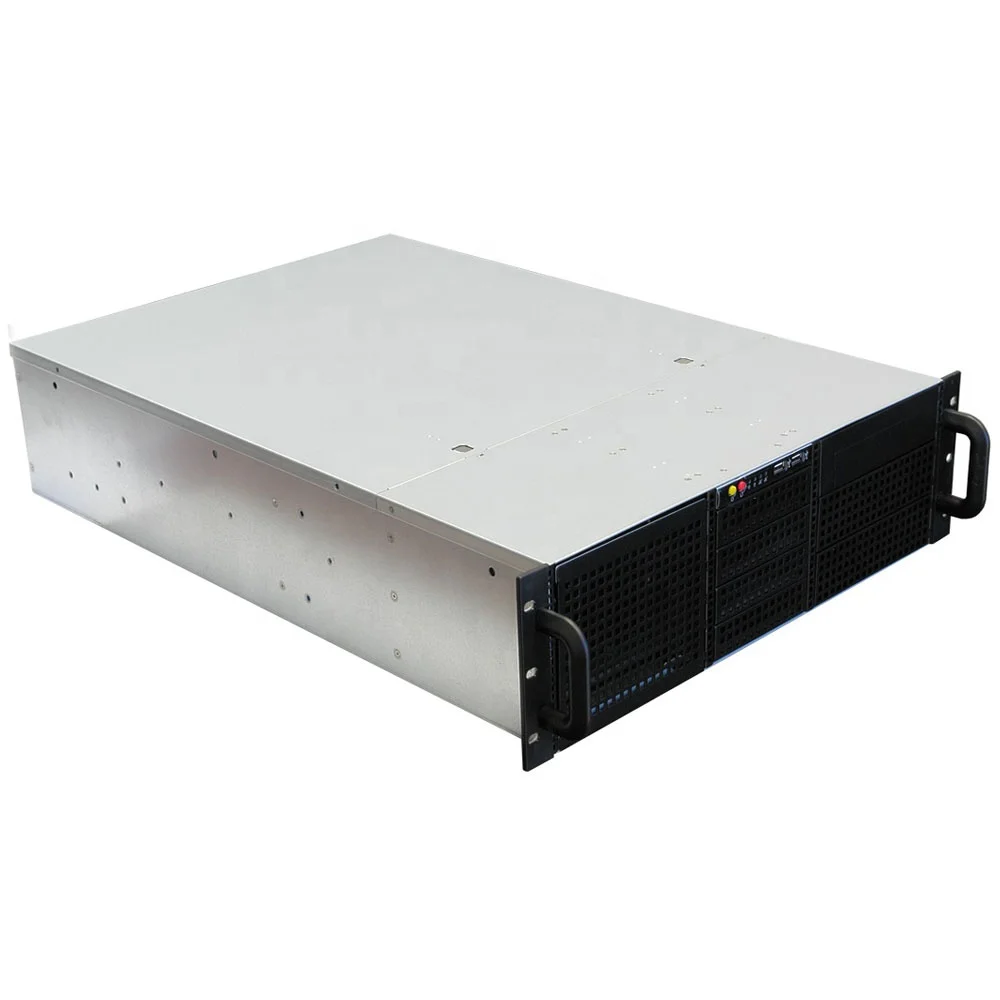

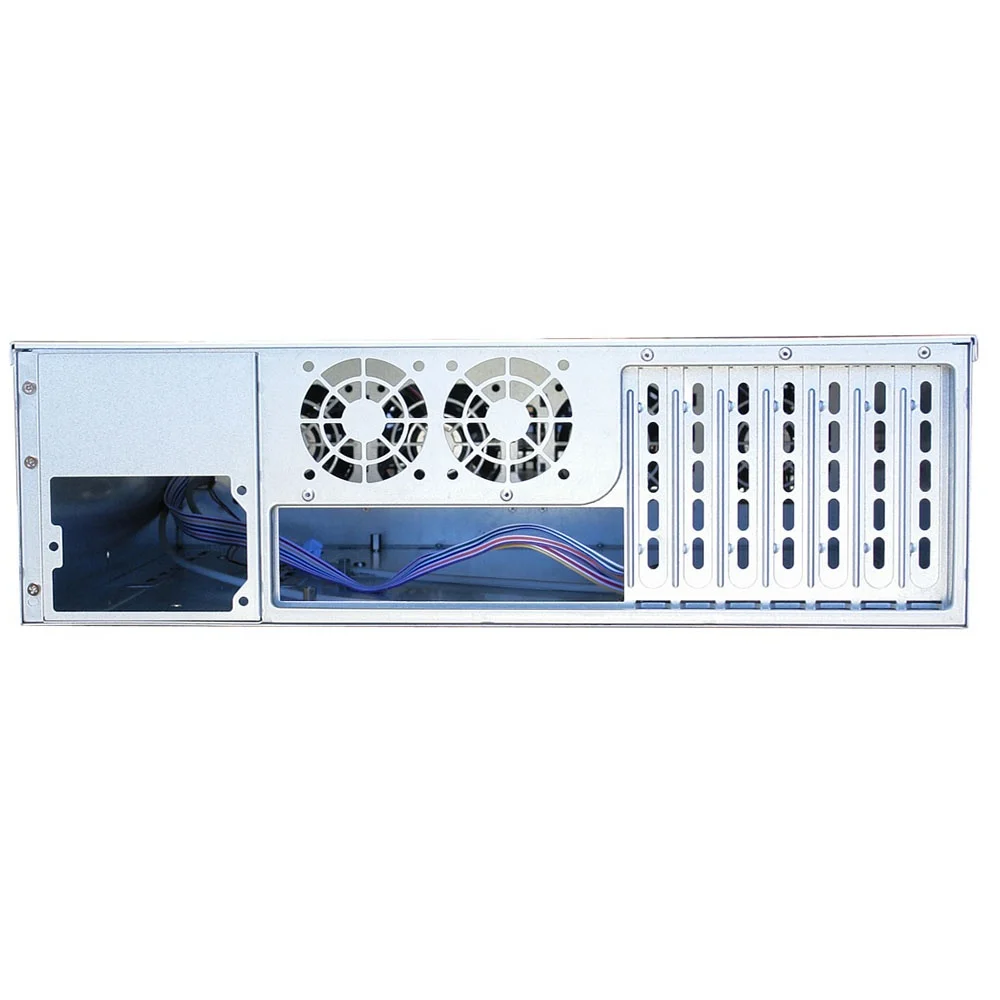

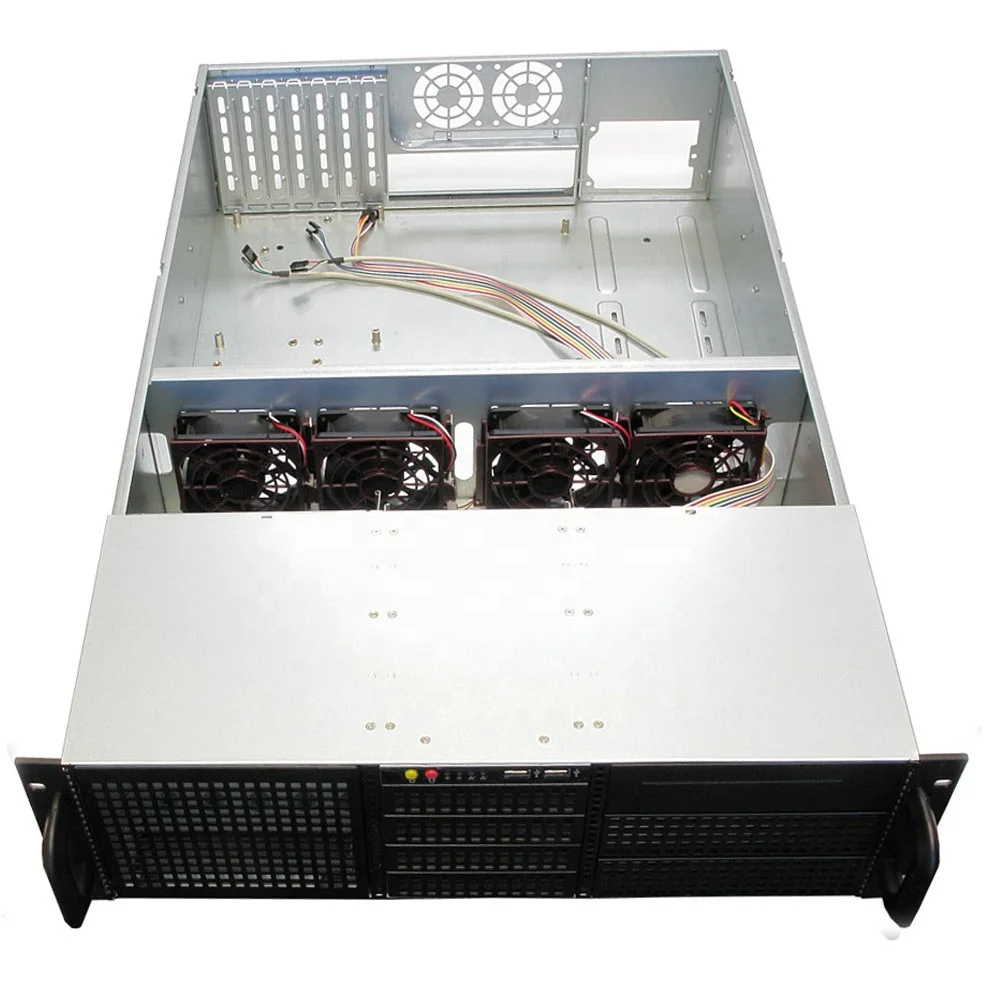

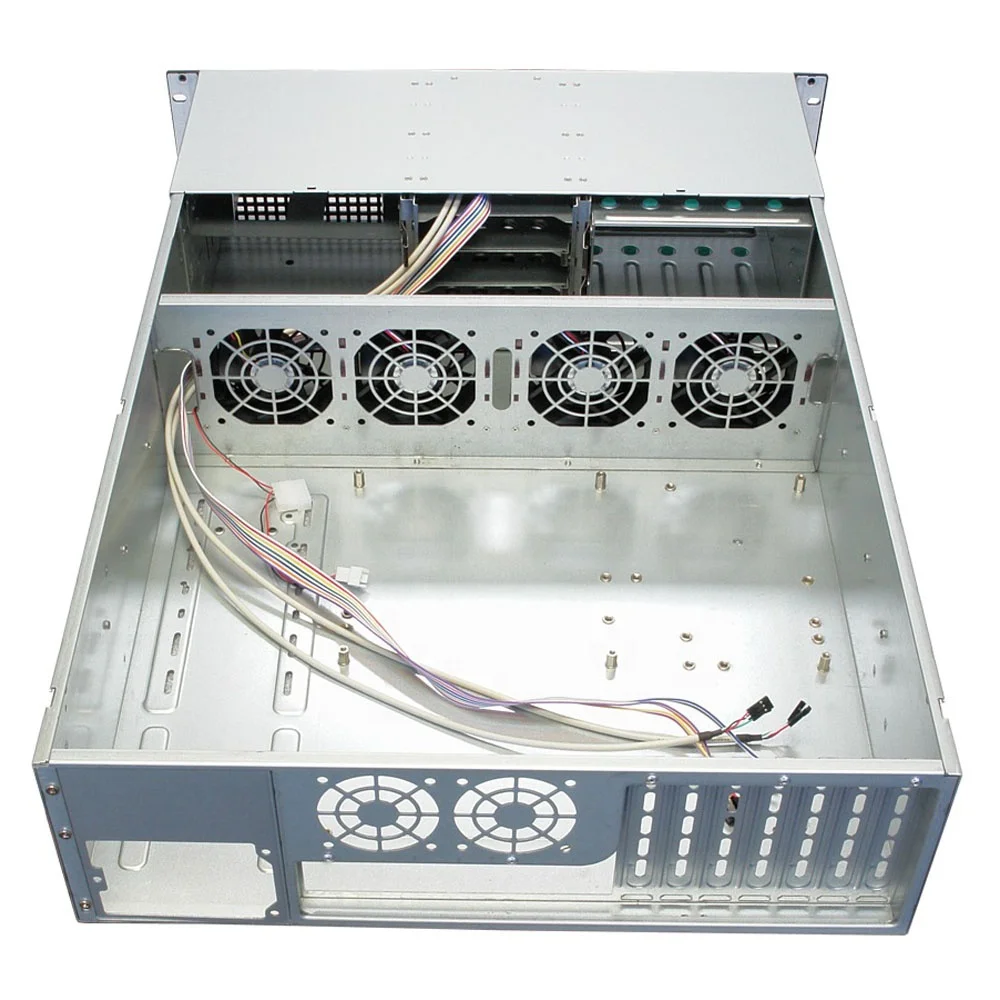

PC Computer Industrial Rack Mount Server Chassis Case 3U

Product Overview

Description

Product Description



Model	NP-F3650
Form Factor	3U Rackmount Server case
Mateial	Metal material	SGCC
	Metal thickness	1.2mm
M/B support	EEB (12″ x 13″), microATX (9.6″ x 9.6″), CEB (12″ x 10.5″), ATX (12″ x 9.6″), Mini-ITX (6.7″ x 6.7″)
CPU support	DP Xeon(Intel)/DP Opteron(AMD)/Core(Intel)
Size	D*W*H(mm)	650 x 482 x 132
	D*W*H(inch)	25.5 x 19 x 5.1
Drive Bay	External 5.25"  bays	6
	External 3.5" bays	4
	Internal 3.5"	14
	Internal 2.5"	4
Power Supply support	ATX power supply
Front panel	Control button	Power ON/OFF x 1, system reset x 1
	Indicator	Power ON/OFF x 1, HDD x 1
	Ports	USB 2.0 x 1, USB 3.0 X 1
Expansion	Riser Slot	7pcs (full size)
Hot-swap Backplane	NO
System cooling(optional)	front	No
	middle	4x 80mm ball bearing fans PWM (hot-pluggable)
	rear	2x 80mm (standard)
Net weight	12kg
Gross weight	14.5kg
Packing size	D*W*H(mm)	830*555*200
	D*W*H(inc)	32.6*21.8*7.8
Packing Material	Polyfoam with carton box
Environment Temperature	0/55 °C, 32/131 °F (Operating) -20/60 °C, -4/140 °F (Non-Operating)
Relative Humidity	5% to 95%,non-condensing
Vibration ( 5-500 Hz )	1 Grms (Operating), 2 G (Non-Operating)
Shock	10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)

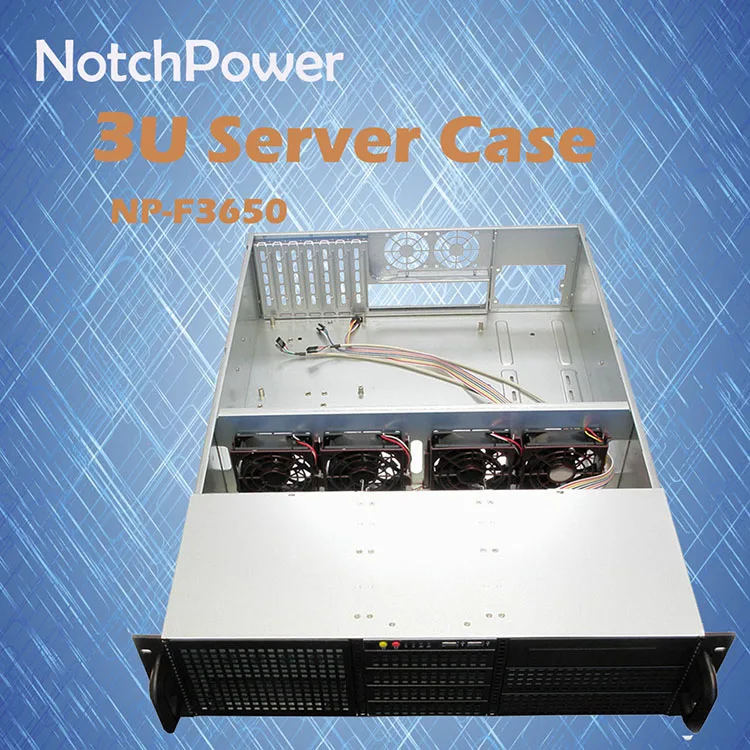

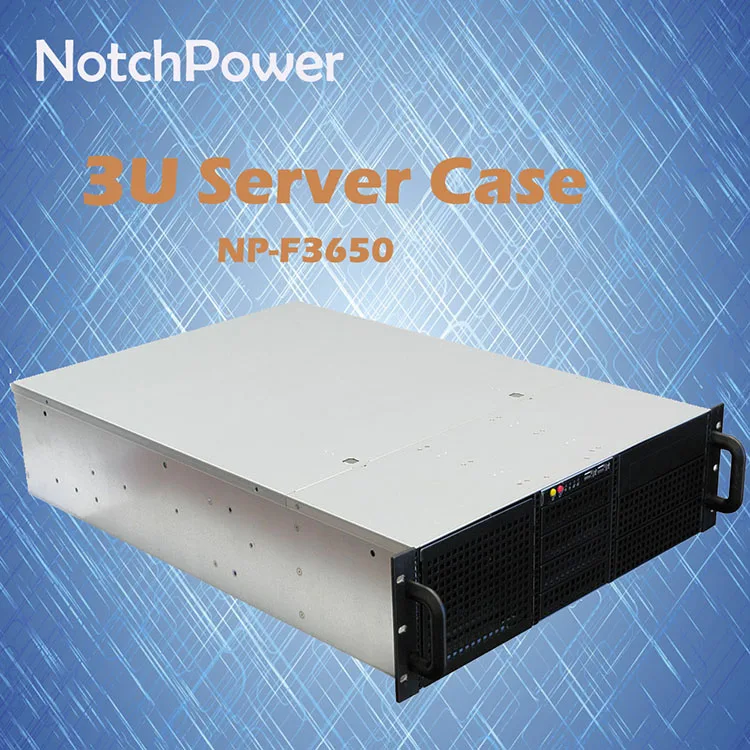

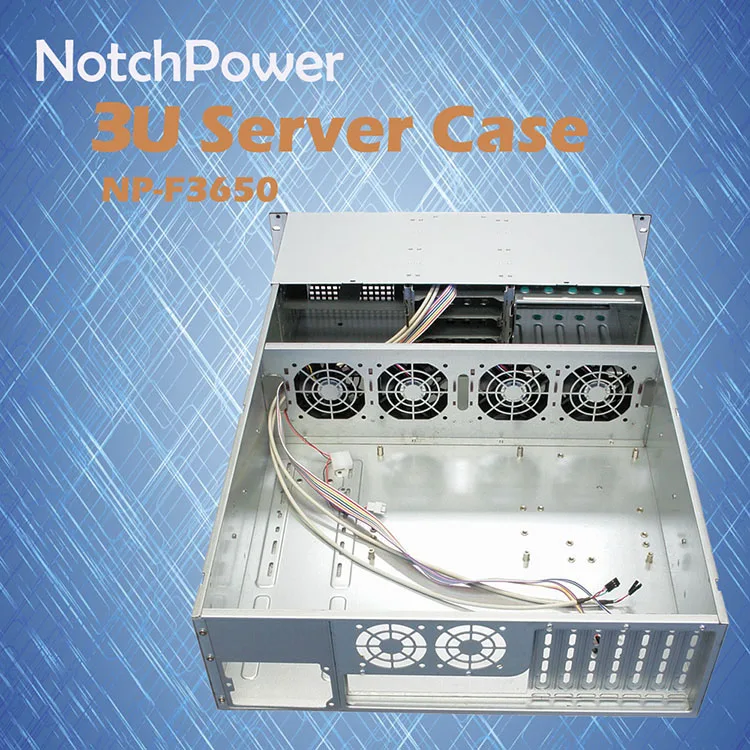

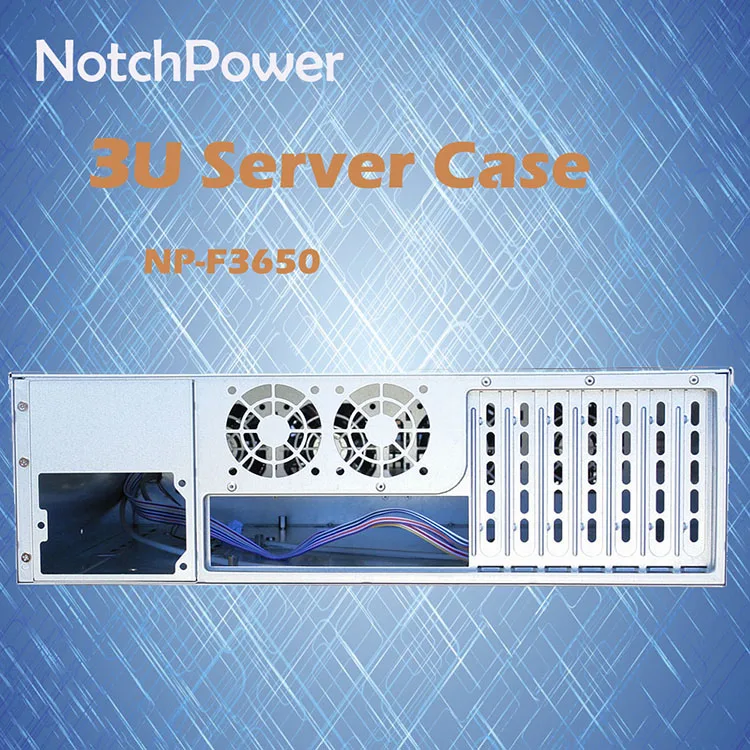

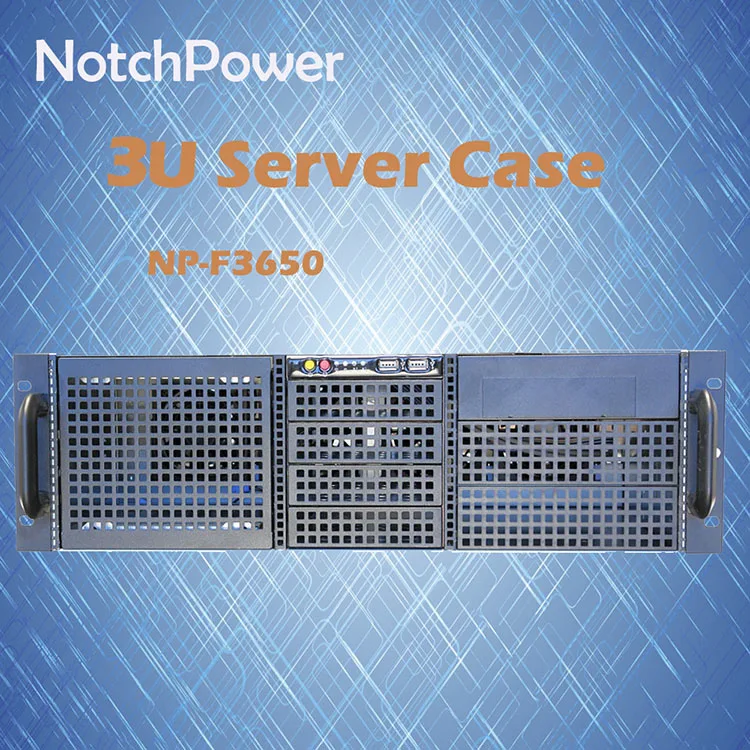

Detailed Images
