Microwave composite dielectric copper clad substrate with ceramic (TP300)high frequency microwave PPO materials
- Category: >>>
- Supplier: Taizhou Wangling Insulation Material Factory
Share on (60831705659):
Product Overview
Description

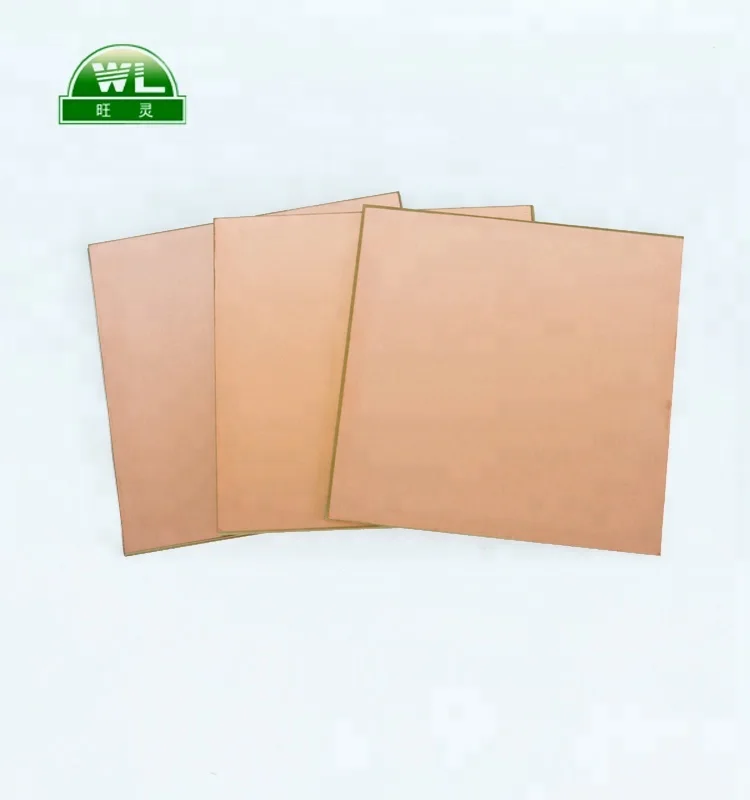

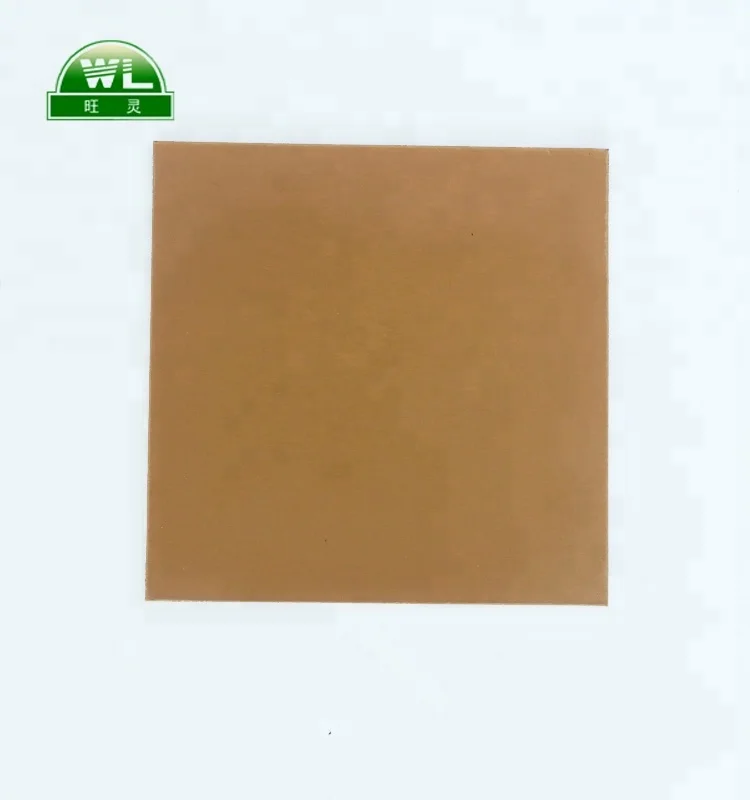

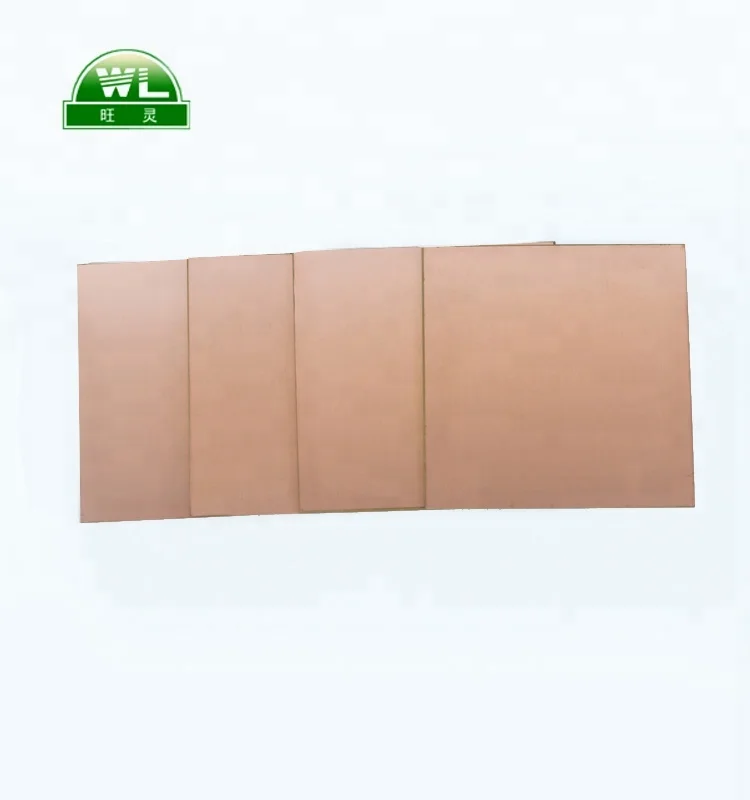

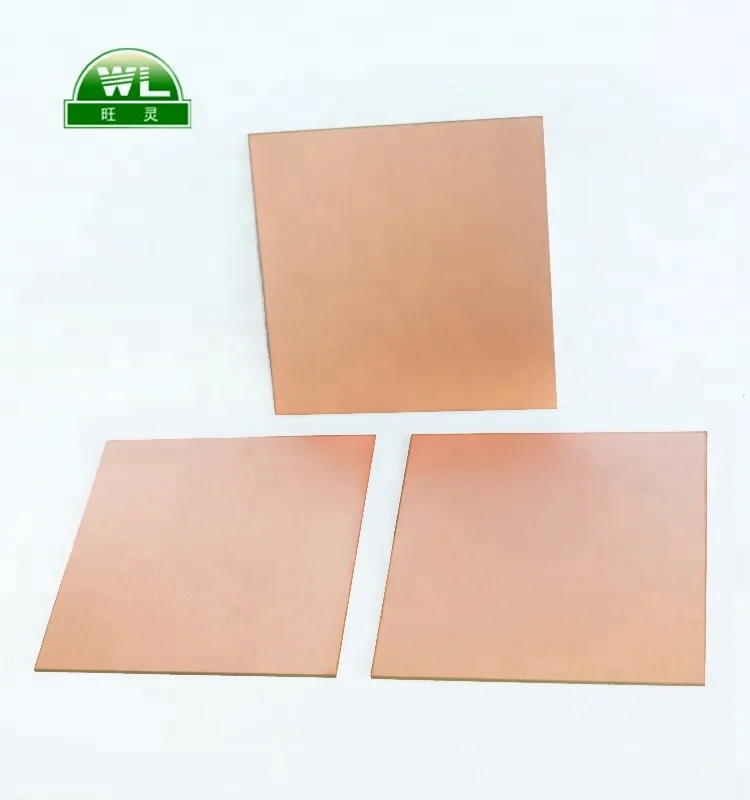

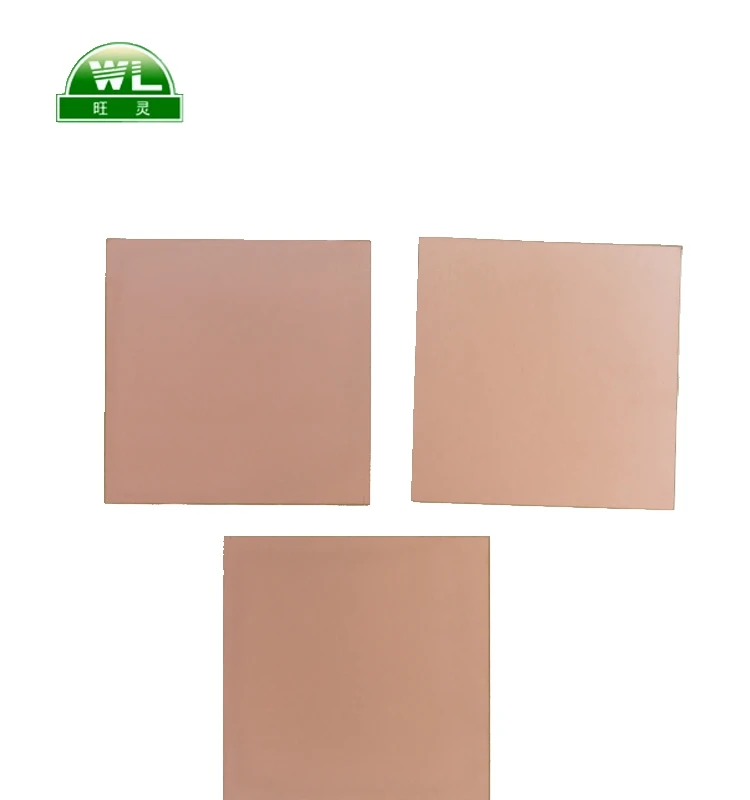

High quality microwave PPO copper clad substrate with ceramic (TP300)
1.Advantages:
(1)The dielectric constant is stable and can be optional within the range of 3~25 according to the design of circuit requirement;
(2) The adhesive power between the copper and the substrate is more reliable than the vacuum film coating of ceramic substrate;
(3)he loss has a slight variation with the rise of the frequency.
Product code des
2.Specifications:
Types | Double side, Single side, Original side |
Dimensions A×B(mm) and Tolerance(mm)
| 6''x6''(150×150mm), 6.3''x6.3''(160×160mm), 7''x7''(180×180mm), 8''x8''(200×200mm), 6.7''x9.4''(170×240mm) |
-2 | |
Thickness(including copper) and Tolerance(mm) | 0.8±0.05, 1.0±0.05, 1.2±0.05, 1.5±0.06, 2.0±0.075, 3.0±0.10, 4.0±0.10, 5.0±0.12, 6.0±0.12, 10.0±0.2 |
For special dimensions,customized lamination is available. | |
Copper thickness(OZ) | 1/2 or 1 (electrodeposited copper foil ) |
| DK(εr) | 3.0 |
| DK can be customized. | |
Dissipation factor (@ 10GHz) | Less than or equal to 0.001 |
Copper peel strength (1oz copper) | ≥6N/cm |
Surface Resistivity (MΩ.cm ) | ≥1×107 |
Volume Resistivity (MΩ.cm ) | ≥1×109 |
| Coefficient of thermal expansion(ppm/℃) X Axis Y Axis Z Axis |
Condition: -55℃ to 288℃ <40 <40 <60 |
