4 дюйма моторизованный клапан бабочка из ПВХ моторизованный клапан с контролем потока промышленный электрический клапан бабочка
- Category: >>>
- Supplier: Tianjin Freya Automation Technology Co. Ltd.
Share on (60831736978):
Product Overview
Description

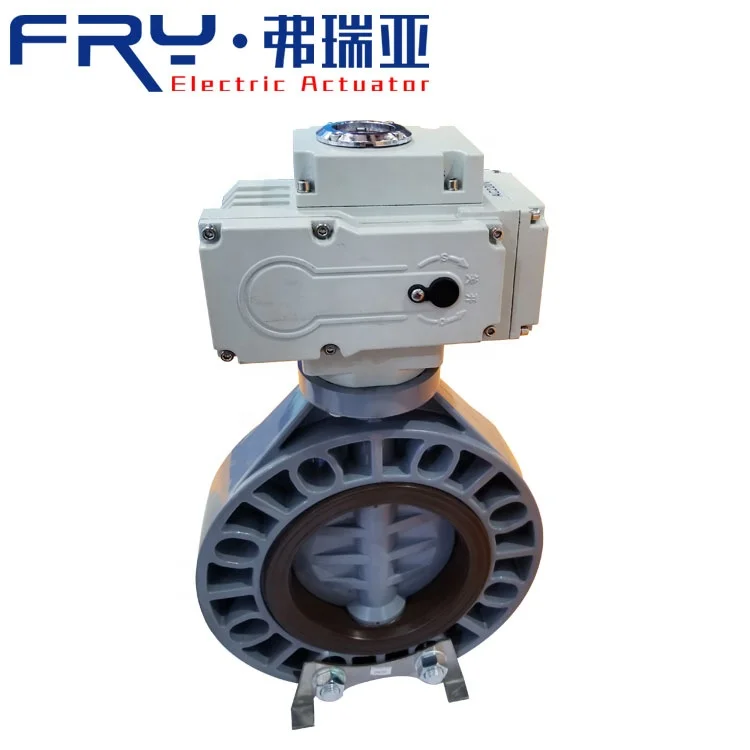

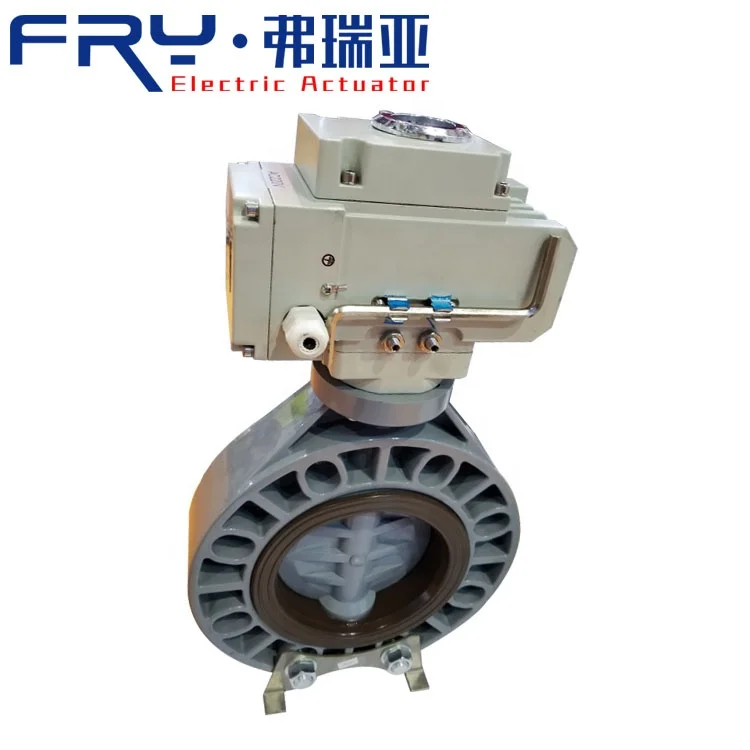

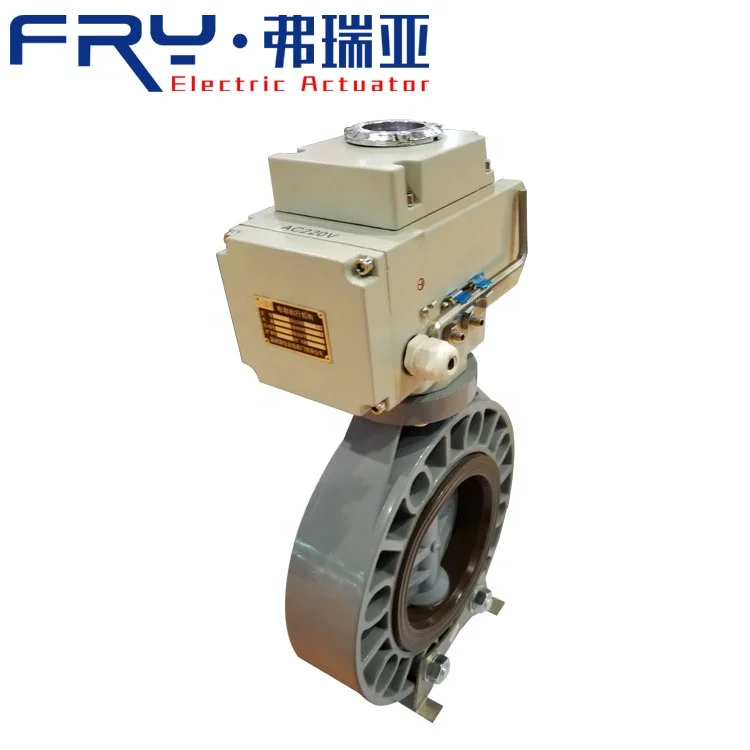

4 inch motorized butterfly valve PVC motorized flow control valve industrial butterfly valve electric
4 inch motorized butterfly valve PVC motorized flow control valve industrial butterfly valve electric adopts butt clamp connection, need not to apply any tools, can be quickly assembled, with tight structure, wear resistance, easy disassembly, convenient maintenance, easy maintenance, etc. Body material health non-toxic, strong corrosion resistance, light weight, wide scope of application, such as pure water and water piping system, drainage and sewage pipe system, salt water and sea water pipeline system, acid and alkali and chemical solution system and other industries.
Electric PVC butterfly valve
Nominal diameter DN(mm) | DN50-DN300 |
Connecting mode | Butt clamp |
Valve body material | UPVC(-10℃~+70℃) CPVC(-40℃~+95℃) RPP(-14℃~+100℃) PVDE(-40℃~+140℃) |
Valve core material | UPVC(-10℃~+70℃) CPVC(-40℃~+95℃) RPP(-14℃~+100℃) PVDE(-40℃~+140℃) |
Sealing material | PTEE, EPDM, NBR |
Applicable medium | Compatible with food industrial chemical solvents of PVC |

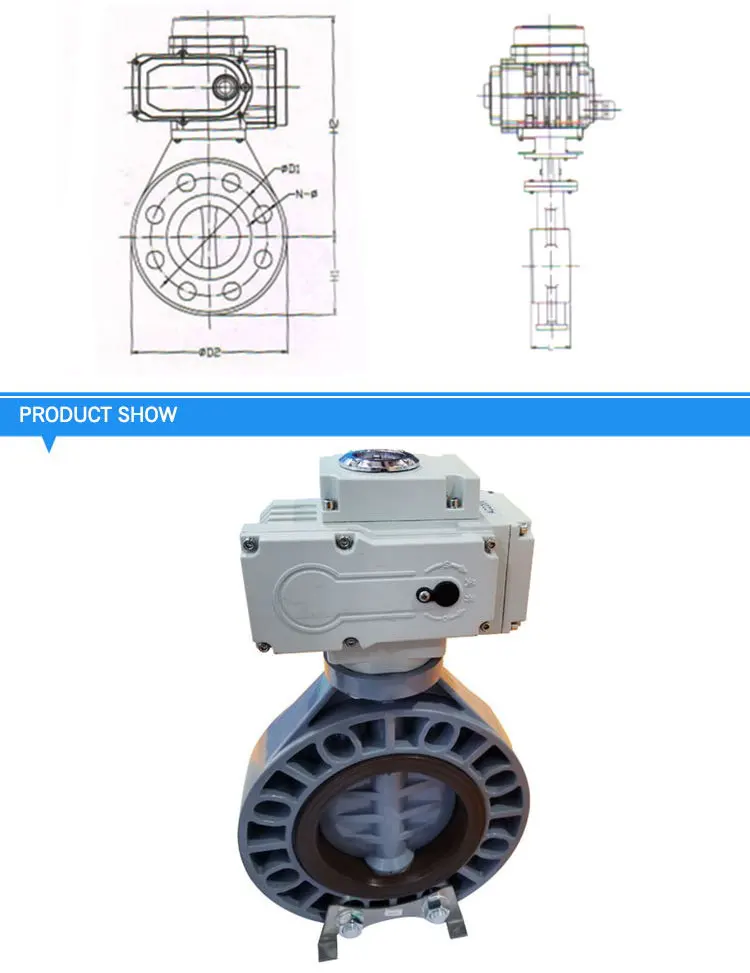

Outline dimension of Electric PVC ball valve
size | matching | D1 | D2 | H | H1 | L | N=Φ |
mm | 1.0MPa | 1.0MPa | 1.0MPa | ||||
DN50 | FRY-105 | 125 | 165 | 345 | 82.5 | 40 | 4-19 |
DN65 | 145 | 185 | 366 | 92.5 | 46 | 4-19 | |
DN80 | FRY-110 | 160 | 200 | 418 | 100 | 46 | 8-19 |
DN100 | 180 | 220 | 444 | 110 | 54 | 8-19 | |
DN125 | 210 | 249 | 493 | 124 | 70 | 8-23 | |
DN150 | FRY-120 | 240 | 283 | 548 | 142 | 74 | 8-23 |
DN200 | 295 | 340 | 622 | 170 | 87 | 8-23 | |
DN250 | FRY-160 | 350 | 395 | 701 | 198 | 114 | 12-25 |
DN300 | FRY-1100 | 410 | 460 | 787 | 230 | 114 | 12-25 |
1. Wide temperature range:-40℃~+95℃
2. Excellent strength and toughness.
3. Excellent chemica corrosion resistance.
4. Flame retardancy is spontaneous combustion.
5. Low heat conduction performance, about 1/200 of steel.
6. The content of heavy ions in the medium reaches the standard of ultra-pure water.
7. Health indicators meet with the basic requirements of national health standards.
8.Smooth pipe wall, with small frictional resistance and adhesion when conveying liquid.
9. Light weight, equivalent to 1/5 of steel pipe, 1/6 of copper tube.
10.The installation is convenient, the flange is adopted and the order is connected.
Packaging & Shipping
Shipment Term:
1. Orders processed timely after the payment verification .
2. Terms of Deliver: FOB / CFR / CIF / EXW etc.
3. Due to stock status and time differences , we will choose to ship your item from our first available warehouse for fast delivery .
Payment Term:
1. Accept T/T, D/A, D/P, L/C, West Union with 30% Deposit.
2. Advance payment should be made within 3 days of order .
Documents:
1. Certificate of Origin: CO, FORM A, FORM E, FORM F, FORM X ISSUED BY CCPIT / Chamber of Commerce.
2. COMMERCIAL INVOICE
3. PACKING LIST
3. QUALITY CERTIFICATE
Our Services
Our company provides you with the following services free of charge:
1. All-round electric actuator and valve technology selection service
2. High-quality post-product maintenance and technical analysis services
3. Accept other related cooperation
