high current 300A 400A Brushless dc controller 48V 3kw 4kw BLDC Motor Speed Controller

Product Overview

Description

high current 300A 400A Brushless dc controller 48V 3kw 4kw BLDC Motor Speed Controller



Model: KYEB48300



Product Description

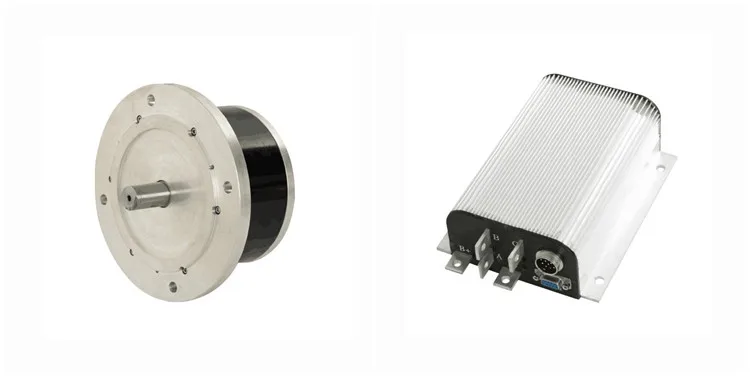

KEYA  BLDC motor controller provides efficient, smooth and quiet controls for golf cart, go-cart, electric motorcycle, forklift, hybrid vehicle, electrical vehicle, electric boat, as well as industry motor speed or torque control. Motor speed controller uses high power MOSFET, PWM to achieve efficiency 99% in most cases. Powerful microprocessor brings in comprehensive and precise control to BLDC motor controllers. This programmable brushless motor controller also allows users to set parameters, conduct tests, and obtain diagnostic information quickly and easily.

1. Intelligence with powerful microprocessor.

2. Synchronous rectification, ultra low drop and fast PWM to achieve very high efficiency.

3. Electronic reversing.

4.Voltage monitoring on 3 motor phases, bus, and power supply.

5. Voltage monitoring on voltage source 12V and 5V.

6. Current sense on all 3 motor phases.

7. Current control loop.

8. Hardware over current protection.

9. Hardware over voltage protection.

10. Support torque mode, speed mode, and balanced mode operation.

11. Configurable limit for motor current and battery current.

12. Low EMC.

13. LED fault code.

14. Battery protection: current cutback, warning and shutdown at configurable high and low battery voltage.

15. Rugged aluminum housing for maximum heat dissipation and harsh environment.

16. Thermal protection: current cut back, warning and shutdown on high temperature.

17. Configurable 60 degree or 120 degree hall position sensors.

18. Support motors with any number of poles.

19. Up to 40,000 electric RPM standard. Optional high speed 70,000 ERPM, and ultra high speed 100,000 ERPM. (Electric RPM = mechanical RPM * motor pole pairs).

20. Support three modes of regenerative braking: brake switch regen, release throttle regen, 0-5V analog signal variable regen.

21. Configurable high pedal protection: the controller will not work if high throttle is detected at power on.

22. Current multiplication: Take less current from battery, output more current to motor.

23. Easy installation: 3 wire potentiometer can work.

24. PWMable reverse alarm output.

25. Remove fault code LED driver.

26. Current meter output.



Product Specification

•Controller supply voltage range, PWR, 18V-90V.
•Frequency of Operation: 16.6kHz.
•Standby Battery Current: < 0.5mA.
•5V Sensor Supply Current: 40mA.
•Configurable battery voltage range, B+,18V-60V.
•Analog Brake and Throttle Input: 0-5 Volts. Producing 0-5V signal with 3-wire pot.
•Reverse Alarm, Main Contactor Coil Driver, Meter.
•Full Power Operating Temperature Range: 0℃ to 50 ℃ (controller case temperature).
•Operating Temperature Range:-30℃ to 90 ℃, 100℃ shutdown (controller case temperature).
•Boost Current, 10 seconds: 350A.
•Motor Current Limit, 1 minute: 300A.
•Motor Current Limit, continuous: 140A.
•Max Battery Current : Configurable.



Product Overview









Producing



Certification



Company information



Jinan Keya Electron Science and Technology Co., Ltd, founded in 2001, has been trading in the research &development, manufacturing and sales of DC Servo motor and Servo control system for 15 years. Company set technology, talent, management and other resources advantages, to effectively integrate, has maintained a healthy, stable and rapid growth. The company has adopted ISO9001:2008 quality management system certification, products through the CE certification. More than 3000 large and medium-sized domestic equipment manufacturers designated as supporting products, and exported to the United States, Europe, Southeast Asia and other countries.



Our Service



We devote ourself to Research & Development, welcome Costom-made products, if you need some unusual products, let's have further communication.





Delivery time: 1-3 working days after receive the payment

high current 300A 400A Brushless dc controller 48V 3kw 4kw BLDC Motor Speed Controller

Products Application Cases Display







FAQ

 1.    Q: What are your main products?

      A: We produce various kinds of dc motor & controller.

2.    Q: How long have you been in this field?

      A: More than 15 years in this field.

3.    Q: Do you have your own R&D team?

      A: Yes. R&D is our core competitiveness, continuous innovation is just what we are seeking for all       the time. Some of our engineers have more than 20years experience in the industry, and we also         cooperate with colleges, scientific research institutions and large enterprises.

4.    Q: How soon can you deliver the goods?

      A: That depends on the exact model you order. For regular products, usually we will prepare some units in stock, we can deliver them within 3 working days.

5.    Q: Can you make the product according to customer’s requirements?

      A: Yes, welcome costom-made products.

6.    Q: What is your payment term?

      A: You can pay by TT, Paypal, Western Union.
