China mainland production ZX6350C metal milling machine

Product Overview

Description

Configuration  features

Strong steel-type
Milling head can be micro feed and achieve the drilling
Milling and tapping function
Worktable can be equipped with the gear transmission power feed,
Full-featured and flexible
Easy to operate
Can be add plug and swivel table
Work Table Surface and Guideways Hardened by Supersonic Frequency Quenching (depth 2-4MM)
Work Table Made by HT200-250 High Strength Cast Iron
Dovetail Table Guideways Withstand Larger Overturning Moment
Vertical Milling Spingle Auto-Feeding
Gear Drive Milling Head
Headstock Swivels ±45°

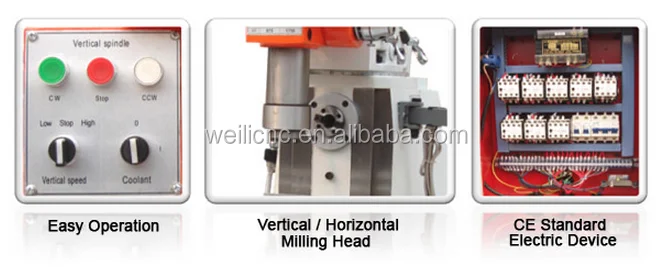

Product detail display



0J5%1KFQRB$$B8L6S9O}AC.png" ori-width="671" ori-height="267"/>





Technical  parameters



Specification	Units	ZX6350C
Spindle taper		7:24IOS40
Tail stock center sleeve taper	mm	120
Distance from vertical spindle to worktable	mm	90-400
Spindle speed range	r.p.m	115-1750(V)/40-1300(H)
Table size	mm	1200×280
Max.travel of table	mm	600/260/430
Feeding range	mm/min	16-480(8step)
Spindle travel	mm	120
Main motor power	kw	2.2
Overall size	mm	1580×1300×2250
N.W/G.W	kg	1350
With horizontal milling function, one axis automatic feed.



Standard accessories

Drill chuck
Mill chuck
Inner hexagon spanner
Work light
Reduction sleeve
Draw bar
Spindle arbor
wrench
Machine vice
Horizontal milling arbor

Product introduction

      ZX6350C  drilling and milling machine  guide rail after quenching treatment, has good wear ability. Milling head is arranged on the front end of the slide arm, can move up and down, not only can rotate 45 degrees back in the vertical plane around has good processing universal.
