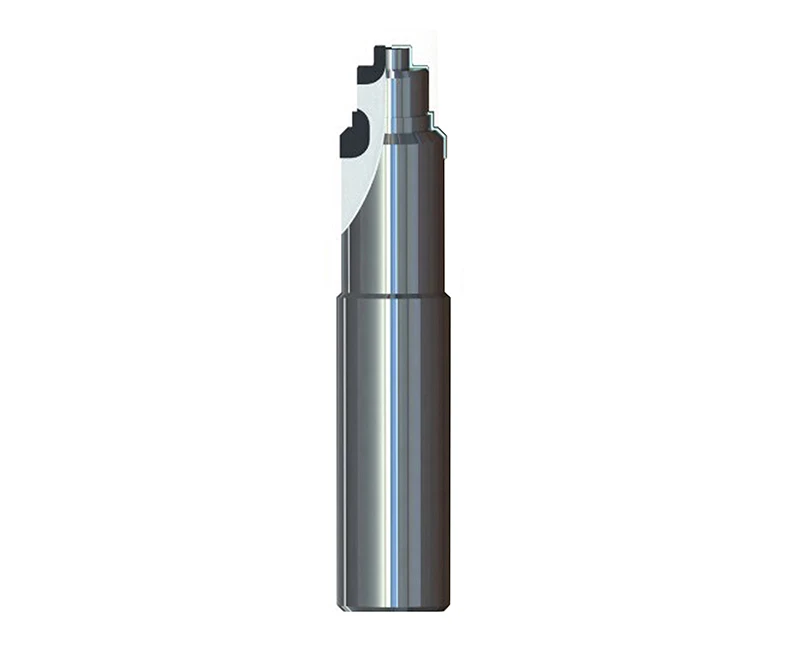

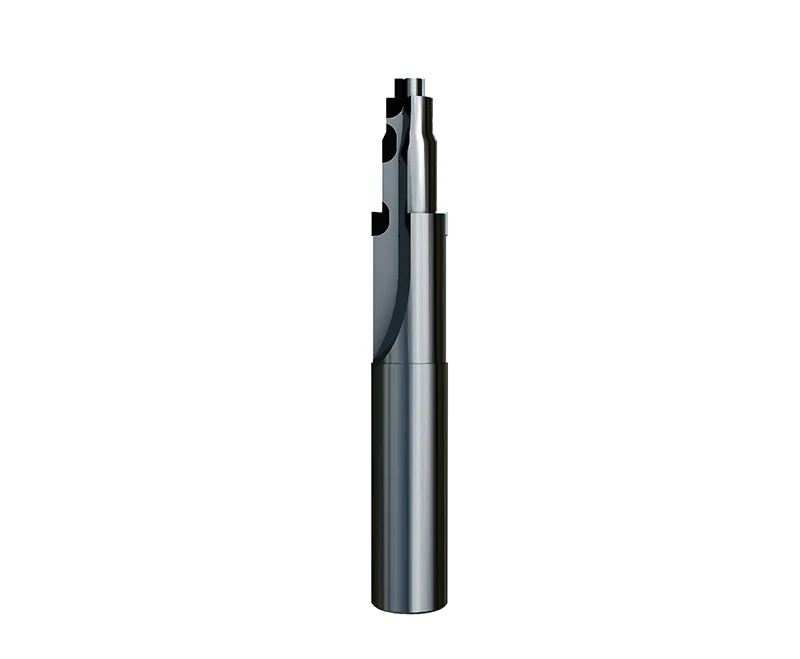

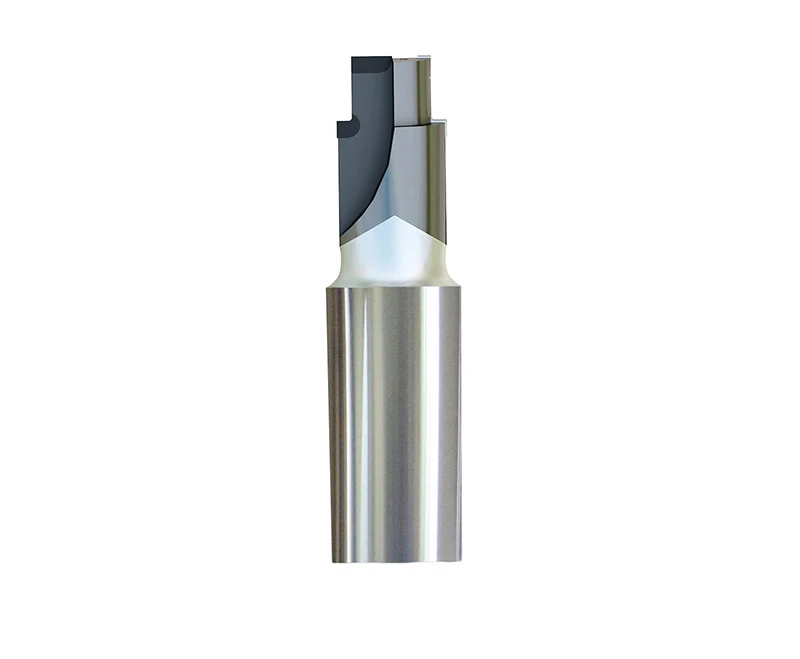

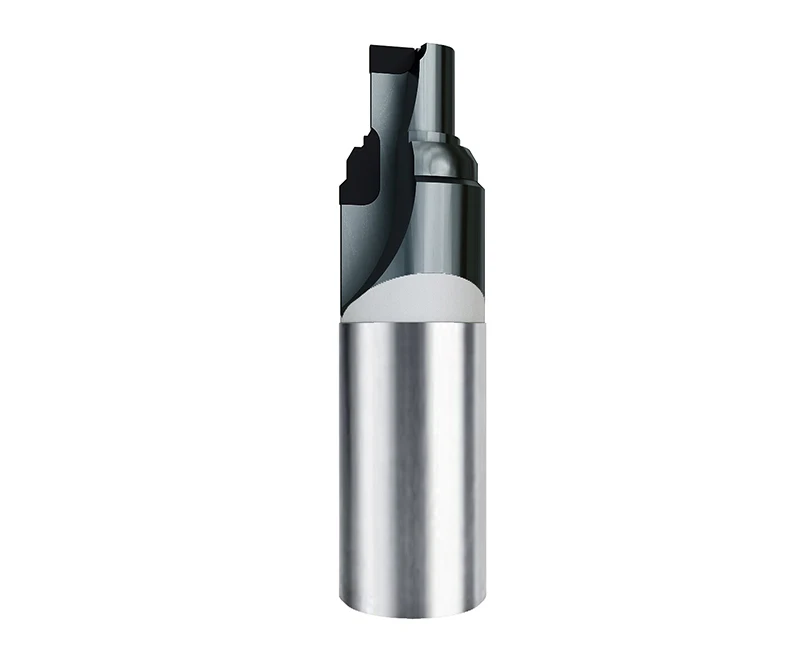

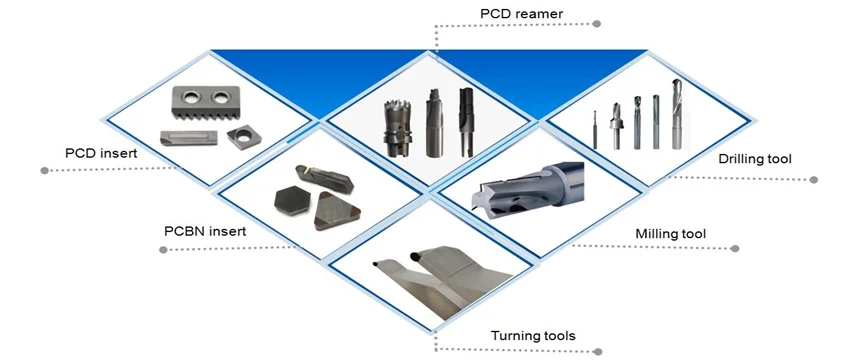

Китайские режущие инструменты, расширитель PCD, отделочные режущие инструменты для тормозной системы, решение для обработки АБС

Product Overview

Description







 We manufacture all kinds of standard and non-standard PCD/PCBN inserts,welcome to tell us your ISO code or sending us your drawings for accurate quotation.

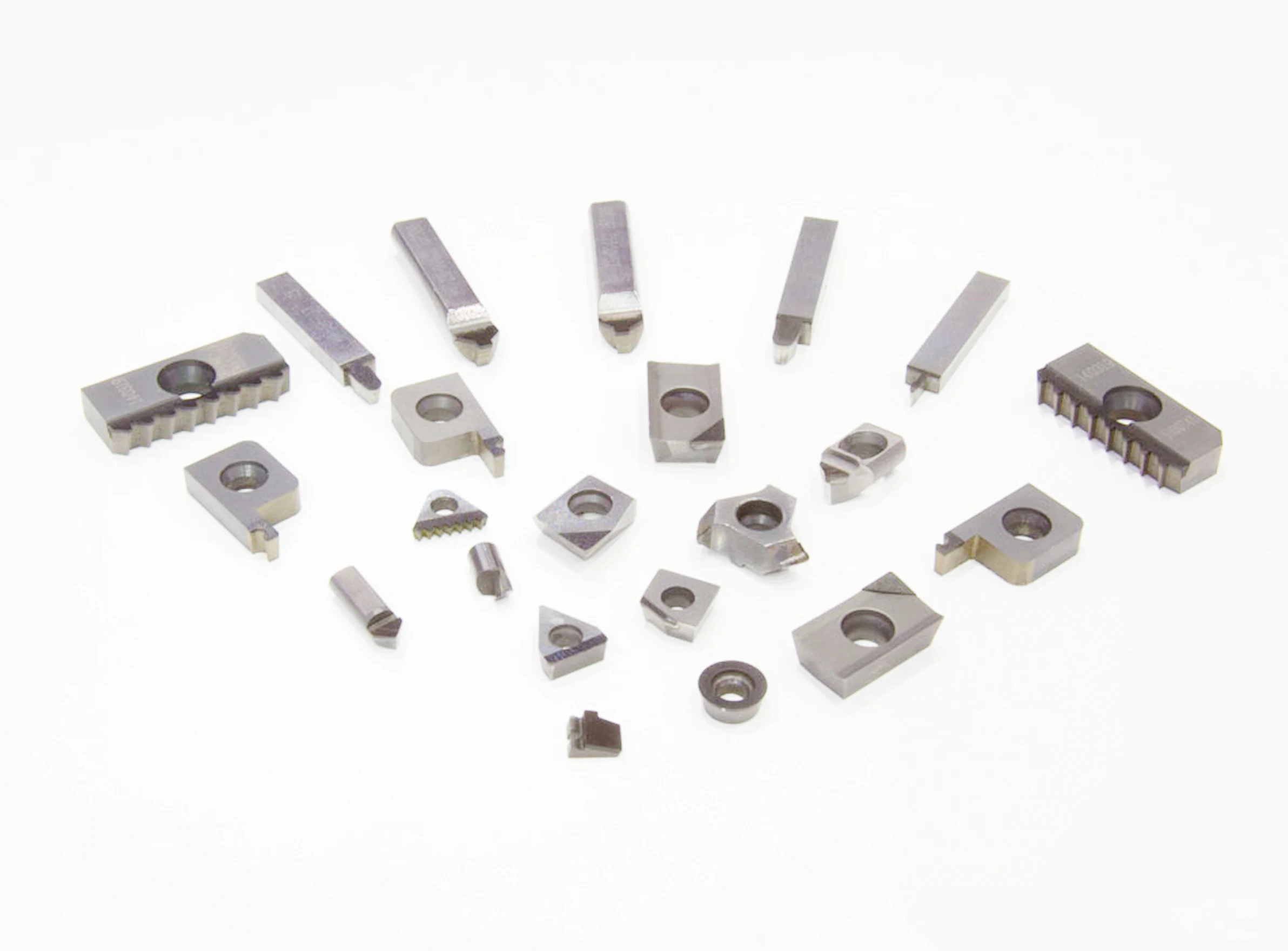

PCD
appearance	shape	type	inscribed circle	thickness	Radius	Inner hole demeter
	TNMM	TNMM160404	9.525	4.76	0.4	3.81
		TNMM160408			0.8
		TNMM160412			1.2
	TCGW	TCGW110302	6.35	3.18	0.2	3.4
		TCGW110304			0.4
	TCGT	TCGT110202	6.35	2.38	0.2	2.8
		TCGT110204			0.4
		TCMT080202	4.76	2.38	0.2	2.4
		TCMT080204			0.4
		TCMT090202	5.56	2.38	0.2	2.8
		TCMT090204			0.4
		TCMT110301	6.35	3.18	0.1	3.4
		TCMT110302			0.2
		TCMT110304			0.4
	TPGW	TPGW080202	4.76	2.38	0.2	2.4
		TPGW080204			0.4
		TPGW090202	5.56	2.38	0.2	2.8
		TPGW090204			0.4
		TPGW110302	6.35	3.18	0.2	3.4
		TPGW110304			0.4
		TPGW160404	9.525	4.76	0.4	4.4
		TPGW160408			0.8
		TPGW160412			1.2
	TPGT	TPGT110302	6.35	3.18	0.2	3.4
		TPGT110304			0.4
	TPGN	TPGN090204	5.56	2.38	0.4	/
		TPGN090208			0.8
		TPGN110302	6.35	3.18	0.2	/
		TPGN110304			0.4
		TPGN110308			0.8
		TPGN160302	9.525	3.18	0.2	/
		TPGN160304			0.4
		TPGN160308			0.8

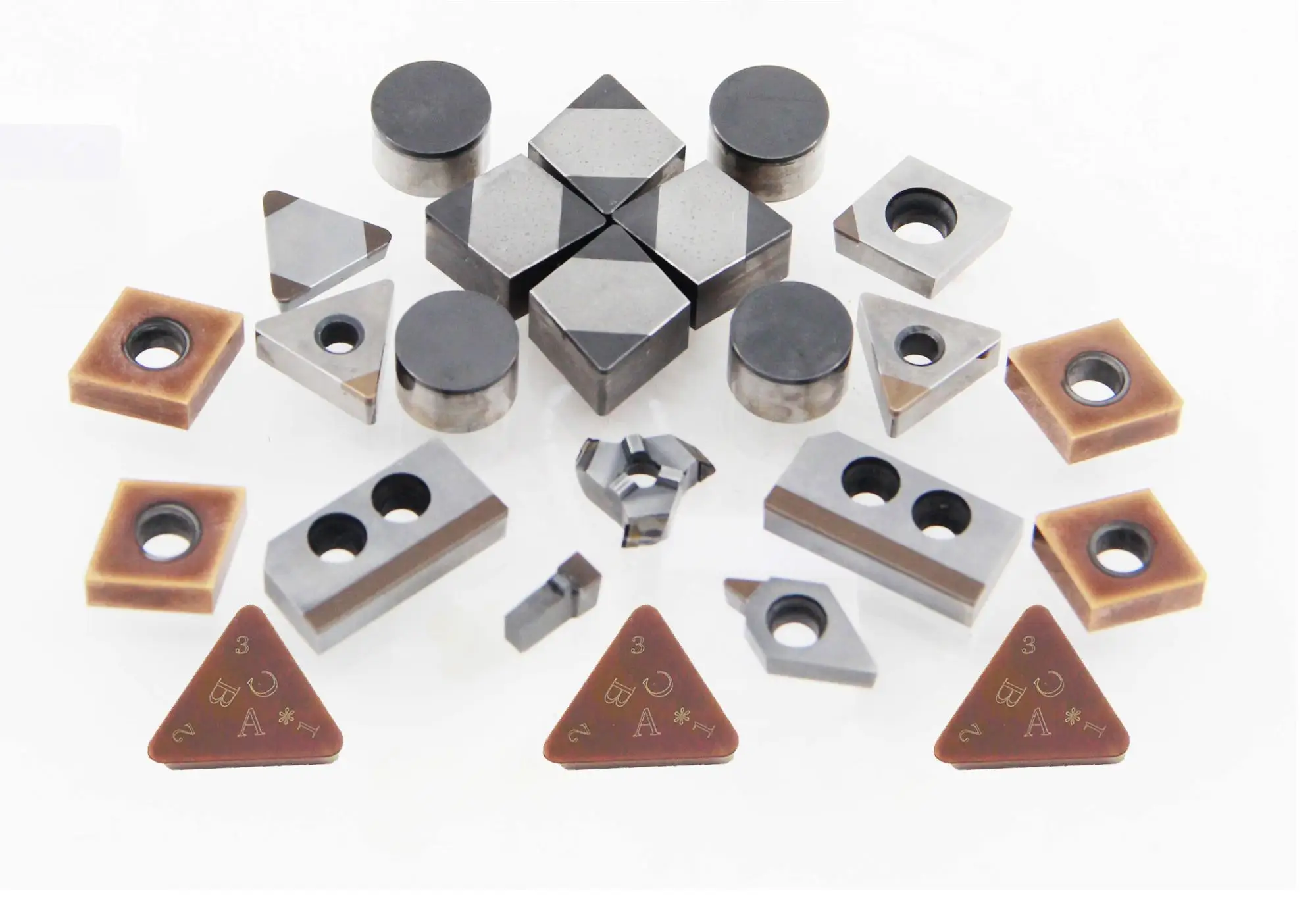

PCBN
appearance	shape	type	No of cutting edges	inscribed circle	thickness	Radius	Inner hole demeter
	TNGA	X-TNGA160404	1          3          6	9.525	4.76	0.4	3.81
		X-TNGA160408				0.8
		X-TNGA160412				1.2
		X-TNGA160416				1.6
	TCGW	X-TCGW090202	1	5.56	2.38	0.2	2.8
		X-TCGW090204				0.4
		X-TCGW110202	1	6.35	2.38	0.2	2.8
		X-TCGW110204				0.4
	TPGW	X-TPGW080202	1	4.76	2.38	0.2	2.3
		X-TPGW080204				0.4
		X-TPGW090202	1	5.56	2.38	0.2	2.8
		X-TPGW090204				0.4
		X-TPGW090208				0.8
		X-TPGW110302	1	6.35	3.18	0.2	3.4
		X-TPGW110304				0.4
		X-TPGW110308				0.8
		X-TPGW160304	1          3	9.525	3.18	0.4	4.4
		X-TPGW160308				0.8
		X-TPGW160404	1          3	9.525	4.76	0.4	4.4
		X-TPGW160408				0.8
	TPGN	X-TPGN110304	1	6.35	3.18	0.4	/
		X-TPGN110308				0.8
		X-TPGN160304	1          3	9.525	3.18	0.4	/
		X-TPGN160308				0.8

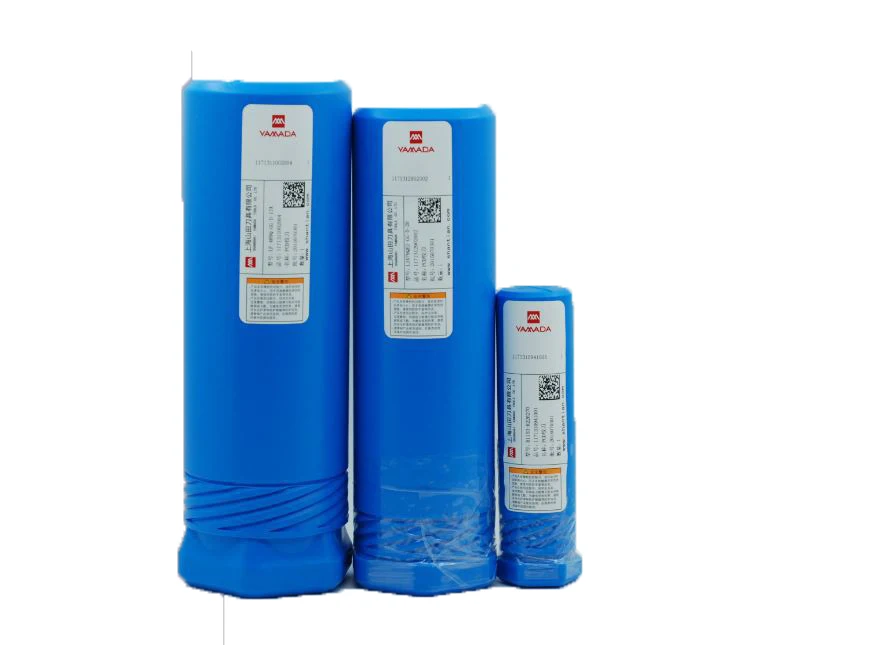

Packaging: Plastic box



Rose plastic cases protect tools perfectly



All products well package with or without labels



Customers requirement lables are accepted



Shipping Time: 5-7 working days



Shipping Method: DHL, UPS, FEDEX, EMS etc





  Yes,we are

2.Where are your factory?

   We are in Shanghai.

3.Could we visit your factory.

   Sure.Our address is here:

   NO.265 ZhanglianT ang Road,Qingpu District,Shanghai, P.R. China 201716

4.How long is your delivery time?

   General 20 days,but we can promote more if you're very urgent.

5.How could I get your quotation?

   We really need your drawings or samples

6.How about your aftersale service?

   Our sales team will not stop to help you once we begin the business.

7.Could we begin the business at low quantity.

   Absolutely.We always think that it is a chance for us and very cherish

   your friendship.



24hrs service, welcome to contact us.
