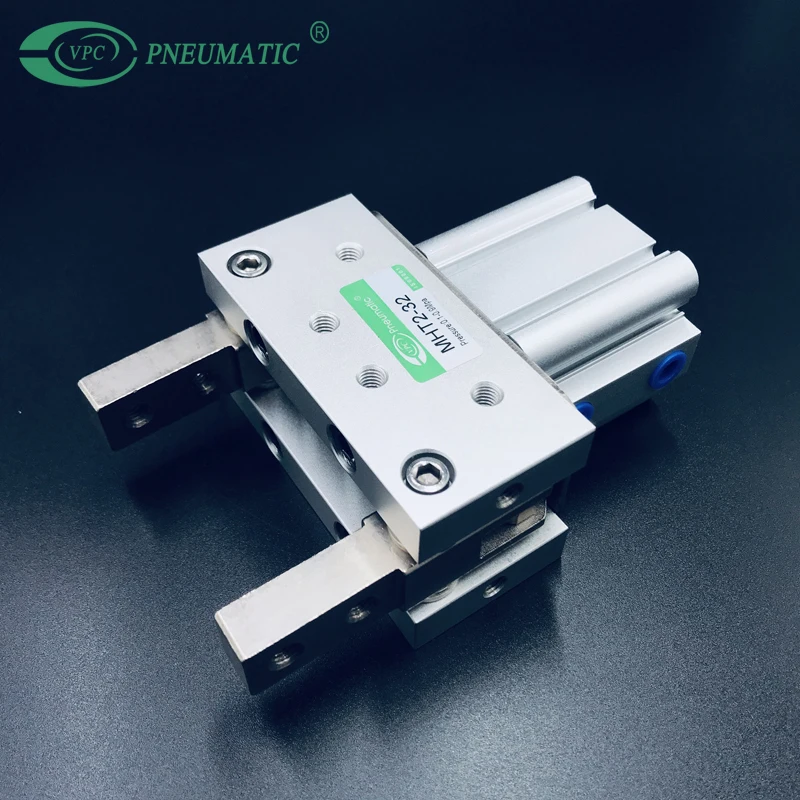

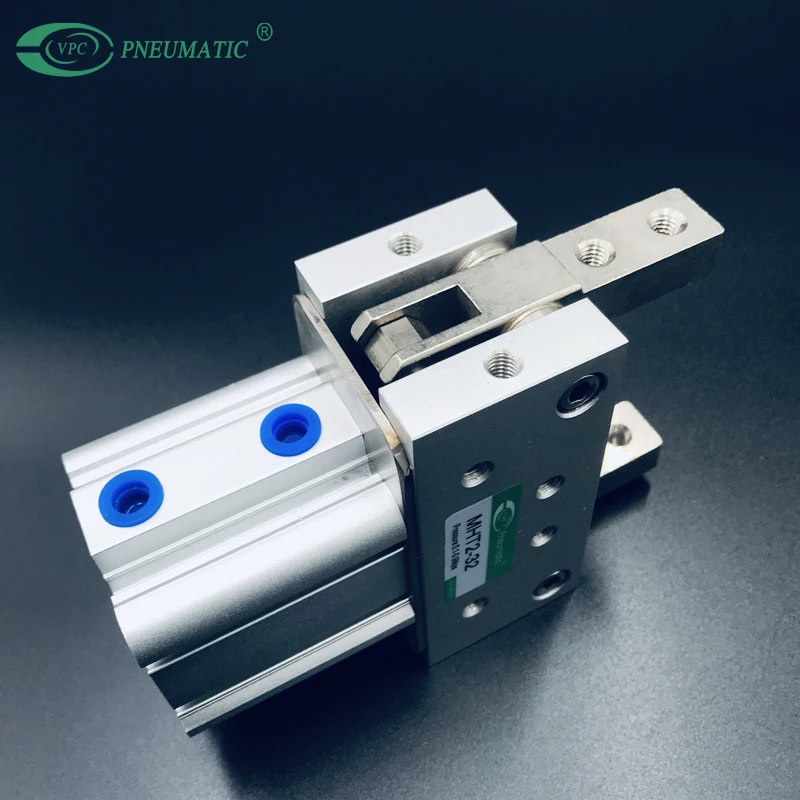

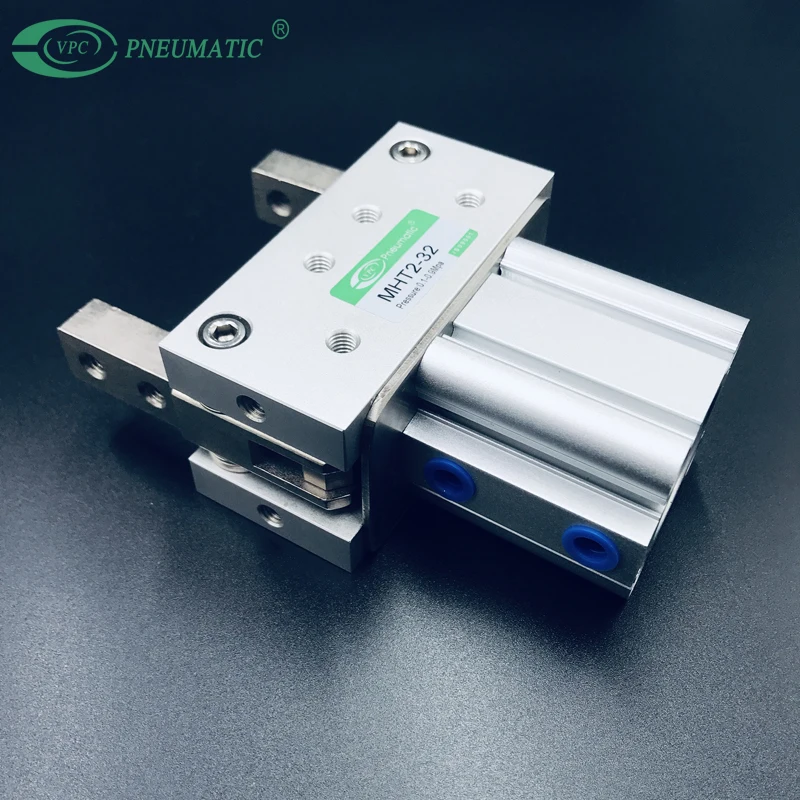

MHT Series Angle style air gripper toggle pneumatic cylinder
- Category: Pneumatic Cylinders >>>
- Supplier: Ningbo Vpc Pneumatic Co. Ltd.
Share on (60831827585):
Product Overview
Description
Product Description

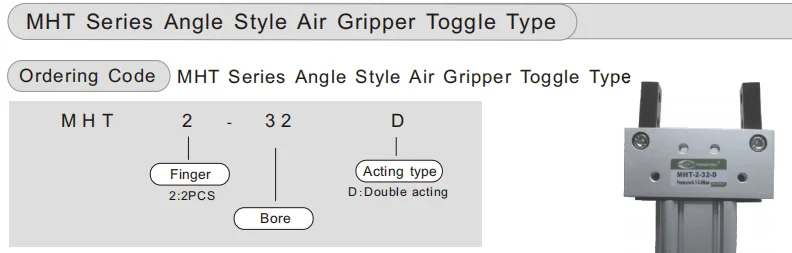

Ordering code:
Specification:
| Model | MHT2-32D | MHT2-40D | MHT2-50D | MHT2-63D |
| Bore | 32mm | 40mm | 50mm | 63mm |
| Finger Open/Cose Angle | -3-28Degree | -3-27Degree | -2-32Degree | -2-32Degree |
| Effective gripper force(N.M) | 12.4 | 36.0 | 63.0 | 106 |
| Working medium | Clean air(40um Filteration) |
| Min.working pressure | 0.6Mpa |
| Max working pressure | 0.1Mpa |
| Working temperature | -10-60℃ |
| Lubrication | Not required |

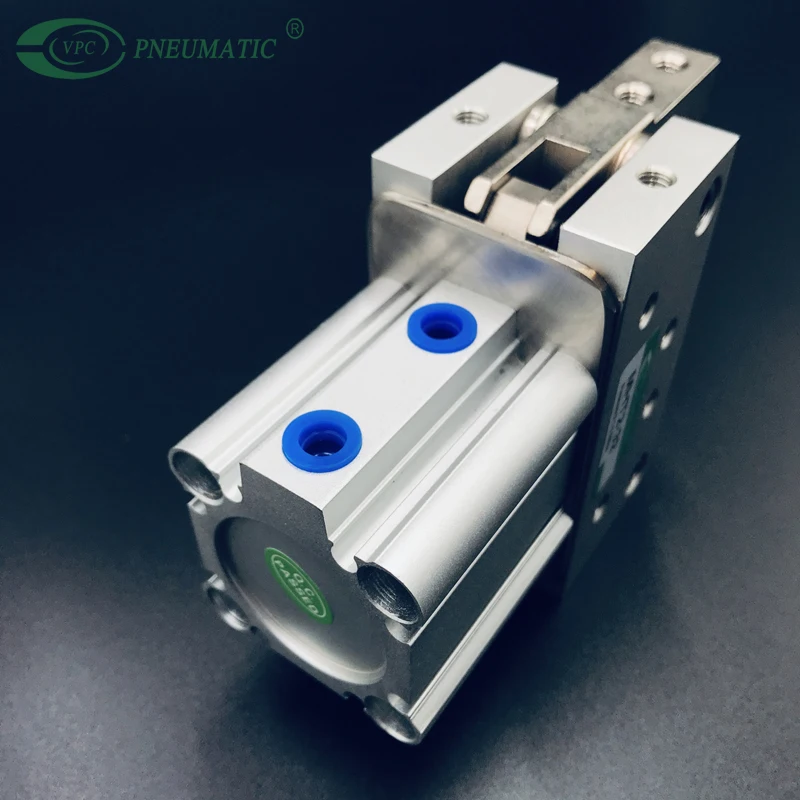

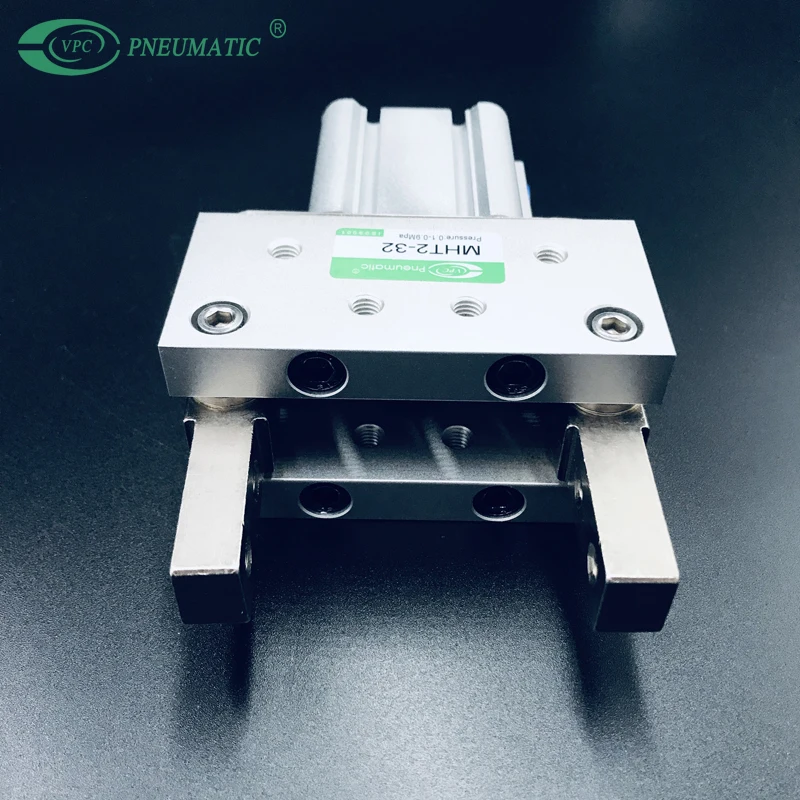

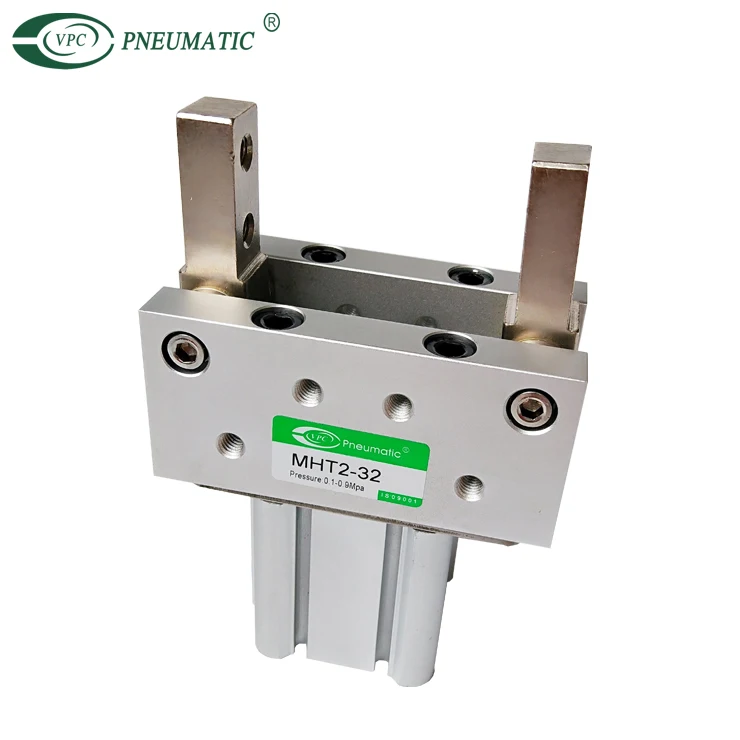

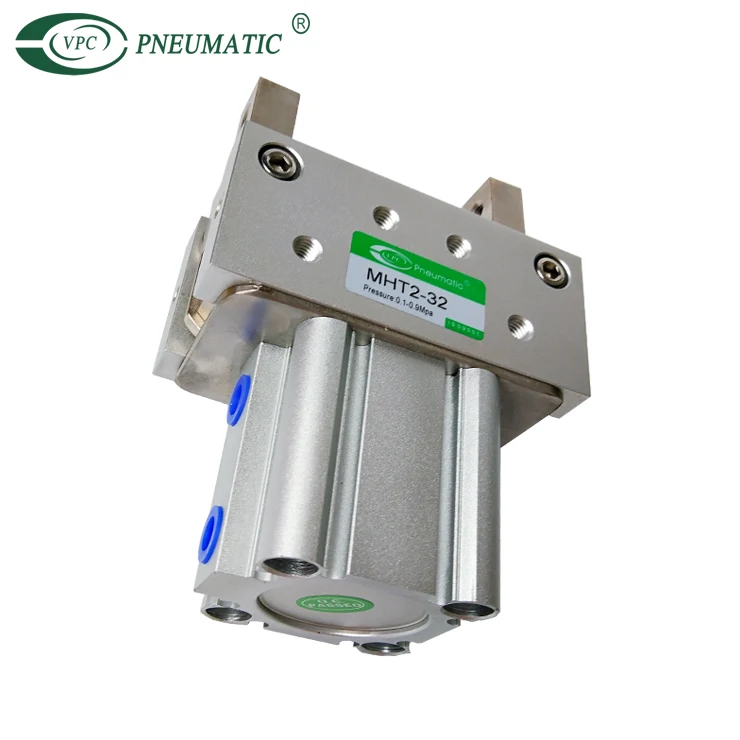

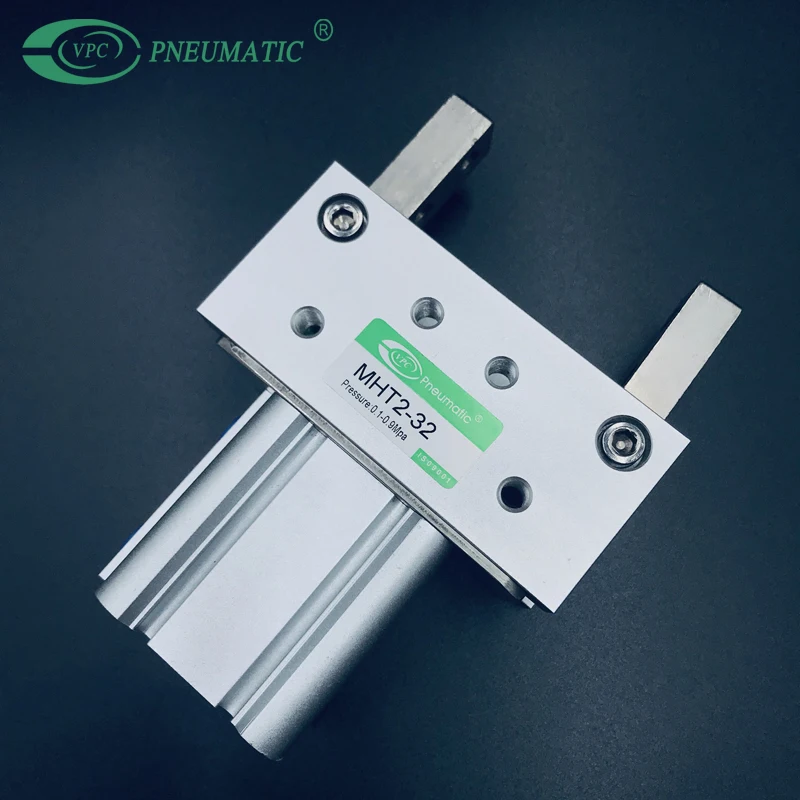

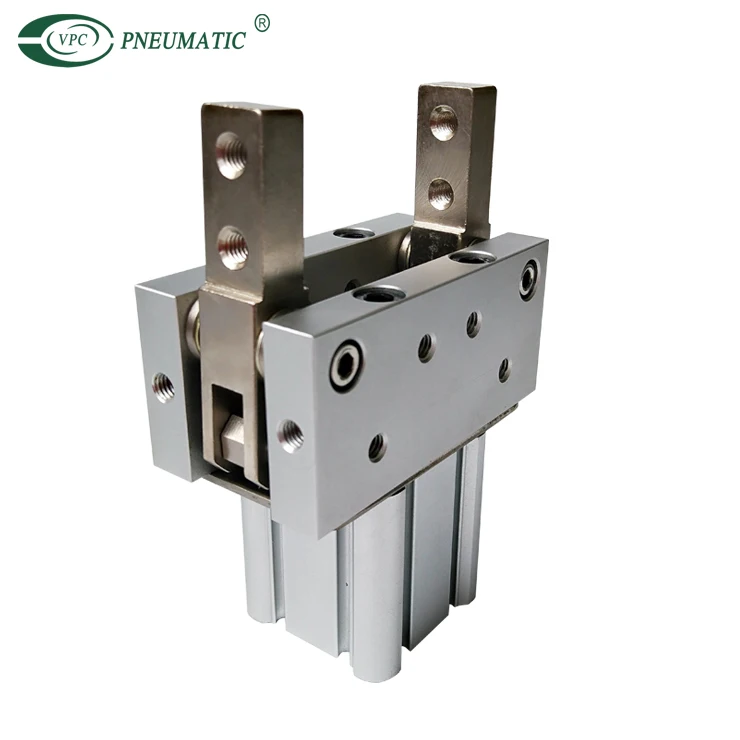

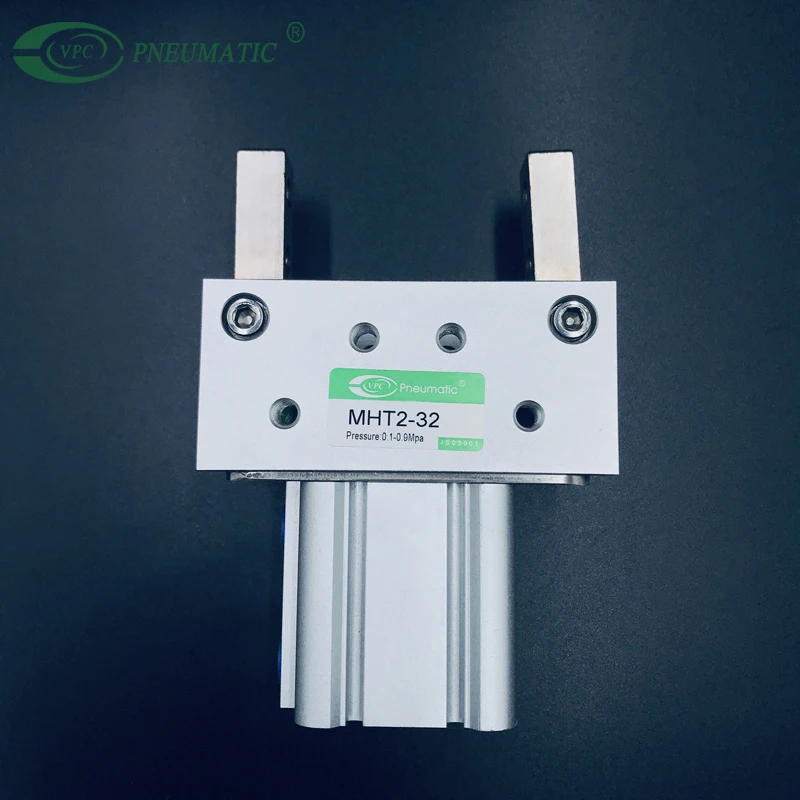

More product picture
