Product Overview
Description

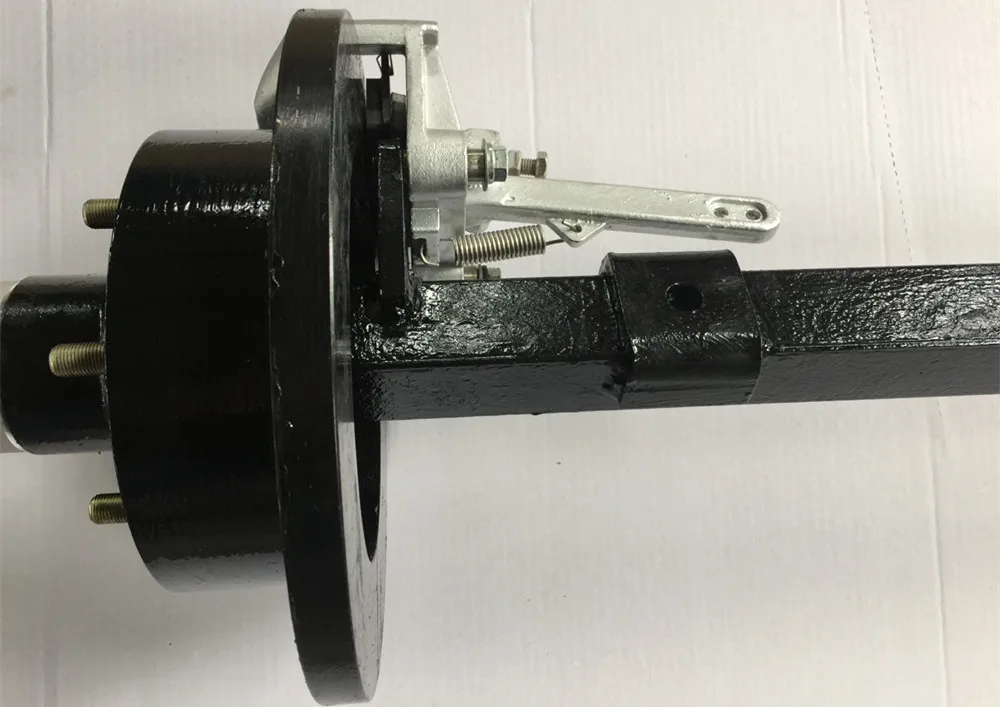

Trailer Spare Parts Square Trailer Axle 1500kg With Brake Caliper
Guilin Pengyuan builds custom trailer axles for your boat or utility trailer. We also offer rubber torsion axles and replacement parts.
Made of several square tubing, we can virtually build any axle you require. Trailer axles are galvanized or raw steel.
Determine the axle capacity required for your trailer. Trailer axle capacity is based on the lowest capacity of the trailer's components.
This includes, but is not limited to, frame, axle, spindles, hubs, bearings, wheels, tires, springs and all hardware.
Axles are custom built to customers specifications. Please double-check all measurements taken before submitting your order.
Non-braked Straight Axle Assembly | |||||
Item | Capacity | Axle Size | Hub | Stud/Nut | PCD/mm |
SA39RxxxxxN | 750KG | 39mm Round | 150 Hub | 5x1/2" | 114.3 |
SA39RxxxxxG | 750KG | 39mm Round | 150 Hub | 5x1/2" | 114.3 |
SA40SxxxxxN | 1000KG | 40mm Square | 190 Hub | 6x1/2" | 139.7 |
SA40SxxxxxG | 1000KG | 40mm Square | 190 Hub | 6x1/2" | 139.7 |
SA45SxxxxxN | 1500KG | 45mm Square | 190 Hub | 6x1/2" | 139.7 |
SA45SxxxxxG | 1500KG | 45mm Square | 190 Hub | 6x1/2" | 139.7 |
SA45RxxxxxN | 1500KG | 45mm Round | 190 Hub | 6x1/2" | 139.7 |
SA45RxxxxxG | 1500KG | 45mm Round | 190 Hub | 6x1/2" | 139.7 |
SA45SxxxxxN | 1500KG | 40mm Square | Parallel Hub | 6x1/2" | 139.7 |
SA45SxxxxxG | 1500KG | 40mm Square | Parallel Hub | 6x1/2" | 139.7 |
SA45RxxxxxN | 1800KG | 45mm Round | Parallel Hub | 6x1/2" | 139.7 |
SA45RxxxxxG | 1800KG | 45mm Round | Parallel Hub | 6x1/2" | 139.7 |
SA50SxxxxxN | 1800KG | 50mm Square | Dexter Hub | 6x1/2" | 139.7 |
SA50SxxxxxG | 1800KG | 50mm Square | Dexter Hub | 6x1/2" | 139.7 |
SA60RxxxxxN | 3000KG | 63mm Round | 3 Ton | 6x8/5" | 139.7 |
SA60RxxxxxG | 3000KG | 63mm Round | 3 Ton | 6x8/5" | 139.7 |
When selecting an axle it is important to determine the axle capacity required for your trailer. Trailer capacity is based on the lowest capacity of the trailer components. This includes but is not limited to: frame, axle, spindles, hubs, bearings, wheels, tires, springs and all hardware. It is important to know what axle type you have when reusing old mounting hardware and for proper tire clearance. This includes straight axles (round or square), drop axles with offset spindles, and torsion axles. Also consider spindle size when reusing existing hubs or drums.
Related Products
Company Information
Establishing in 1995, Guilin Pengyuan Trading Co., Ltd. is a manufacturer and trader combined company. We have enough tests on the products to ensure the quality of the products and their goods will be delivered after strict quality inspection. We had associated and independent factory named "Guilin Pengda Automobile Parts Manufactory Co., Ltd." which located in Guilin, occupying an area of 23,067 square meters. We have successful foreign trading experience in Europe, North America, South America etc..,
As a member of GM Automobile Group and Association of Quality Management of Mechanics Industry of China. In March 2005, Pengyuan passed TS16949 Quality System Certification. Our products turned out by our enterprise have been selling well in markets at home and abroad, and got high appreciation from overseas buyers.
Our factory:
We are capable of producing iron casting, steel casting, nonferrous metal casting, forging, punching and riveting, welding, heat treatment, mechanical processing, etc.
Production workshop and equipment:
Pengyuan is well-equipped with all kinds of trailer parts.
We has 487 sets of physical performance, chemical analysis,
metallographic inspection and other testing equipment.
Productive process:
Our products include:
1. Spindle
2. Hub and drum assembly
3. Brake assembly
4. Leaf spring
5. Square axle beam and axle
6. Other axle part
1) Couple
2) U-bolt kit
Packaging & Shipping
As for the transportation of products, our company supports various sea, land and air international transportation. Please confirm the specific transportation plan during the negotiation.
FAQ
1: Could you please make us an offer as soon as possible?
In order to get the price quickly and accurately, please provide the technical drawing or OE number, we will be very grateful.
2: Could you please provide us with the specifications of the products?
Sure, please confirm the product code you need before that.
3: How can you guarantee the quality of your products?
Our products have passed ISO9001 international quality standard certification. Our company has a very strict quality control system.
4: How to solve the problems in the later stage?
We are confident in our products. We pack them well to make sure they are well protected.
