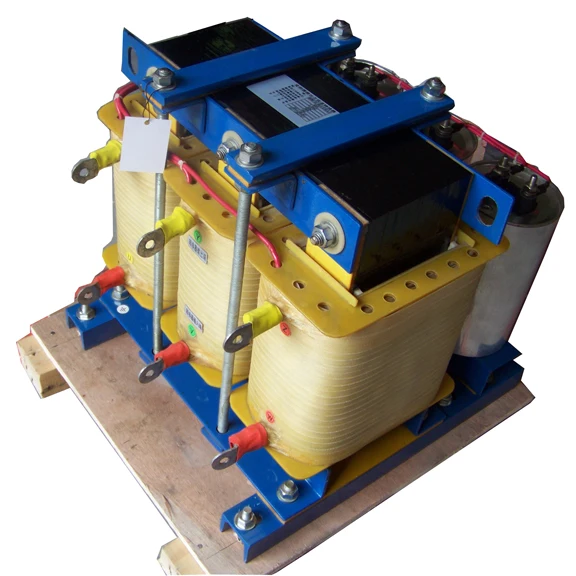

240v 3phsae sine wave filters for vfd frequency converter

Quick View

Specification

1. Motor frequency inverter is a kind of special inverter, generally uses SPWM modulation mode, used to drive special frequency asynchronous motor, commonly used relatively close distance (motor cable less than 100 meters).
2. When motor cable is too longer (more than 100 meters), the motor will produce high du/dt, which will damage moto insulation, cause coil breakdown aging, core loss increase, still can cause bearing heating serious, reduce motor life or damage, even can burned motor in heavily situation. So user must choose sine wave filter to slove this problem.

Contructure Feature

My company produces the EM-SWF series sine wave filter adopting trait reactor, having professional filter capacitor and power resistor, reasonable structure, waveform distortion is small, small loss and low noise characteristics, can match with all brands frequency inverter and match many sets of machines, such as wind power, oil field, water and electricity, metallurgy, etc.

Electrical Feature
1. To converse SPWM voltage current waveform of frequency inverter to approximate sine wave waveform(For the line load feature, the COS is greater than 0. 3 and T H D is less than 5%);
2. Protect motor insulation system, reduce bearing current, prolong service life, and reduce motor noise;
3. With general asynchronous motor can replace frequency induction motor use;
4. Effectively restrain the high frequency loss and RF radiation interference, in certain occasions without to use a shielded cable, lowering the field Cable quirements;
5. Cable between motor and frequency inverter can extend to 500 meters, the longest can reach 3000 meters above;
6. We have 220 V \\ 380 V \\ 440V\\ 690V \\ 1140V three phase variable frequency drive system;
7. Suitable motor and inverter power range: 0. 4KW - 1600 KW;
8. Suitable frequency inverter output carrier frequency range: 1.5-16 KHz;
9. Basic frequency range: 0 to 400 Hz (above 50Hz order must tell us when order);
10. Driving load forms: asynchronous motor (After special design can use for EPS \\ UPS and the surrounding power supply system);
11. Heat resistant level: F grade (for reactor part);
12. Protection level: IP 20
