Fast 50Hz/60Hz Frequency Power Supply Voltage Regulator

Product Overview

Description

Fast 50Hz/60Hz Frequency Power Supply Voltage Regulator

Power supply voltage regulator

Introduction :

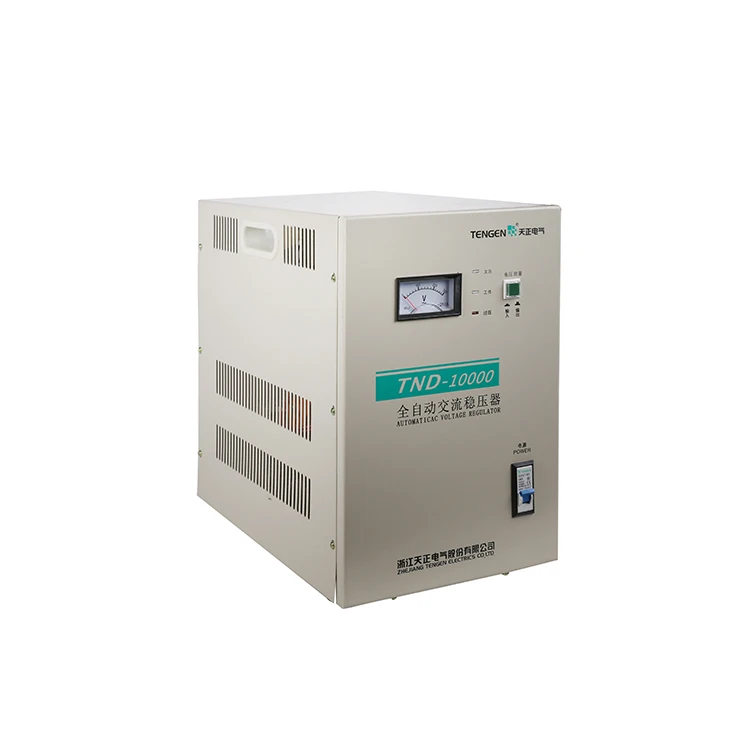

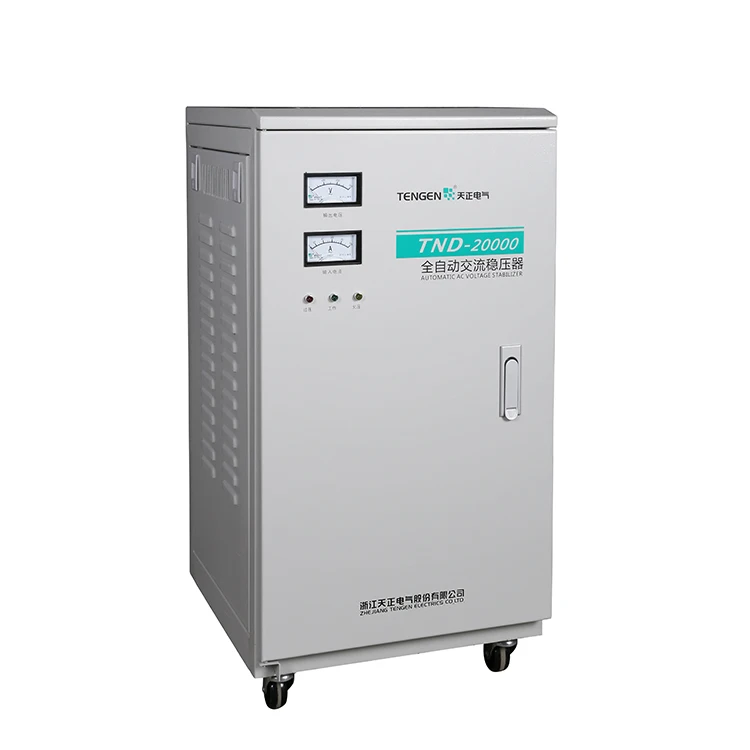

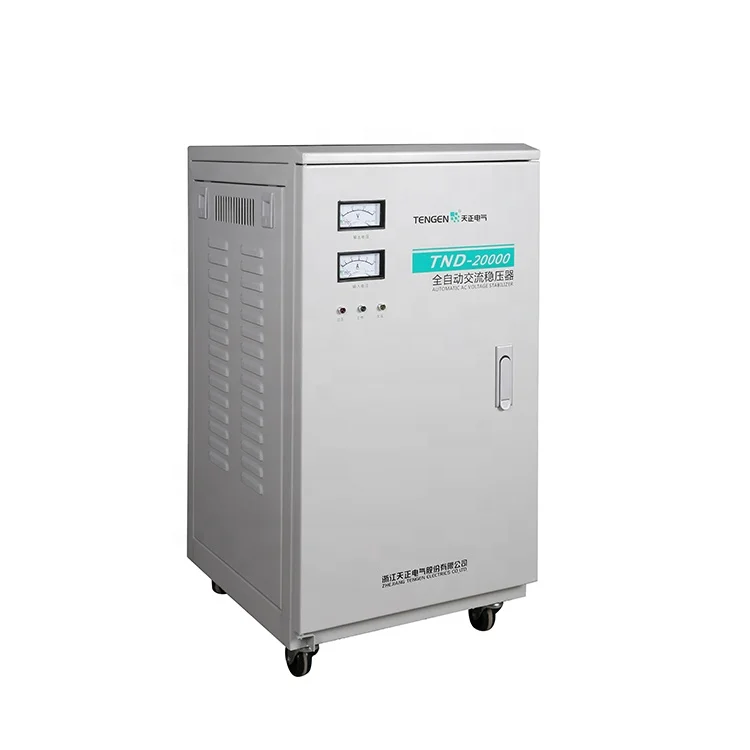

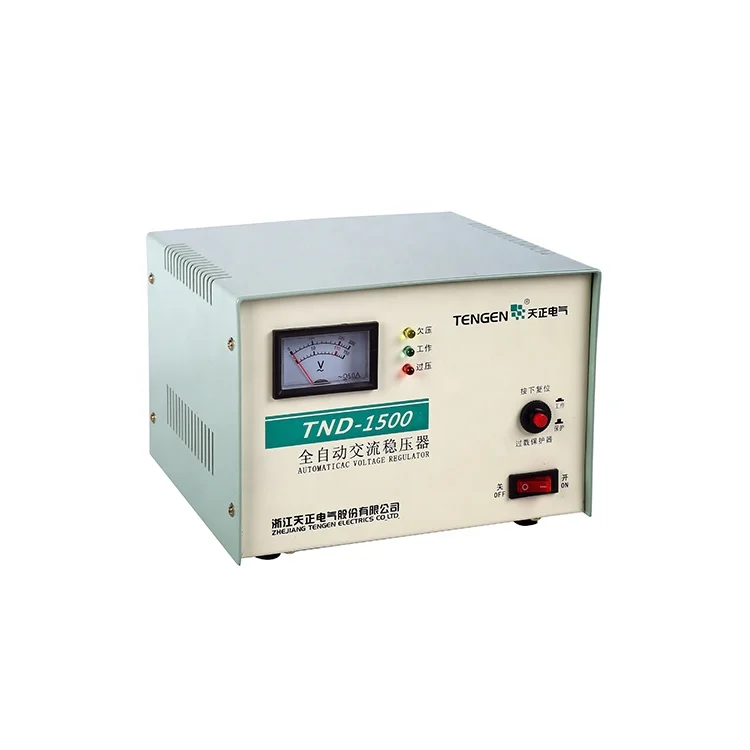

TND(SVC) Series single phase automatic voltage regulator is combined with auto-transformers,servo motor and PCB etc.When the grid voltage is not stable,the sampling circuit will send a  signal to drive the motor to adjust the position of carbon brush to adjust the output voltage to reach the rated date and stay stable .It has delay,over voltage,under voltage protections.It is an ideal stabilizer power supply.



Technical Parameter :

Input Voltage	130-250V
Output Voltage	220±3%
Frequency	50Hz/60Hz
Adjust time	≤1sec. Against 105 input voltage deviation
Efficiency	≥90%
Temperature	-10℃~+40℃
Relative Humidity	<90%
Waveform Distortion	No waveform Distortion
Load factor	0.8
Insulation Resistance	>5MΩ



Dimension/Package :

Model	Net weight(Kg)	Size(Width*Depth*Height)cm	Quantity
TND-05KVA	4	19*16*14	4
TND-1KVA	5.5	21*215*17	4
TND-1.5KVA	5.8	21*21.5*17	4
TND-2KVA	10	29*24*20	2
TND-3KVA	12	32*23.5*24	2
TND-5KVA	15	36.5*22*29	2
TND-7KVA	16.5	36.5*22*29	2
TND-1OKVA	27	43.5*24*37	1
TND-5KVA(Vertical)	17	32*28*46	1
TND-10KVA(Vertical	36	38*34.5*62	1
TND-15KVA	64	45*38*75	1
TND-20KV	70	45*38*75	1
TND-30KVA	95	49*42.5*123	1
TND-40KVA	118	49*42.5*123	1
TND-50KVA	169	66*54*96	1
