100mm Coldroom Sandwich Panel Pu Sandwich Insulated Cold Room Panel

Product Overview

Description

100mm Coldroom Sandwich Panel Pu Sandwich Insulated Cold Room Panel

Descriptions:

Cam lock panel:
The structure of the cam lock panel(eccentric hook type) is a polyurethane sandwich panel made with traditional molds, which is embedded the eccentric hook in the mould around the sandwich panel when produce, convenient assembly, and generally applicable to small or medium-sized cold storage.

PU cold storage room panel is a kind of board used for enclosing structures, which has good heat insulation and higher intensity. It can reduce the heat transmission caused by difference in the internal and external temperature, and get to maximum efficiency of freezing and refrigeration systems. Designed scientifically and easy to use. It is a new type of heat insulation material for lower construction cost. Panels are in multiple varieties and specifications to meet the need of various sites and projects.

Specifications:

Cold room panel specification
Panel Type	Polyurethane(PU)Sandwich Panel
Panel Material	Painted steel sheet + PU core + Painted steel sheet
Panel Thickness	75mm 5℃ to 15℃
	100mm -15℃ to 5℃
	120mm -20℃ to -15℃
	150mm -30℃ to -20℃
	200mm lower than -30℃
Panel Length	Customized longest: 11.8m
Panel Width	960mm/990mm
PU Density	40-42kg/m3
Heat Transfer Coefficient	0.022 W/M*K

Features of the cold room panel:
1. Rigid polyurethane has low thermal conductivity and good thermal performance, density of rigid polyurethane is 38-42kg/m3 which is the lowest thermal conductivity in thermal insulation material
2. Polyurethane panel has good performance of moisture-proof and waterproof and belongs to the hydrophobic material
3. Polyurethane panels have fire-proof, flame retardant, heat-resistant, will not produce harmful gases at high temperature
4.Polyurethane cold room panel has strong anti-deformation, uneasy to crack and its surface is stable and safe
5. Polyurethane panel has lightweight, easy to disassemble and assemble, easy to use
3 kinds of polyurethane panel of cold room: embossing aluminum material, color steel material, stainless steel material

The complete set of cold room cold storage includes 5 main parts,you can find other products on our website,

1.  Cold storage panels

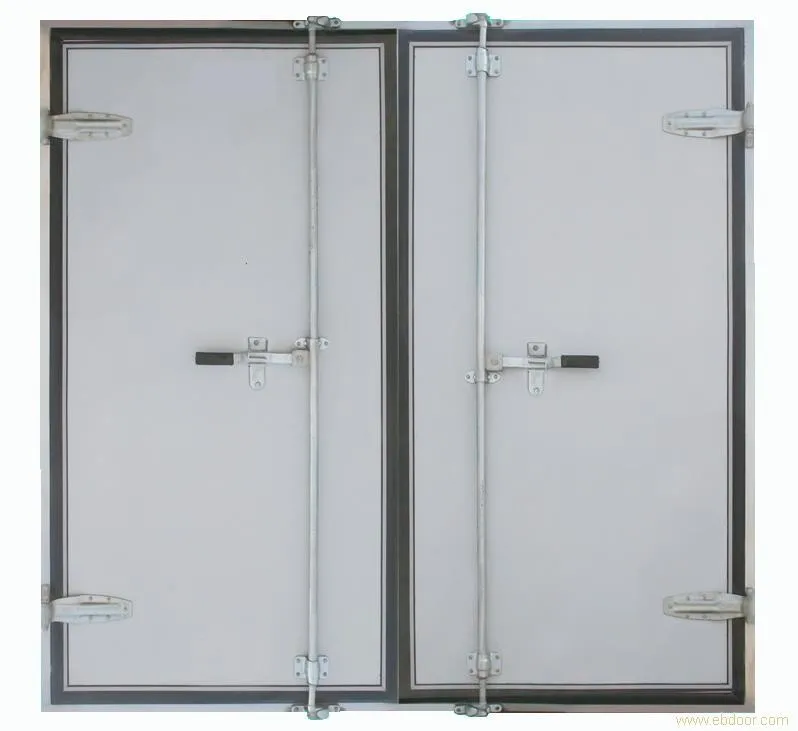

2. Cold room door

3. Air cooler

4. Condensing unit

5. Accessories

After-sale Services:
1.Warranty: 15 months
2.Manual book: detailed instruction book with clear drawing

3.Available to provide oversea technical services

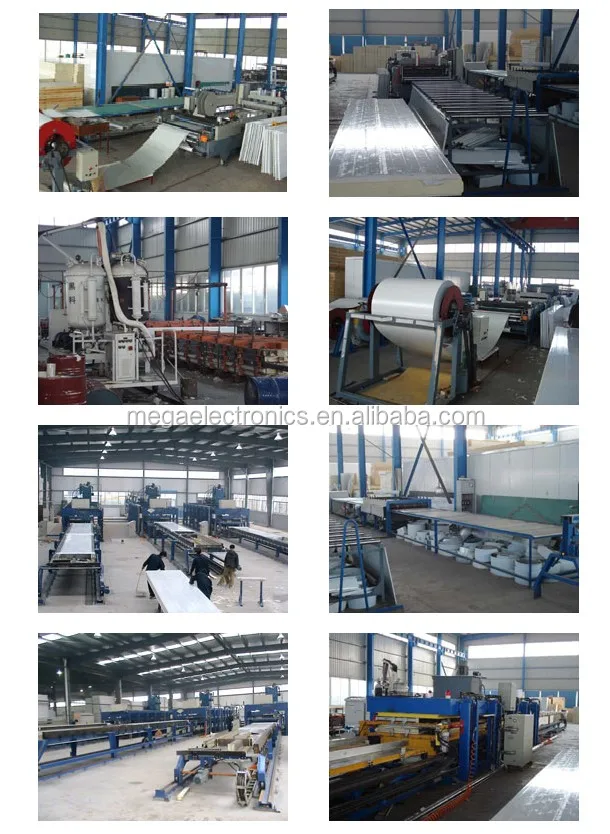

Cold Room Panel Producing Process:
