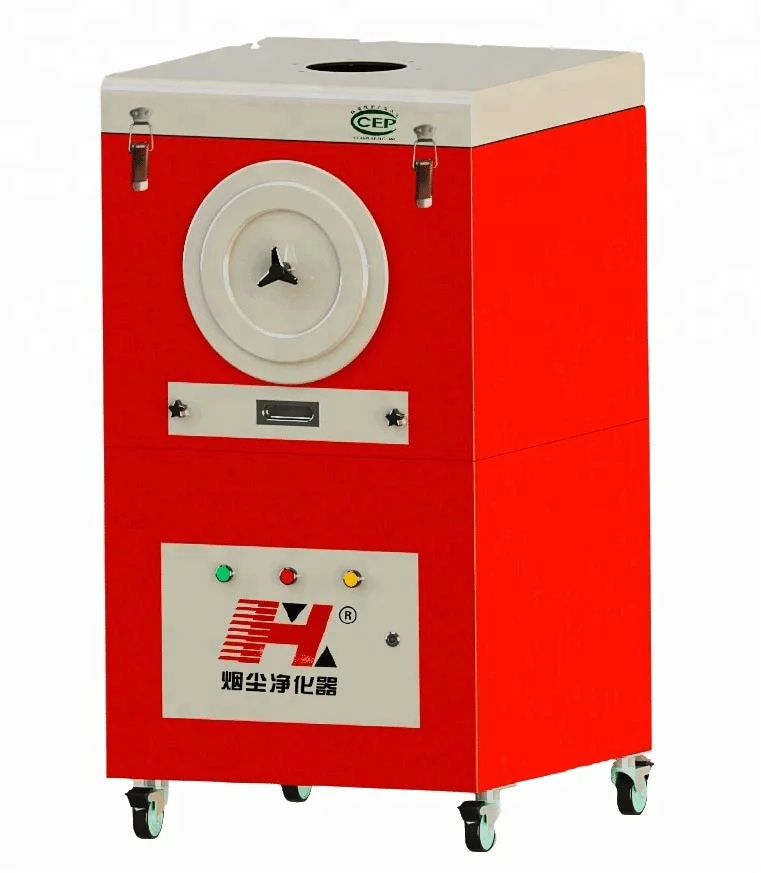

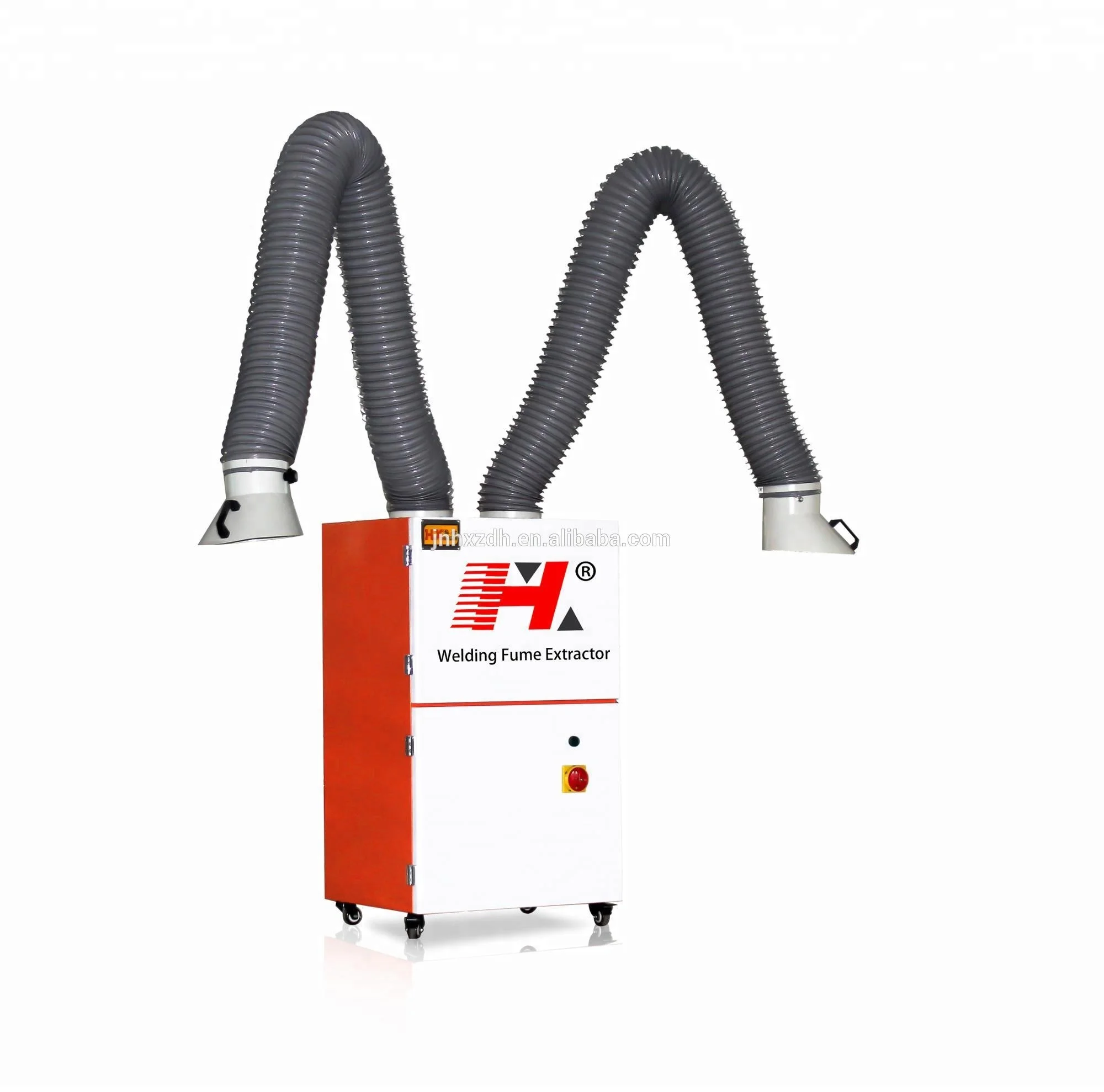

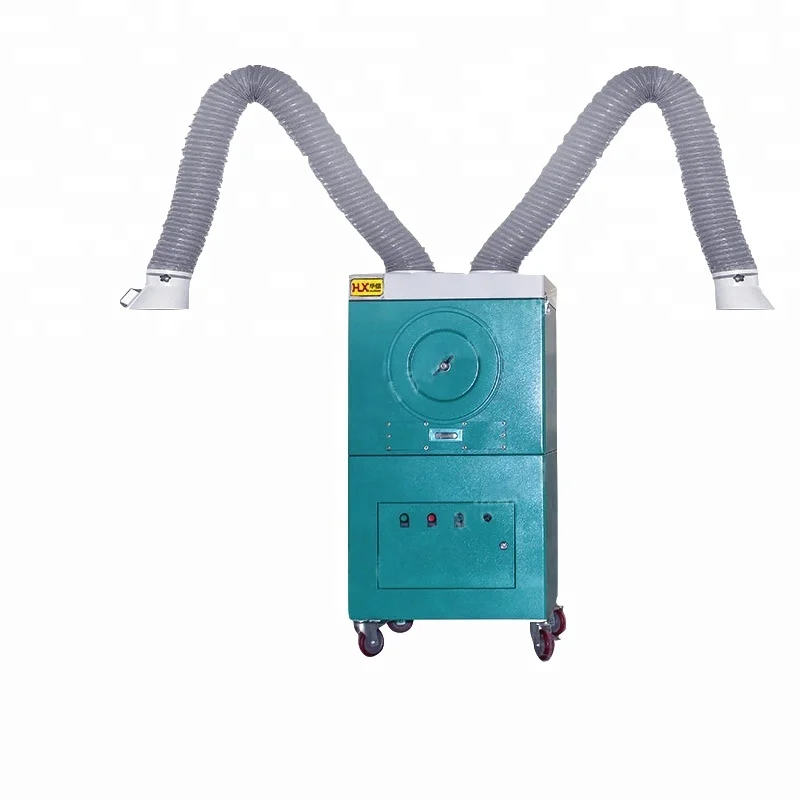

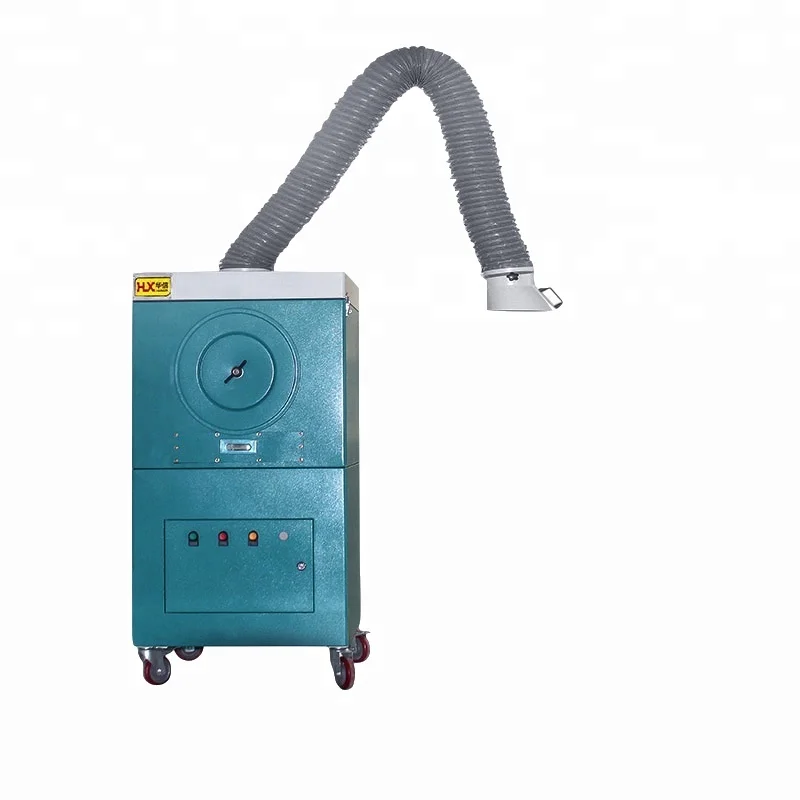

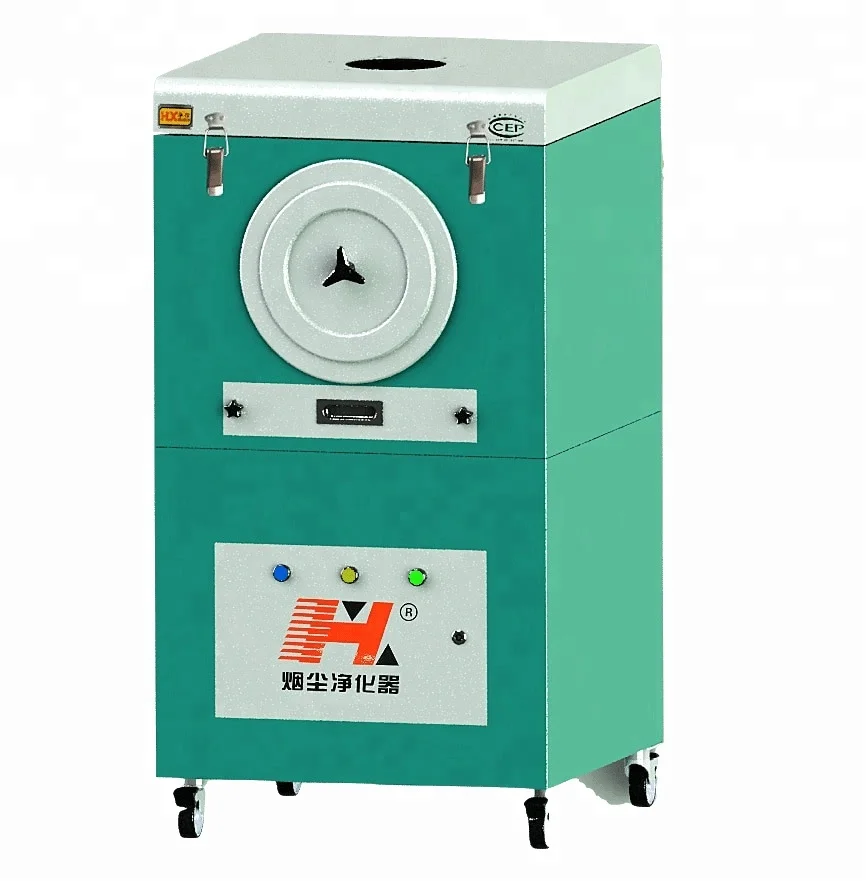

Portable Welding Fume Extractor And Dust Purifier with filter cartridge
- Category: >>>
- Supplier: Jinan Huaxin Automation Engineering Co. Ltd.
Share on (60832061640):
Product Overview
Description
For Capturing:
- Welding Fumes
- Grinding Dusts
- Dry Dusts
- Soldering Dusts
- Powders
Features:
- 1000~4000m3/h
- Spark Trap
- Large Wheels
- Single Filter
- Auto-Pulse Clean
- Arm Diameter: 160mm
- Arm Lengths: 2m-3m
| Model | Air Folw (m3/h) |
Filter Area (m2) |
Powder (kw) |
Voltage V |
Noise (dB) |
Fliter Precision % |
Dimension mm |
| HXYD-ZD15 | 1500 | 10 | 0.75 | 380V | 65 | 99.9 | 650x670x1260 |
| HXYD-ZD18 | 1800 | 15 | 1.1 | 68 | 650x670x1260 | ||
| HXYD-ZD22 | 2200 | 20 | 1.5 | 70 | 650x670x1260 | ||
| HXYD-ZS30 | 3000 | 20 | 2.2 | 72 | 650x670x1260 | ||
| HXYD-ZS35 | 3500 | 25 | 3.0 | 75 | 650x670x1300 | ||
| HXYD-ZS40 | 4000 | 30 | 4.0 | 78 | 650x670x1300 | ||
| Note: HXYD-ZD with one arm, HXYD-ZS with 2 arms. The length of arm is 2.2-3m. These six types of welding fume extractor is Auto-pulse jet cleaning with Motor. |
|||||||
| HXYD-JD15 | 1500 | 10 | 0.75 | 220V | 65 | 99.9 | 500x500x1050 |
| HXYD-JD18 | 1800 | 15 | 1.1 | 68 | 500x500x1050 | ||
| HXYD-JD22 | 2200 | 17 | 1.5 | 380V | 70 | 500x650x1100 | |
| HXYD-JS30 | 3000 | 20 | 2.2 | 72 | 500x650x1100 | ||
| HXYD-JS35 | 3500 | 25 | 3.0 | 74 | 500x650x1100 | ||
| Note: HXYD-JD with one arm, HXYD-JS with 2 arms. The length of arm is 2.2-3m. These five types of welding fume extractor are manual. |
|||||||
