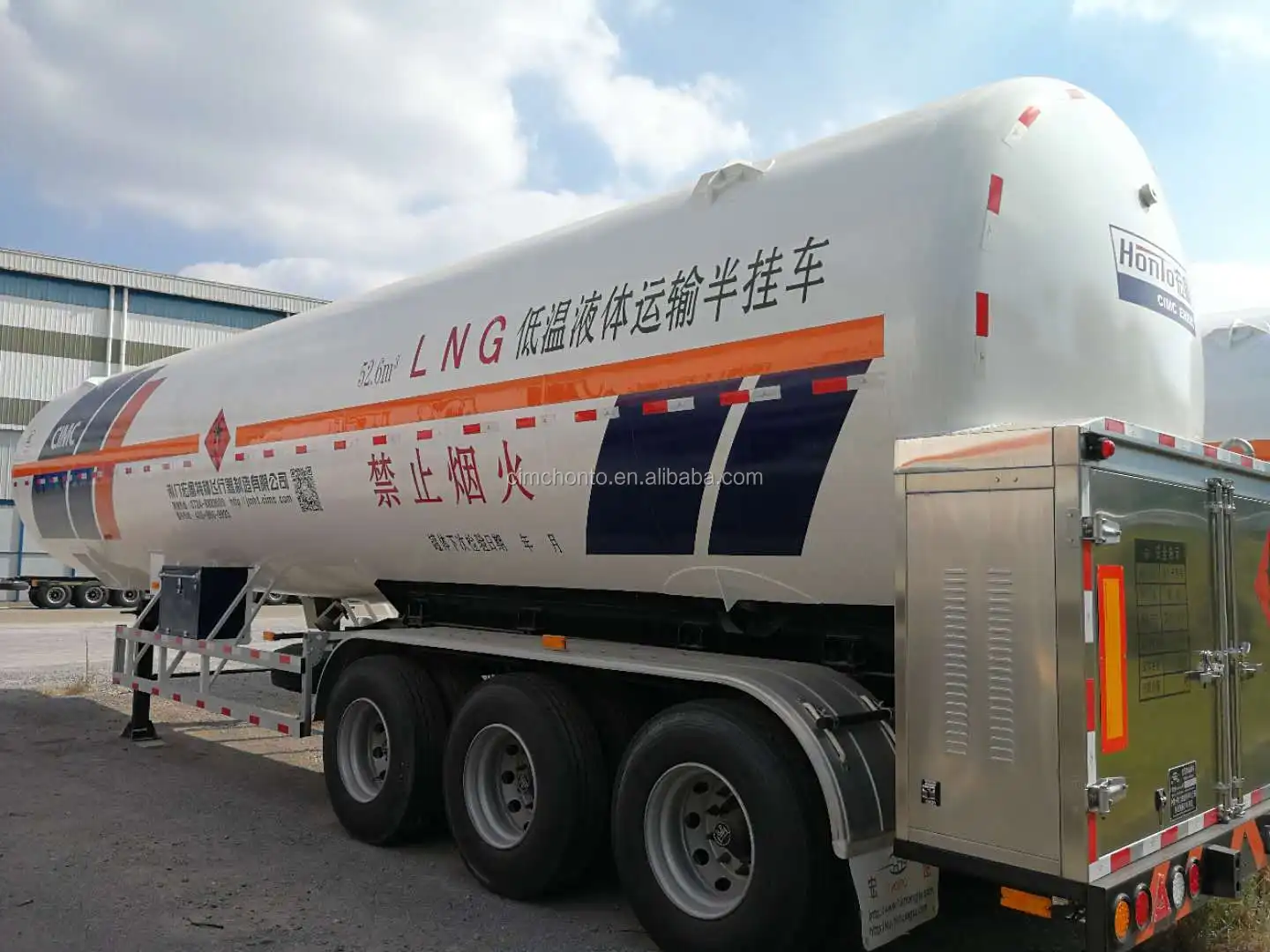

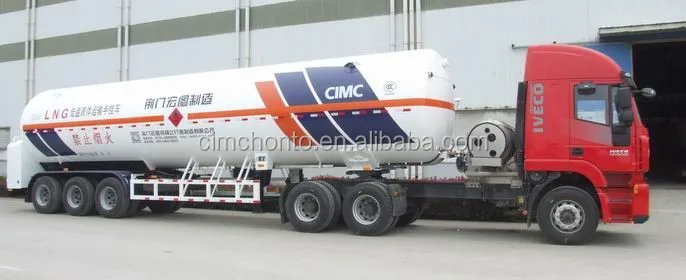

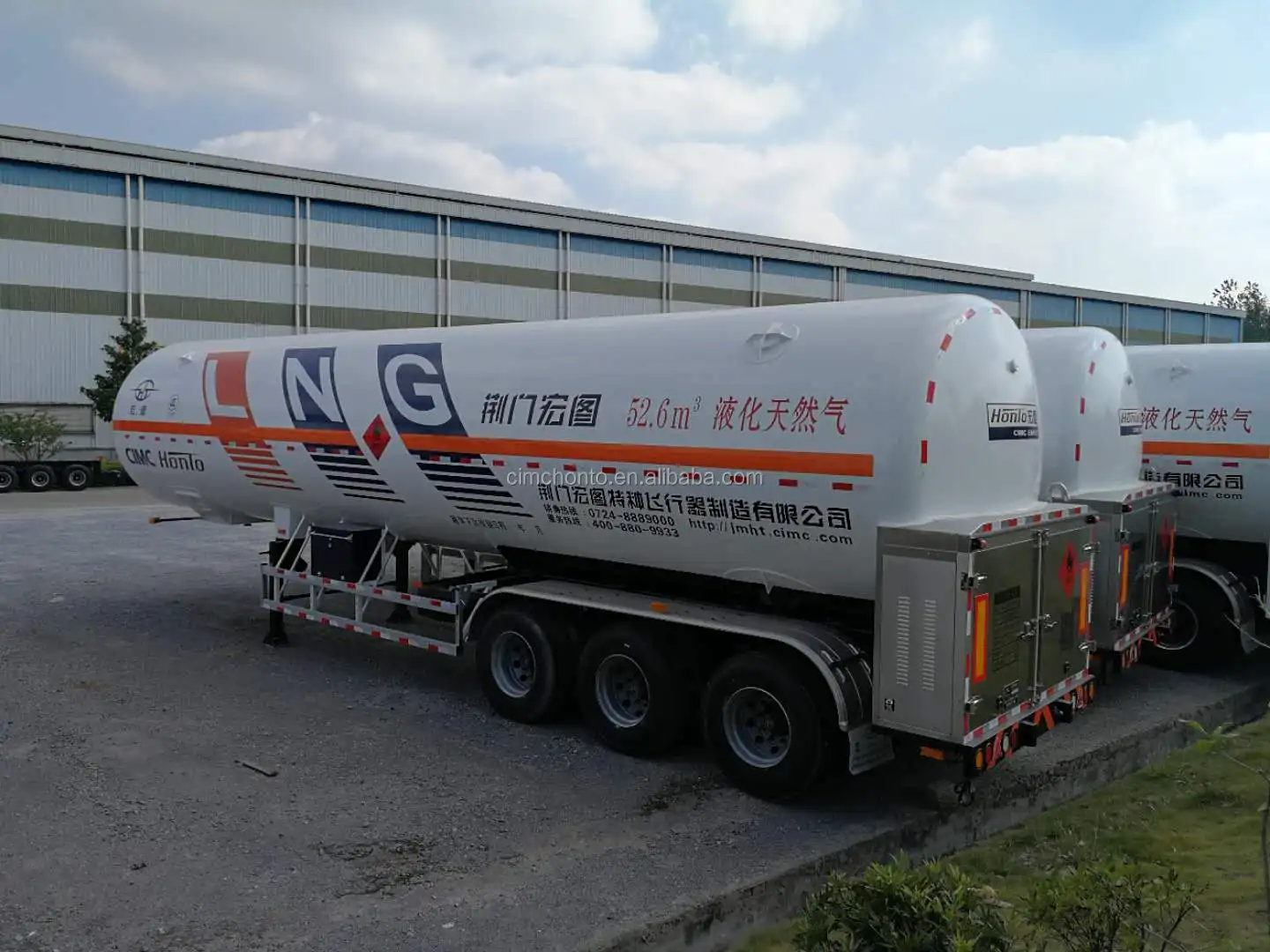

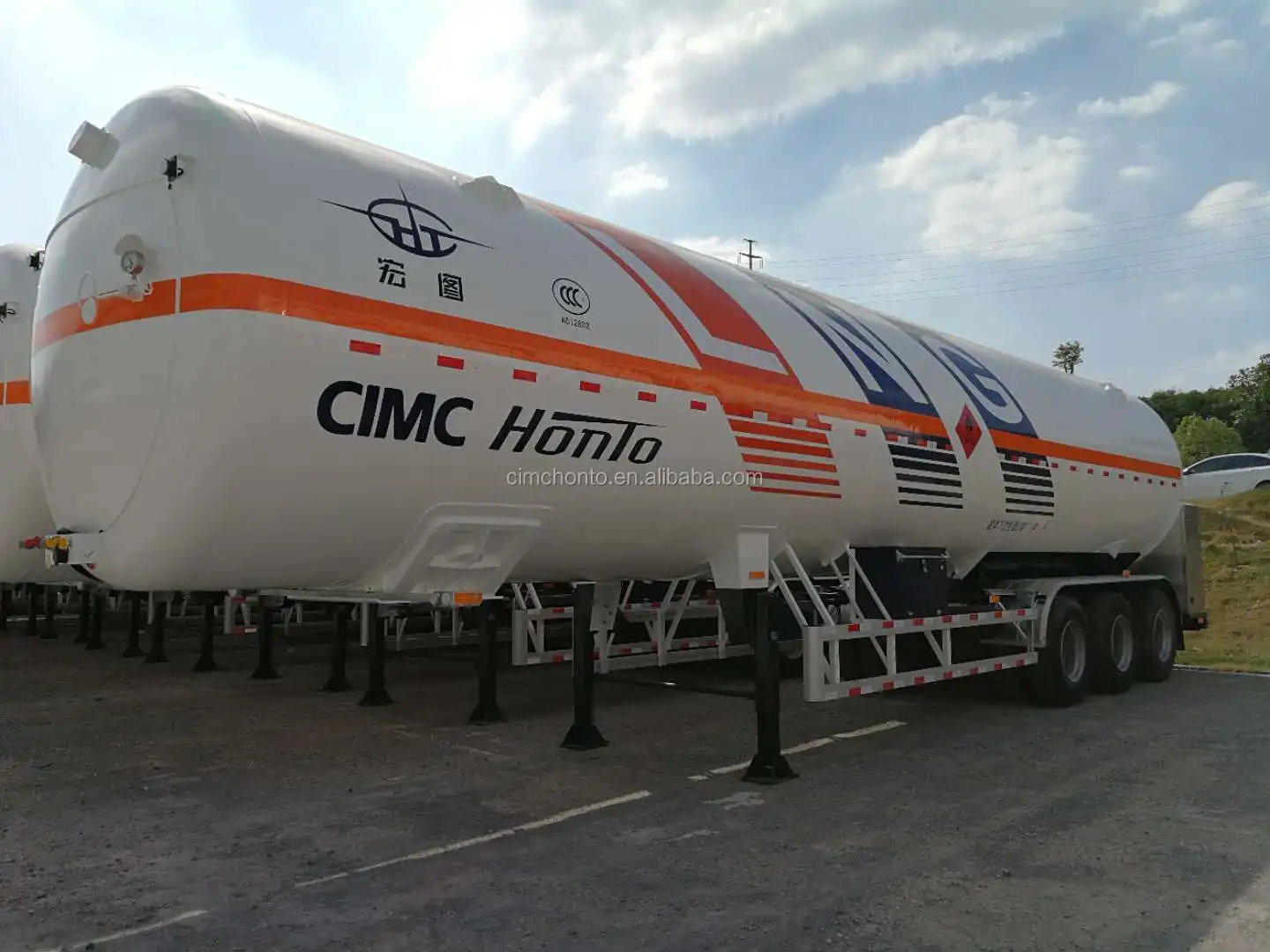

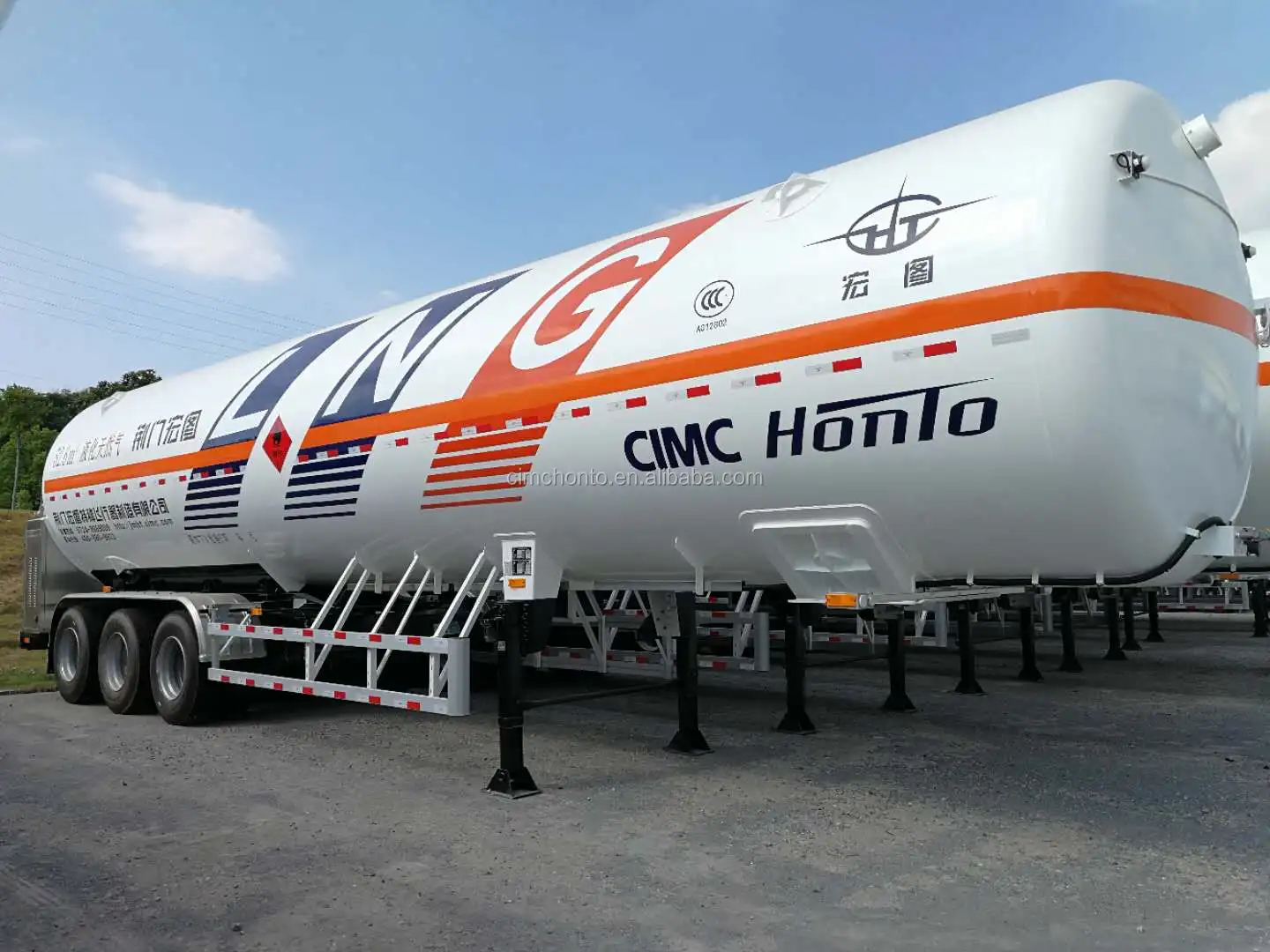

23.8 tons 52.6m3 LNG Tanker Semi Trailer Truck
- Category: >>>
- Supplier: Jingmen Hongtu Special Aircraft Manufacturing Co. Ltd.
Share on (60832100542):
Product Overview
Description
Product Description
LNG SEMI-TRAILER
HONGTU has the ability to design and manufacture all kinds of refrigerated liquefied gas tankers with high vacuum multi-layer insulation. The susbstance can be LNG, liquid oxygen, liquid nitrogen, liquid argon, liquid ethylene, liquid ethane, etc.
Technical Specification
Design Code: GB/T 150 Pressure Vessels, NB/T47058-2017 Road Tankers for Refrigerated Liquefied Gas, ASME BPVC SEC VIII-2
Capacity: 20m3~52.6m3
Material:S30408/SA-240 304(Inner tank)/Q345R/SA-516(Outer tank)
Design Code: GB/T 150 Pressure Vessels, NB/T47058-2017 Road Tankers for Refrigerated Liquefied Gas, ASME BPVC SEC VIII-2
Capacity: 20m3~52.6m3
Material:S30408/SA-240 304(Inner tank)/Q345R/SA-516(Outer tank)
Chinese GB Standard | ASME CODE | |||||
Capacity | 52.6m³ | 52.6m³ | ||||
Curb Weight(kg) | 16000 | 17000 | ||||
Max. Payload(kg) | 24000 | 23000 | ||||
Gross Weight(kg) | 40000 | 40000 | ||||
Overall Dimension(mm) | 13150×2550×3920 | 13150×2550×3920 | ||||
Inner Tank | Outer Tank | Inner Tank | Outer Tank | |||
Design Pressure(MPa) | 0.65 | -0.1 | 0.866 | -0.1 | ||
Design Temperature(℃) | / | 50 | -130 | 50 | ||
Working Temperature(℃) | / | -40~50 | / | -40~50 | ||
Working Pressure(MPa) | 0.65 | -0.1 | 0.65 | -0.1 | ||
Medium | LNG | Aluminum Foil | LNG | Aluminum Foil | ||
Corrosion Allowance(mm) | 0 | 0 | 0 | 0 | ||
Joint Efficiency | 1.0 | 0.85 | 1.0 | 0.85 | ||
Main Material | TAS30458/S30408 | Q345R | SA-240/SA-240M 304 | Q345R | ||
Insulation Type | High Vacuum Multi-layer Insulation | High Vacuum Multi-layer Insulation | ||||
INDUSTRIAL GAS TRAILERS
To meet the increasing demand of industrial gas industry in Chinese and overseas markets, HONGTU has designed 18 models of industrial gas transport trailer tankers. HONGTU industrail gas tankers are designed for different medium including liquid oxygen, liquid nitrogen, liquid argon, liquid carbon dioxide, liquid ethylene, liquid ethane, etc.
Medium | Semi-traIler Dimension (mm) | Capacity (m3) | Design Pressure (Mpa) | Curb Weight (kg) | Payload (kg) | Total Weight (kg) | Insulation Type |
LOX Liquid Oxygen | 12325╳2550╳3470 | 26.5 | 1.6 | 12780 | 27220 | 40000 | High Vacuum Multi-layer Insulation |
LOX Liquid Oxygen | 11900X2550X3460 | 27 | 0.8 | 12270 | 27730 | 40000 | High Vacuum Multi-layer Insulation |
LN2 Liquid Nitrogen | 11520×2550×3715 | 33.5 | 1.6 | 14875 | 25125 | 40000 | High Vacuum Multi-layer Insulation |
LN2 Liquid Nitrogen | 12390×2550×3715 | 36.4 | 0.8 | 13570 | 26430 | 40000 | High Vacuum Multi-layer Insulation |
LAr Liquid Argon | 12465×2550×3325 | 22.1 | 1.6 | 12270 | 27730 | 40000 | High Vacuum Multi-layer Insulation |
LAr Liquid Argon | 11890×2550×3320 | 22.6 | 0.8 | 11640 | 28360 | 40000 | High Vacuum Multi-layer Insulation |
LC2H4 Liquid Ethylene | 12840×2550×3905 | 49.6 | 0.6 | 14700 | 25300 | 40000 | High Vacuum Multi-layer Insulation |
LC2H6 Liquid Ethane | 13350×2550×3920 | 52.6 | 0.65 | 14700 | 25300 | 40000 | High Vacuum Multi-layer Insulation |
LCO2 Liquid Carbon Dioxide | 12330×2520×3740 | 30 | 2.2 | 12580 | 27420 | 40000 | Stacking Insulation (Polyurethane Foaming ) |
LCO2 Liquid Carbon Dioxide | 12350x2500x3450 | 27 | 2.28 | 16510 | 23490 | 40000 | High Vacuum Multi-layer Insulation |
LIQUID OXYGEN/LOX/LO2 SEMI-TRAILER
LIQUID NITROGEN/LIN/LN2 SEMI-TRAILER
LN2 Semi-trailer Delivery
Loading and Unloading System
LIQUID CO2 SEMI-TRAILER(TWO INSULATION TYPES)
Liquid CO2 Semi-trailer with High Vacuum Multi-layer Insulation
Liquid CO2 Semi-trailer with Polyurethane Foam Insulation
Certificates
ASME U Certificate
ASME U2 Certificate
Certificate of Authorization to Register NB
Container Factory Approval Certificate
BVCT 1681762/S
ADR 2017
GB/T28001-2011/OHSAS18001:2007
OCCUPATIONAL HEALTH AND SAFETY MANAGEMENT SYSTEM CERTIFICATE
GB/T19001-2016/ISO9001:2015
QUALITY MANAGEMENT SYSTEM CERTIFICATE
GB/T24001-2016/ISO14001:2015
ENVIRONMENTAL MANAGEMENT SYSTEM CERTIFICATE
SY/T6276-2014, Q/SY1002.1-2003, Q/SHS0001.1-2001
HSE MANAGEMENT SYSTEM CERTIFICATE
Manufacture License of Special Equipment
Pressure Vessel
Design License of Special Equipment
Pressure Vessel
Design License of Special Equipment
Pressure Pipe
Company Profile
Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd.
Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd (hereinafter called HONGTU, and branded as HONTO) has made prominent contributions to the development of China's aviation industry since established in 1971 as the AVIC Corp II factory No. 322. Now, Hongtu as a key enterprise under China International Marine Containers (Group) Ltd. (CIMC) (ranked the 68th in China's Top 500 businesses), is engaged in R & D of normal temperature storage & transportation equipment, cryogenic storage & transportation equipment, EPC services, chemical equipment and other types of energy chemical storage & transportation equipment. The Company has more than 1,300 employees, including approx. 200 R&D professionals, and has workshop area totaling 130,000 m2.
In the 1980s, HONGTU entered into the industry of hazardous chemicals storage & transportation equipment manufacturing based on the advantages of aviation technology, providing customers with individualized and integrated solutions in the fields of hazardous chemicals'storage & transportation, gasification in cities/towns and vehicle/vessel's oil-to-gas transformation.
The Company always leads the development of the industry. The production and sales of "HONTO" Brand LPG tanker has been ranking No.1 in China in the past 36 years. The domestic market share of HONGTO reaches over 60% all along. HONGTU has been engaged in the manufacturing of energy and chemical storage & transportation equipment for over 3 decades and is also China's only LPG full-industrial chain equipment manufacturer and solution provider.
The Company has ASME "U" and "U2" Stamps Qualification and all Chinese National Permits for design, manufacture and installation of various pressure vessels, spherical tanks, urban gas pipeline projects and marine fuel tanks, and has developed and drafted a number of national standards on pressurized and non-pressurized products of China.
The Company provides global customers and partners with safe, efficient and value-added energy and chemical storage &
transportation equipment under the concept of providing service in the full product life cycle and creating values for customers, through the three-in-one marketing mode of brand communication, product sale and lifelong service, and is committed to become a leading competitive supplier with in the field of global energy chemical industry.
"HONTO" brand LPG storage and transportation equipment has been distributed to more than 40 countries & regions in North America, South America, Southeast Asia, South Asia, Middle East and Africa, etc.
In the 1980s, HONGTU entered into the industry of hazardous chemicals storage & transportation equipment manufacturing based on the advantages of aviation technology, providing customers with individualized and integrated solutions in the fields of hazardous chemicals'storage & transportation, gasification in cities/towns and vehicle/vessel's oil-to-gas transformation.
The Company always leads the development of the industry. The production and sales of "HONTO" Brand LPG tanker has been ranking No.1 in China in the past 36 years. The domestic market share of HONGTO reaches over 60% all along. HONGTU has been engaged in the manufacturing of energy and chemical storage & transportation equipment for over 3 decades and is also China's only LPG full-industrial chain equipment manufacturer and solution provider.
The Company has ASME "U" and "U2" Stamps Qualification and all Chinese National Permits for design, manufacture and installation of various pressure vessels, spherical tanks, urban gas pipeline projects and marine fuel tanks, and has developed and drafted a number of national standards on pressurized and non-pressurized products of China.
The Company provides global customers and partners with safe, efficient and value-added energy and chemical storage &
transportation equipment under the concept of providing service in the full product life cycle and creating values for customers, through the three-in-one marketing mode of brand communication, product sale and lifelong service, and is committed to become a leading competitive supplier with in the field of global energy chemical industry.
"HONTO" brand LPG storage and transportation equipment has been distributed to more than 40 countries & regions in North America, South America, Southeast Asia, South Asia, Middle East and Africa, etc.
Our Advantages
01 Powerful R&D Ability
HONGTU has been rated as "Hubei Province Technical Center for Pressure Vessels", "Hubei Province Workstation for High-skilled Talents", etc. We have acquired more than 120 patents through the "Producing, Learning and
Researching" practice, and frequent technical communications and cooperation with China Standardization Committee on Boilers and Pressure Vessels, China Classification Society, Tsinghua University, Shanghai Jiao Tong University, Zhejiang University, Fuzhou University, Huazhong University of Science and Technology, YPDI(Nanjing Yangzi Petrochemical Design Engineering Co., Ltd.), Burg Industries B.V., TGE GAS INVESTMENT SA, Department of Energy Business(DOEB in Thailand), Australia MLI company, and other Government agencies at home and abroad, Universities, famous companies in the industry.
02 Top Expert Team
We have more than 330 professional technical staff, 30 senior engineers(including 5 Researcher-level Engineers), about 500 staff who are multi-skilled technical talents and senior technicians, 9 outsourced experts and professors employed in the industry. We are the Editorial Board of the China National Boards of Supervision Regulation on Safety Technology for Transportable Pressure Vessel; We have participated in the compiling of many other standards, such as Road Tanker for Liquefied Gas, Road Tankers for Cryogenic Liquid, Supervision Regulation on Safety Technology for Transportable Pressure Vessel, Road Tanker for Dangerous Liquid Goods Transportation.
03 Strong Production Capacity
HONGTU has been facilitated with more than 2000 sets of equipment, such as plasma cutting machines, US Lincoln welding machines, welding robots, all kinds of large and medium-sized rolling machines, beveling machines, cranes, heat treatment furnace, NDT equipment, 2000 tons of spherical shell press machines and other large heavy equipment. Among them, there are more than 200 sets of testing equipment.
04 Comprehensive Industrial Chain Solution
HONGTU has been engaged in manufacturing of energy and chemical storage & transportation equipment for over 3 decades. Focusing on the production, storage and transportation, application and intensive processing of upstream, midstream and downstream liquefied petroleum gas industry chain, HONGTU forms complete industrial equipment cluster from oil refining device, spherical tank, large scale flat bottomed vertical tank to mounded type tank, from lightweight and large-volume liquefied gas tanker to core equipment manufacturing of various types of end applications and engineering application, is China's only LPG whole industry chain equipment manufacturer and solution provider.
05 Scientific and Reorous QA&QC System
HONGTU has a sound quality assurance system and perfect quality control procedures. Products from the entry of raw materials to the delivery to the user must pass 111 quality control points, 243 quality control procedures and 47 procedure document reviews. Annual radiographic inspection films of the products exceed more than 400,000 copies and each product quality files keep for more than 20 years, so each weld quality can be tracked. HONGTU continues to carry out the LEAN Management, introduce the ONE module, passes the HSE system(quality, occupational health and safety, environment) certification and realizes the comprehensive management of information, quality and workers in the manufacturing site.
06 Professional International ervices and Marketing Network
HONGTU has its own international business network and a sound international business organization structure, including 50 plus professionals engaged in technical service and overseas marketing, dedicated to providing overseas customers with technical consultation, business negotiation, product service, personnel training and a full range of integrated solutions services, and has built a three-level service assurance system comprised of salesperson, engineer and professional service personnel.
Researching" practice, and frequent technical communications and cooperation with China Standardization Committee on Boilers and Pressure Vessels, China Classification Society, Tsinghua University, Shanghai Jiao Tong University, Zhejiang University, Fuzhou University, Huazhong University of Science and Technology, YPDI(Nanjing Yangzi Petrochemical Design Engineering Co., Ltd.), Burg Industries B.V., TGE GAS INVESTMENT SA, Department of Energy Business(DOEB in Thailand), Australia MLI company, and other Government agencies at home and abroad, Universities, famous companies in the industry.
02 Top Expert Team
We have more than 330 professional technical staff, 30 senior engineers(including 5 Researcher-level Engineers), about 500 staff who are multi-skilled technical talents and senior technicians, 9 outsourced experts and professors employed in the industry. We are the Editorial Board of the China National Boards of Supervision Regulation on Safety Technology for Transportable Pressure Vessel; We have participated in the compiling of many other standards, such as Road Tanker for Liquefied Gas, Road Tankers for Cryogenic Liquid, Supervision Regulation on Safety Technology for Transportable Pressure Vessel, Road Tanker for Dangerous Liquid Goods Transportation.
03 Strong Production Capacity
HONGTU has been facilitated with more than 2000 sets of equipment, such as plasma cutting machines, US Lincoln welding machines, welding robots, all kinds of large and medium-sized rolling machines, beveling machines, cranes, heat treatment furnace, NDT equipment, 2000 tons of spherical shell press machines and other large heavy equipment. Among them, there are more than 200 sets of testing equipment.
04 Comprehensive Industrial Chain Solution
HONGTU has been engaged in manufacturing of energy and chemical storage & transportation equipment for over 3 decades. Focusing on the production, storage and transportation, application and intensive processing of upstream, midstream and downstream liquefied petroleum gas industry chain, HONGTU forms complete industrial equipment cluster from oil refining device, spherical tank, large scale flat bottomed vertical tank to mounded type tank, from lightweight and large-volume liquefied gas tanker to core equipment manufacturing of various types of end applications and engineering application, is China's only LPG whole industry chain equipment manufacturer and solution provider.
05 Scientific and Reorous QA&QC System
HONGTU has a sound quality assurance system and perfect quality control procedures. Products from the entry of raw materials to the delivery to the user must pass 111 quality control points, 243 quality control procedures and 47 procedure document reviews. Annual radiographic inspection films of the products exceed more than 400,000 copies and each product quality files keep for more than 20 years, so each weld quality can be tracked. HONGTU continues to carry out the LEAN Management, introduce the ONE module, passes the HSE system(quality, occupational health and safety, environment) certification and realizes the comprehensive management of information, quality and workers in the manufacturing site.
06 Professional International ervices and Marketing Network
HONGTU has its own international business network and a sound international business organization structure, including 50 plus professionals engaged in technical service and overseas marketing, dedicated to providing overseas customers with technical consultation, business negotiation, product service, personnel training and a full range of integrated solutions services, and has built a three-level service assurance system comprised of salesperson, engineer and professional service personnel.
