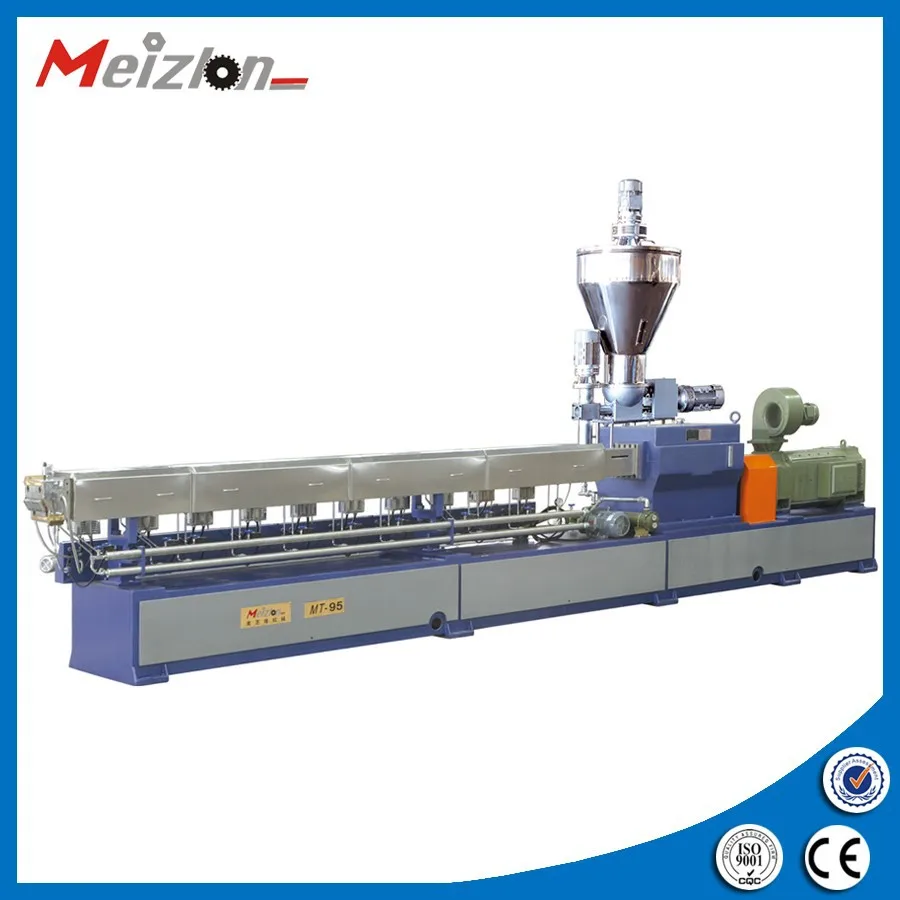

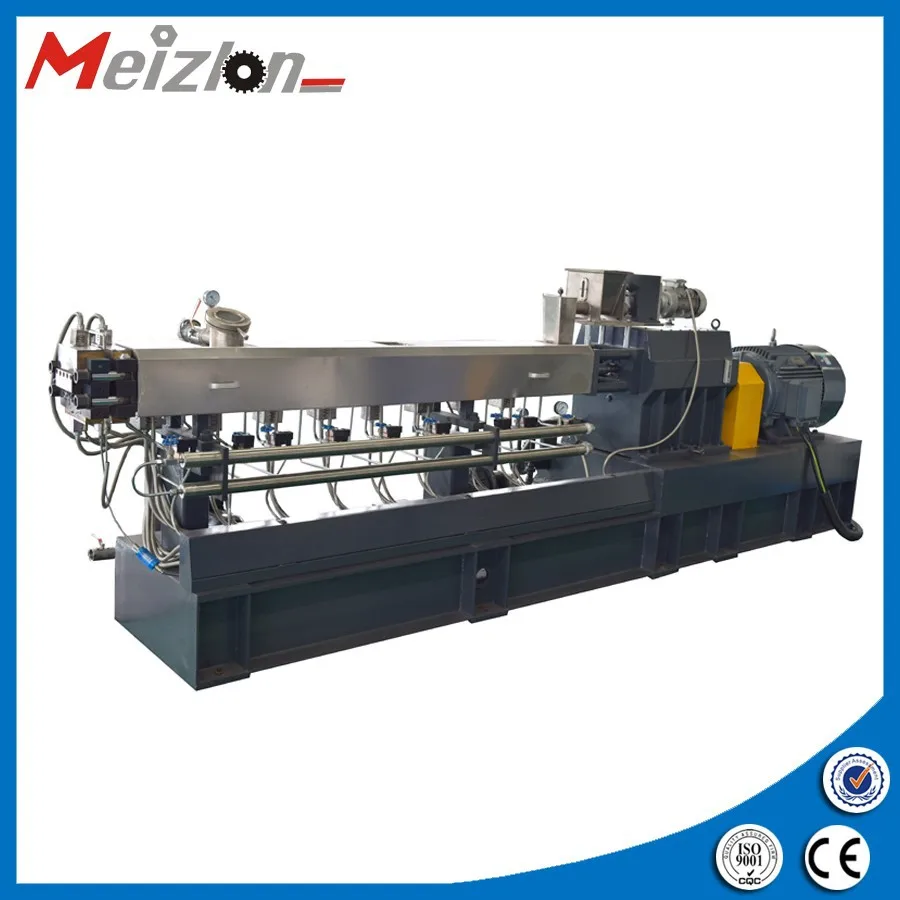

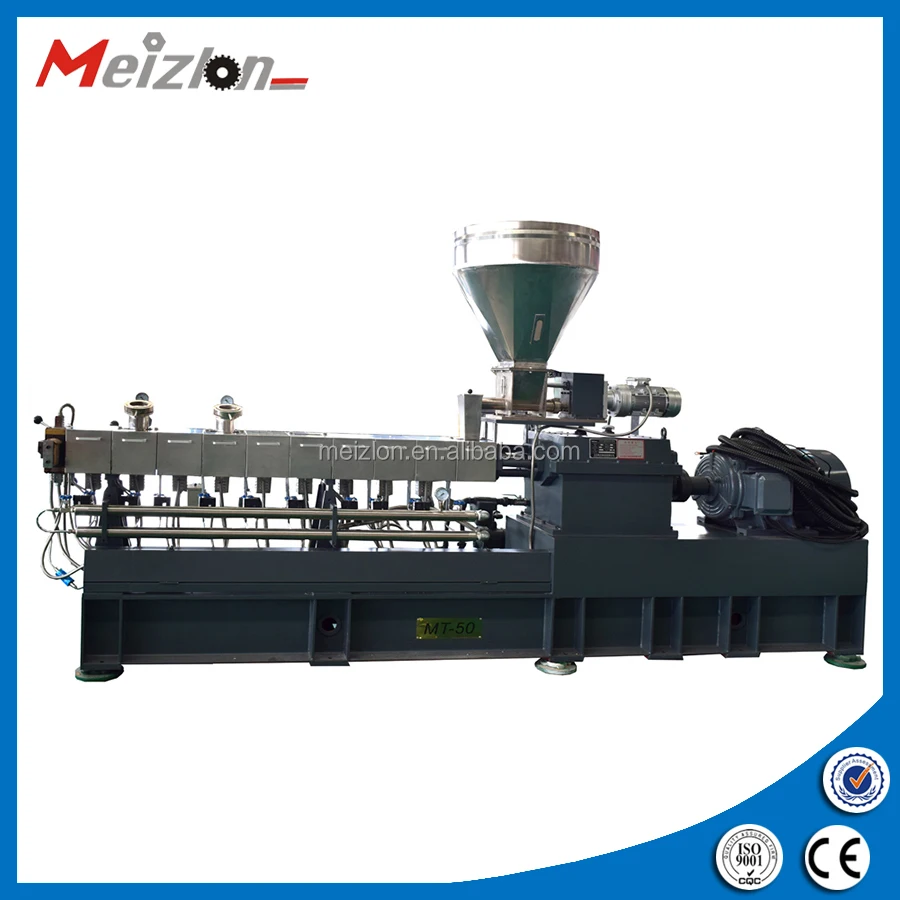

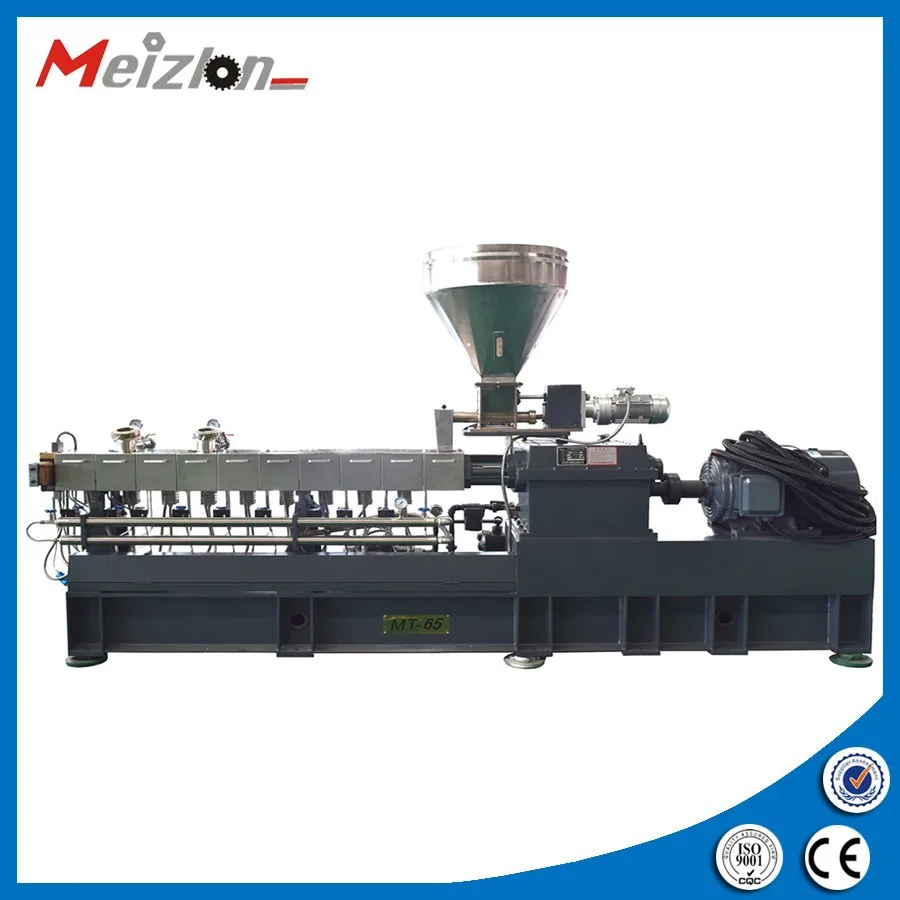

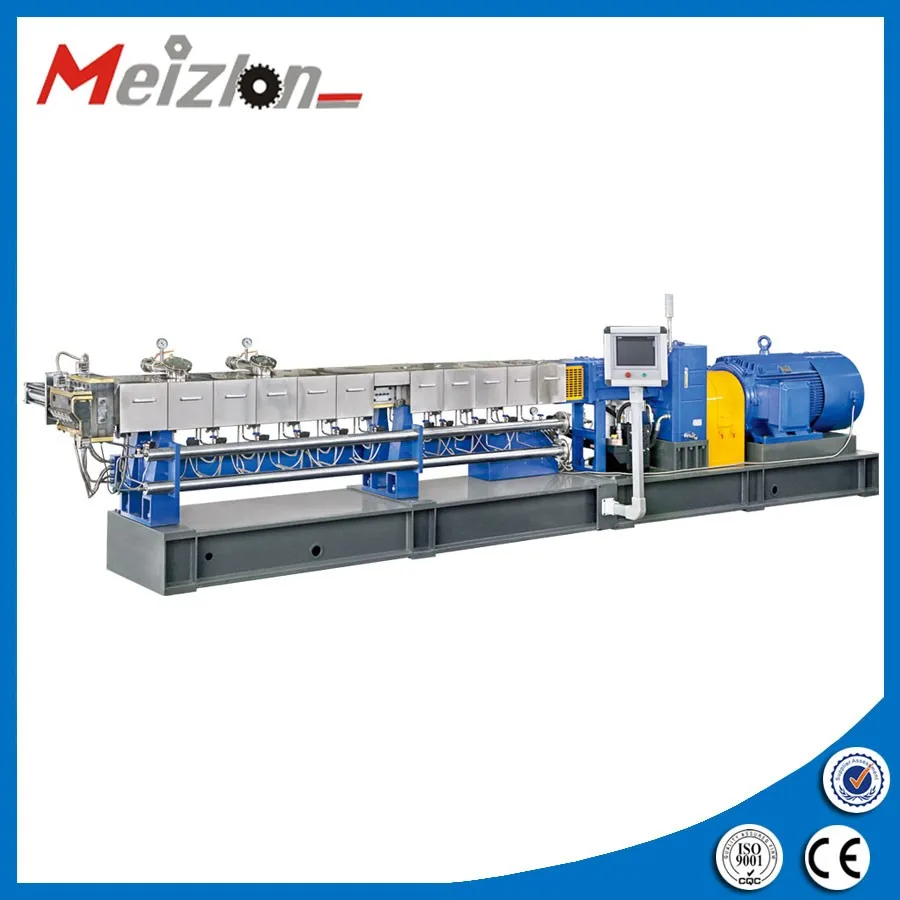

PP PE Plastic Pelletizing Machine for Masterbatch Compounding

Share on (60832105680):


Price:$75,000.00

Quantity:


Product Overview

Description



Product Description

https://meizlon.en.alibaba.com/?spm=a2700.7756200.mamo-user-profile.4.4a7471d2DVwHs1














Main twin screw extruder































































Screw Diameter



Φ62.4mm



Screw



Φ40.4mm



Screw channel depth



11mm



Do/Di



1.544



Barrel inner diameter



Φ63mm



Central distance



52mm



Screw and screw gap



0.6mm



Screw and barrel gap



0.3mm



Barrel L/D



48/1



Screw speed



Max 600rpm



Screw torque level



9.3N.m/cm3



Main motor power



90KW



Heating power



70≤KW



Central height



≈1050mm




























Water–cooling strand pelletizing line



Model






MTG65



Products






high-performance masterbatch






Based on premixed process



Output range






120–350kg/h



600rpm: depending on the rate of melt flow, density of material, formulation and production technology in details.



photobank (44)


photobank (39)


photobank (36)


The machine is suitable for:
Polymer blending & filling modification                                        Engineering polymer & glass fiber reinforcement
Universal color masterbatch & functional masterbatch               Special material & powder coating
Reactive extrusion, degassing & devolatilization






Production line


photobank (31)


photobank (38)





photobank (35)


photobank (41)


Application


photobank (33)








Our Services





Pre-sales service:


•  Introducing in detail features and application of the products to customer
•  Selecting rconomical and practical machine&equipment for customer
•  Providing operation data of the related machine&equipment
•  Providing means of trial performance for customer


Sales service:


•  Recommending engineering conditions required for installation of the machine&equipment
•  Communication in time the manufacturing progress of the machine with user
•  Providing assistance in technical conditions,screw combination and barrel disposition needed for product


After-sales service:


•  Providing on-the-spot technical assistance in installation,commissioning and training
•  Filling in detail customer's information
•  Providing long-term maintenance service and spare parts
•  Giving technical support to customer for developing new product
•  Providing free maintenance for a year








Company Information


photobank (40)


Jiangsu Meizlon Machinery Co.,Ltd, which specialized in twin screw extruder over 20 years. Covering a construction area of 18000m³ and begining with a workshop of 2000m³, owns a professional thread-grinder, CNC boring machine, over 80 modern machine-tools. Our company have been certified by ISO9001, CE, TUV etc.

Meizlon products consist of MTE,MTG and MTX series twin screw extruder, series MS single screw extruder and MSS, MTS two stage extruder ranging from 20mm to 133mm. These products are widely used in chemical industry such as high filler plastics, modified plastics, special plastics etc.

Having been exported to over 20 countries and regions such as the Canada, Japan, Vietnam, Russia, South korea, Romania, Iran, Argentina, Taiwan etc. and trust from international customers.


photobank (37)


photobank (42)





Packaging & Shipping


  We have different shipping options available for your choice and by ship(cheapest shipping)


photobank (30)





FAQ


  Q1: Are you a factory or trading company?
A: We are factory in Nanjing ,with export license and we have done export business over 20 years professional.

Q2:Where is your factory located? How can I visit there?
A:Factory add:NO.18,feiying Road,Binjiang Development Zone,Jiangning,Nanjing,China , Around 1 hour from Shanghai to  Nanjing by high speed train.Warmly welcome to visit us!

Q3: Is your product can be assured ?
A: Our machine passed ISO9001:2001, has CE certificate by SGS, TUV.

Q4:If we show you our layout of factory, can you help to design the whole process line?
A :Yes, our experienced engineers and technical employee can help you to arrange the layout and installation of whole process line based on your real situation.

Q5:If we have samples of new products, can you help to analysis and design the machine?
A:Yes, Our technical department can help to analysis, design and test the new products you offered.
