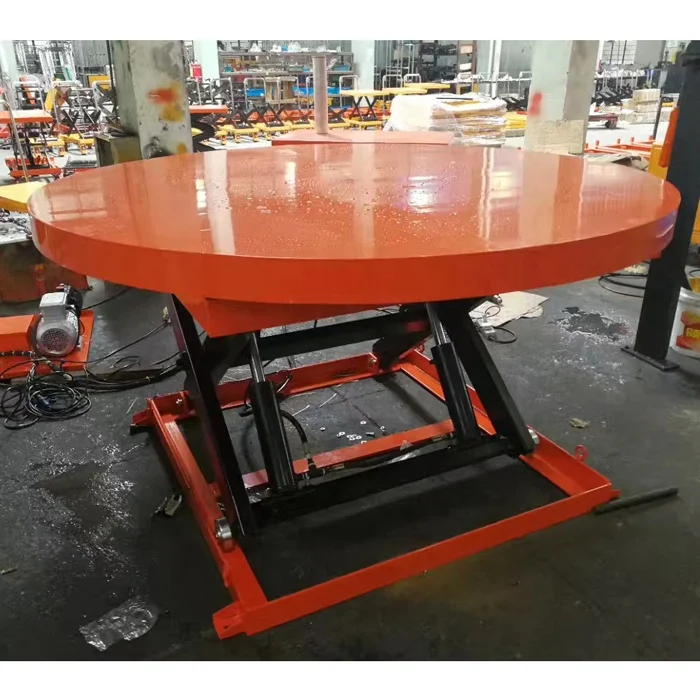

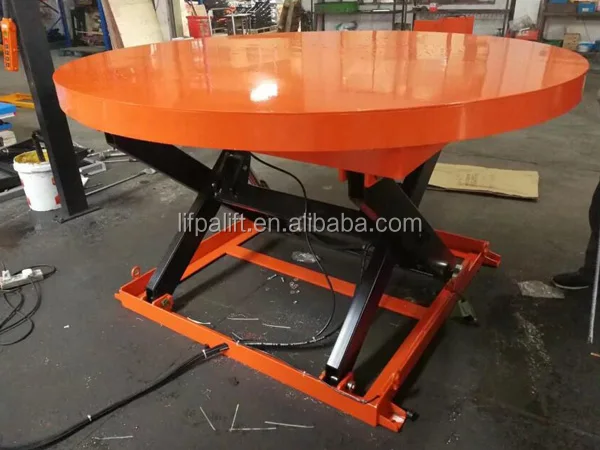

1000kg Hydraulic Scissor Type Round Rotating Lift Table

Product Overview

Description

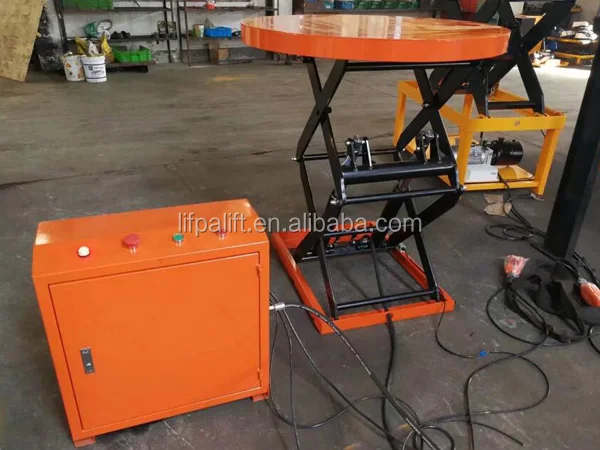

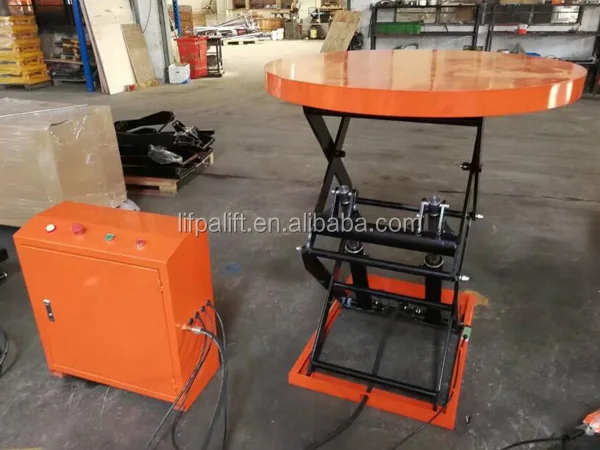

Real Pictures











Product Highlights

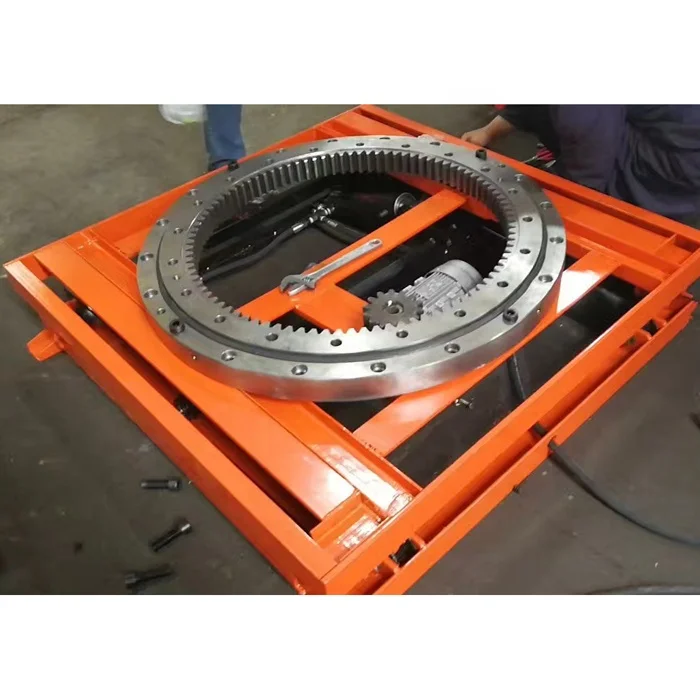

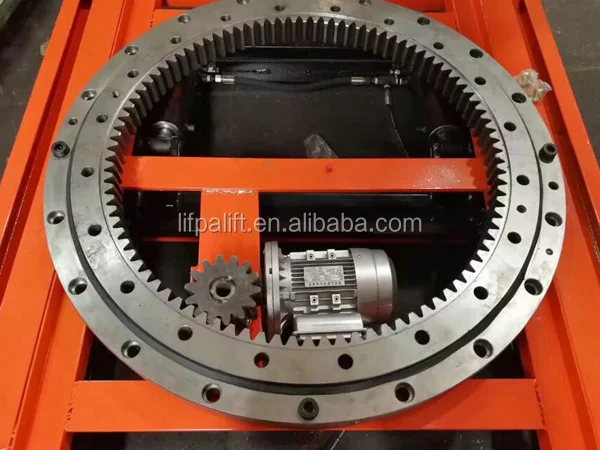

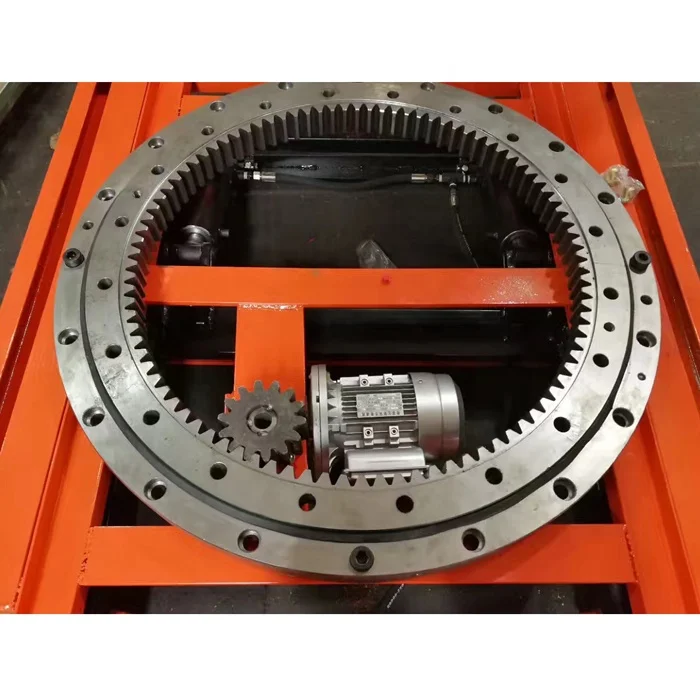

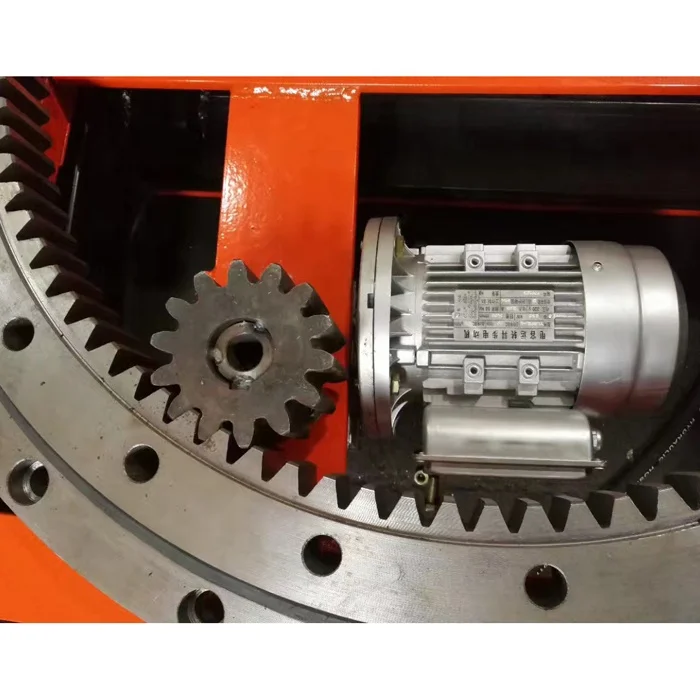

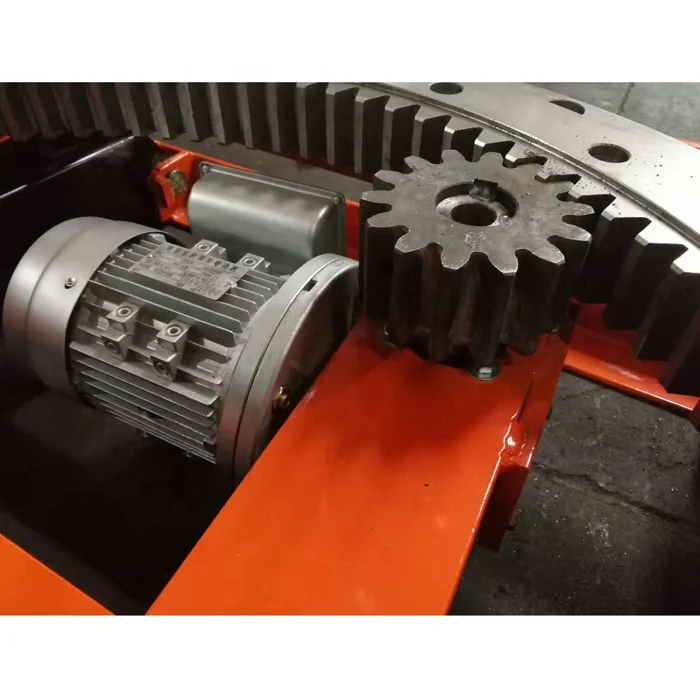

• Both Powered rotation and manual operated available





• Electric toe guard protects pinch points during lowering of the table







• Upper travel limit switch to stop table at maximum height







• AC 110/220/380/460V, 50-60Hz motor available





Features

• Allow workers to rotate loads for access to all sides without walking around the lift

• Portable ergonomic elevating table minimizes workers bending and lifting

• Electric toe guard protects pinch points during lowering of the table

• AC 110/220/380/460V, 50/60Hz power supply

• Brass velocity fuse maintains platform height regardless of hydraulic pressure

• All steel frame with powder coated finish

• Pushbutton power control for effortless operation

• Custom size and specs available





Main Parameters

Model		PG-10-R	PG-20-R
capacity	kg	1000	2000
table size	mm	OD 1800	OD 1800
raised height	mm	1000	1000
lowered height	mm	350	350
power supply	V	AC 220 - 380	AC 220 - 380
lift motor	kW	1.10	1.50
lift speed	mm/s	55	50
weight	kg	290	330





Optional Equipment
