R RP630 automatic wood floor sanding machine
- Category: >>>
- Supplier: Qingdao Allison Machinery Technology Co. Ltd.
Share on (60832196880):
Product Overview
Description

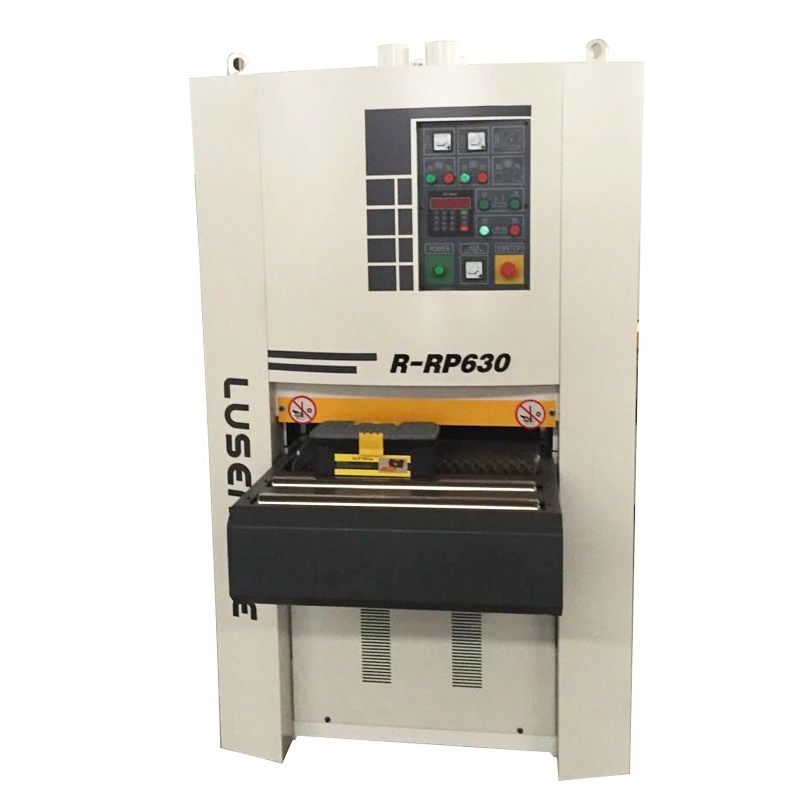

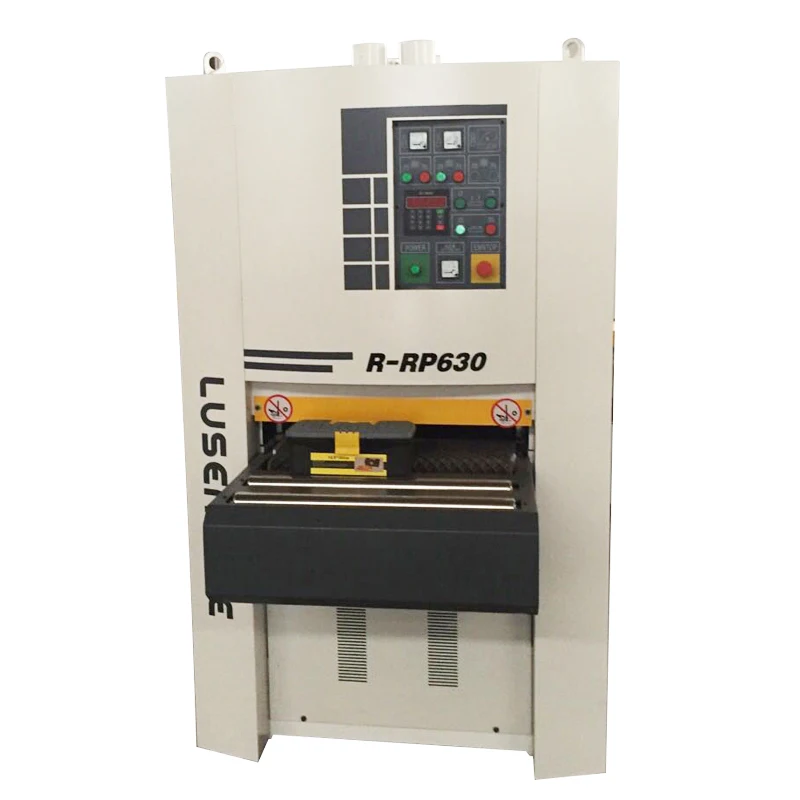

R-RP630 automatic wood floor sanding machine

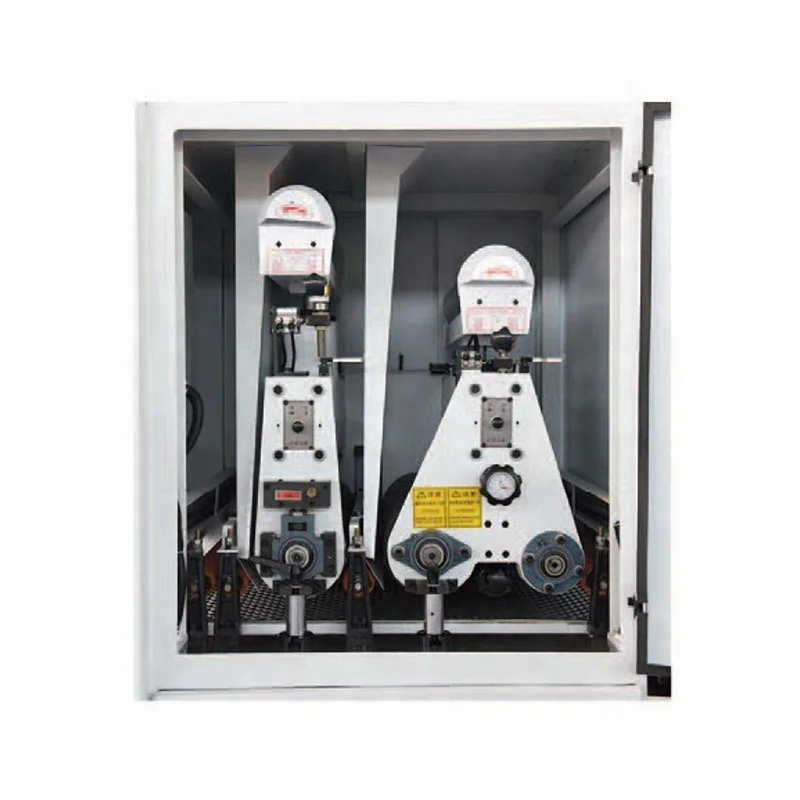

This machine can be used to do strong thickness sanding and polishing on various boards such as solid wood doors, veneer board, shaving board, cement board, fibre board, laminated board, frames etc. The machine consists of frame, feeding device, lifting device,electrical device and automatic control device. It has two thickness rollers and one sanding pad. The sanding pad can work independently, making the surface much fine.
Max working width | 630mm | 1000mm | 1300mm |
The shortest processing length | 500mm | 500mm | 500mm |
Processing thickness | 3-110mm | 3-110mm | 3-110mm |
Conveyor speed | 6-30/min | 6-30/min | 6-30/min |
Total power | 20.37Kw | 35.25Kw | 63.37Kw |
First frame motor power | 11Kw | 18.5Kw | 37Kw |
Second sand frame motor power | 7.5Kw | 15Kw | 22Kw |
Conveyor motor wattage | 1.5Kw | 1.5Kw | 4Kw |
Lifting motor power | 0.37Kw | 0.25Kw | 0.37Kw |
First sand frame steel roller diameter | 190mm | 190mm | 240mm |
Second sander roller diameter | 190mm | 190mm | 210mm |
Abrasive belt size | 650*1920mm | 1020*2000mm | 1330*2200mm |
Working pressure | 0.6Mpa | 0.6Mpa | 0.6Mpa |
Dust collection | 8000m3/h | 8000m3/h | 9600m3/h |
Outline dimension | 1900*1200*2100mm | 1900*1200*2100mm | 2700*2100*2100mm |
Weight | 1200kg | 2000kg | 3300kg |

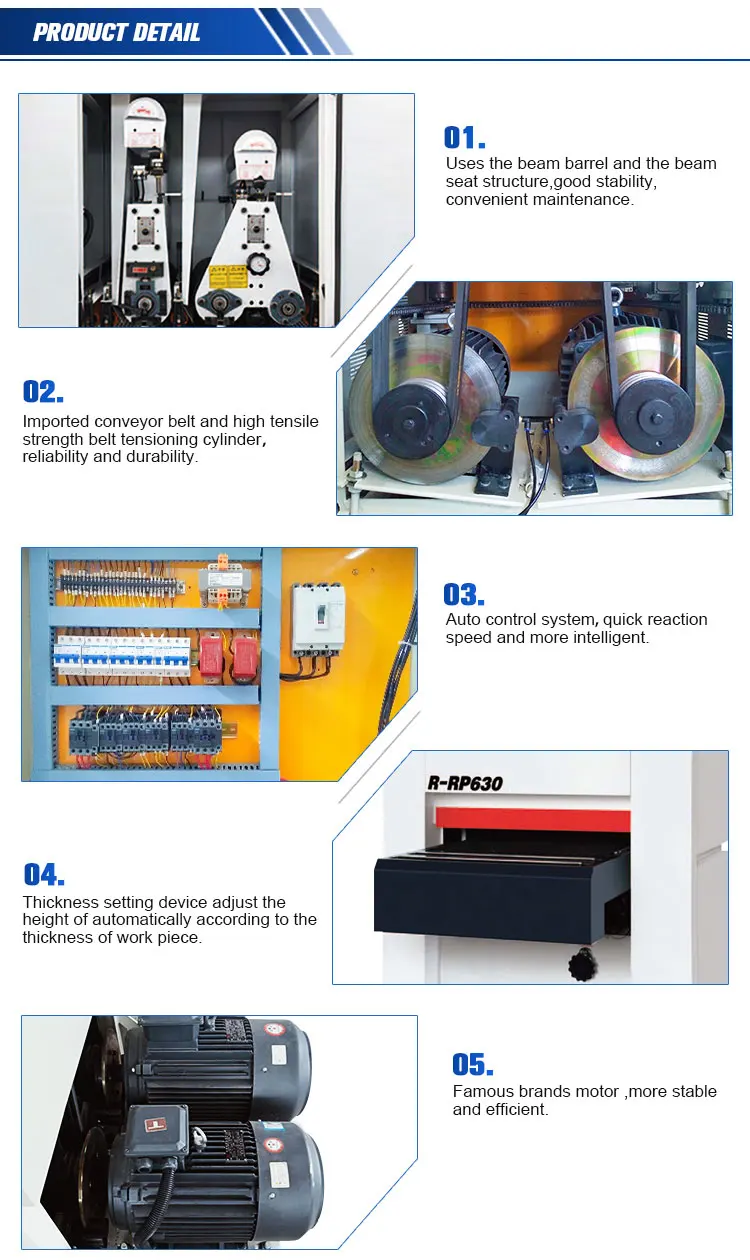

Details

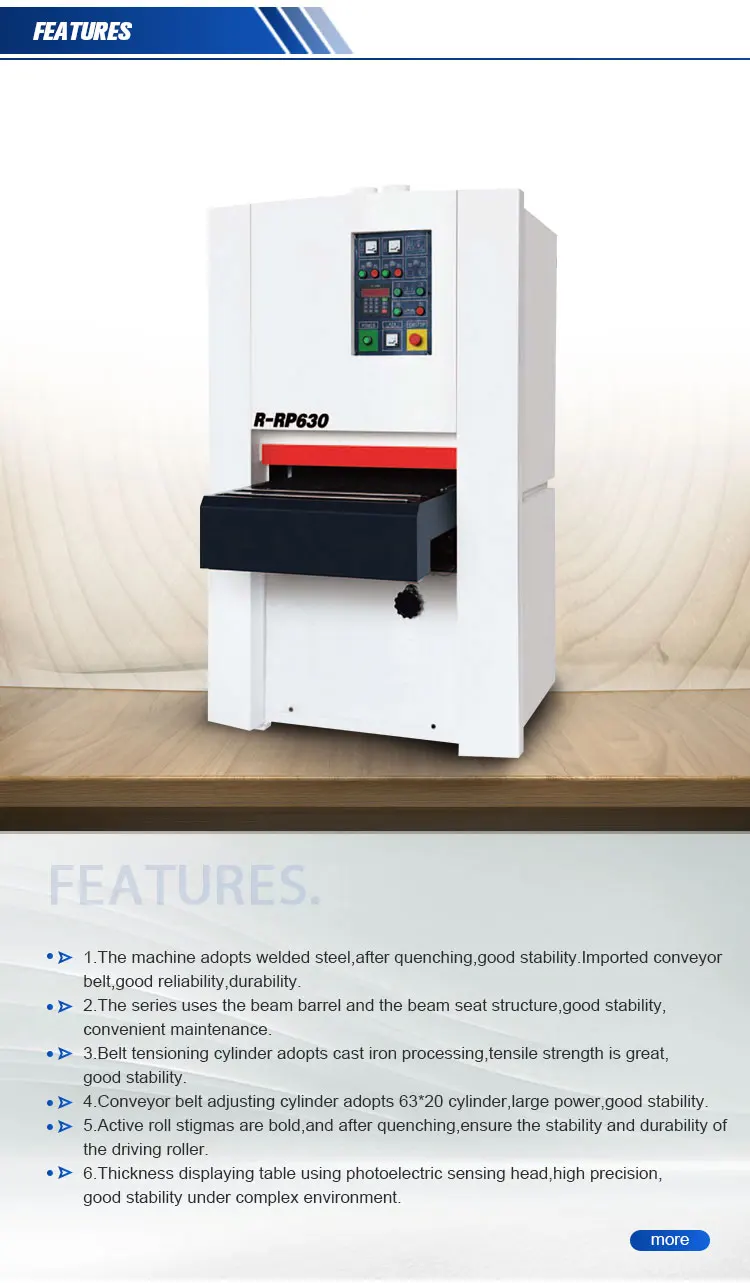

Feature

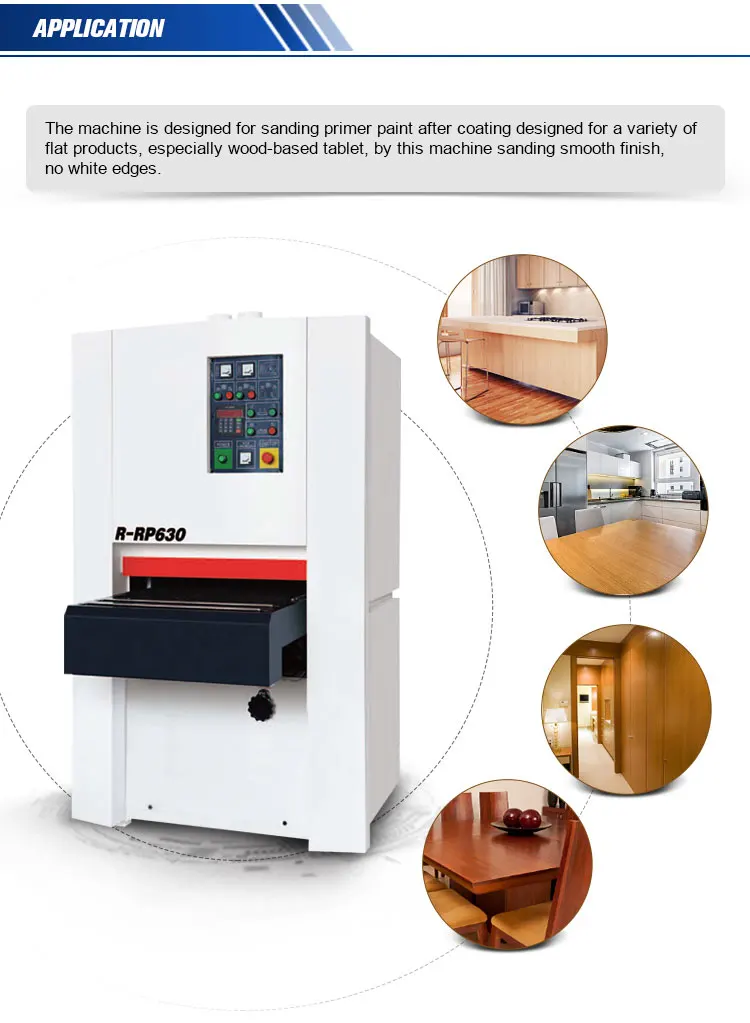

Application
Our Services
Related product
Packaging & Shipping
Company Information
Qingdao Allison Machinery Technology Co., Ltd is established in the city of Qingdao, the province of Shandong of China. As innovation and high quality products, the company developed into one of the biggest supplier of wood machinery in Chinese market.
There are experienced with well-equipped testing facilities and strength technical force more than 14 years, Allison are producing equipment for woodworking, always supply the innovative, reliable and durable. Such as Sliding Table Saw, Edge Banding machine, Drilling machine, Sanding Machine etc.
There are the certification of CE and ISO9001:2008 Quality System. Our products promise quality, innovation and safety.
Products are widely received and trusted by client and meet to develop into economic and social fields.
Welcome to contact us from the new and old customers of all around world for business and common success in future!
