Ftth 8pon epon olt supply any brand ftth onu 8 ports epon olt WITHOUT PON SFP modules 1AC single power

Share on (60832215312):


Price:$435.00 - $530.00

Quantity:


Product Overview

Description



Product Description

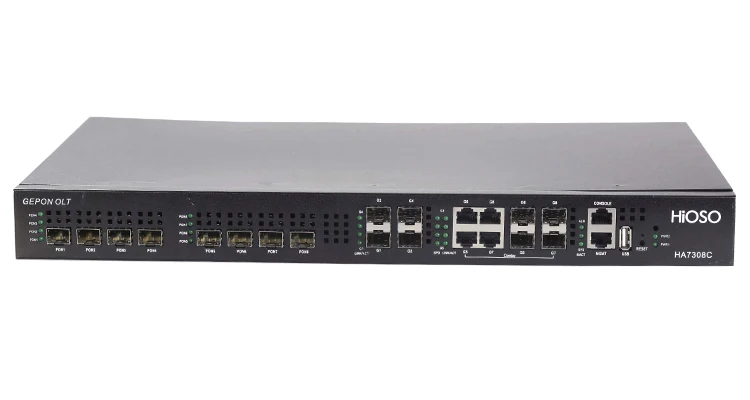

HA7308C Rack Type 8-PON OLT

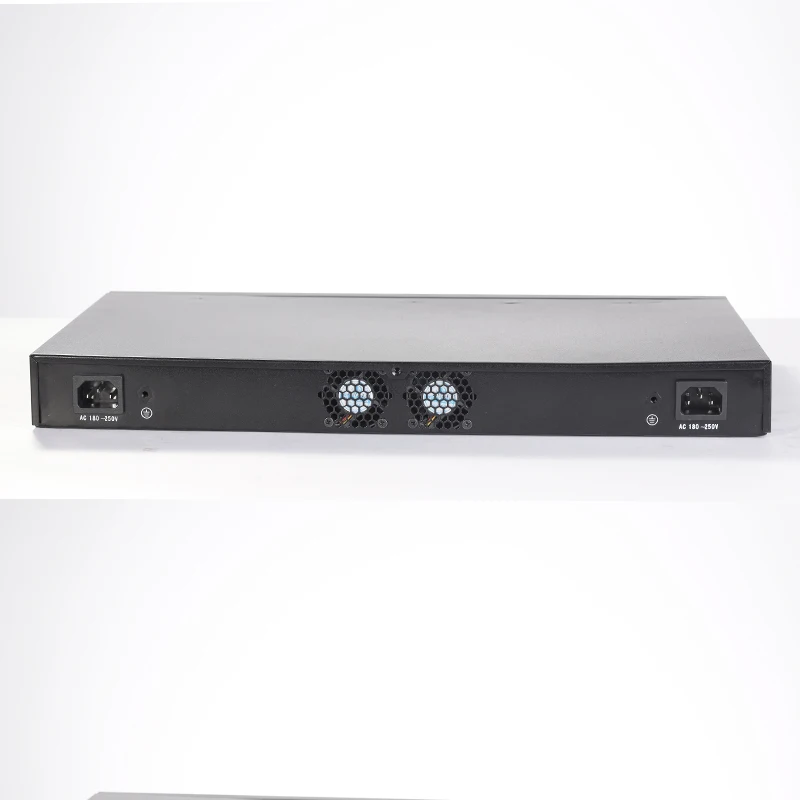

Dual power supply
Feature

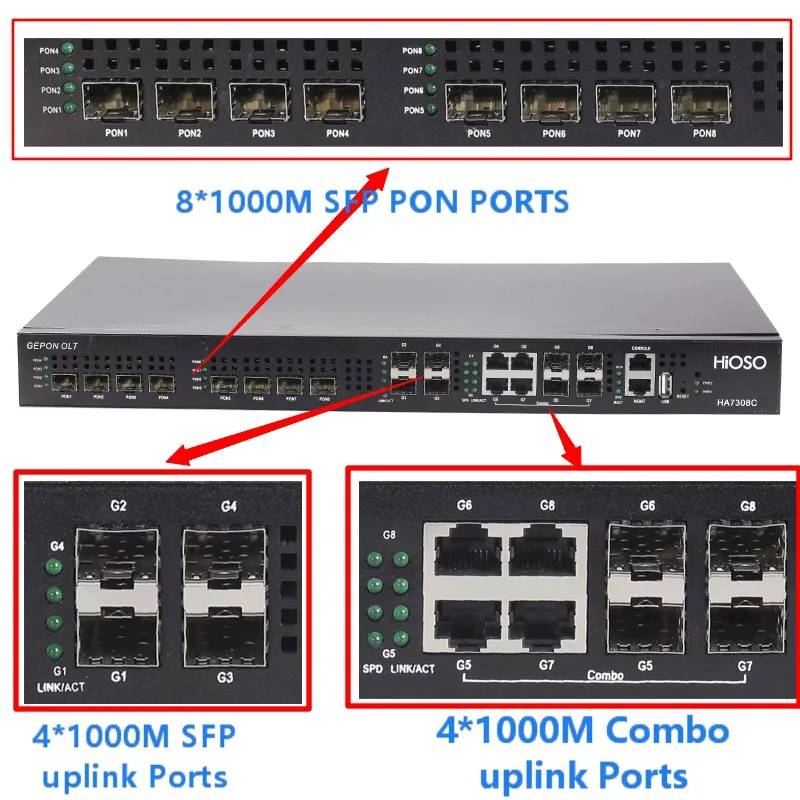

✔Supply 8 SFP PON ports, 4 1000M SFP ports, 4 Combo uplink ports
Each PON port support 1.64 split ratio, total 512 ONUs access
Distance can reach 20km under 1:32 split ratio
Support to work with HA400/HA7200 series ONUs to establish passive network
Support WEB and SNMP, integrate switching function

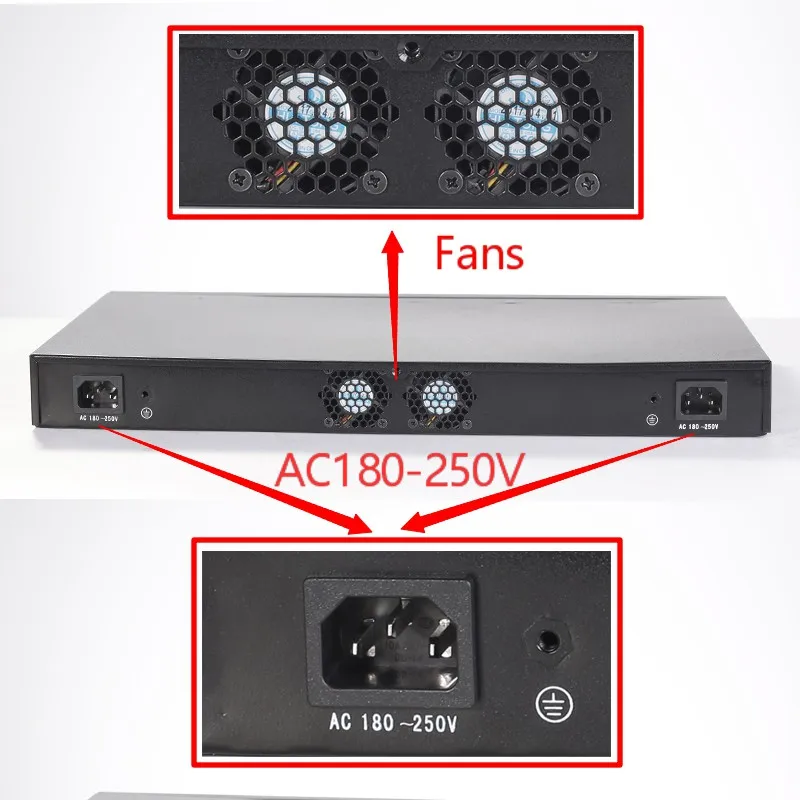

1U rack design, inside fan,better for heat dissipating and reliability operating
Apply for town,village fiber network and surveillance, apply for FTTX network,
to transmit IP phone, data,IPTV and other IP services access


Technical Specification
Parameter
Specification
Operating wavelength
1310(RX) /1490(TX)
Optical power
+2.5 ~ +7dBm
Receiving sensitivity
-27dBm
Max distance
20km
Max splitter ratio
1:64
Capacity
8 SFP PON, each PON supports max 64pcs ONU, total 512pcs ONU
MAC
16k
Uplink port
4 SFP ports + 4 Combo(SFP/TP) ports
PON port
8 SFP 1000M fiber ports

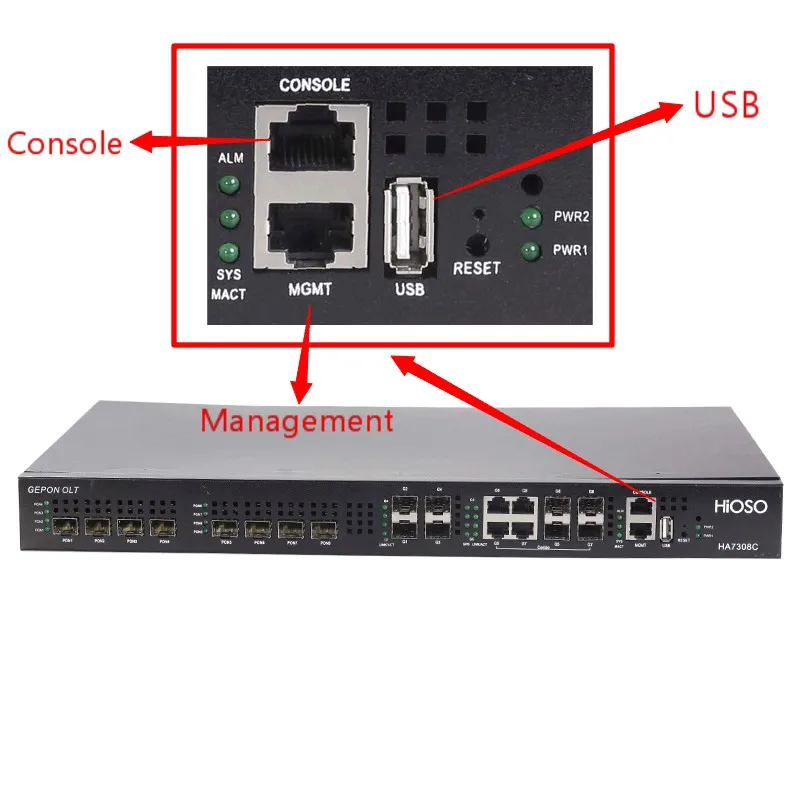

Control port
1 10/100/1000M RJ45 port
1 Console(RJ45), to debug the device
1 USB port
MTBF
100,000 hours




EPON traits
Support IEEE802.3ah
Support DBA with minimum1Kbps granularity adjustable
Support 1Gbps up link and down link symmetrical bandwidth
Support AES-128 encryption to each Logical Link Identifier
Support powerful OAM function, implement telnet management, maintenance and upgrade
Support auto discovery and auto register of ONU (real-time operation)


Protocols supported
Support IEEE802.3、IEEE802.3u、IEEE802.3ab、IEEE802.3z
Support IEEE802.1Q VLAN、IEEE802.1d Spanning Tree
Support IEEE 802.1P QoS、IEEE802.3X Flow Control
Support IEEE802.3ad Trunk、IEEE802.1W RSTP

Network management
Support GUI management based on SNMP
Support WEB management and Telnet GUI management based on CLI


Other Functions
Support 1GMPv1/v2 protocol report, query and leave message mouse
Support ONU remote configure and upgrade
Support real-time alarm detection, accurate fault location
Support the alarm information sent to the mailbox, support SMS alarm


Details Images








Product Usage




Related Products




Packing&Shipping




Company Introduction


HiOSO Technology Co., Ltd. was founded in 2002, being dedicated to the research, production and sale of optical communication network products based on FTTH and FTTD.Our main products include EPON systems, fiber optic media converters, CWDM system equipment, digital video optical transceivers, converter racks, single/multi-mode converters, PDH and fiber modems.
