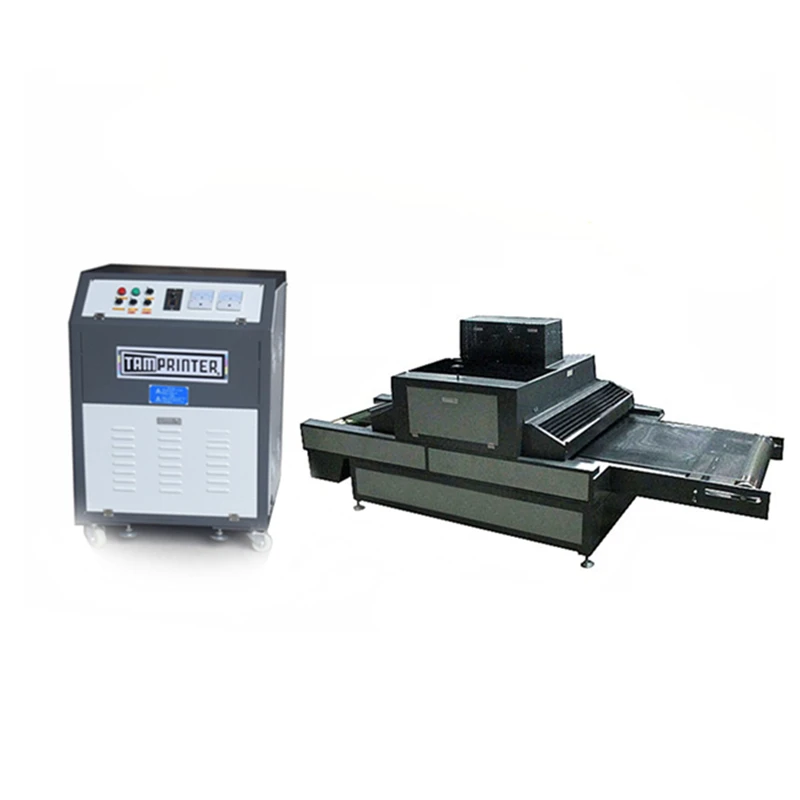

High quality offset UV curing machine for printing machine

Product Description

TM-UV-F   UV curing machine for Roland offset printvideo:

//v.youku.com/v_show/id_XMTUxNDkyNzQyOA==.html

This machine is offset Postpress drying equipment,



  parameters
1, Weight:                              500 (Kg)
2,Total power:                       2*5.6kw or 2*8kw+90w(5k)
3, Belt width:                         800mm

4, Body size:                          283*139*159cm

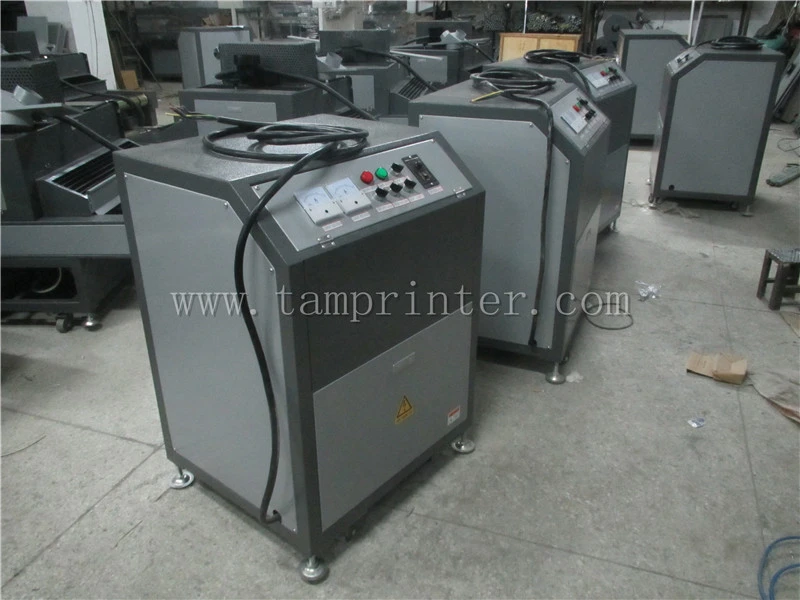

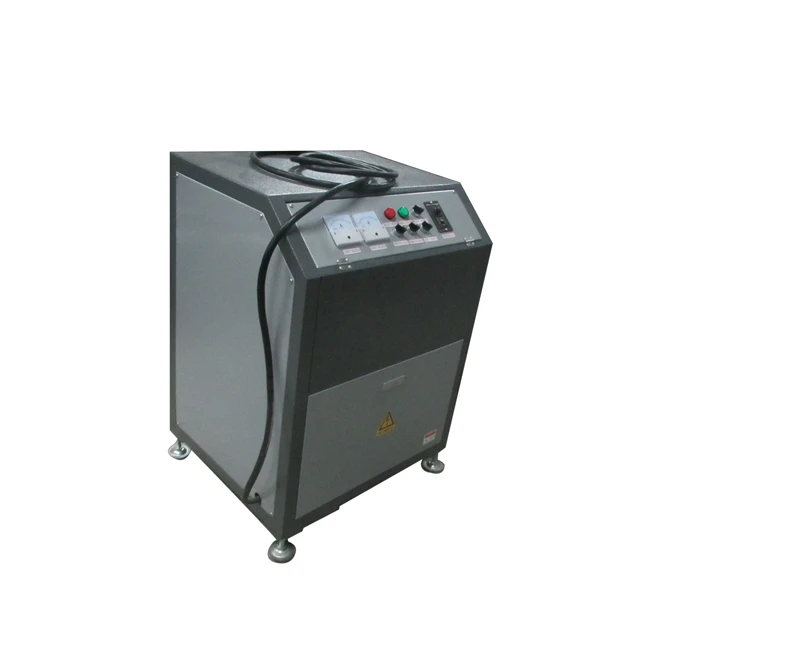

5,Electric control box size: 82*70*113cm

offset uv dryer



Type	Power	UV Lamp	Insert width (mm)	Insert depth (mm)	Distance from belt to ground (mm)	Weight (Kg)	Electric control box size(cm)	Body size (cm)	offset print speed (pcs/h)	Sheet size (mm)
TM-UV-F1	380v 3phase	2pcs*5.6kw	850		400	500	60*97*99	270*110*135	2000
TM-UV-F2	380v 3phase	2pcs*8kw	850		400	500	60*97*99	270*110*135	3000
TM-UV-F3	380v 3phase	4pcs*8kw	1100		820	1000	no	400*135*145	6500
TM-UV-F4	380v 3phase	3pcs*9.6kw	1100		820	1200	60*97*99	400*135*145	6500
TM-UV-F5	380v 3phase	2pcs*9.6kw	620	900	450	700	60*97*99	400*135*145	6000	520x360	2 group Transformer can controll stepless adjust lamp brightness 30%~100%





Dimension: outline size customized according to your offset printing machine,
Butt paper receiving port width height and depth size etc., then to determine the size of UV machine. you must provide 2D drawing.

Machine can be redesigned according to your specific requirements.



Features:

(1) With teflon or stainless street net, trasmit speed steady and can be adjusted (0-70m).

(2) With two UV lighting tubes, can turn on the light according to the need.

(3) Wink-dry make the surface of the stocks high hardness and rub resistance.

(4) Tunneling-based make the whole machine light barrier good and without harm.

(5) Equipped with powerful nether induced draught system and big intake airway, can absorb the stock on the mesh belt hard.

(6) Can be used with production line and other equipment easily.

Special UV machine of printing machine: Exact design, complete function, stable performance, each switch is obvious and easy to distinguish, simple and convenient operation, optimal high quality printing machine connecting UV solidifying machine and best partner of Heidelberg, Man Roland and Komori and so on.
Quality, special design, and advantages of main parts:
(1)Adopt imported UV light tube, and have long useful time, and more stable wavelength.
(2)Adopting glisten film made in Germany and installing specially designed focused lampshade can promote UV energy effectively, and make the solidifying ability of the machine stronger.
(3)Exclusive design of ultralow temperature of irradiated area makes printing heat sensitive paper, film, and 0.05mm thin film not become deformed, and reprint exact.
(4)The machine adopts specially designed heat removal system, drops off UV heat, and also does not lower UV energy, makes materials stable, does not float, stop, trap in the light chest
(5)Light source is divided into bright light, middle light, and dim light, unattached switch allocating energy-saving leakage transformator produced by the factory make the energy of UV light exert to the highest-level, meanwhile save electric power changes.

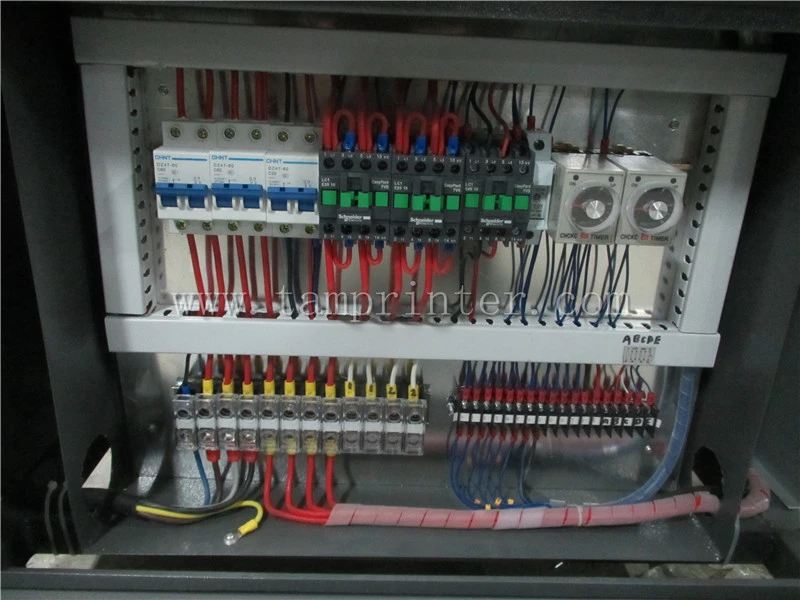

(6)The machine is equipped with transformer and overtemperature protection device of lighting tube.
(7)Divided design (fuselage is separated from mainframe) is easy to operate, and can be pushed.
(8)The machine prints with printing machine at the same time: discharge velocity of rapid solidifying is 70m per minute(mph 6000 pieces of paper).
(9)The machine has many types, and can be made to order according to the requirements of customers, the solidifying speed is 5-70m/min and can be adjusted.





Hot tags:  Electric Infrared Oven



Our service:
1 The guarantee time is 1 years, and maintain is lifelong. During this time, if any work piece dose not work well and which is not caused by worker and can not control naturally, the supplier provide it free of charge, but the carrier cost must be in buyer's side.

2 The supplier must sure the machine all work well before package.

3 we will provide the working video after delivery the machines.

4 Welcome your engineers to come to our factory for training.



FAQ
1. Q:Are you a factory or a trading company?
A:we are factory manufacture of printing machine and we provide perfect OEM and after- sale service.
2. Q:Can you send me the video to show how the machine works?
A:certainly,we have made video of every machine and uploaded them to Youku.
3. Q:How can I know your machine works well?
A:Before delivery,we shall test the machine working condition for you

CE:
