digital ultrasound machine price/ doppler ultrasound
- Category: >>>
- Supplier: Nanjing Goal Medical Equipment Co. Ltd.
Share on (60832218906):
Product Overview
Description
Product Description

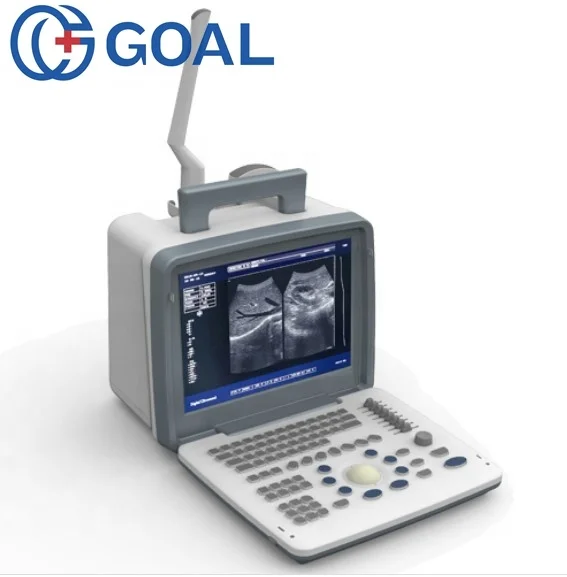

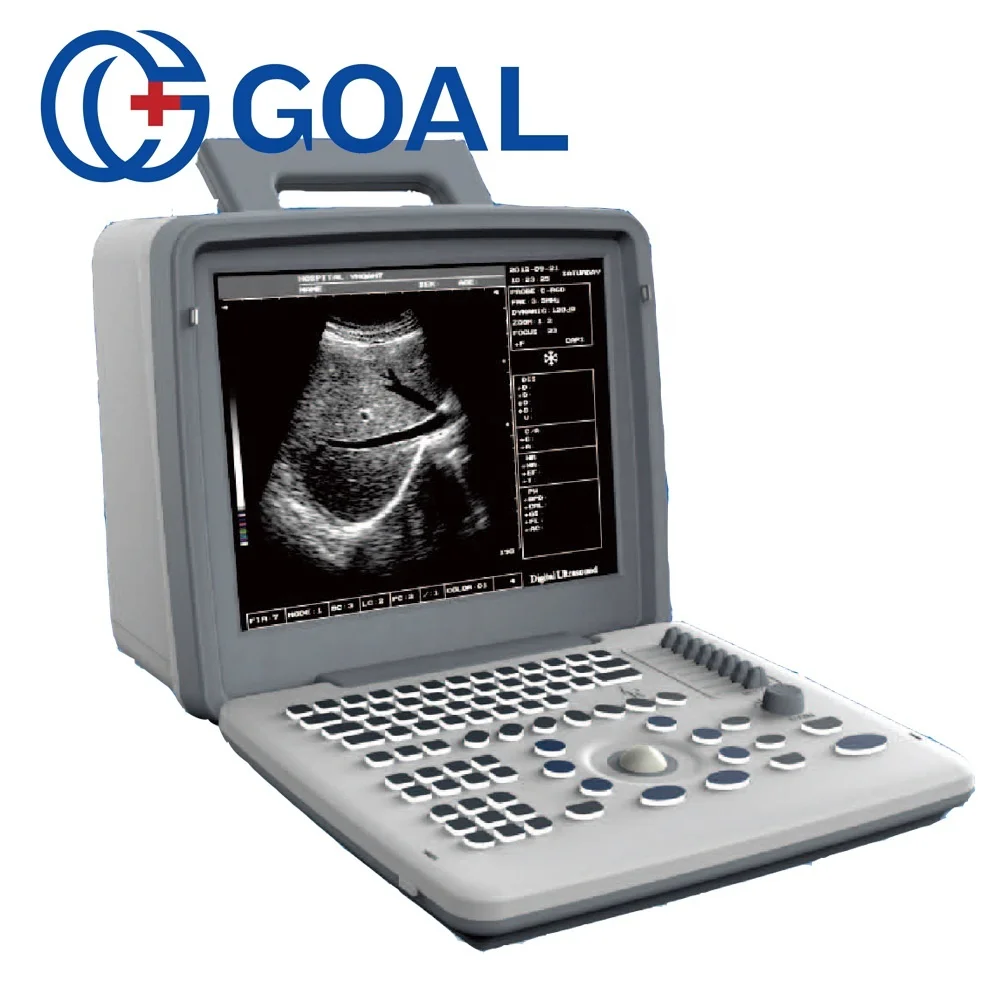

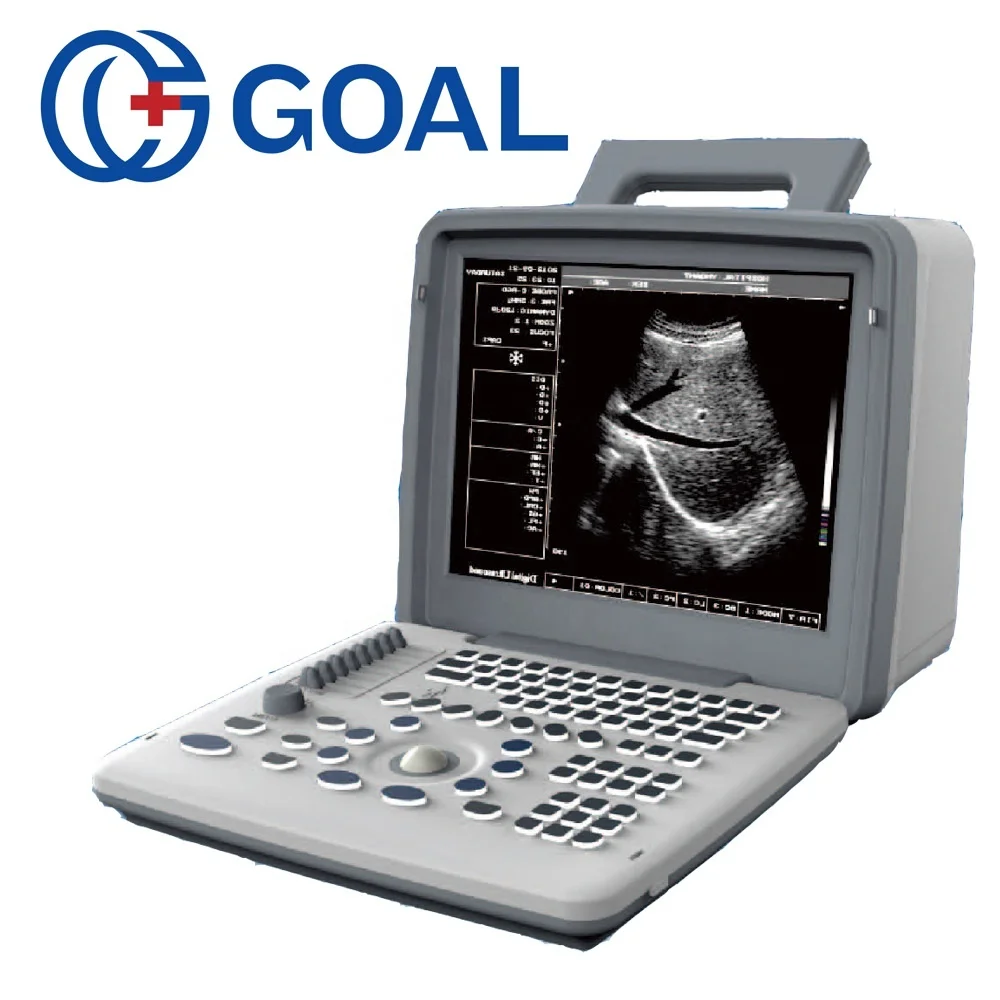

GAU-128 is a full-digital black and white ultrasonic diagnostic instrument with high cost performance and high stability. The model supports convex array, cavity, high-frequency linear array, micro-convex, rectum and other probes, and is rich in obstetric and conventional measurement software.The model features a more stable 12 inch LED display based on the original S300, adding 16 pseudo-color display modes and supporting video printers and external VGA displays and USB ports.
| 1 | Display Modes | 3.5MHz/R60 convex array probe:B,B/B,4B,B+M,M |
| 6.5MHz/R13 Dimpling array probe:B | ||
| 7.5 MHz/L40 Line array brobe:B | ||
| 2 | Image Mutiplying Factor | 3.5MHz/R60 convex array probe: ×0.8, ×1.0, ×1.2, × 1.5,×1 .8, ×2.0 ( 6 modes) |
| ×0.8, ×2.0 (display penetration depth) | ||
| 6.5MHz/R13 Dimpling array probe: ×0.8, ×1.0, ×1.2, × 1.5 (4 modes) | ||
| 7.5MHz/L40 Line array probe: ×0.8, ×1.0, ×1.2, × 1.5 (4 modes) | ||
| 3 | E-zoom | magnify 2 times of real time image |
| 4 | Dynamic Range | 0~120dB ajustable |
| 5 | Focus Position | 1,2,3 and 4-segments dynamic electron focusing |
| 6 | Image Processing: | γ correction, frame correlation, point correlation, line correlation, digital filtering, digital edge enhancement and pseudo color processing, etc. |
| According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.(Our products' advantage) | ||
| 7 | Frequency Conversion: | 2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion |
| frequency range applies 5.5 MHz/6.0 MHz/6.5 MHz/7.0 MHz/7.5MHz can match high frequency probe | ||
| 8 | Measuring Function | Distance, circumference/area (method of ellipse, method of loci), volume, heart rate, gestational weeks (BPD, GS, CRL, FL, AC), expected date of confinement and fetus weight, etc. |
| 9 | Annotation Function | hospital name, patient's name, age and gender |
| 64 body marks (with probe's position); | ||
| Full-screen character annotation; Real-time clock display | ||
| 10 | Puncture Guide | 3.5MHz convex array probe can display puncture guide line in B mode |
| 11 | Gain Control | 8 segments TGC and overall gain can be adjusted respectively |
| 12 | Image Polarity | left and right flip, black and white flip, up and down flip |
| 13 | Capacity Cine Loop | real time display 256 consecutive images which are memorized successively |
| 14 | Image Playback | series playback or check one by one |
| 15 | Permanent Storage: | 128 images |
| 16 | Output Interface | VGA video output offers connection to SVGA color display |
| PAL video output offers connection to PAL display and printer | ||
| video image recorder and image workstation, etc | ||
| 17 | USB Port | Offers storing images in USB flash disk |
Features:
1 | Mass memory , cine loop and permanent storage. |
2 | Radium Caved buttons and Silicon backlit buttons to be chosen; |
3 | Intelligent fluorescence trackball. |
4 | 8-segment TGC control. Overall Gain control |
5 | 2 USB ports , Upgraded and expandable printer function; |
6 | 2 probe connectors. Probe automatic identfication; |
7 | 2SVGA video outputs and 21 PAL video outputs offer connection to video image recorder and image workstation. etc. |
8 | Report page is generated automatically. |
9 | According to the user's pattern style preference, the parameter will be set up automatically and saved ,Boot default this parameter. This default of parameter can aslo be modified in the menue.(Our products' advantage) |
