Red Rawl Plugs
US $0.061-$0.068
Анкер для крепления стен M5x52
- Category: Anchors >>>
- Supplier: Fly Higher (Cixi) Fastener Co. Ltd.
Share on (60832236581):
Product Overview
Description

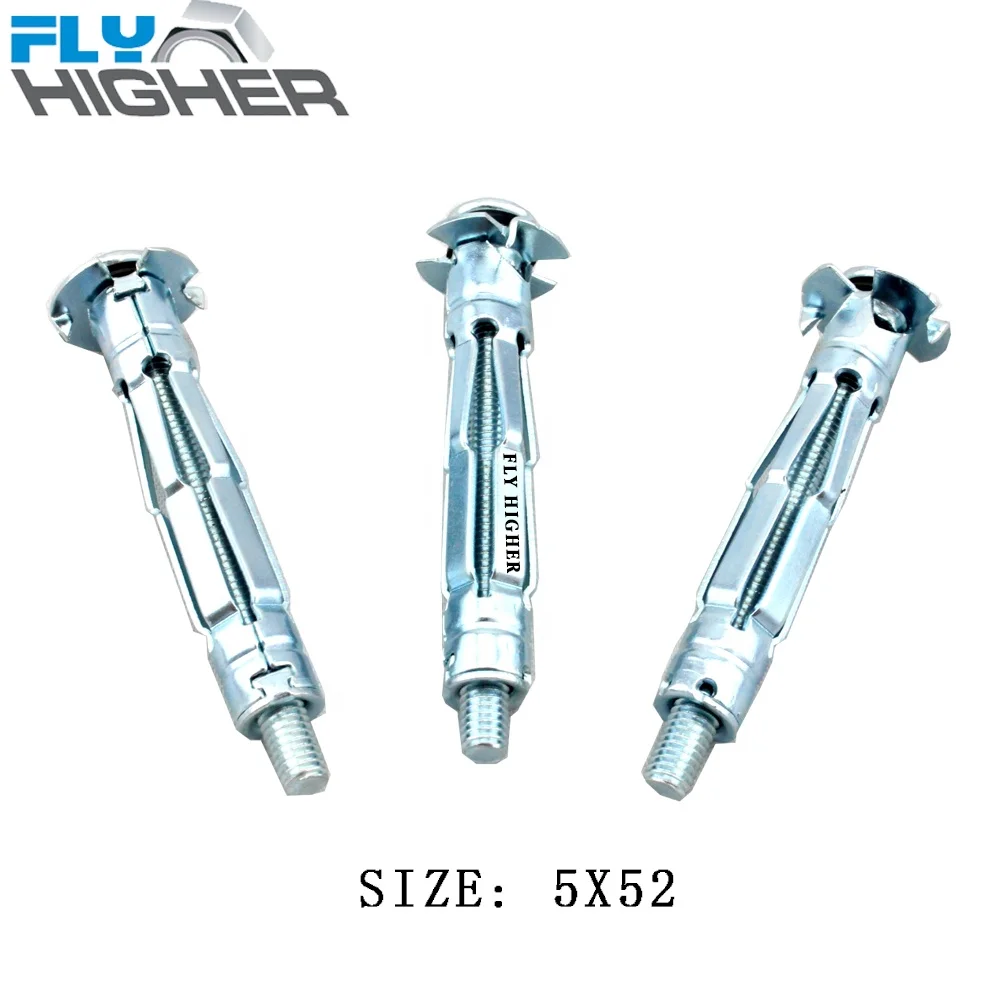

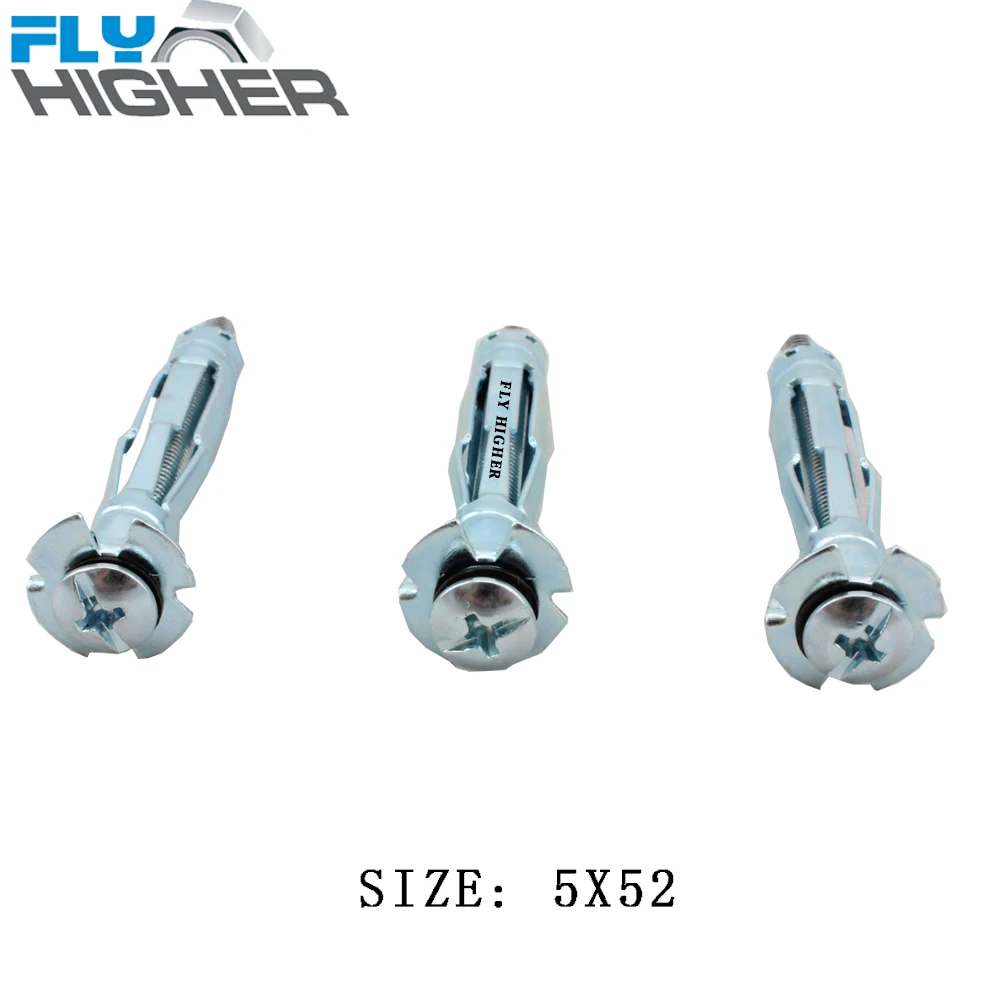

Des: Hollow Wall Anchor OR Cavity Anchor

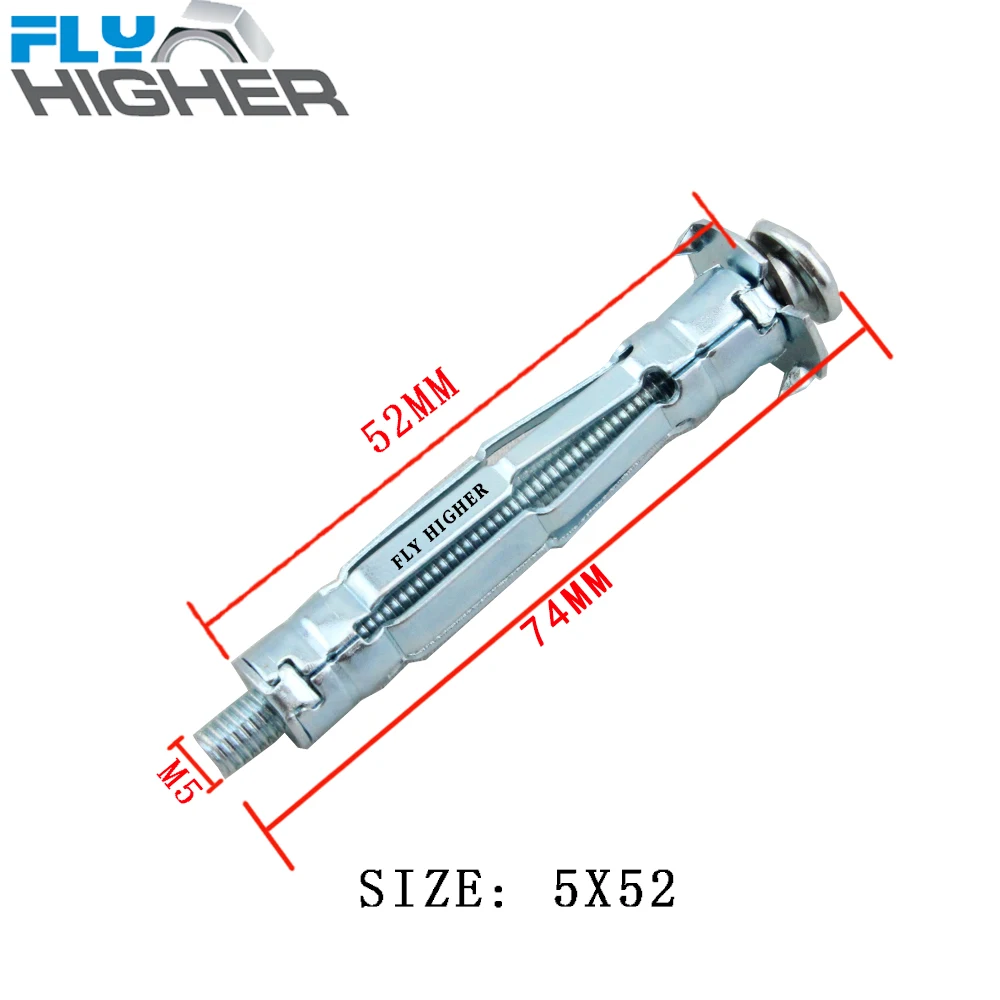

Size: 5x52 K=10mm L=50mm
Material: Steel(zinc plated)
Packing:50pcs/box
Hollow Wall Anchor

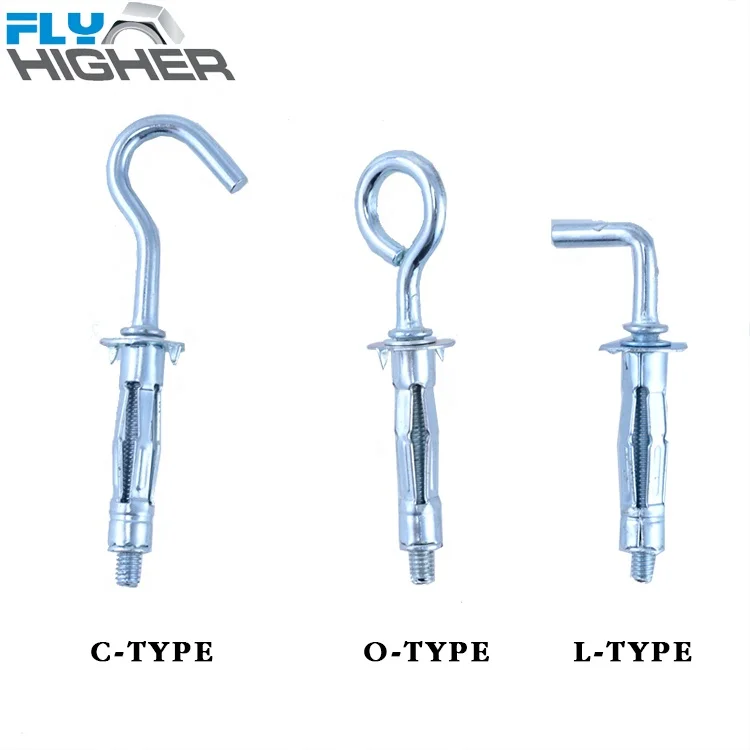

1. Different type of head: Closed eye, open eye, medium hook, and etc.
2. Hollow wall anchors securely fasten mirrors, pictures, cabinets, curtain-drapes-shelf brackets, bathroom fixtures to hollow walls of plaster over wood lath or metal lath, wallboard, gypsum or cinder block, hollow tile, and etc.
3. Fixtures can be removed or replaced for redecorating without disturbing the hollow wall anchors.
| Code | Size | M | Screw length(mm) | L(mm) | K (mm) | Min.Hole Depth(mm) | Pcs/box |
| HWA420 | 4X20 | M4 | 27 | 21 | 3 | 8 | 100 |
| HWA432 | 4X32 | M4 | 38 | 32 | 6 | 8 | 100 |
| HWA438 | 4X38 | M4 | 45 | 39 | 13 | 8 | 100 |
| HWA446A | 4X46 | M4 | 53 | 46 | 10 | 8 | 100 |
| HWA446B | 4X46 | M4 | 53 | 46 | 20 | 8 | 100 |
| HWA454 | 4X54 | M4 | 60 | 54 | 23 | 8 | 100 |
| HWA460 | 4X60 | M4 | 67 | 60 | 38 | 8 | 100 |
| HWA537 | 5X37 | M5 | 45 | 37 | 9 | 10 | 100 |
| HWA552 | 5X52 | M5 | 60 | 53 | 13 | 10 | 50 |
| HWA565 | 5X65 | M5 | 72 | 66 | 27 | 10 | 50 |
| HWA580 | 5X80 | M5 | 88 | 81 | 41 | 10 | 50 |
| HWA637 | 6X37 | M6 | 45 | 37 | 9 | 12 | 50 |
| HWA652 | 6X52 | M6 | 60 | 53 | 13 | 12 | 50 |
| HWA665 | 6X65 | M6 | 72 | 66 | 26 | 12 | 50 |
| HWA680 | 6X80 | M6 | 88 | 81 | 41 | 12 | 50 |
| HWA810 | 8X37 | M8 | 45 | 37 | 9 | 12 | 50 |
| HWA852 | 8X52 | M8 | 60 | 53 | 13 | 12 | 50 |
| HWA865 | 8X65 | M8 | 72 | 66 | 26 | 12 | 50 |
| HWA845 | 8X80 | M8 | 88 | 81 | 41 | 12 | 50 |

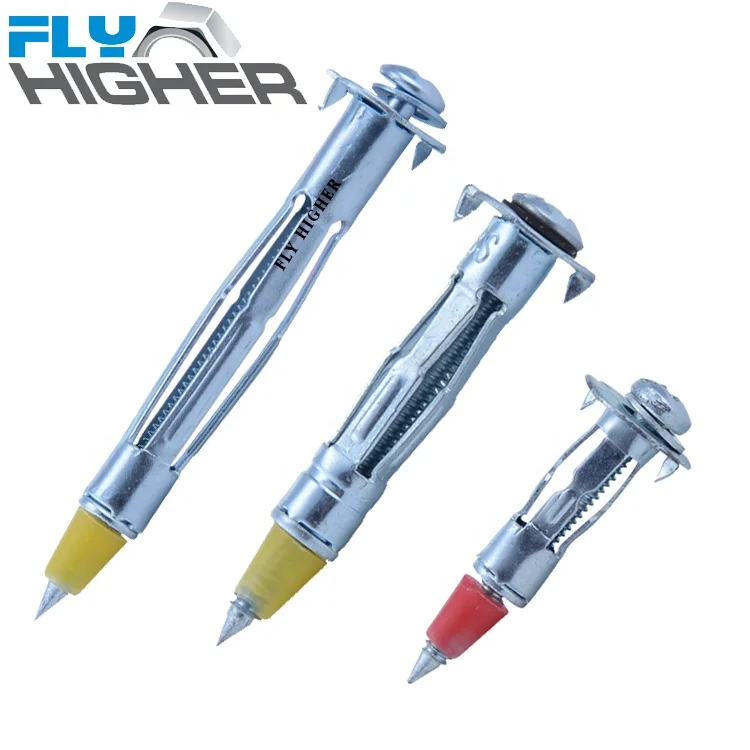

1.Drill a hole to the recommended diameter. (HW10M4P may be hammered into plasterboard)
2.Tap the anchor into the hole until it is flush with the surface of the substrate.
3.Attach the setting tool to the head of the screw. Squeeze the trigger to expand the anchor. (Small sizes may be set using a screwdriver)
4.Remove the screw and place it through the fixture then back into the anchor. Tighten the screw until the fixture is fixed.
more product
Packing:100pcs/box 20boxes/carton 36- 40cartons/pallet
Note:There may be changes in the packaging data due to the difference in the production lot, subject to the actual shipment packing list.
