D450/D430 EDM Die Sinking Machine For 0.1mm Roughness High Accuracy Sparking Erosion Wire Cut

Product Overview

Description

Product Description

Ipretech Machinery——EDM sinker machine is used for cavity forming. It utilizes conductive material (copper, graphite, steel) as electrode to process workpiece (conductive material) by spark erosion. Main use: processing precious die, cavity mold and so on. It is widely used in metal processing and mold making workshop.



Our company's EDM series machines are featured in strong functions, convenient and reliable operation, of fairly good rigidity, running placidly, of good controllability, suitable to process conductive metal moulds, complicated metal parts and templates with high precision, high toughness and difficult processing. EDM process has become the important part in the field of mechanical manufacture. They are widely used in the fields of moulds, electronic instruments, precision mechanical process, automobile parts, military, etc.





Specification	Unit	D450(430)
Worktable size	mm	700*400
X-Y Stroke	mm	450*350(400*300)
Z axis stroke	mm	300
distance from electrode head to worktable	um	320-620
working tank inner size	mm	1080 x 700 x 450
Max. Electrode weight	kgs	100
workable loading	kgs	1000
Machine Weight	kgs	2500
Processing current	A	30/50
Positioning accuracy	mm	0.005
Repositioning accuracy	mm	0.003
Max.working speed	mm3/min	360/550
Max. Roughness	um	Ra:0.15
Max.electrode consumption		<0.2%
Controller Overall Size	mm	750*650*1750
Controller Weight	kgs	250

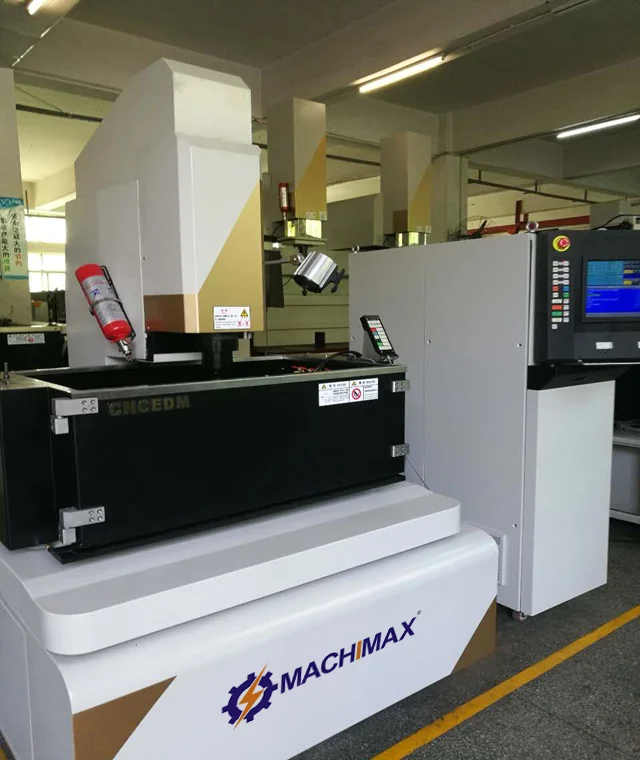

Machine Photo







Our Service

1. Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.



2. After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* One-year warranty.

*Free techinical support for machine life-sapn

Packing & Delivery

Packing: Vaccum packing + wooden case

Delivery: Popular type 15-20 days, complicated or customized types for 20-30 days.

Company Information



Ipretech machinery company limited is an integrated research & development, manufacturing, import & export as one of the professional CNC machinery tool enterprises. Mainly engaged in a full ranges production of electric sparking series CNC machine and milling machine, machine center, CNC lathe and so on. Our company all products are independent research and development, design and manufacture by advanced design idea & method, the machine body adopts modularization, solid sealed box type structure, after artificial aging qualified castings and a long time the natural aging, obtain complete and reliable stability, with our company independent research and development of the circuit system and software, has excellent mechanical and electrical matching performance, thus greatly improve the stability of product electrical performance.





Under the leadership of our boss Mr.JiaYi, the company has gained two systems ----ISO9001:2000 Quality System Certification and ISO14001:1996 Environmental System Certification, And own appearance design patent certificate and utility model patent certificate, science and technology enterprise qualification certificate 16pcs, ALSO ovserve contracts and keep promises etc. qualification and honor. Ipretech machinery have grown up to be one of the Top EDM manufacturer and Exporter in China. Our market covers the United States, Mexico, Brazil, Argentina, Chile, South Korea, Indonesia, Malaysia, Vietnam, India, Pakistan, Russia, Turkey,Egypt, Italy, Poland, the Czech Republic, Hungary and the United Kingdom.
