4 sides warehouse logistics nesting supermarket galvanized folded storage metal wire mesh rolling security cage
- Category: Cargo & Storage Equipment >>>
- Supplier: Dalian,Huameilong,Metal,Products,Co.,Ltd.
Share on:
Product Overview
Description
Similar products
Click to more designs of China roll cage containers
Product Description
4 sides warehouse logistics nesting supermarket galvanized folded storage metal wire mesh rolling security cage

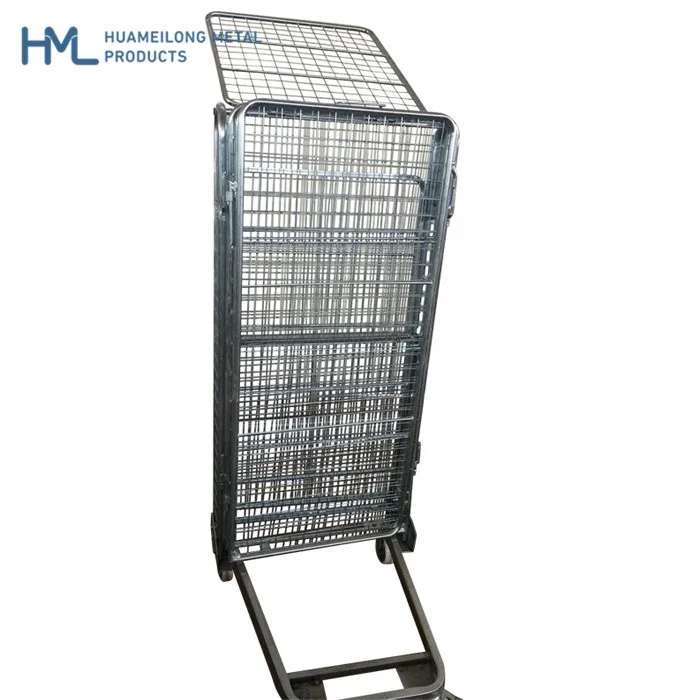

Four sided nesting “A” frame, with top lid. Its tight mesh design makes
it also the perfect anti-theft unit
Specification of rolling security cage
| Similar products | |||||
| Model No. | Exterior Dimension | Tube Diameter | Wire Diameter | Loading Capacity | Loaded in 1x40'HQ |
| LxWxH(mm) | mm | mm | kg | sets | |
| HML-BY07 | 720x810x1650 | Φ20x2 | Φ8&Φ 6 | 600 | 450 |
| HML-BY08 | 734x854x1680 | Φ19x2 | Φ10&Φ 6 | 600 | 320 |
| HML-BY09 | 734x854x1680 | Φ19x2 | Φ10&Φ 6 | 600 | 320 |
| HML-BY10 | 734x854x1680 | Φ19x2 | Φ3 | 600 | 320 |
| Material | Mild steel Q235 | ||||
| Available design | top lid/ inner shelf | ||||
| Application area | Warehouse, logistic, supermarket, etc. | ||||
| Finish | Zinc/powder coating | ||||
| Remark | Customized or OEM support | ||||

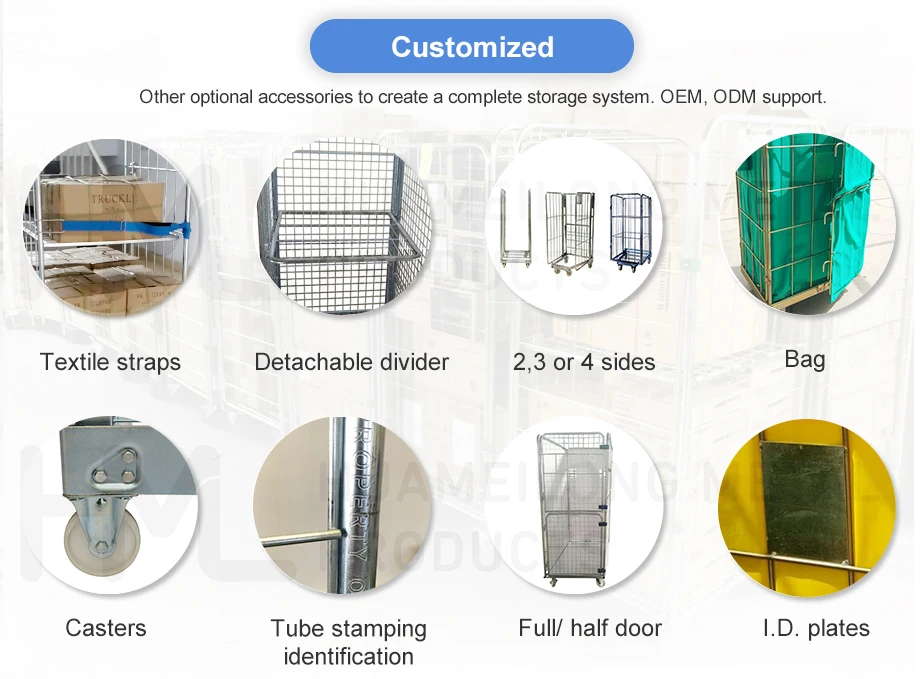

| Product Features | 1.Fold and nest for storage 2.Bright electro zinc plated finish 3.Smooth running nylon,pp castors with roll bearings 4.Strong reinforced design 5.Available with 2,3 or 4 sides and optional washed 6.Security option available | ||||
Benefits & Designs
Uses & packaging

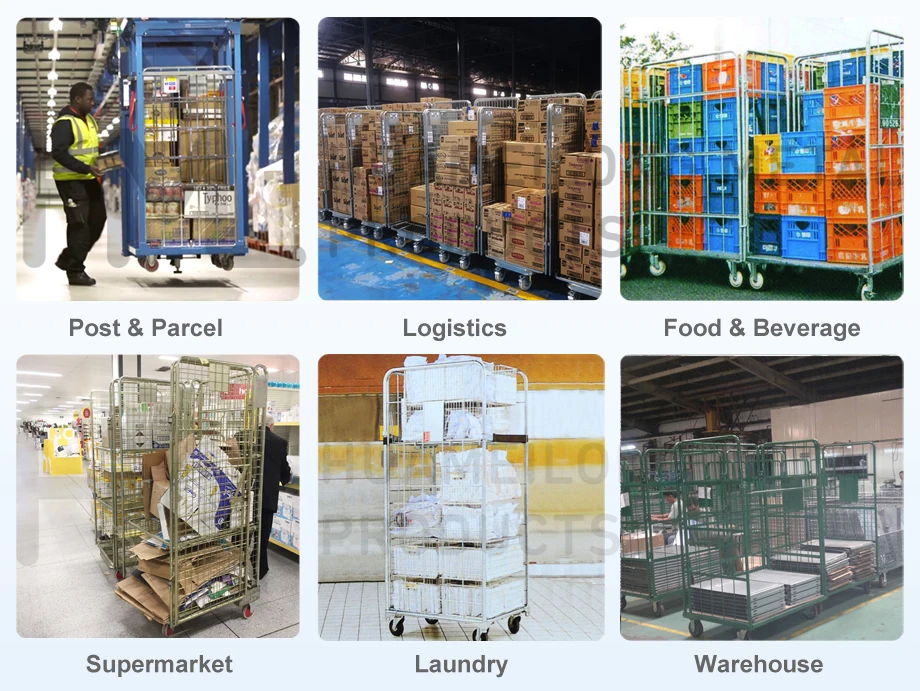

Widely used for warehouse/ supermarket/ laundry/ transport industries, etc.
Rolling security cage and wheels are packed seperately
Client Testimonial
QC & product tests
Who we are
1, What is the material being used for your products?
---Mild steel Q235, Q195
2, How is the goods being packed?
---Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with standard
forklift truck or pallet jack.
3, What is the payment terms I can get?
---TT or L/C at sight, DP etc
4, What kind of finish do you provide for your goods?
---A.Electro galvanized/Zinc plated: the zinc serves as a sacrificial anode( indoor storage)
B.Hot dip galanized: it forms a coating of corrosion resistant zinc
(indoor/outdoor and cold storage)
C.Powder coating: a type of coating that is applied as a free flowing, dry powder
(indoor/outdoor storage)
5, What is the loading capacity?
---In general, we have light duty(100~300kg) model,medium duty(400~800kg) model
and heavy duty(1000~1700kg) model available for your choice.
6 Which product can be used in cold storage?
---Mobile rack,wire container and roll cage are all widely used in cold storage.
7 I like your design, but couldn‘t find the right model from the products list, is custom size available?
---Yes, we do custom products and projects.
8 I would like to have my own design products and qty is not that big, is it ok?
---Yes, we can go with your custom design, no matter small or big qty, however, pls understand
the cost will be different.
9 I don't have drawing or picture available for the custom products, could you design it
for me?
--Yes, we can make the best suitable design for you but do need to know the details, such as
a) dimension b) loading capacity c)stackability d)operation environment
10 What is the minimum quantity I can order?
--1x20'GP - quantity is variable depend on the size
11 What is your average production lead time?
--3-4 weeks against formal order and deposit.
12 Do I get any guarantee from your company?
-3~10 years warranty in case that
A) Proper handling during operation, correctly forklift handling while stacking/unstacking
B) Overloading is prohibited
C) Environment request indoor, dry and nothumid circumstance, do not contact with any corrosive chemical material (for zinc plated and powder coated products, no limitation for hot dip galvanized)
