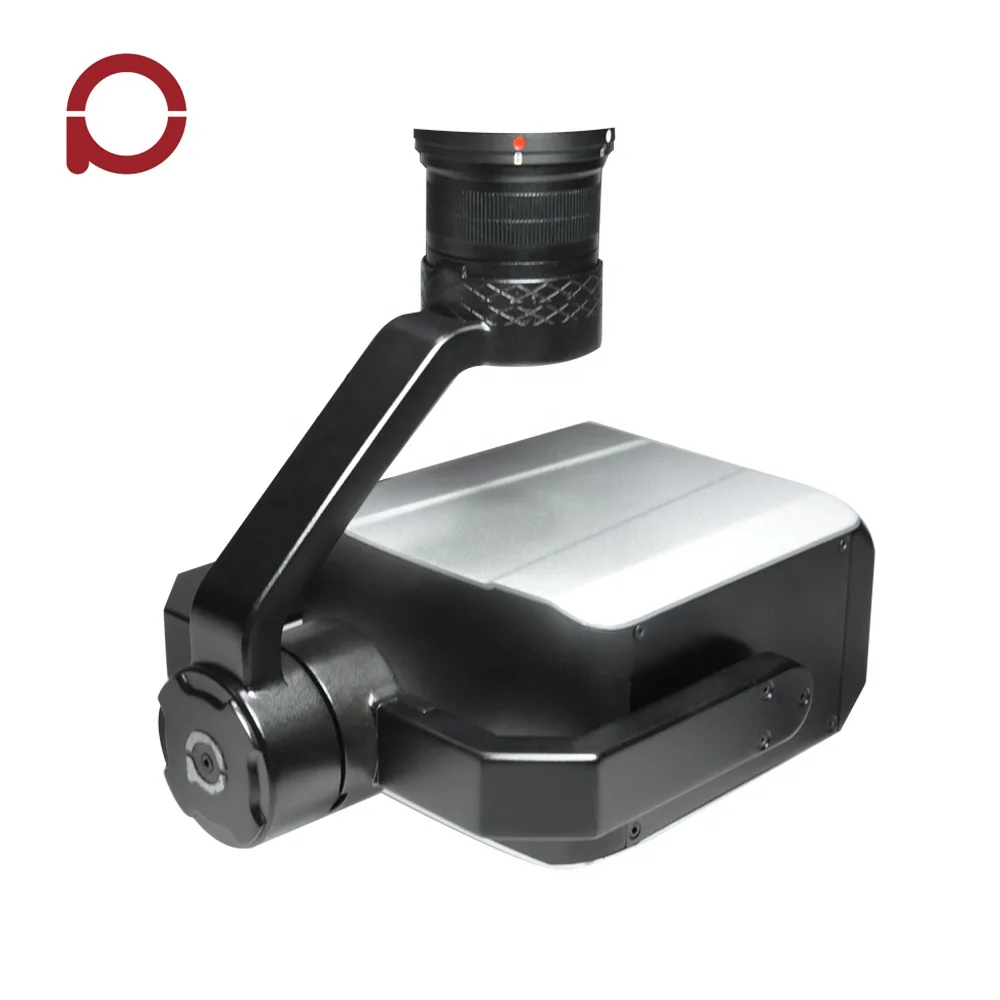

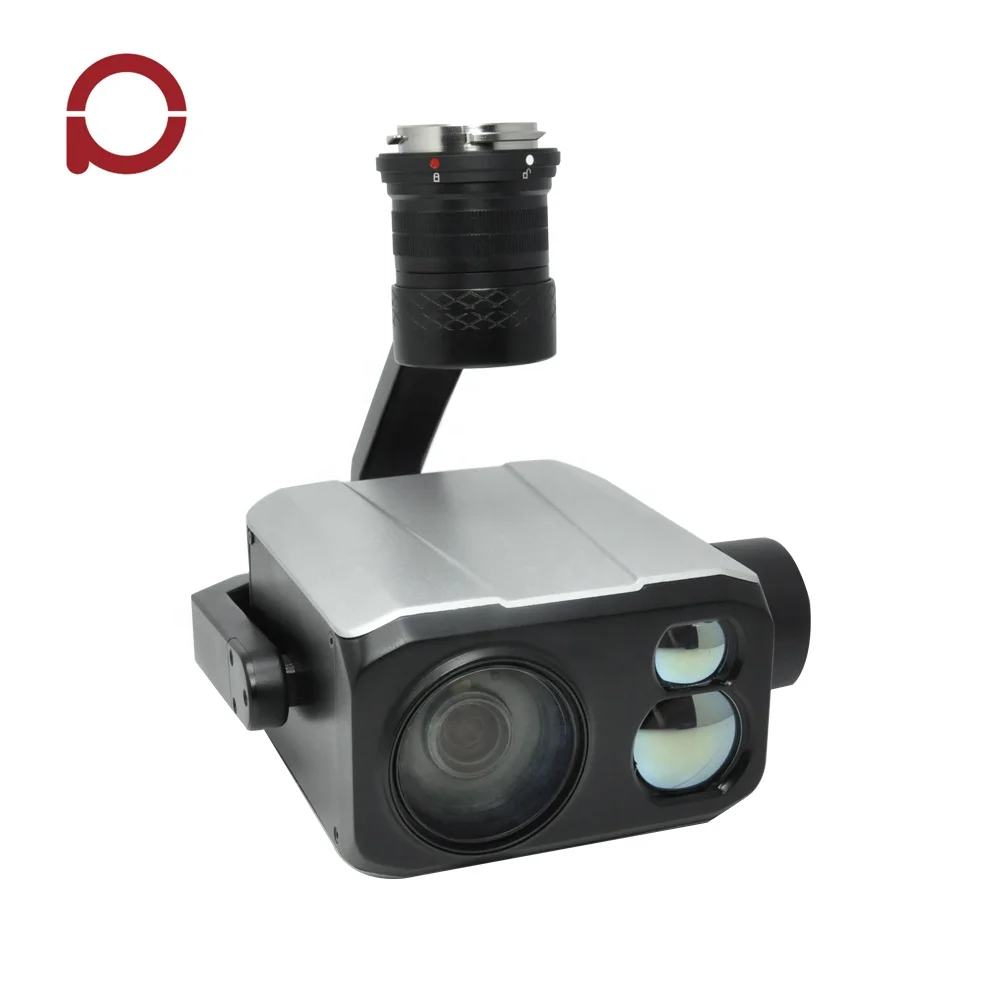

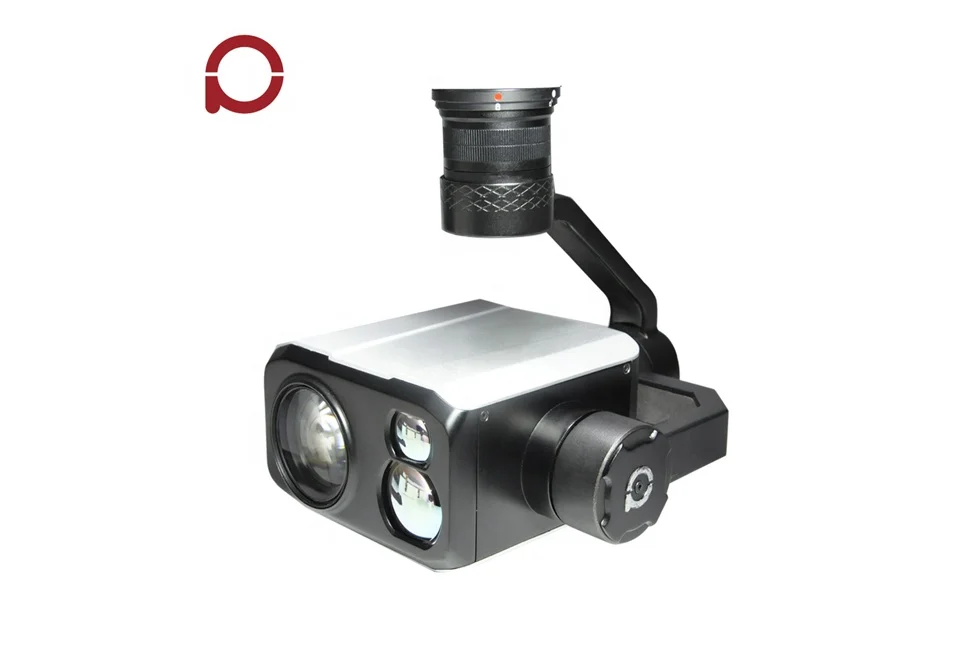

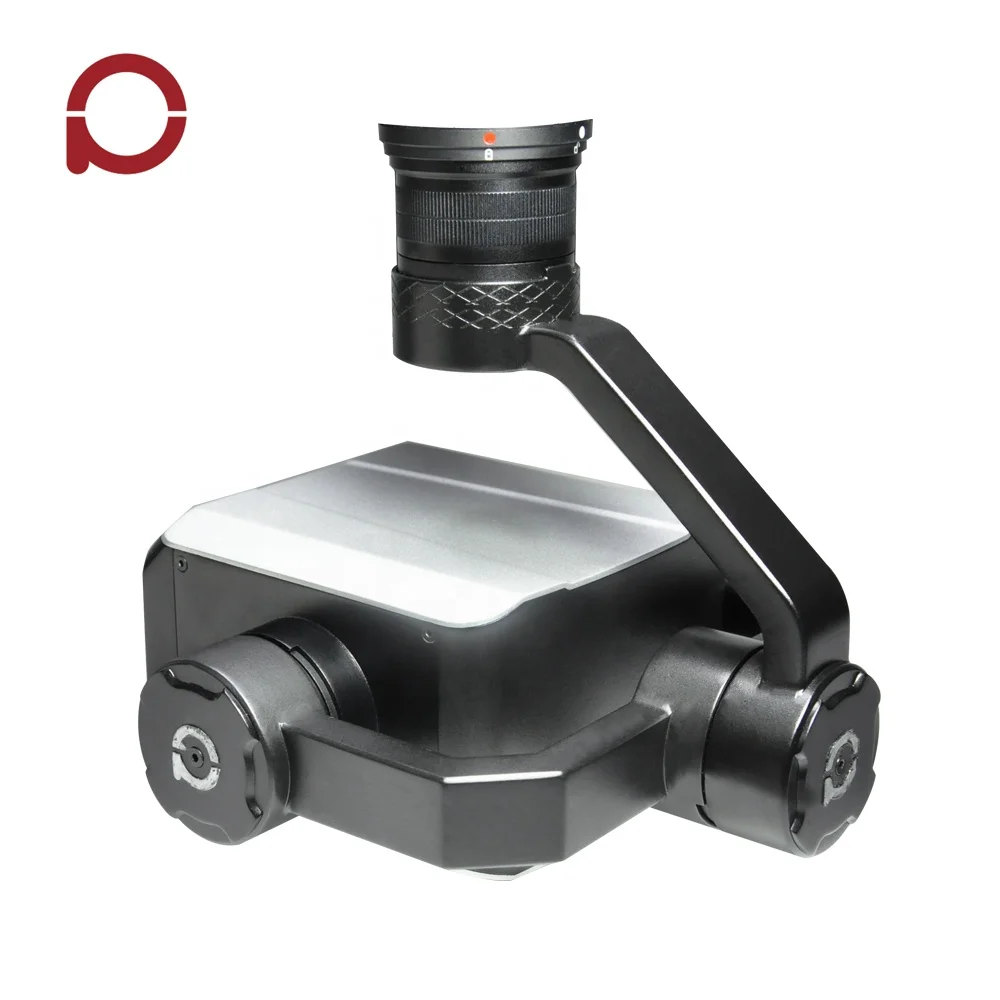

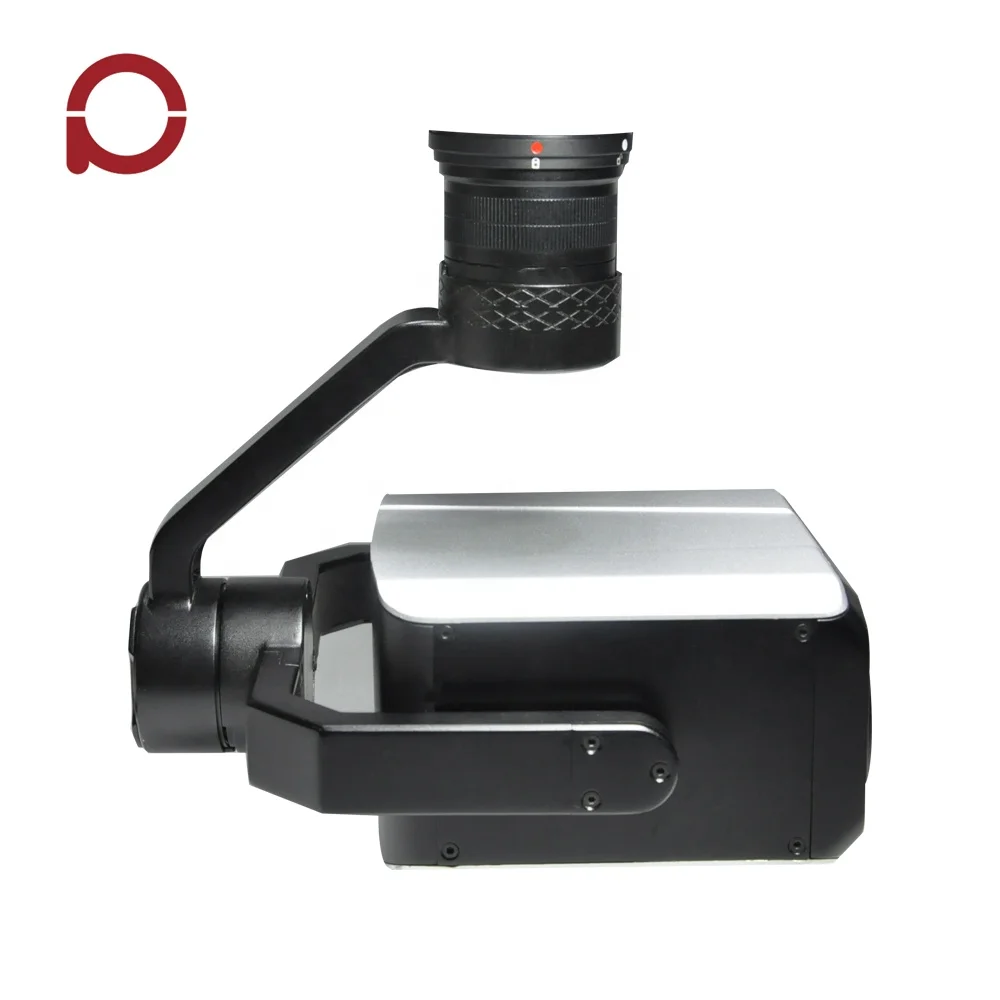

Features high stability, small size, light weight and low power consumption suitable for UAV, especially multirotor aircraft. Z30TM has DJI PSDK version can be compatible with DJI Matrice 200, 210, 210RTK and V2 series. 30x times optical zoom SONY camera module provide clear images even in dark evening. Built-in laser rangefinder module and precise algorithm can resolve target GPS coordinate and distance accurately. Can be applied in various fields like military reconnaissance, public security surveillance, traffic monitoring, fire fighting, wildlife spotting, disaster management and rescue etc.
Gimbal spec
Pitch/Tilt
±90°
Roll
±85°
Yaw/Pan
±150°
Vibration angle
Picth/Roll: ±0.02°, Yaw:±0.03°
Camera spec
Imager Sensor
SONY 1/2.8-type Exmor R CMOS
Effective pixel
2.13MP
Lens optical zoom
30x, F=4.3~129mm
Min object distance
10mm(wide end) to 1200mm(tele end). Default 300mm
Horizontal viewing angle
63.7°(wide end) ~ 2.3°(tele end)
Shutter speed
1/1s to 1/10,000s, 22 steps
Defog
Yes
OSD
Yes
Camera Object Tracking
Update rate of deviation pixel
50Hz
Output delay of deviation pixel
<10ms
SNR
4
Object size range
32*32 pixel ~ 128*128 pixel
Object memory time
100 frames (4s)
Laser Rangefinder
Range
5~1500 meters
Location display
Latitude and longitude

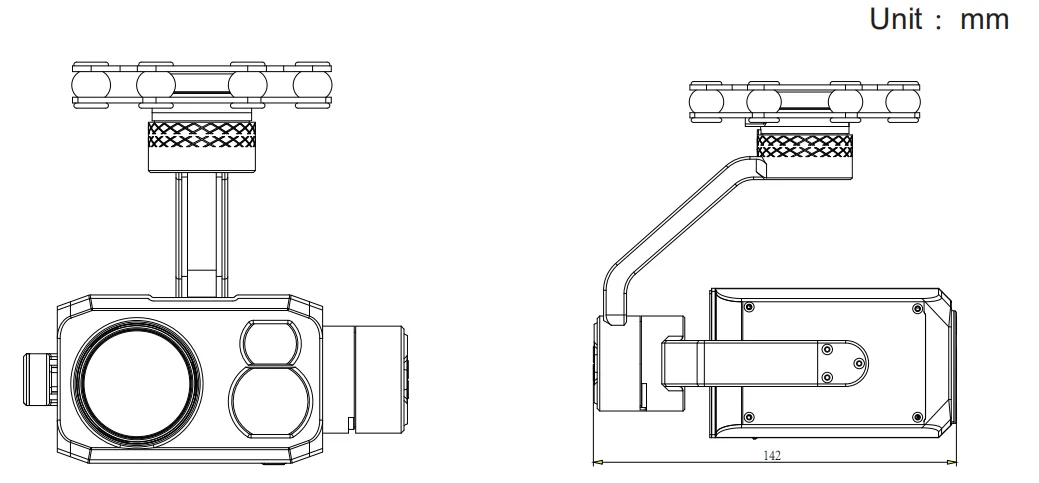

Product Measurement: 135.5*135*120mm

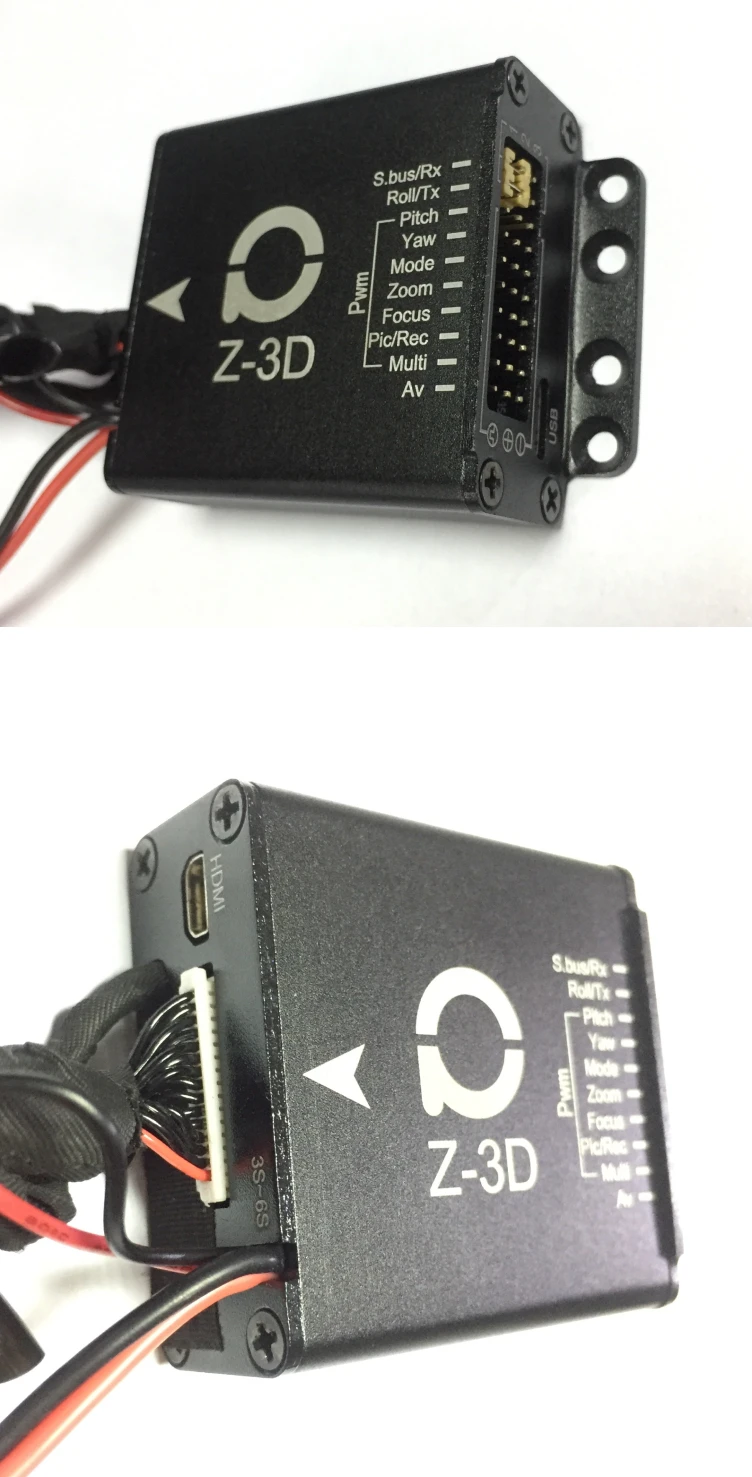

Control Box:
Packaging & Shipping
Packing: 1 unit/ Plastic box with foam protection
(Each unit including: 1pc gimbal camera device, 16pcs screws, 4pcs copper cylinders, 12pcs damping balls) G.W.: 3017g Package size: 360*300*250mm
Lead Time: ≤ 5pcs, 5days
5~20pcs, 15 workdays
2000pcs/month
Please feel free to contact with us for any further information.
