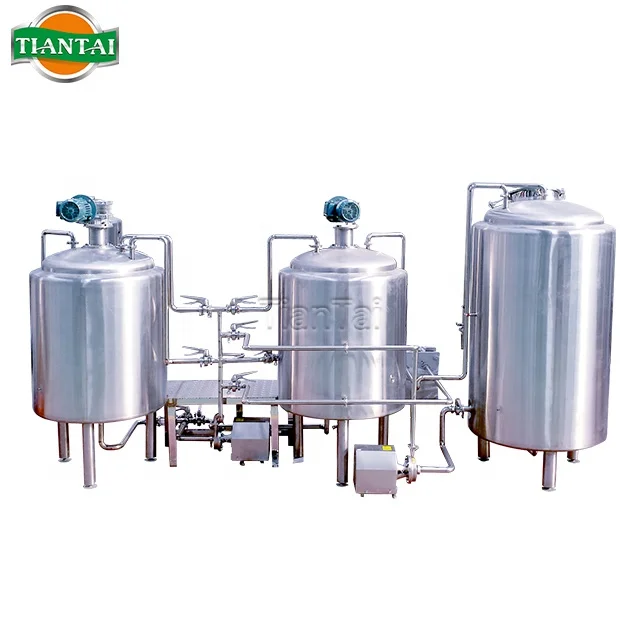

Tiantai 200L 2HL ss steam three vessel semiauto beer pilot plant

Product Overview

Description

Tiantai 200L 2HL ss steam three vessel semiauto beer pilot plant

200L 2HL beer brewing system is small batch brewing, it is normally run as pilot system or teaching in school. In order to lower the beer brewing cost, some brewmasters will add auxiliary material for example rice into brewing recipes. Then extra tank cereal cooker will be needed.



If the customer no limitations on budget, the brewhouse can be heated by steam. With steam heating, we can get high heating efficiency and temperature is easy control. It is good for producing better quality beer. Steam heating is preferred by many brew masters as well.



Basically, one set of complete beer pilot plant includes Grain Miller, Beer Brewhouse, Fermentation Unitank, Glycol Cooling System, Brewery Control Cabinet, CIP system.



We provide turnkey solution, if you are looking for pilot brewing system.

Tiantai 200L 2HL ss steam three vessel semiauto beer pilot plant

Send Inquiry

Click to Contact Derrick Now

Tiantai 200L 2HL ss steam three vessel semiauto beer pilot plant



Tiantai 200L 2HL ss steam three vessel semiauto beer pilot plant

1)19 years experience on beer equipment manufacturing and design

2)1100+ global users and win high praise from abroad customers

3)One Stop Service and provide turnkey solution include design, produce, install and training.

4)ISO, CE, ASME certifications for tanks

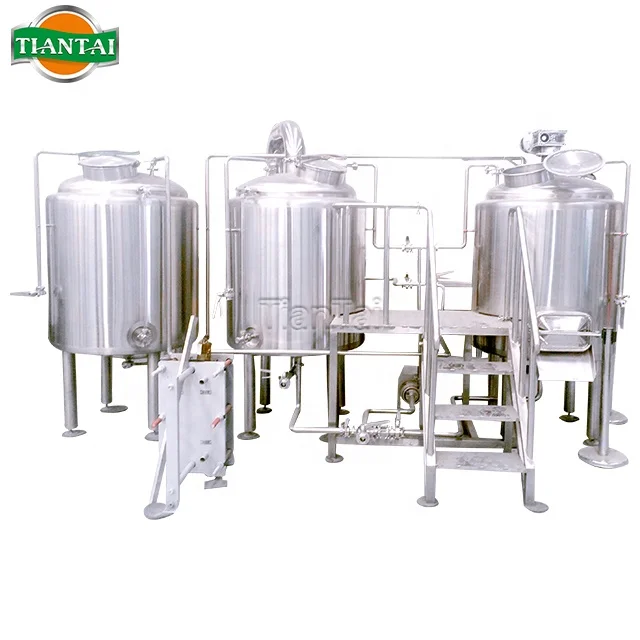

1) The brewhouse combination is based on three vessel structure Cereal Cooker + MLT + KWT + HLT.

2) It is suitable to do infusion mashing method.

3) The brewhouse tanks are heated by steam.

4) With two stage heat exchanger, the wort will be cooled by city water and glycol water.

5) Control cabinet with flow chart for easy understanding.

Beer Brewing System	Components	Specifications
Milling System	Grain Miller	80 - 150 kg/hr Stainless steel double roller Carbon steel cover and fream
Cooker	Cereal Cooker	100L 30% head space Steam heating with insulation Agitator
Brewhouse Unit	MLT	200L 25% head space, Steam heating with insulation False bottom Rake&motor with reducer Spent grain outlet CIP spray ball
	KWT	200L 30% head space Steam heating with insulation Steam condenser Wort outlet and trub outlet Tangential inlet
	HLT	300L 15% head space, Steam heating with insulation CIP spray ball Level gauge Hot water recycling port Overflow port
	Other Accessories	2 x 3T/H centrifugal pump 2 stage 2M2 heat exchanger Platform Stainless steel wort grant
Fermentation Unit	Fermentation Tank	2HL 25% head space, Jacketed and insulated Conical bottom Pressure relief valve 2 bar Sample valve Top manway CIP Spray ball Racking arm Pressure gauge
Glycol Cooling System	Glycol Cooling Tank	500L Thermowell Top manway CIP arm and spray ball Thermowell
	Chiller	1 X3HP Self-protection control
	Glycol Pipeline	Pump and PPR pile
Control Cabinet	Brewhouse Control	Pump on/off with VFD control Rake or Agitator motor on/off with VFD control Temperature display and Auto/Manu heating Control for brewhouse tanks Auto/Manu Glycol Water Pump control Temperature display and Auto/Manu Control for FVs Temperature display and Control for GWT
CIP Unit	CIP System	Caustic tank and Sterilization tank 3T/H centrifugal pump CIP pump on/off Temperature display and Control for caustic tank Level switch for anti-dry burning
