Product Description


Introduction

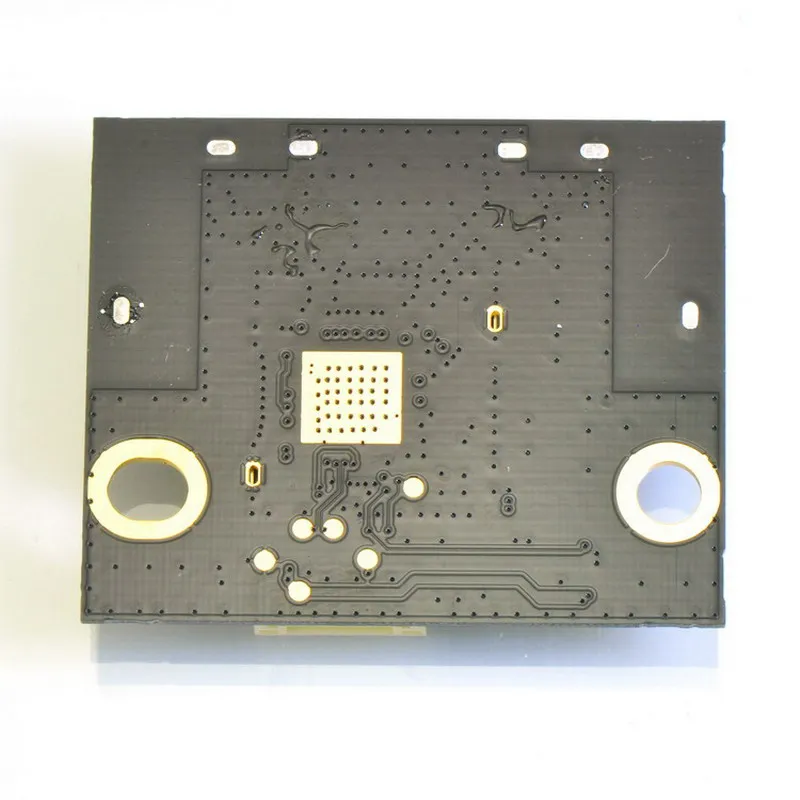

F23BUUM25-B1 is a small size and low profile of WiFi + BT Combo module with LGA (Land-Grid Array) footprint, board size is 40.0mm*33.0mm with module thickness of 5.4mm. It can be easily manufactured on SMT process and highly suitable for tablet PC, ultra book, mobile device and consumer products. It provides USB interface for WiFi to connect with host processor and high speed USB interface for BT.It also has a PCM interface for audio data transmission with direct link to external audio codec via BT controller. The WiFi throughput can go up to 300Mbps in theory by using 2x2 802.11n b/g/n MIMO technology and Bluetooth can support BT2.1and BT4.0.

F23BUUM25-B1 uses Realtek RTL8723BU, a highly integrated WiFi/BT single chip based on advanced COMS process. RTL8723BU integrates whole WiFi/BT function blocks into a chip, such as USB, MAC, BB, AFE, RFE, PA, EEPROM and LDO/SWR, except fewer passive components remained on PCB.



Features

Operate at ISM frequency bands (2.4GHz)

USB for WiFi and Bluetooth

IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11d, IEEE 802.11e, IEEE 802.11h, IEEE 802.11i

Fully Qualified for Bluetooth 2.1+EDR specification including both 2Mbps and 3Mbps modulation mode

Fully qualified for Bluetooth 4.0 Dual mode

Full–speed Bluetooth operation with Piconet and Scatternet support

Enterprise level security which can apply WPA/WPA2 certification for WiFi.

WiFi 2 transmitter and 2 receiver allow data rates supporting up to 300 Mbps downstream and 300 Mbps upstream PHYrates






Application Range:

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

& Industrial And Vehical Application

Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile

& Medical Application

Medical equipments/Medical instruments
& Other Consumer Electronic Products





Detailed Parameters


Model No
F23BUUM25-B1
Main Chipset
RTL8723BU
WIFI/BT Interface
USB
WIFI Standars
IEEE 802.11b/g/n+BT4.0
Date Rates
150Mbps
Certification
RoHS,REACH
RF Antenna
external Antenn
OS Supported
Android /Linux/Windows
Operating Frequency
2.4-5.8GHz
Operating Voltagc
5V
Dimensions
40.0x 33.0x5.4  mm
RF Chains
1T1R
Operating temperature
-0°C to 70°C
Storage temperature
-40°C to 8O°C


Reference Design





Note


Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download from the official website or sales.
