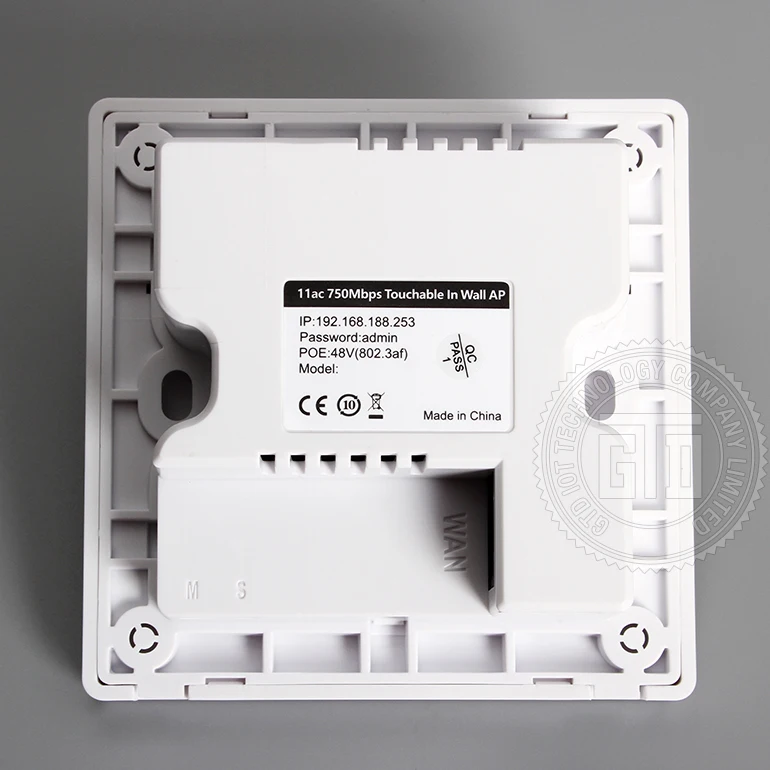

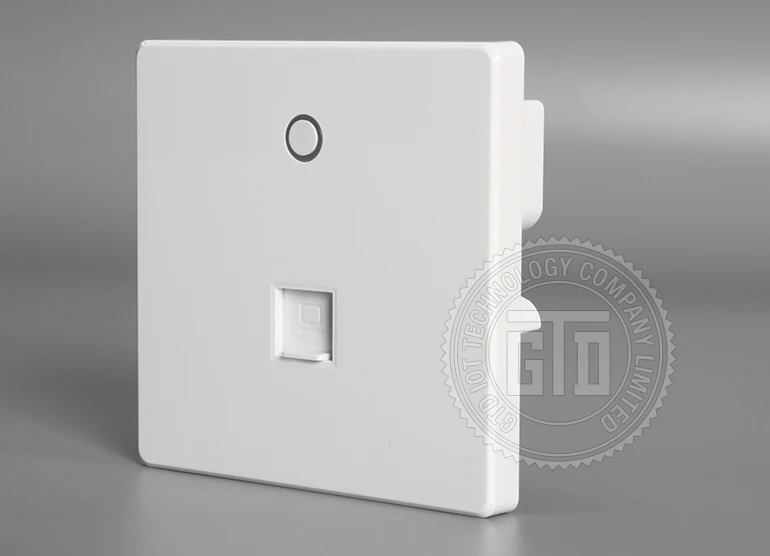

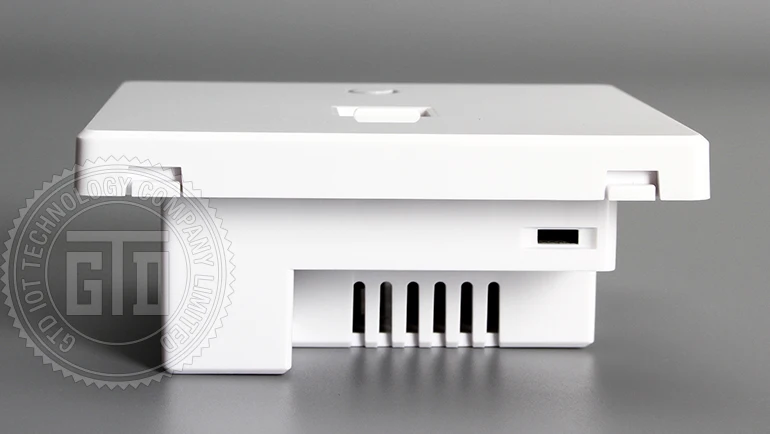

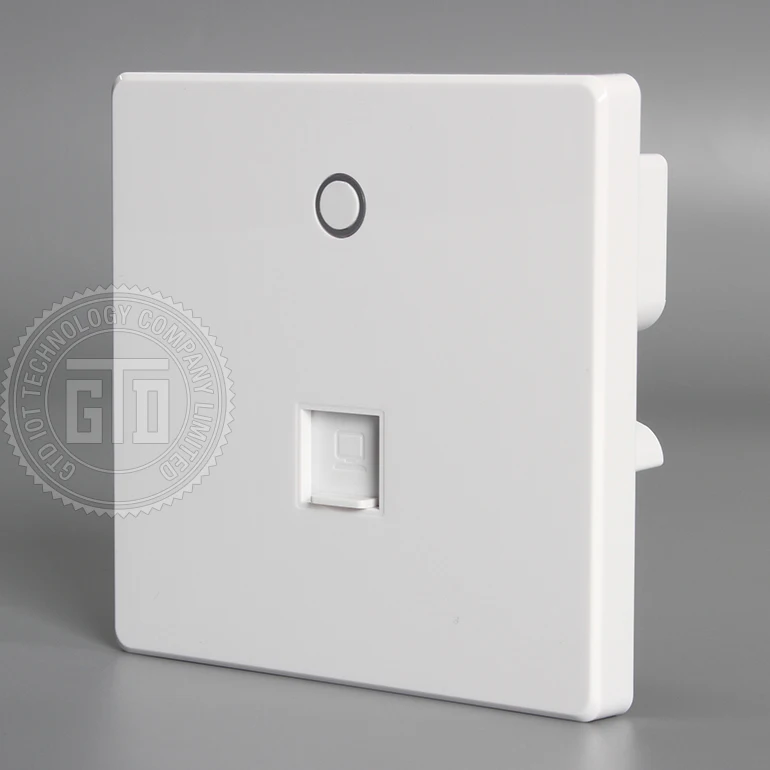

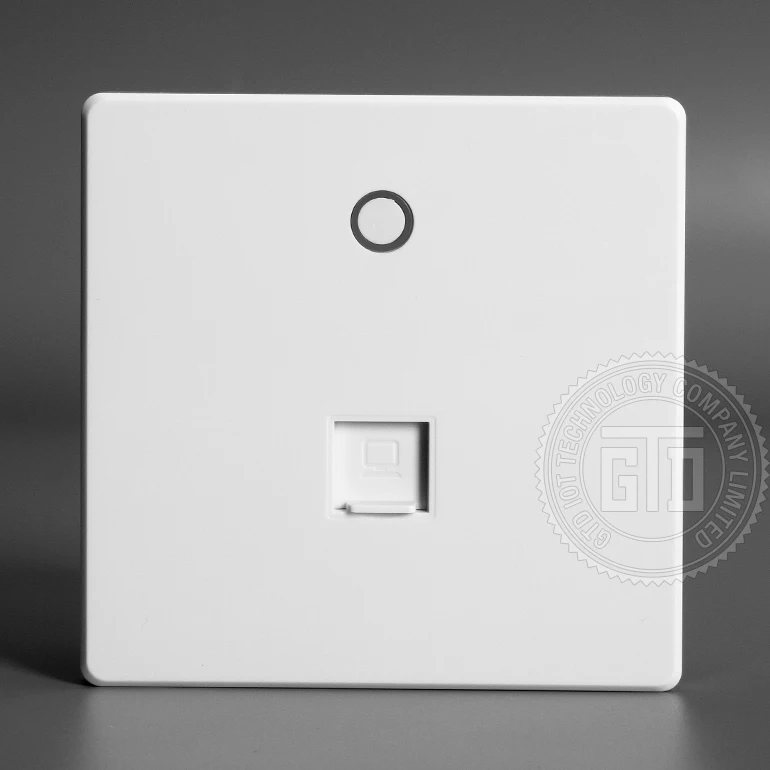

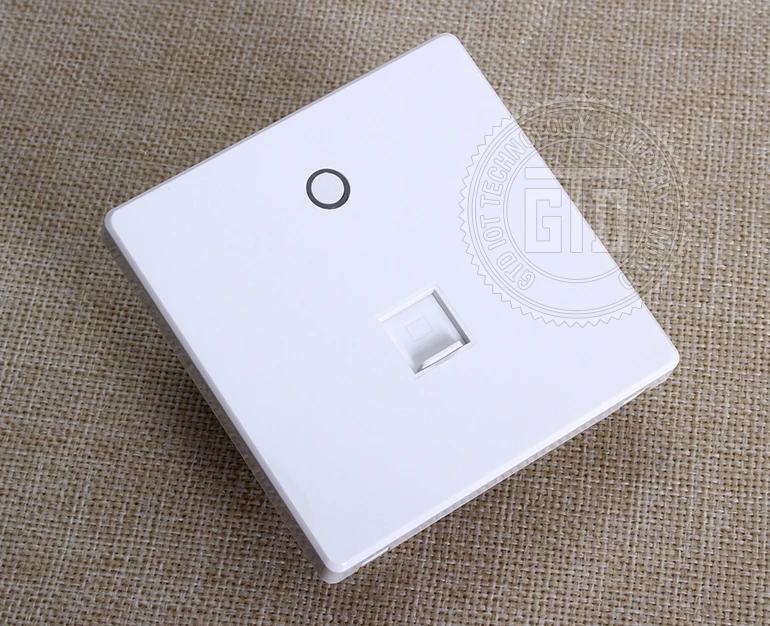

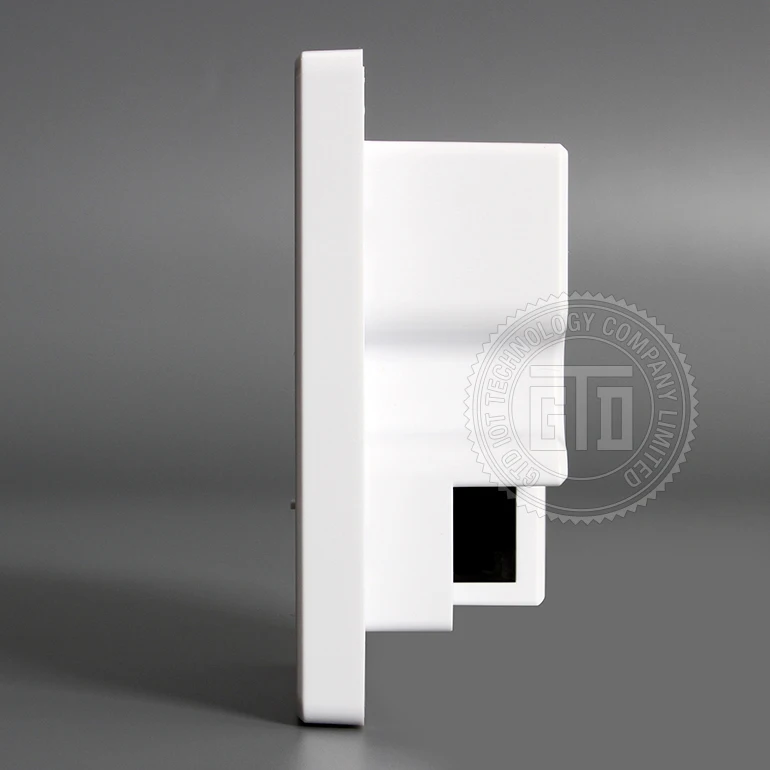

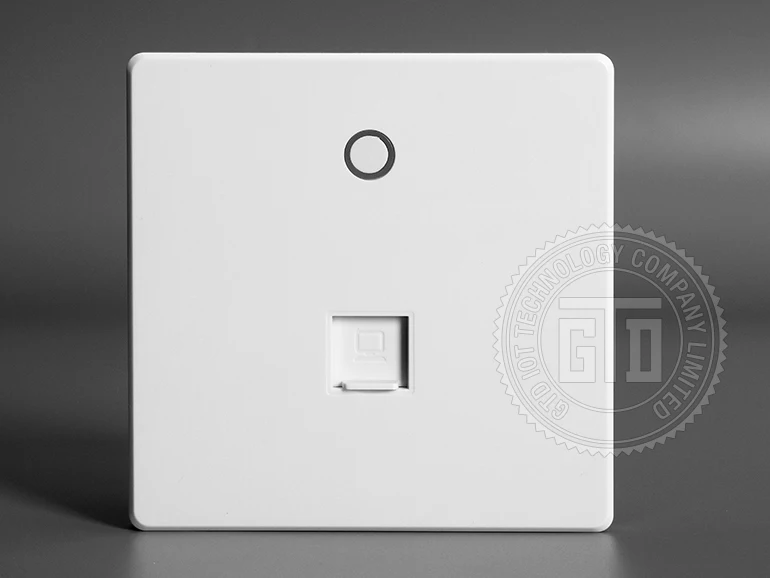

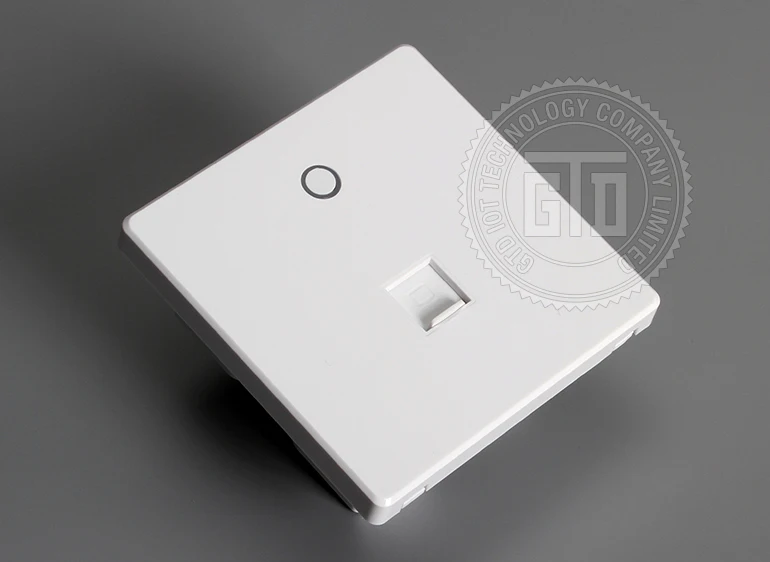

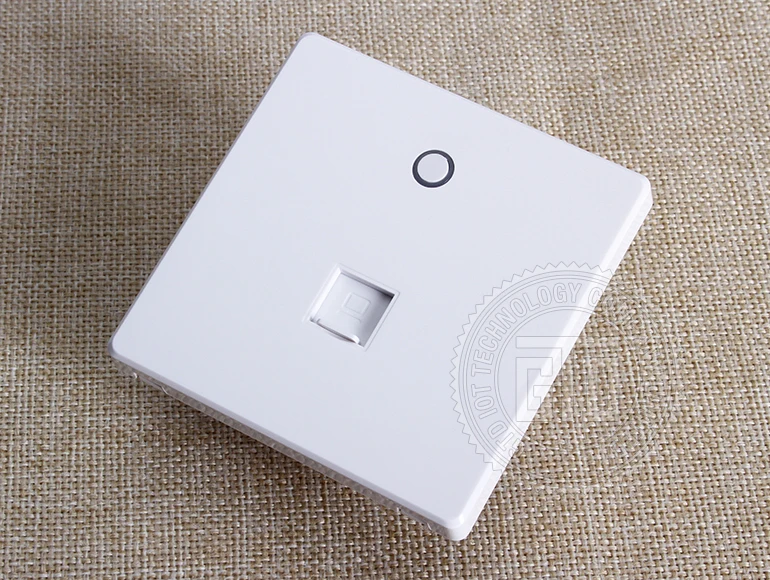

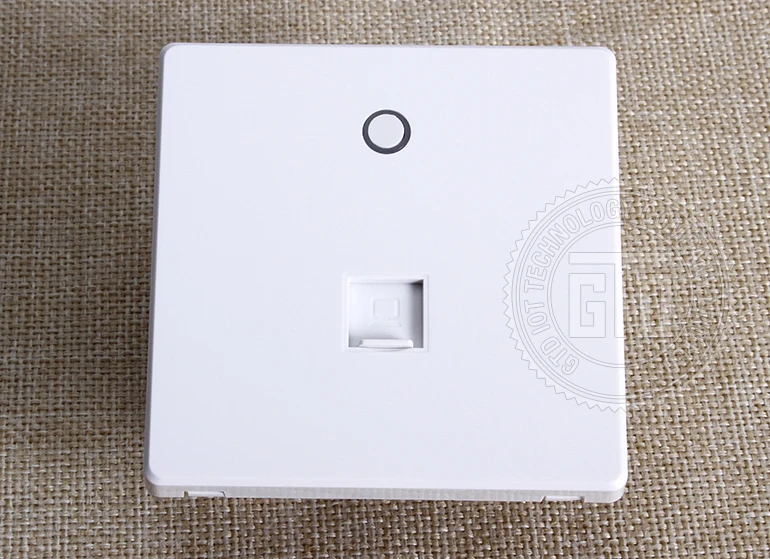

48V POE power supply 750Mbps 2.4GHz and 5.8Ghz dual frequency In wall Wireless AP with USB

Product Overview

Description

48V POE power supply 750Mbps 2.4GHz and 5.8Ghz dual frequency In wall Wireless AP with USB





This product is very practical and hot sold, which support POE powe supply with dual chip and dual frequency, 750M bps, with USB interface, it is goods choice for in wall mounted wireless AP.



Material	Good quality plastic
Color	White standard ( other colors customized )
Size	86*86MM
voltage	48V POE power supply
Chip	Dual chip, QCA9531+QCA9887
Speed	750 Mbps
USB Charging	with USB charging port
Chip	16M Flash storage, 128M DDR2 memory
Working mode	Gateway/AP/WiFi/WDS/WISP
Outlet	128 port using, more than 80 user
antenna	Built-in dual frequency omnidirectional 2.0 *3  antenna
Outlet interface	100M*1 / LAN:100M*1 / RESET:*1/ Button: *1/ 1 USB

















Description:
It is an in wall AP with 750Mbps data rate, designed for hotel mainly to provide guests and roomers secure Internet access and USB charging in their hotel room, guest room, living room and lobby.
It support 802.3af PoE, compliant with any 802.3af Power over Ethernet equipment, easy in setting and complete the full wifi coverage.
The Access Controller System (ACS) is included in this Hotel Wi-Fi Solution, make IT staff fast to manage more than 200PCS AP through PC.


Main Features:

1. In wall design, match with the cassette with size of 86mm or 75mm, easy to complete the hotel WiFi cover.

2. Compliant with IEEE 802.11n standard, 750Mbps in data rate, more faster in download, more freely in internet surf.

3. Support 802.3af PoE, can be powered by any powered by any 802.3af Power over Ethernet equipment, cost savely.

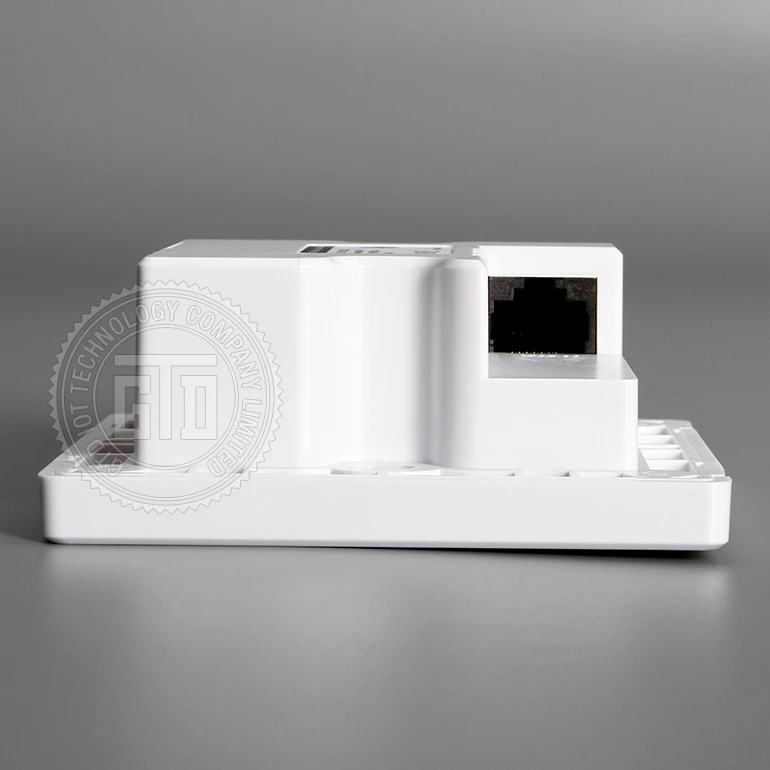

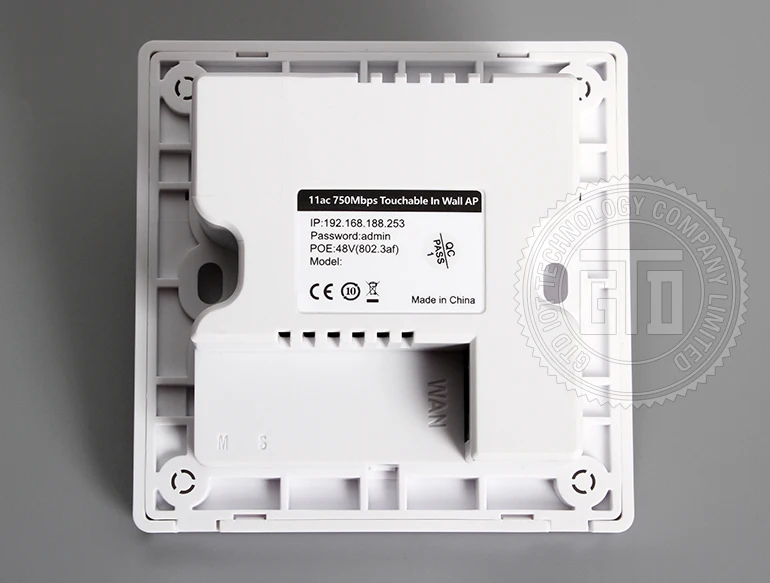

4. It has RJ45 ports, one on the front allowing wired access for guests and one on the rear for network service and power provision. It also has an USB charging port on the front.

 5. Support 802.1Q VLAN manage and Access Controller System(ACS),  the IT staff can sets up different IP addresses, ESSID and manages each room’s AP at the same time. They can remotely add, set up, monitor, delete, upgrade firmware via the ACS through computer.
Specifications:

Wireless
Standards	IEEE802.11ac/n/g/b
Data Rate	11n: 750Mbps
Frequency Range	2.412GHz-2.484GHz, 5.150GHz-5.825GHz
Wireless Transmit Power	≤20dBm
Operation Mode	Router, AP, Repeater
Wireless Security	64/128-bit WEP, WPA/WPA2, WPA /WPA2-Personal (TKIP/AES)
System Requirements	Windows 7/Vista/XP/2000,Mac OS®, Linux or Android OS
Hardware
Interfaces	1*100Mbps LAN 1*100Mbps WAN  1* Reset button 1* Mechanize switch 1 x USB charging port
Button	Reset Button
Antenna	3 x 2.0 dBi Build-in omni-directional Antenna
Power Supply	100-200V AC 50/60Hz or 802.3af 48V PoE

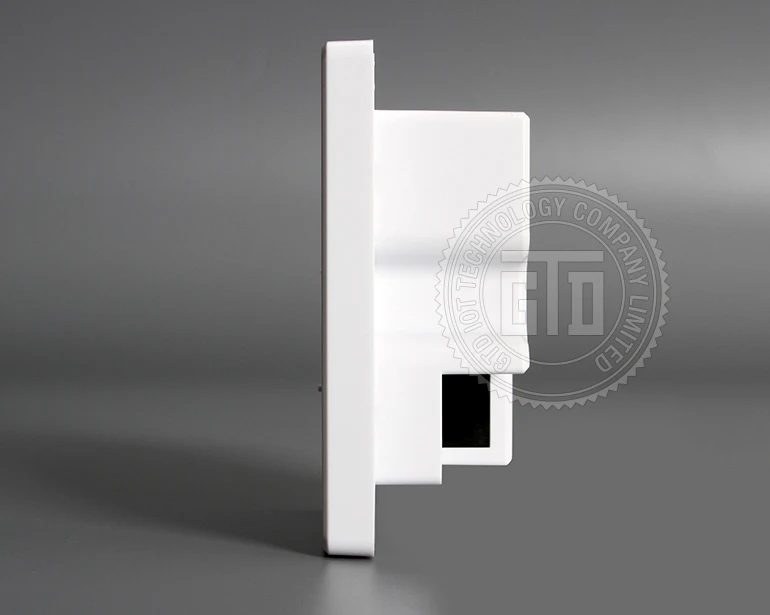

Dimensions( W x D x H )	86*86*38mm
Others
Operating Temperature	0°C~40°C (32°F~104°F)
Storage Temperature	-40°C~70°C (-40°F~158°F)
Relative Humidity	10% ~ 90%, Non-condensing
Storage Humidity	5%~95%, Non-condensing
Certi­fications	RoHS
Package Contents	1 x in wall AP 1 x Quick Installation Guide 1 x setting accessory
