Refractory extruded hollow cordierite mullite kiln plates used for mullite Ceramic Kiln Furniture

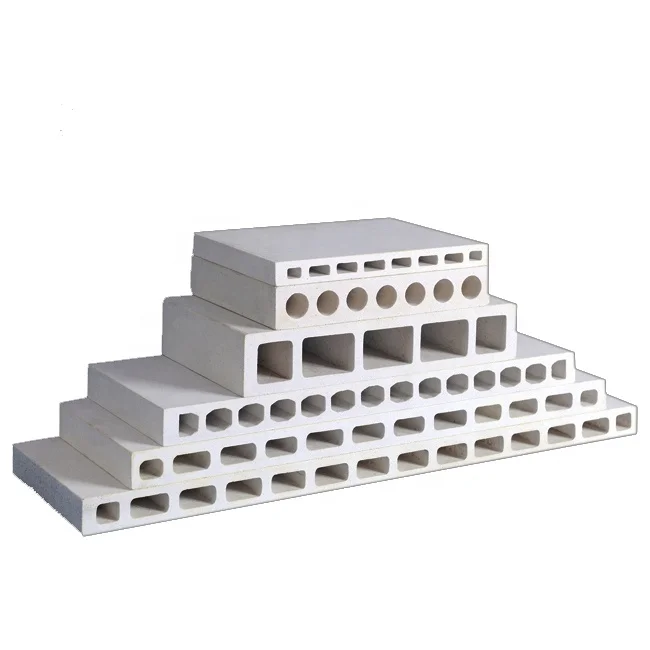

Refractory extruded hollow cordierite mullite kiln plates used for mullite Ceramic Kiln Furniture Plain Batts are the most common type of primary kiln furniture, usually produced by semidry pressing, but can also be made by pressure casting. Extruded batts can be split into three categories as follows.
Lots of sizes and shapes with the thickness of 25mm,30mm,38mm,45mm,70mm and width under 700mm,length under 1650mm.
Extra Large Batt, Extra Thin Batt, Plain Batt, Perforated Batt, Grooved Batt,Trapezoid Batt, Recessed Batt, Full Disc, Half Disc and Special Batt are also workable according to the design of the customers.
|Refractoriness under load||℃||1420||1400||1600|
|Thermal expansion coefficient||10-6.C-1||2.4||2.4||3.5|
|Compressive Strength at room temperature||Mpa||12||12||15|
|Compressive Strength at 1250℃||Mpa||10||10||12|
|Thermal shock resistance||♥||♥♥♥♥♥||♥♥♥♥||♥♥♥|
|Max. working temperature||℃||1250||1220||1300|
Regular dimension (mm):
600*500 600*470 600*400 500*500 500*370 500*340 500*450 485*460 450*450 450*420 420*380 360*360 340*340 330*330 320*320 310*310mm
Note : Thickness on customer’s requirement
Refractory extruded hollow cordierite mullite kiln plates used for mullite Ceramic Kiln Furniture application:

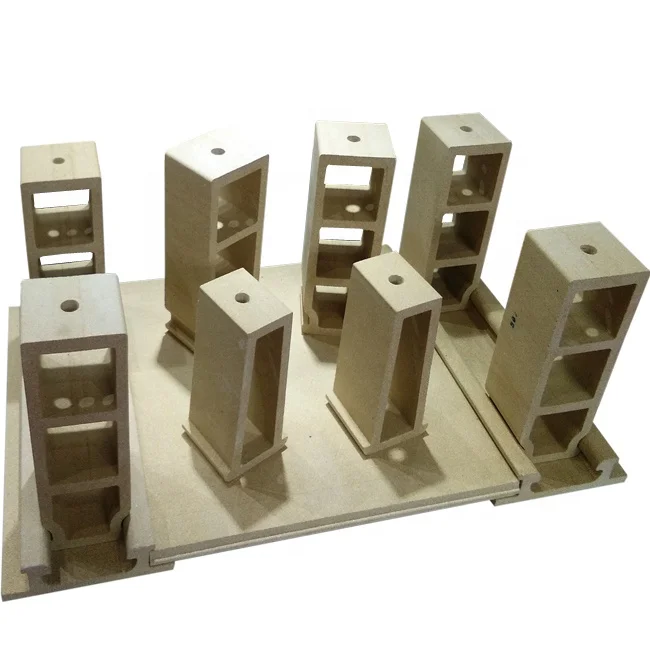

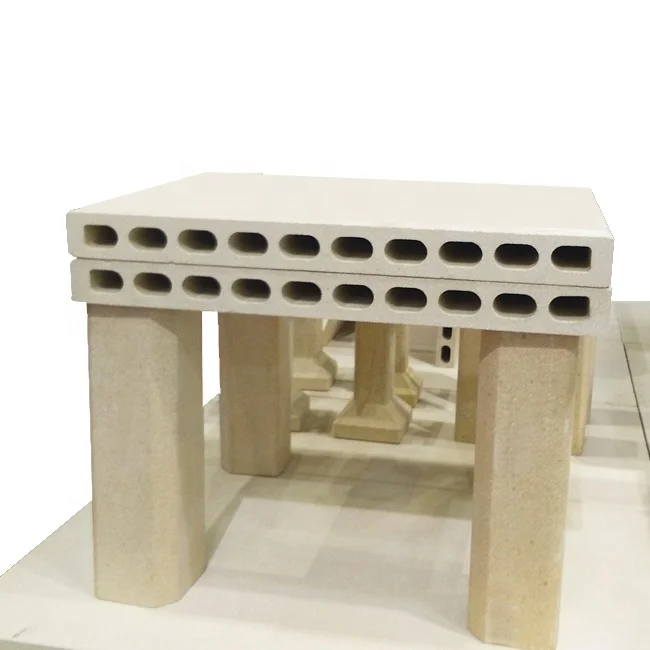

At present the use of Refractory extruded hollow cordierite mullite kiln plates used for mullite Ceramic Kiln Furniture has become a trend .The cordierite mullite hollow and solid plates are used more often in sanitary tunnel kiln,shutle kiln with the connect
pieces of pillar and support.This kind of cordierite mullite kiln furniture is not easy in deformation and cracking,it
has long service life,stable performance,no residue in the use process and it has been recognized by many manufacturers at home and abroad.
