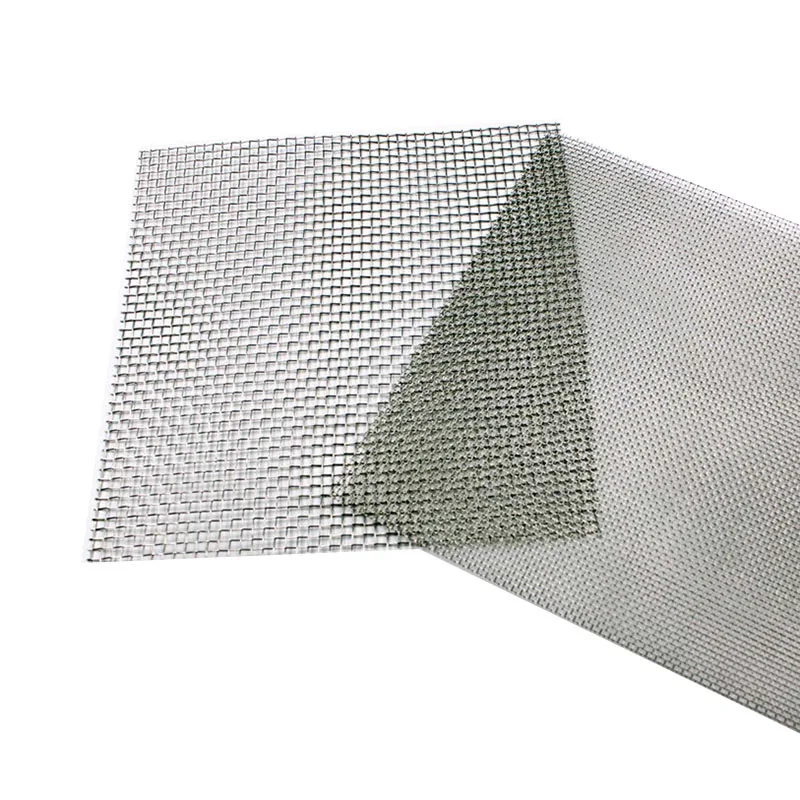

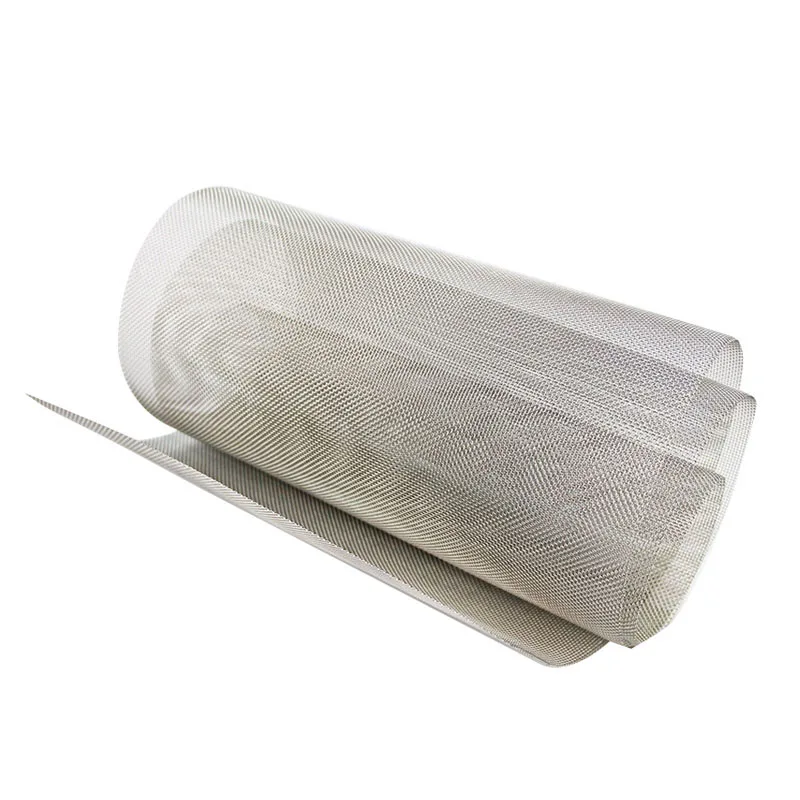

50 75 100 200 300 400 500 900 micron stainless steel wire mesh filter screen

Product Overview

Description









1.Material:  AISI302, 304,316,316L,310S,410,430,904L,2205,2507,etc



2.Wire Diameter:  0.015-2.8mm



3.Mesh count:



Plain weave can be woven up to 400 mesh.

Twill weave can be woven from 400 to 635mesh.

Dutch weave  can be woven up to 3500mesh



4.Weave pattern:    Plain Weave ,Twill Weave,Dutch Weave,etc.





5.Features:

• Corrosion resistance.
• Anti-acid and alkali
• Anti-high temperture.
• Good filter performance.
• Long using life

6.Application:

• In acid, alkali environment conditions sieving and filtering.
• Petroleum industry as mud mesh,.
• Chemical fiber industry as screen mesh.
• Plating industry as acid cleaning mesh.



Stainless Steel Wire Mesh
Mesh/inch	Wire Diameter (mm)	Aperture (mm)		Mesh/inch	Wire diameter (mm)	Aperture (mm)
2mesh	1.80	10.90		60mesh	0.15	0.273
3mesh	1.60	6.866		70mesh	0.14	0.223
4mesh	1.20	5.15		80mesh	0.12	0.198
5mesh	0.91	4.17		90mesh	0.11	0.172
6mesh	0.80	3.433		100mesh	0.10	0.154
8mesh	0.60	2.575		120mesh	0.08	0.132
10mesh	0.55	1.990		140mesh	0.07	0.111
12mesh	0.50	1.616		150mesh	0.065	0.104
14mesh	0.45	1.362		160mesh	0.065	0.094
16mesh	0.40	1.188		180mesh	0.053	0.088
18mesh	0.35	1.060		200mesh	0.053	0.074
20mesh	0.30	0.970		250mesh	0.04	0.061
26mesh	0.28	0.696		300mesh	0.035	0.049
30mesh	0.25	0.596		325mesh	0.03	0.048
40mesh	0.21	0.425		350mesh	0.03	0.042
50mesh	0.19	0.318		400mesh	0.025	0.0385
Width of Stainless Steel Wire Mesh: 0.6m-8m





a. Fine mesh(>80 mesh):







b.Coarse Mesh(<80 mesh):

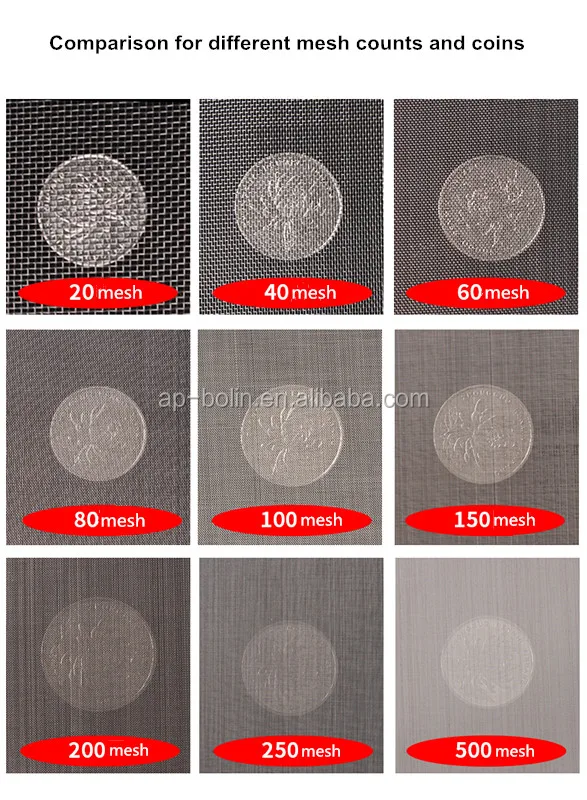

3. Comparison for different mesh counts and coins















Stainless Steel Filter Screens & Tubes & Caps:















Anping County Bolin Metal Wire Mesh Co.,Ltd is a professional manufacturer of all kinds of wire mesh filtering. Our company was established in 2004 and we have many year of history in the wire mesh industry.



Our main products  are stainless steel wire mesh, copper wire mesh, nickel wire mesh, filter tube, filter cap and so on.These products are widely used in the industries of oil, chemicals, food, pharmaceuticals, machine making, scientific research, marine engineering, chemical and hydro-carbon processing equipment, heat exchangers, valves, pumps, etc.



Our products are sold well in Europe,Southest Asia,Africa ,American countries etc and won the trust both home and abroad. Our company is of the advantage of locating “the land of wire mesh”, we have advanced equipments and our technological process is perfect.



Anping County Bolin Metal Wire Mesh Co.,Ltd peruses the policy of “to be honest and creditable”. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyer s to contact us.







OEM	Yes
Special Sizes or Shape	Yes
Customized packing	Yes
Sample	Can be offered or Made
Delivery time	Usually within 7-15 working days
Payment terms	T/T, Western Union, PayPal., Escrow, L/C
Optional Way of Transportation	Sea Transportation, Air Transportation International Express: DHL,TNT,DEDEX,UPS,EMS





Professional & experienced factory(over 20 years)

Professional design team& excellent sales team for your service;

Quick delivery& superior quality

Alibaba golden supplier& SGS report
