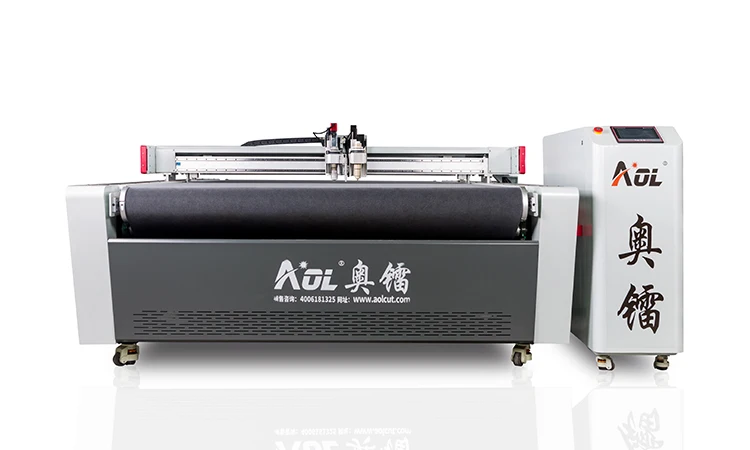

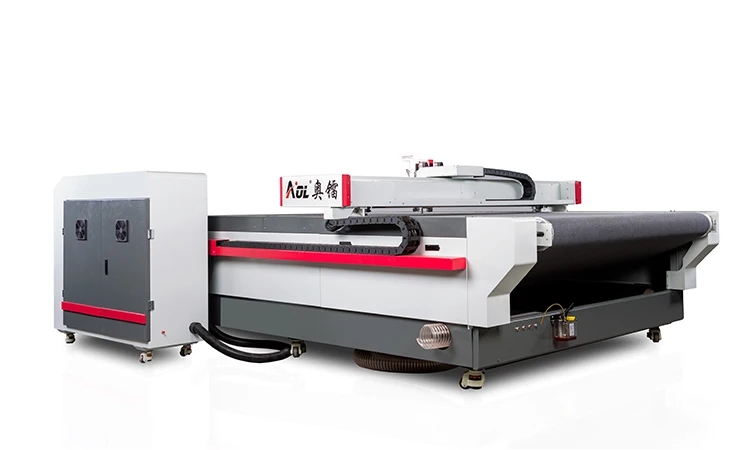

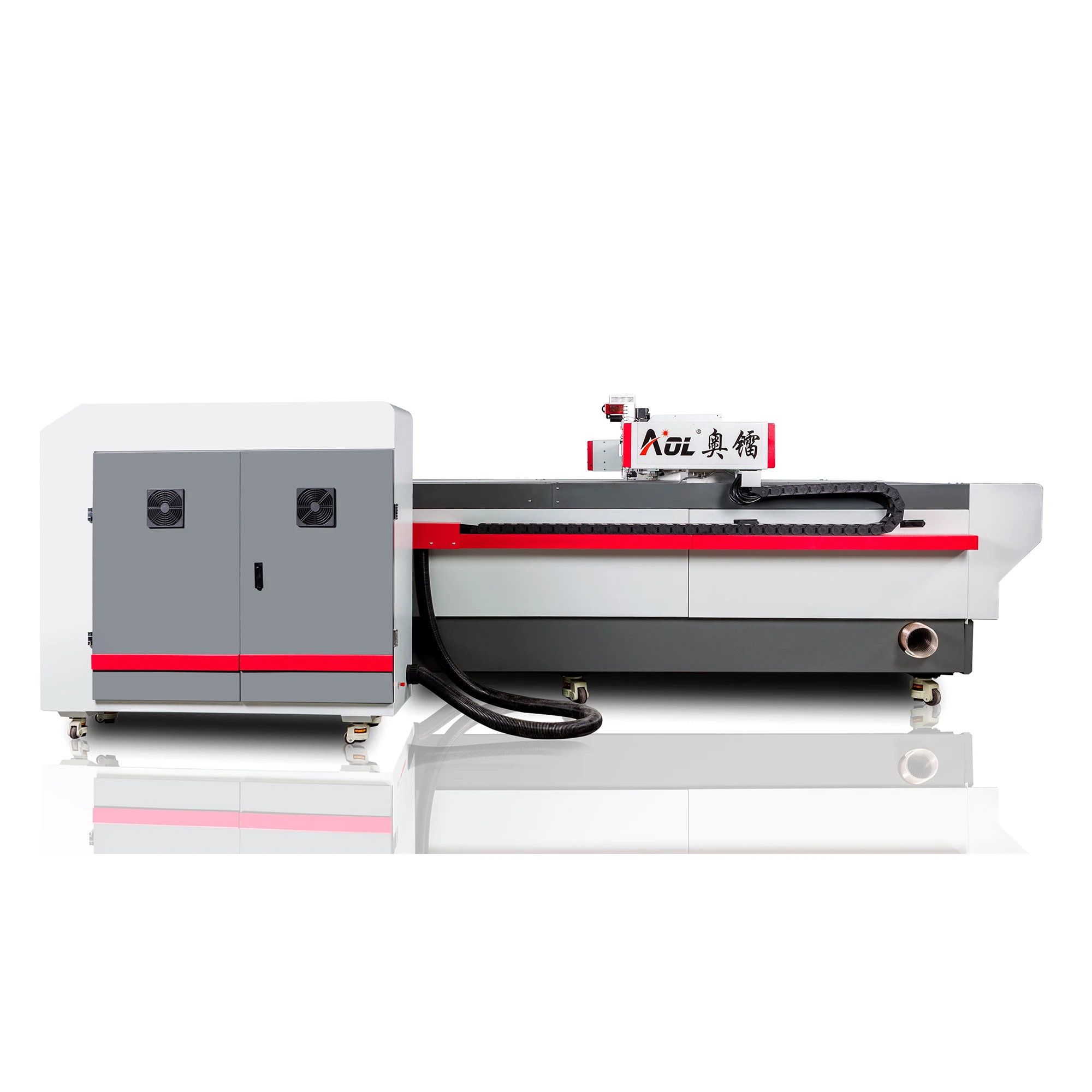

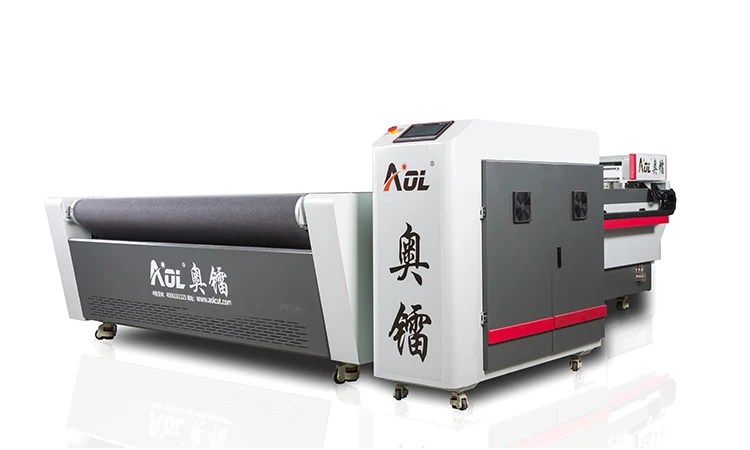

automatic gasket cutting manufacturing and marking machine
automatic gasket cutting manufacturing and marking machine
| This digital cutting machine work with your computer by Ethernet cable, you can send any design shape to this cutter for cutting purpose. It is able to cut Leather, cardboard, paper honeycomb, corrugated cardboard, glass fiber, carbon fiber, sticker, film, KT-board, foam board, rubber, cloth, fabric, gasket material, garment cloth, footwear materials, bags materials, non-woven fabrics, acrylic board, carpets materials, car mat materials, sponge, PU,EVA,XPE,PVC,PP,PE,PTFE,ETFE and composites. |
Product parameters
automatic gasket cutting manufacturing and marking machineof Product parameters
Technical parameters / model | AOL-1625-ZS6 | AOL-1825-ZS8 | AOL-2125-ZS10 | Accept different models | ||
Effective working area | 1600x2500mm | 1800x2500mm | 2100X2500 |
| ||
Multi-head optional | Double head optional efficiency doubled, double gantry optional, double head mutual shift optional, length can be customized | |||||
Multi-function tool | Vibrating knife full cutting, high power active round knife, punching tool, pneumatic knife, multi-layer knife | |||||
safety devices | Safety devices use infrared sensing, safe and reliable | |||||
Cutting speed | 200-2000mm/s | |||||
Cutting thickness | ≤50mm Other thicknesses can be customized according to the material | |||||
Applicable materials | Glass fiber, glass fiber cotton, prepreg, carbon fiber, carbon fiber felt, boron fiber, aramid fiber, ceramic fiber, soft glass, PVC, leather leather, sponge composite skin, XPE material, wire ring, leather, soft glass , silicone, rubber material etc composite soft material | |||||
Material fixing method | Vacuum partition adsorption | |||||
Transmission port | Network port | |||||
Transmission system | Yaskawa servo motor, linear linear guide, timing belt, lead screw | |||||
rated power | 11kw | |||||
Rated voltage | 380V±10%/220V±10% Optional | |||||
Control System | Chinese and English LCD touch screen | |||||
Operating environment | Operating environment Temperature 0-40°C Humidity 20%-80%RH | |||||
software | Automatic nesting software, template entry software(Optional) | |||||
Support file format | AI,PLT,DXF,CDRetc | |||||
Overall size | 3570x2290x1165mm | 3570x2500x1165mm | 3570x25800x1165mm | |||
Applied material of automatic gasket cutting manufacturing and marking machine
|
Click for More Information!!!
Company Information
Founded in 2010, Jinan AOL CNC Equipment Co., Ltd. is located in Jinan High-tech Industrial Development Zone, covering an area of over 12,000 square meters. It is one of the strongest flexible material cutting machinery enterprises in China, with advanced technology and strong strength.
AOL CNC is a high-tech enterprise specializing in R&D, production, sales and service of CNC cutting equipment. The company has a group of top talents with rich experience in development and application, specializing in the research and development of CNC cutting equipment. It relies on advanced technology and keeps up with the trend of industrial intelligent development in the world. Its products are spread all over the country and overseas markets. The main products include intelligent blade cutting machine. Flexible material cutting machine for flexible materials, laser cutting machine, cloth leather cutting machine, high-tech composite material cutting machine, laser engraving machine, laser marking machine, etc. Widely used in clothing, luggage, automotive interiors, fabric sofas, shoes, textiles, advertising, packaging, metal and other industries.
Companies adhere to the "market-oriented, customer-oriented and demand-based, quality service as the core" business philosophy, leading the development trend of industrial automation, is committed to providing the highest quality, all-round, integrated industry solutions for global users Customer-centric, continue to create maximum value for customers.
AOL CNC always insists on providing customers with the best quality support and service based on the customer's interests, technological innovation service and high-standard management mode and business model!
