Motherboard Recycling Machine Waste Pcb Board Electronic Component Recycling Dismantling Machine small pcb recycling machine
- Category: Waste Treatment Machinery >>>
- Supplier: Zhengzhou,Canmax,Machinery&Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Computer Circuit Board Mother Board Recycling Machine Price
Working principle:
1. Shredder machine:make the big pats of pcb board into small pieces.
2. Crusher:crushing the small partical into mixture powder of metal and resin.
3. Grinding machine: let the small board to powder
4. Pulse dust catcher:collect the waste dust ,make sure no are pollution.
5. Electrostatic separator:Most of final profuct will be out by those two outlets,one for metal and another for resin powder.
1. Shredder machine:make the big pats of pcb board into small pieces.
2. Crusher:crushing the small partical into mixture powder of metal and resin.
3. Grinding machine: let the small board to powder
4. Pulse dust catcher:collect the waste dust ,make sure no are pollution.
5. Electrostatic separator:Most of final profuct will be out by those two outlets,one for metal and another for resin powder.
Application
Main types of Computer Circuit Board Mother Board Recycling Machine Price:
Raw Material and Final Production
1> Electricity cable.
2> Electronic components.
3> Telephone cable.
4> Computer board.
Product Flow
Detail image
1. Dismantling machine |  | Capacity | 300 kg/ hr |
| Power | 0.75+2.2+3 kw | ||
| Weight | 700 kg | ||
| Size | 1.85*1.2*1.52 | ||
| Use the nature gas as the heat, the tin will loose when the temperature arrive at 200-300C. These electronic components will be separated because of scraping function between the circuit board when the rotary drum works. | |||
| 2. shredder machine |  | Capacity | 600-800KG/hour |
| Power | 15*2KW | ||
| Blades No | 24 pieces | ||
| Weight | 1700KG | ||
By cutting, tearing and extrusion materials to achieve reduced size, this shredder is widely used in waste plastics, rubber, wood, straw and other large the volume of waste. | |||

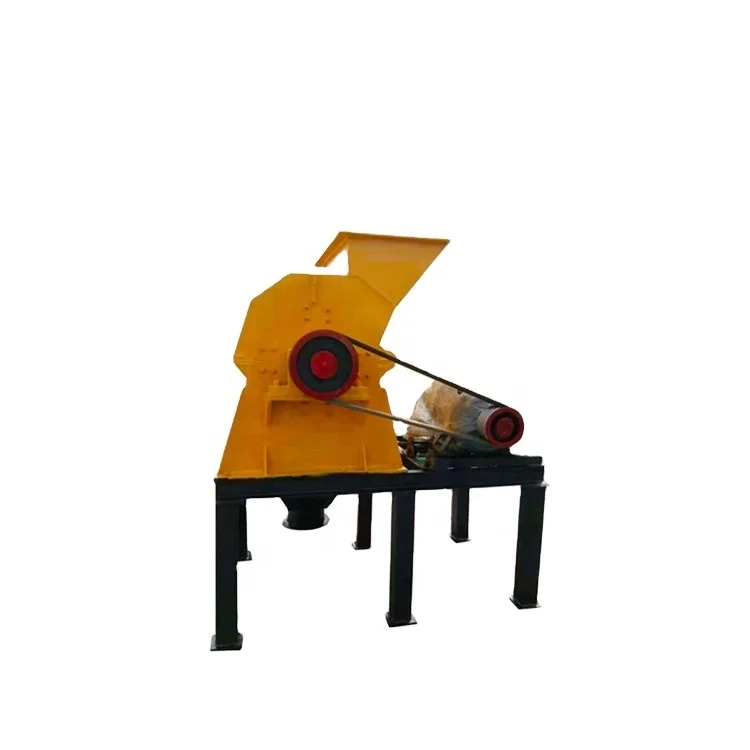

| 3. Crusher |  | Capacity | 500kg/hr |
| Power | 37 kw | ||
| Weight | 2.1ton | ||
| Size | 1800×1600×2600mm | ||
| Metal crusher has low noise, non-pollution, high crusher tatio with uniform discharging, it can adjust the feed particue size, stable performance | |||
4. Grinding Machine |  | Capacity | 300-400 kg/hr |
| Power | 42 kw | ||
| Water recycling system | Included | ||
| Output size | Adjustable | ||
| New abrasive disk design, high capacity, good wear restance, the service life is two times longer than the common abrasive disk, Feedback system makes the grind more effective | |||
| 6.Airflow Separator |  | The airflow sorter is also a specific gravity sorting method. The materials of similar size and different specific gravity have different weights. Through the joint action of the blower and the induced draft fan and the from the discharge ports at the front and rear ends. Thereby achieving the purpose of sorting. Used in copper&plastic, aluminum&plastic, copper&aluminum and other materials with large differences in specific gravity | |
| 5.Impulse dust catcher |  | Related | Sealant Included |
| Selant washer Included | |||
| The impulse dust catcher has the simple construction to process dust pollution in the production process It effectively solves the dust pollution problem | |||

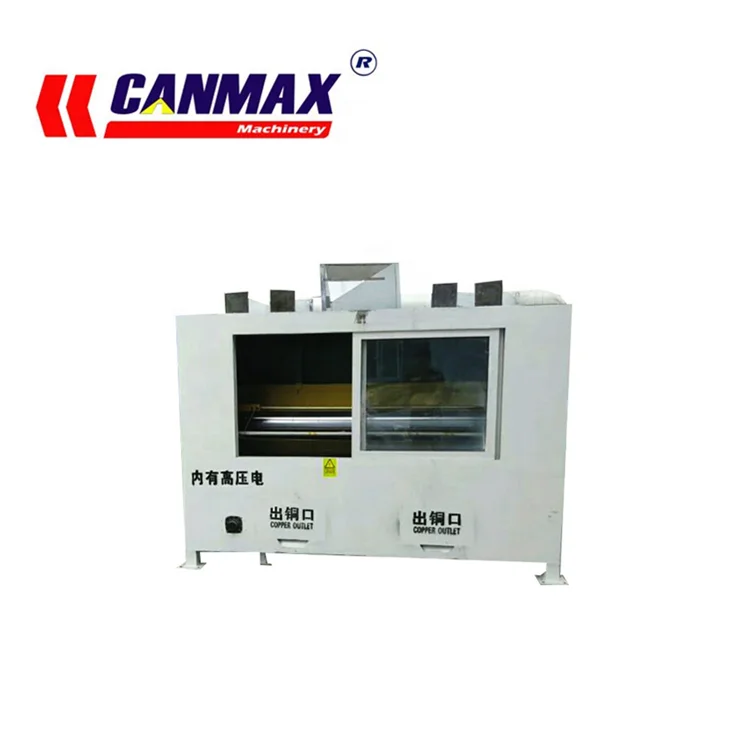

| 7.Electrostatic separator |  | Input Dimension | <0.85mm |
| Capacity | 300-500kg/hr | ||
| Output rate | ≥95%, ≤2% | ||
| Power | 1.1kw+2.2kw | ||
| High voltage electrostatic separator adopt physical high voltage separating tech to separate conductive material from the non-conductive material. | |||

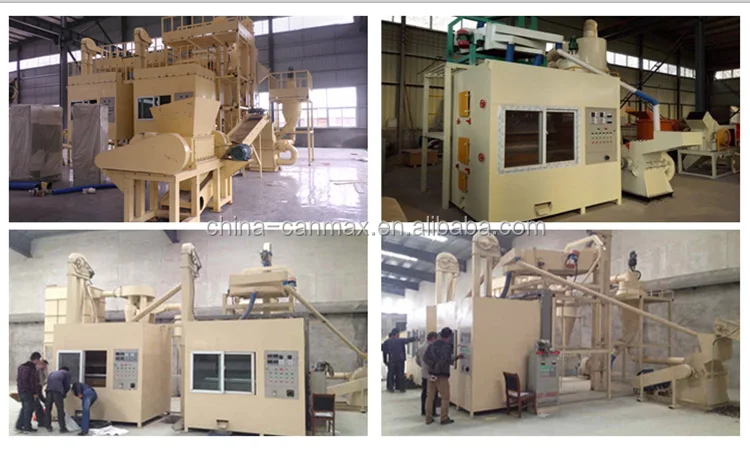

project case

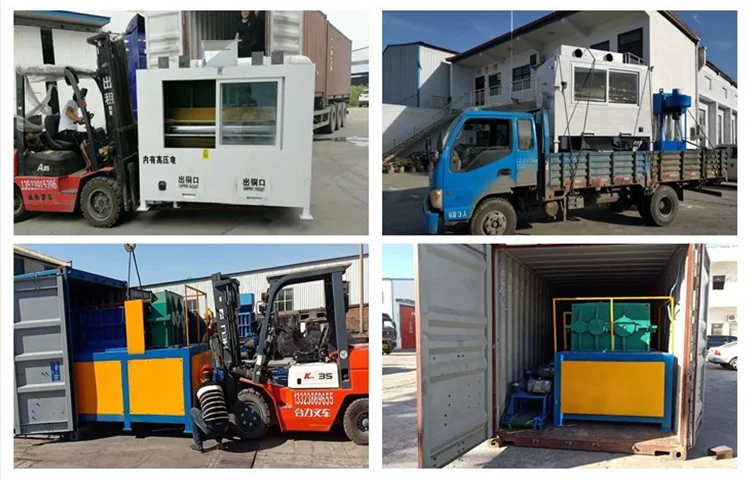

Packaging & Shipping
FAQ
Q: What about your delivery time ?
A: 10 days after received deposit if we have stock;
15-20 days after received deposit if we need produce according to your request.
Q: What about your quality warranty?What u will do if there is some wrong with my machine in this period ?
A: Our products have 12 months quality warranty.We will send wear parts freely and dispatch our engineer to your country to repair it if need.
Q: I want to buy a plant of your machine,but I do not know how to install them and how to
run the entire line .could you help me ?
A:Our senior engineer will make a project drawing for your reference first.
The drawing will point out the machine size/space cost. even the worker numbers suggestion.
Our engineer will help to install the machine personally.
Q: What can I do if the machine can not work?
A: We appreciate that if you can send us a video to show the machine situation .
Our engineer will try to find out the problem and reply you soon. if it can not be solved through our guidance. Our engineer will come to your country and fix the problem personally
(Except intentionally)
Q: How I go to visit your factory?
A: Our factory located at Heluo Road, New East District, Gongyi city, China. We have an office in Zhengzhou city .We suggest you go to Zhengzhou city first by plane or railway. We will pick you up and go to factory directly.
